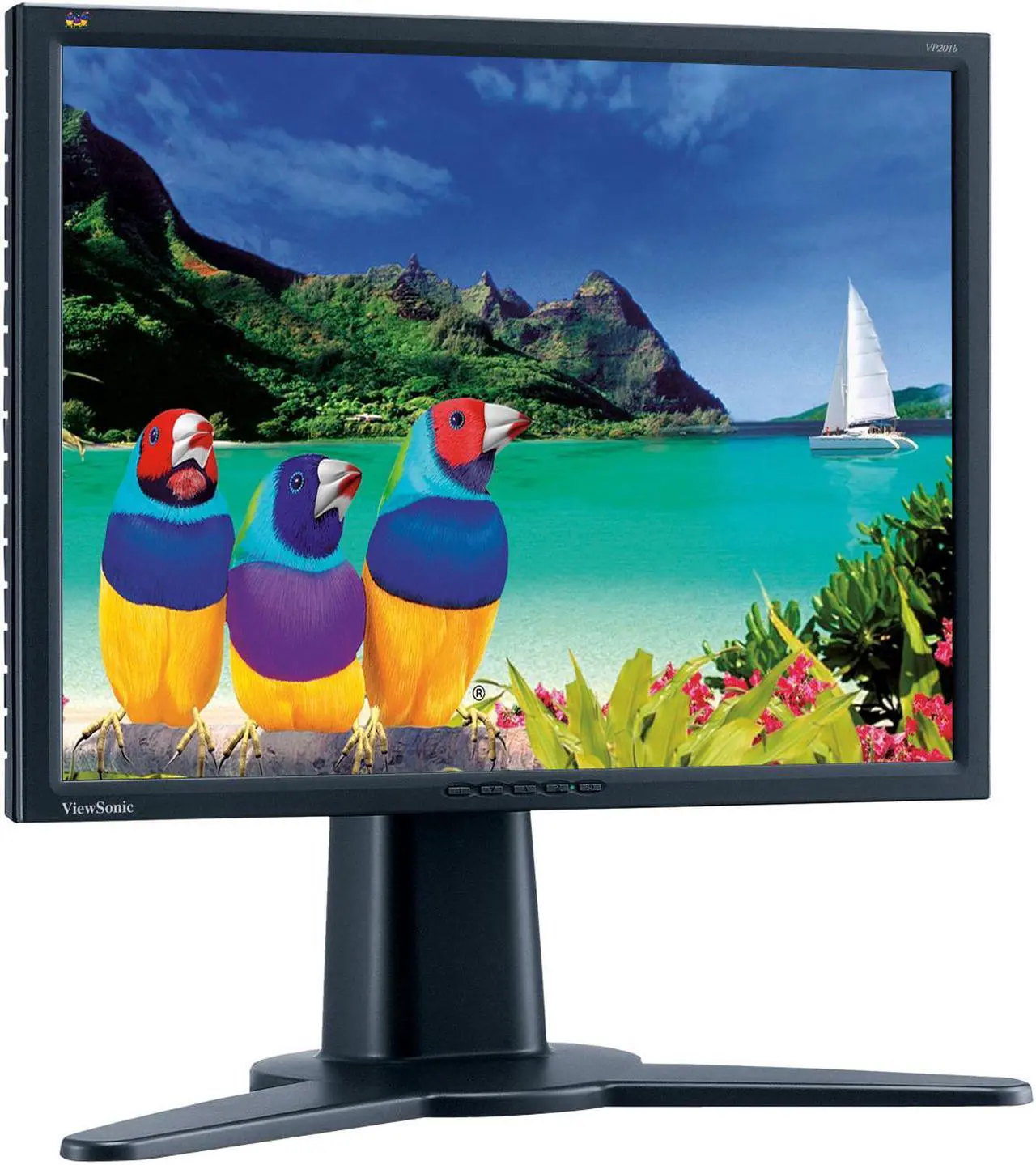

Brand | ViewSonic |
---|---|
Model | VP201B |
Cabinet Color | Black |
Screen Size | 20.1" |
---|---|
Widescreen | No |
Maximum Resolution | 1600 x 1200 |
Resolution | 1600 x 1200 |
Viewing Angle | 176° (H) / 176° (V) |
Monitor Pixel Density | 0.255mm |
Display Colors | over 16 Million |
Brightness | 250 cd/m2 |
Contrast Ratio | 400:1 |
Response Time | 16 ms |
Panel | Active Matrix, TFT LCD |
Display Type | UXGA |
Horizontal Refresh Rate | 30~92 kHz |
Vertical Refresh Rate | 50-85 Hz |
Input Video Compatibility | RGB analog (75ohms, 0.7/1.0 Vp-p) Digital (TMDS, 100 ohms) |
---|---|
Connectors | 15-pin mini D-sub, Digital DVI-I, USB V 2.0 Up stream (B type) x1; Down stream (A type) x4 |
D-Sub | 1 |
DVI | 1 |
Complies with | Meets TCO standards |
---|---|
Power Supply | AC 100–240V (universal) 50-60Hz |
Power Consumption | 70W(typ) |
User Controls | Basic : Power, 1, down, up, 2 OnView : Auto image adjust, contrast, brightness, input select (D-sub, DVI-A, DVI-D), color adjust (9300K, 6500K, 5400K, 5000K, user color), information (H/V frequency, resolution, model number, serial number, web site)manual image adjust (H. size, H/V position, fine tune, sharpness, scaling), setup menu (language, resolution notice, input priority,OSD position, OSD timeout, OSD background, OSD pivot), memory recall |
---|---|
Regulatory Approvals | UL, cUL, FCC-B, CB, CE, NOM, TUV/GS, TUV ERGO (covers ISO13406-2 and MPR II), TCO’99, NEMKO, SEMKO, DEMKO, FIMKO, GOST-R, Hygienic, SASO, PCBC, VCCI, BSMI, CCC, PSB, C-TICK, TUV-S |
Stand Adjustments | Height, Pivot, Swivel, Tilt Adjustments |
Built-in TV Tuner | No |
Built-in Speakers | No |
Features | •ThinEdge maximizes your productivity •Ideal for multiple-monitor setup •Pivot, height and wall-mount versatility •Optisync analog/digital inputs and integrated USB hub •Integrated power supply with hard power switch •HDTV- 720p ready •ClearMotiv™ technology •Image clarity from all directions •TCO 99 qualified |
---|
Dimensions (H x W x D) | 17.6" x 18.9" x 10.5" |
---|---|
Weight | 18.7 lbs. |
Temperature Range | 32–104°F (0–40°C) |
---|---|
Humidity Range | 10–90% (non-condensing) |
Date First Available | August 14, 2003 |
---|
