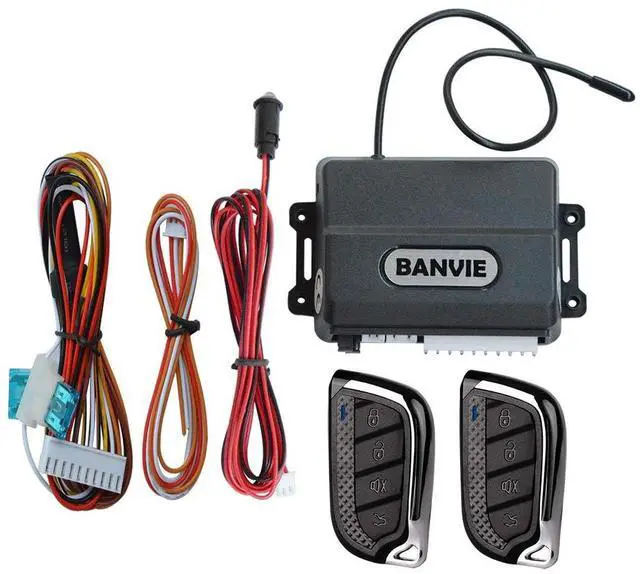

BANVIE Car Keyless Entry System, Car Central Power Door Lock with 4 Button Remote Control Transmitter, Electrical Anti-Theft installations for Vehicles

Features:

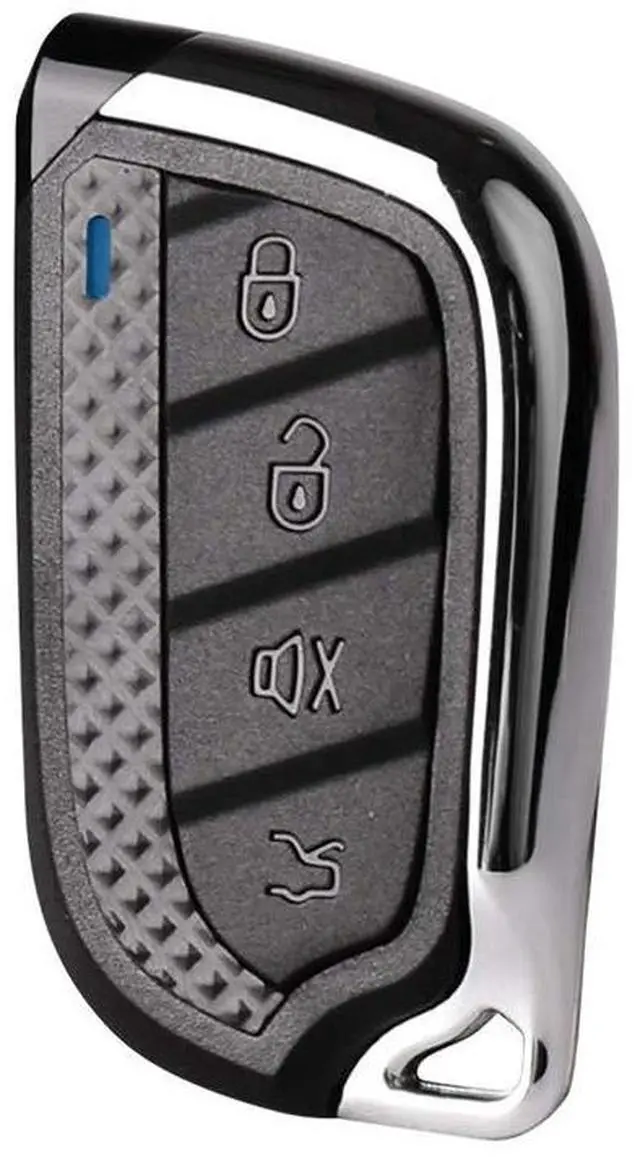

1. Unlock

Press the unlock button once on the remote, the central lock will be unlocked and the parking light will gleam twice, LED stop blinking.

2. Lock

Press the lock button once, the central lock will be locked with the parking light gleam one, the LED indication will blink.

3. Car finding

In arm status, press the lock button for 2 seconds, the flash light will gleam 10 times to reminding the car owner.

In any status, press the locating button once, the parking light will gleams 10 times.

4. Trunk Release

Press and hold the unlock button for 2s to release the trunk.

Press and hold the trunk button for 2s, the flash light will gleam 3 time then the trunk will be released.

5. The trunk output +/-option

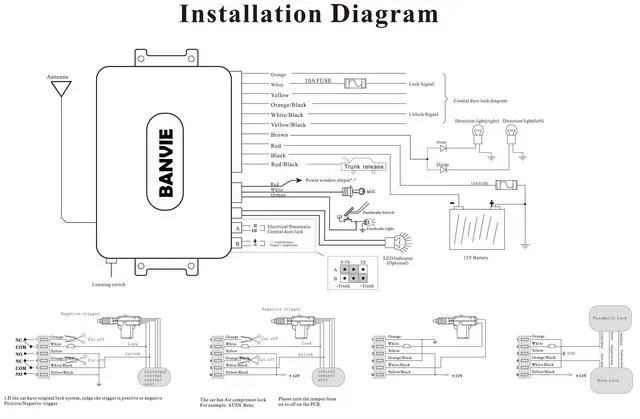

There are jumper for trunk release output +or - option, The factory setting , trunk release output is +, please check the diagram for option.

6. Central Door Locking System Time Option:

If it is electric central lock system , please plug in the jumper for 0.5s, if it is pneumatic one please choose time 5s .

7. Window rolling up (if your car with window closer module)

In Disarm status, press the button once, the central door lock will unlock, the parking light gleam once, the system will give 21s negative output for window closing(a extra relay is needed for +output).

8. Central door lock automatically

When moving and all door are closed well, press the button and on the remote, to lock or unlock the central door lock.

When moving and all door are closed well, then press the foot-brake after 5 second, the central door lock will locked automatically, after parking and take off the key, the door will unlocked.

9. Code learning

Technical Specification

1. Working voltage: 9-15V

2. Static current: 12mA
