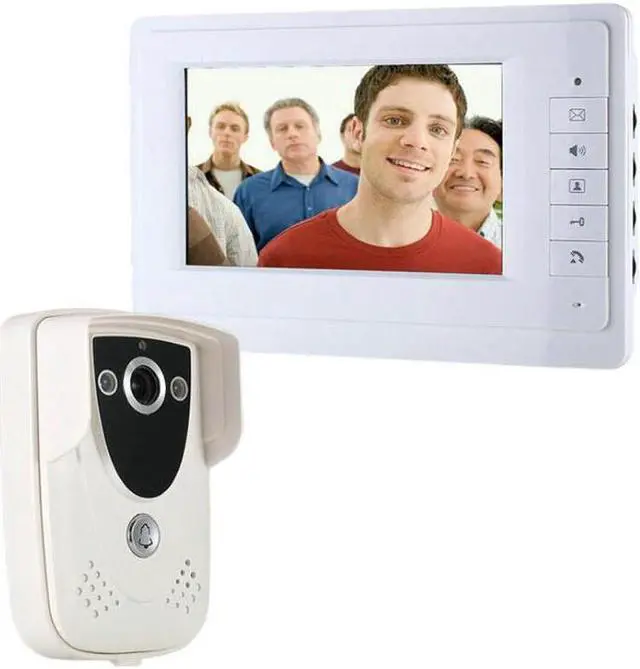

7 inch wired color TFT video intercom doorbell infrared night vision rainproof

model: SY819FC11

Features: with monitoring, intercom, unlock, hands-free, ringtone selection, ringback function
1, 7-inch TFT LCD, no radiation, low power consumption, high definition widescreen image.
2, hands-free intercom function.
3, with call ringback function.

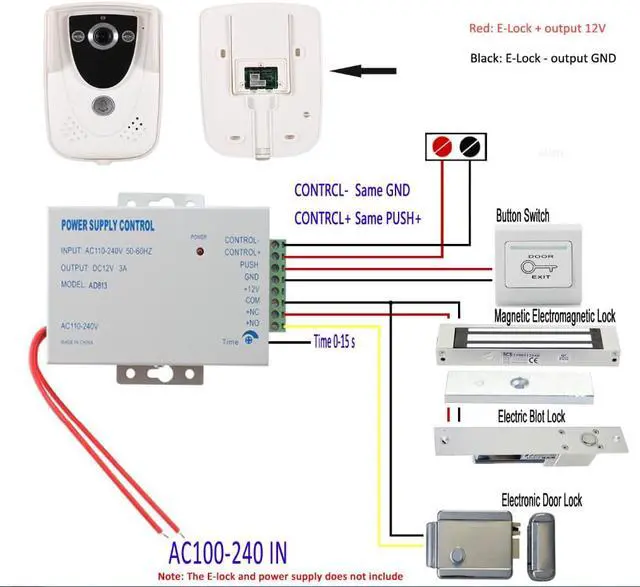

3, electronic control unlock function.
4, there are functions outside the surveillance.
5, image brightness, chroma, ringtone volume, intercom volume can be adjusted.
6, anti-alumina panel and wear-resistant surface treatment of the outdoor unit, the camera can be adjusted up and down and left and right.
7, indoor unit ultra-thin aluminum panel design, beautiful and full of luxury style.
8, 16 kinds of chord sounds are optional, you will not always hear monotonous doorbells.
9, super rainproof, with night vision infrared function, wall-mounted installation is simple and convenient.

Performance parameters:
1, switching power supply: AC220V--50Hz DC15V 1.2A
2, the whole machine current: less than 800mA
3, call delay time: 120S ± 10%
4, monitoring delay time: 60S ± 10%
5, camera sensor: 420 lines
6, lens: 3.6MM92 degrees
7, outdoor unit with infrared night vision function

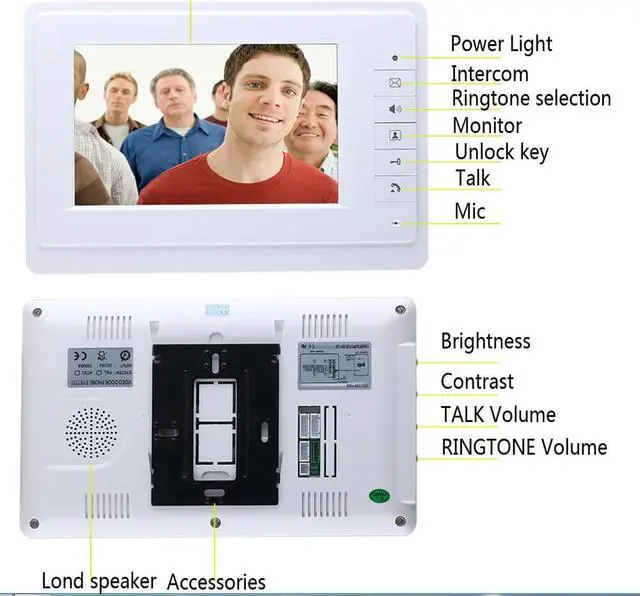

8, indoor unit dimensions: 240 × 150 × 20mm

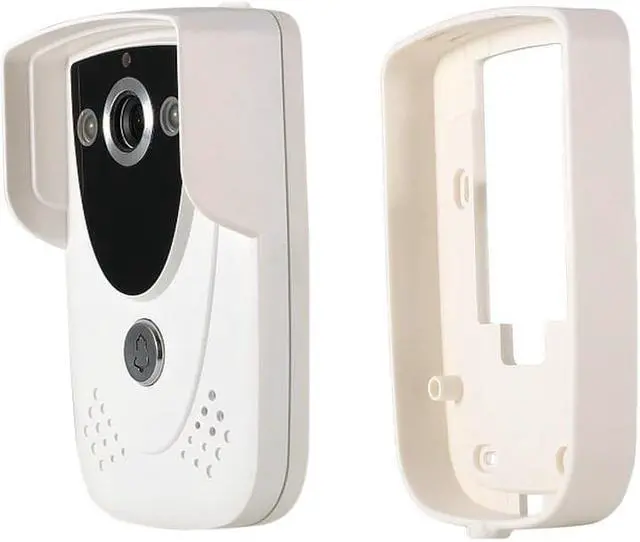

9, outdoor unit dimensions: 150 × 95 × 45mm

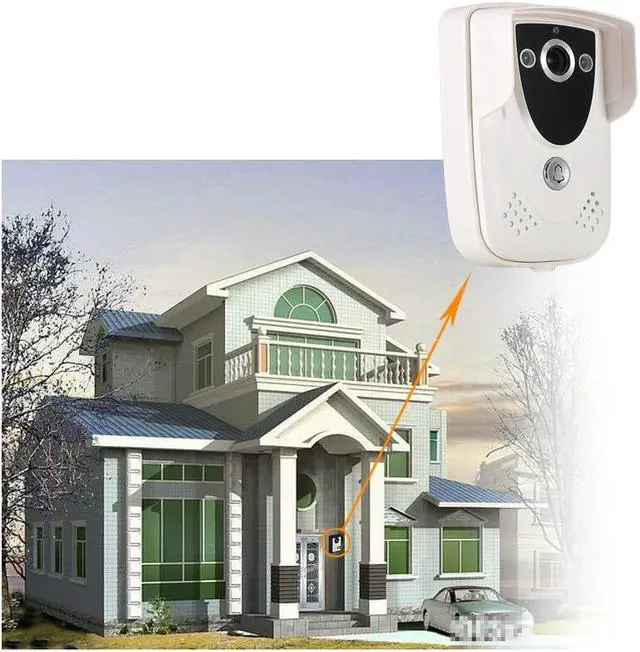

10, outdoor installation: wall-mounted

Product List:
1, 7 inch color LCD display indoor extension x 1
2, outdoor host x1

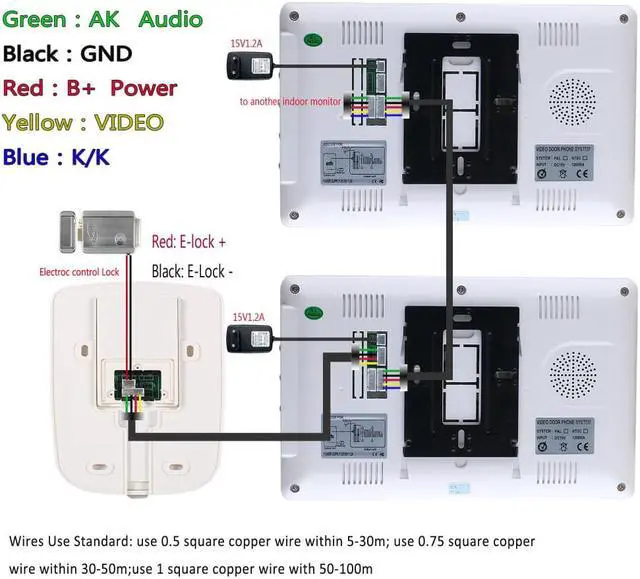

3, 1 meter four core cable x1
4, 4 core terminal line x 2
5, 2 core terminal line x 1
6, switching power supply x1
7, User manual x1
8, the screw package x1
