CKL 4K KVM Switch Dual Monitor for 2 Computers 2 Monitors (HDMI+ HDMI 4K@30Hz)

CKL Dual Monitor HDMI KVM Switch 2 Port is designed to control 2 dual-output computers or laptops and other applicable devices, using one set of keyboard, mouse and 2 monitors for extended, duplicated or spliced display at the same time.

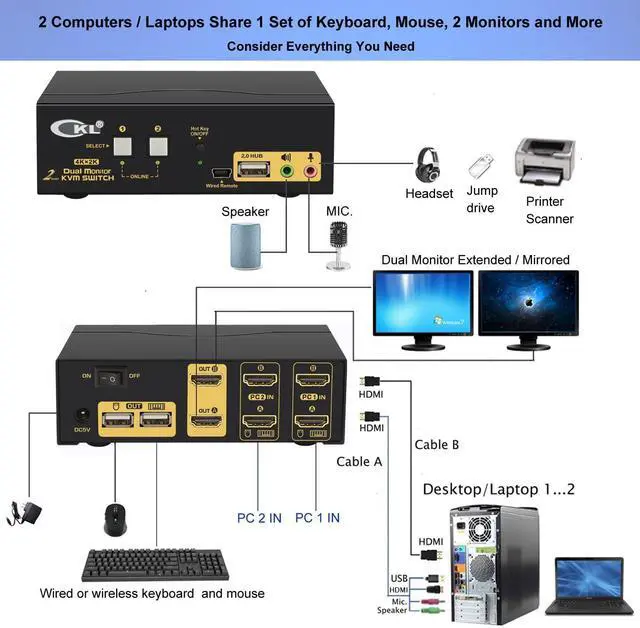

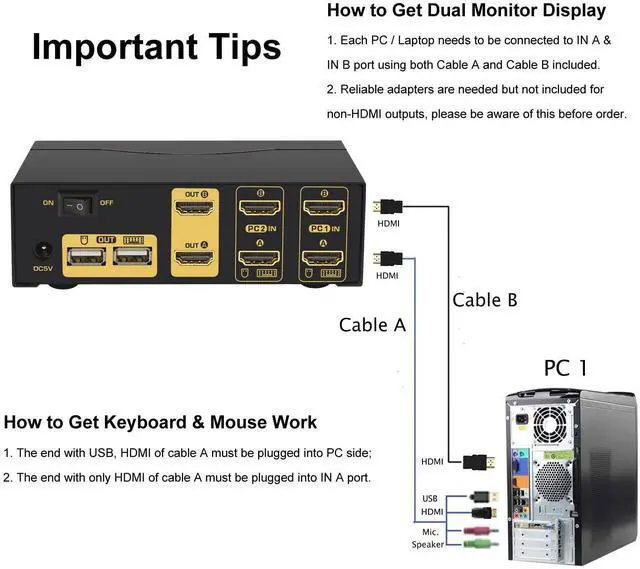

How to Get Dual Monitor Display:

Make sure to connect both cable A and B from each computer to IN A & IN B of the KVM Switch

Reliable adapters are needed but not included for DVI, VGA, Display Port (DP) and USB C video outputs, please be aware of the adapters you might need for your set-up before order.

Avoid using adapters on both computer and monitor side simultaneously for a same video flow.

How to Get Keyboard & Mouse Work:

Make sure the USB of Cable A is plugged into each computer, the other end with HDMI only goes to IN A port on KVM not IN B port.

Scenario 1: Standard wired or wireless 104-key keyboard and 3-button mouse.

Plug them into rear USB mouse and keyboard port respectively. Wireless adapter goes to USB keyboard port.

Scenario 2: Gaming, multi-media, mechanical, optical keyboard and mouse that are not well supported on rear USB ports

Turn off the hotkey by pressing the Hotkey On/Off (do not hold on to it), the rear USB ports will turn into standard USB2.0 HUBs, so there will be 3 USB2.0 HUBs for connecting your special keyboard, mouse and other USB devices. Next plug in the wire remote switcher and use the convenient one-button wired remote selection instead.

Technical Support:

Whenever you have difficulties using our product, try not deal with it on your own, lets make it easy together!

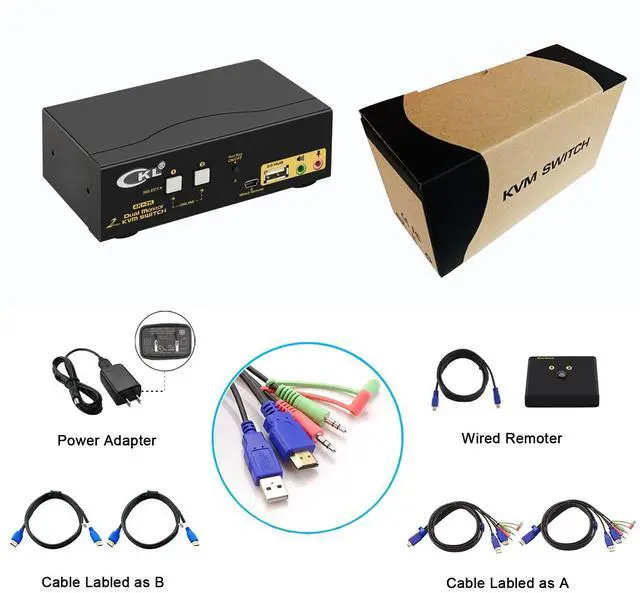

Whats in the Box:

1* 2 Port dual KVM

2* KVM cable A 4.92 ft.

2* Standard HDMI cable B 4.92 ft

1* User manual

1* Remote switcher with wire (5.9 ft)

1* DC 5V power adapter (US plug)

Note: Monitor cables are not included.
