CKL 4K KVM Switch Dual Monitor for 2 Computers 2 Monitors (HDMI + VGA)

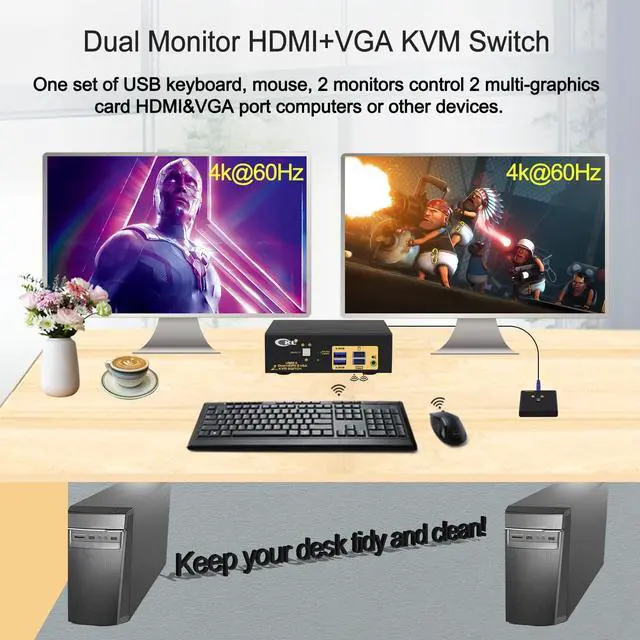

CKL Dual Monitor HDMI+VGA KVM Switch 2 Port is designed to control 2 dual-output computers or laptops and other applicable devices, using one set of keyboard, mouse and 2 monitors for extended, duplicated or spliced display at the same time.

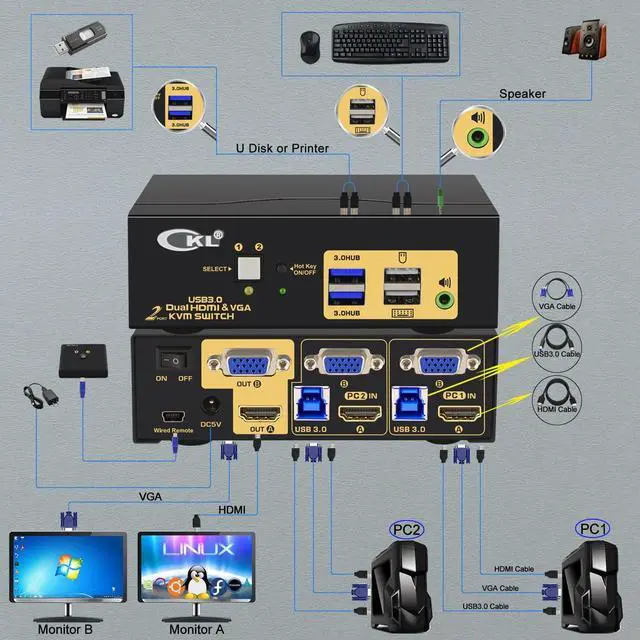

How to Get Dual Monitor Display:

Dual monitor display requires 2 video connections from each computer to the KVM Switch with the cable A and B included.

Scenario 1: Computer with HDMI + VGA Out (Recommended):

No adapter needed except any adapter needed for monitor.

Scenario 2: Computer with VGA + DP / USB C Out

Need standard DP or USB C to HDMI adapter to connect with HDMI IN A port.

Scenario 3: Choose other models from the variation for scenarios other than above.

Note: Adapters are not included. Please be aware of the adapters needed for your set-up before purchasing.

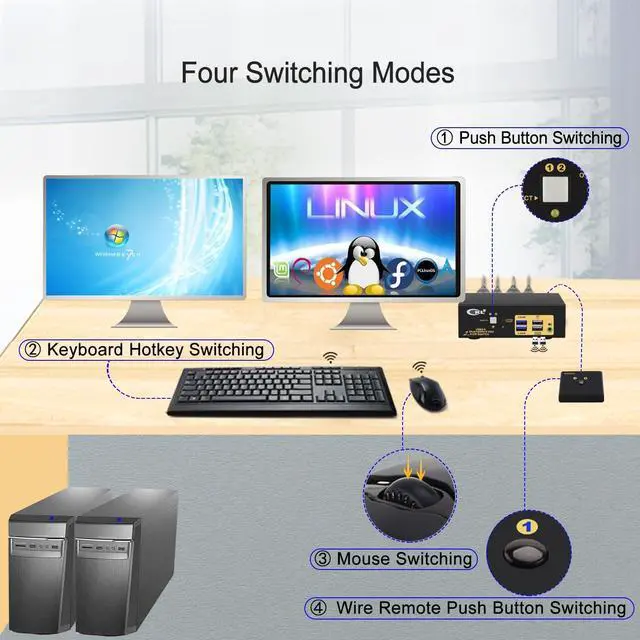

How to Switch (Refer to manual for details)

1.Keyboard hotkey

2.Mouse click

3.Push button

4.Wired remote

5.Auto scan

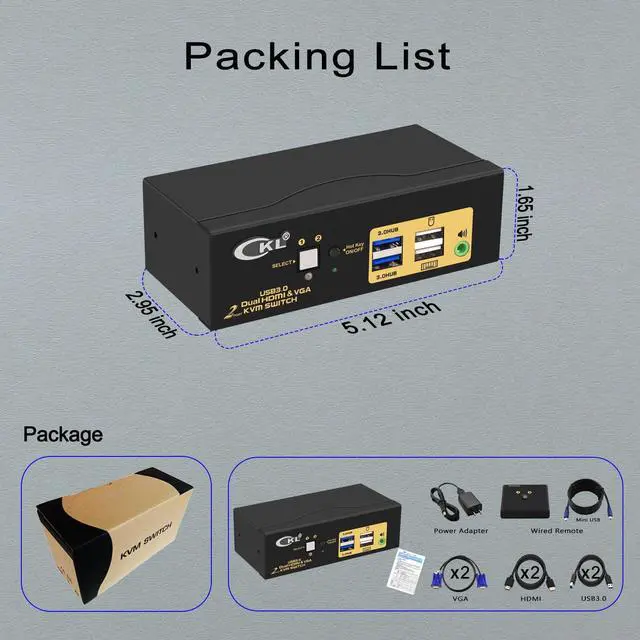

What's in the Box:

1* 2 Port KVM

2* HDMI KVM cable A 4.92 ft. 2* Standard VGA Cable B 4.92 ft

1* User Manual in English

1* Remote switcher with wire (5.9 ft)

1* DC 5V Power Adapter

Warm Tips:

Some gaming, mechanical keyboard and mouse may not work well from rear USB ports , we added a hotkey on/off button and a wired remoter. By turning hotkey off, the rear USB ports become standard USB2.0 Hubs, so you will have 3 USB 2.0 Hubs for connecting special keyboard, mouse and other USB devices, and use convenient one-button remote switch instead.

Additional Features

• [HDMI & VGA Switch with Convenient Switch Modes]: 1. Hot key switching on keyboards that support all operation system; 2. Switch via Mouse Click (Industry Leading Technology); 3. Toggle selection on front panel; 4. Auto scan switch with adjustable interval (8-999 second). 5. Wired remote switch
• [Enjoy High Resolution with Auto EDID and Audio Support]Supports 4K@60Hz (3840*2160@60Hz) for HDMI and 2048*1536@450MHz for VGA high quality pictures; supports separate audio and microphone output.
• [USB 3.0 KVM Switch HDMI & VGA]The integrated 2 USB 3.0 HUB ports allows you to share 2 more USB peripherals like printer, scanner, webcam and hard disk between 2 computers with data transfer rate up to 5Gbp/s (10 times faster than USB 2.0); The USB 3.0 cable Also draws power from USB 3.0 port on computers to drive the KVM switch;
