Vszerda 8K@60Hz Displayport +2 HDMI USB3.0 KVM Switch 3 Monitors 4 Computers, 2 HDMI 2.1 + DP 1.4Triple Monitor KVM Switch with Audio Microphone +3 USB3.0 Ports, Triple Monitor Keyboard Mouse Switcher

8K@60Hz 4 Port USB 3.0 Triple Monitor 2 HDMI + DisplayPort KVM Switch for 4 Computers Sharing 3 Monitor and 3 USB 3.0 Ports, Audio & Microphone

1. 8K Triple Monitor KVM Switch 4-Port allows 4 computers/laptops share one set of keyboard, mouse, and 3 monitors (2 HDMI + 1 DisplayPort)

2. Support HDMI 2.1 and DP 1.4 standards and downward compatible. 3 monitors output support up to 8K@60Hz for extended,mirrored or spliced displayDepends on your computer's graphics card.;

3. 2 Switching modes: Button switch and wired remote.

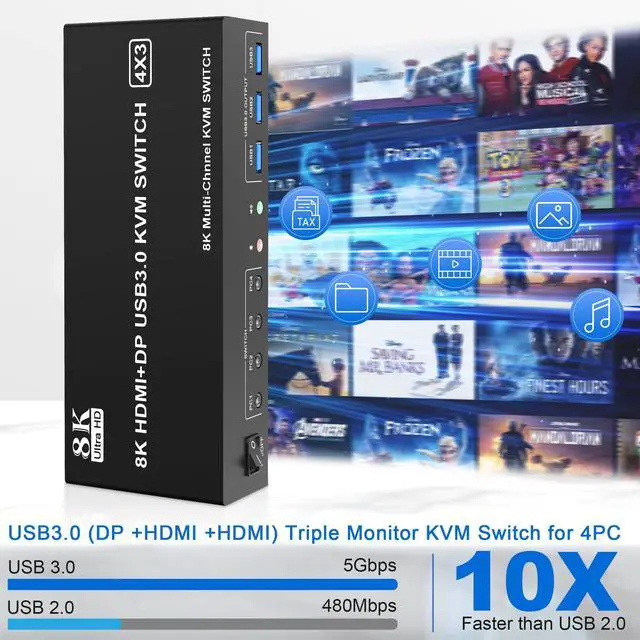

4. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output

5. The ports that need to plug in HDMI/DisplayPort/USB cables are all hidden behind the triple monitor KVM switch, so the desktop doesn't get cluttered, you can enjoy the clean work space.

Ultra HD 8K@60Hz Triple Monitor KVM Switch

Confirms to HDMI 2.1 & DP 1.4 protocol, supports a maximum resolution of 8K@60Hz, and is compatible downwards.

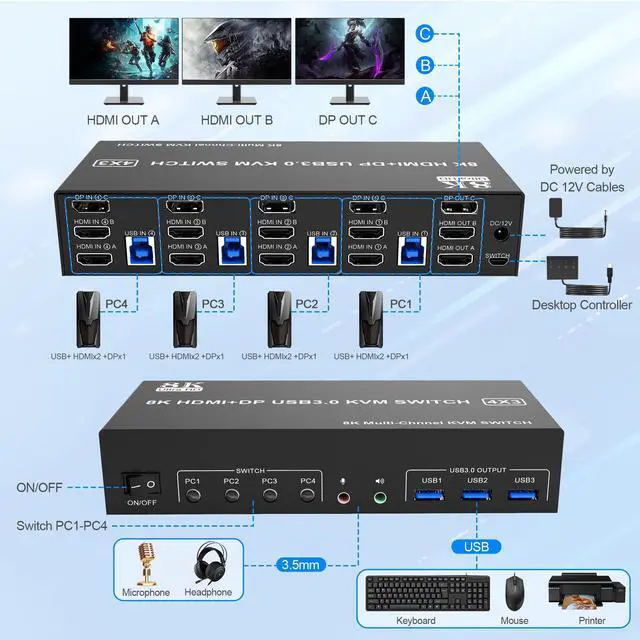

installation steps:

1. Insert the DC/12V adapter into the KVM ;

2. Plug the 2*HDMI cable and 1*DisplayPort cable into the KVM switch and monitor;(Output)

3. Plug the DisplayPort cable, HDMI cable, and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included)(Input)

HDMI IN 1A + HDMI IN 1B + DP IN 1C + USB IN 1=PC1

HDMI IN 2A + HDMI IN 2B + DP IN 2C + USB IN 2=PC2

HDMI IN 3A + HDMI IN 3B + DP IN 3C + USB IN 3=PC3

HDMI IN 4A + HDMI IN 4B + DP IN 4C + USB IN 4=PC4

Please check whether HDMI IN 1A, HDMI IN 1B, DP IN 1C, and USB IN 1 are corresponding, and whether HDMI IN 2A, HDMI IN 2B, DP IN 2C, and USB IN 2 are corresponding. Mixed insertion is not supported. The same goes for PC3 and PC4.

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port
