Vszerda Card Wireless NGFF A/E-Key WiFi Card to PCI-E Express 1x Adapter for WLAN Wifi6 Wifi7 Bluetooth (PCIE to A+E)

M.2 Key E to PCIe X1 WiFi Bluetooth adapter with SMA Antenna Kits, work with NGFF M.2 WiFi module, as well as Coral TPU (M.2 Accelerator A+E key)

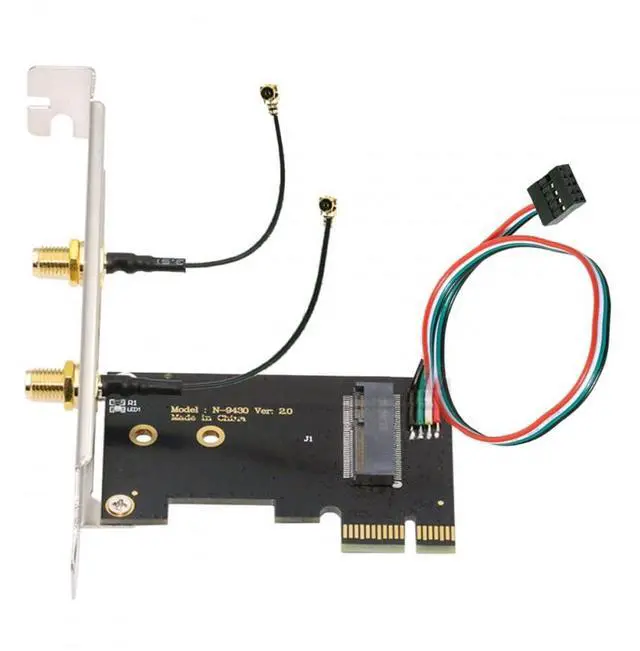

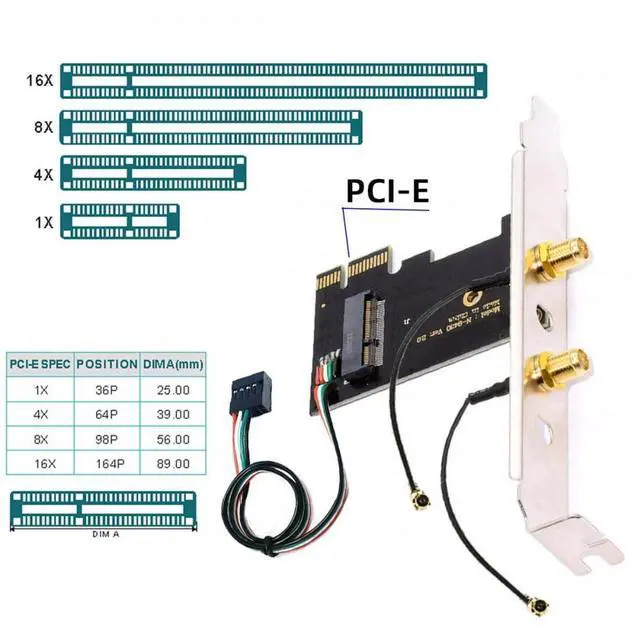

Wireless NGFF A/E-Key WiFi Card to PCI-E Express 1x Adapter for WLAN Wifi6 Wifi7 Bluetooth,Convert the PCI-E interface of the motherboard to M.2 KEY A-E or KEY E interface. Supports PCI-E 1X 4X 8X 16X connector. No additional power required. Small body and stable performance.

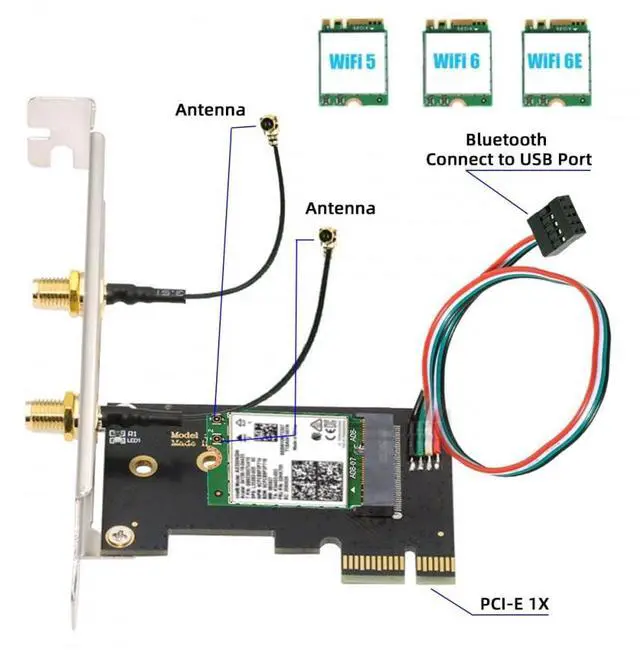

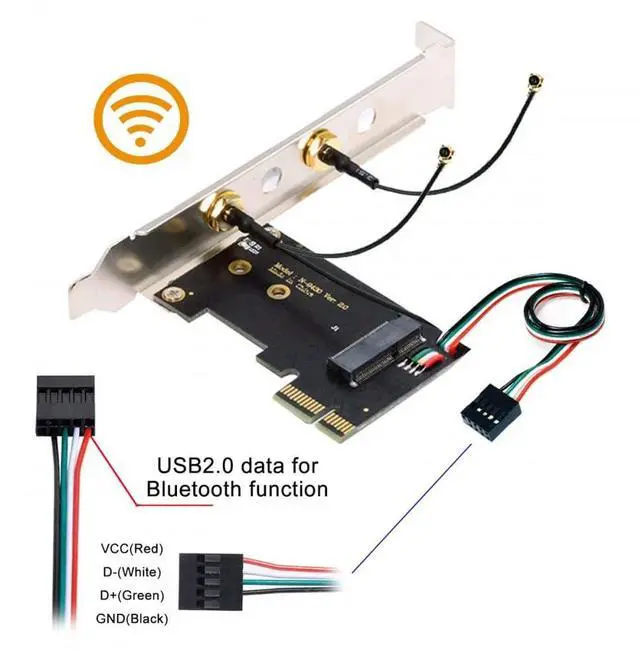

The WiFi signal goes through the PCIe X1 interface, and the Bluetooth signal goes through the USB interface (To enable Bluetooth: The USB cable needs to connect with the motherboard USB port). Supports only the desktop PC and using on PCI-E port.

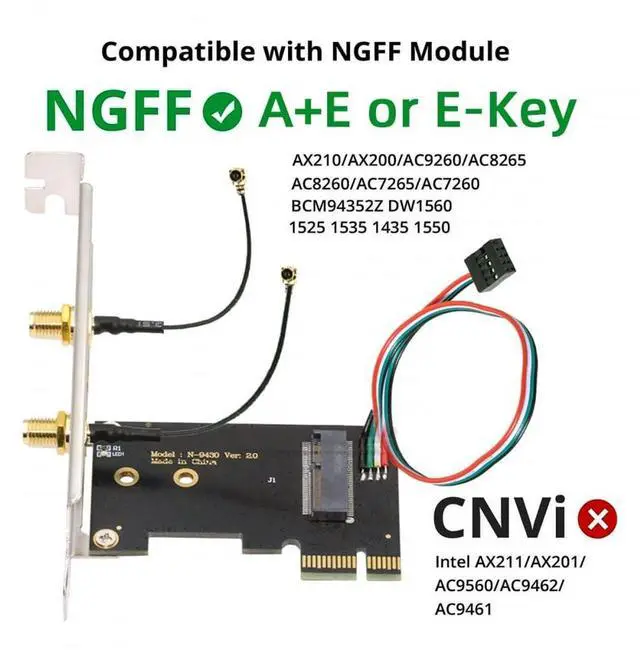

Triple Band 2.4GHz 5GHz 6GHz Antenna: 6 dBi RP-SMA Male antenna.Compatible with BE200NGW, AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW, 7260NGW, and NGFF M.2 2230 Interface (Key E/A+E) WiFi module. Support WiFi 4/5/6/6E/7, Bluetooth 4.0/4.1/4.2/5.0/5.1/5.2/5.3/5.4

Features:

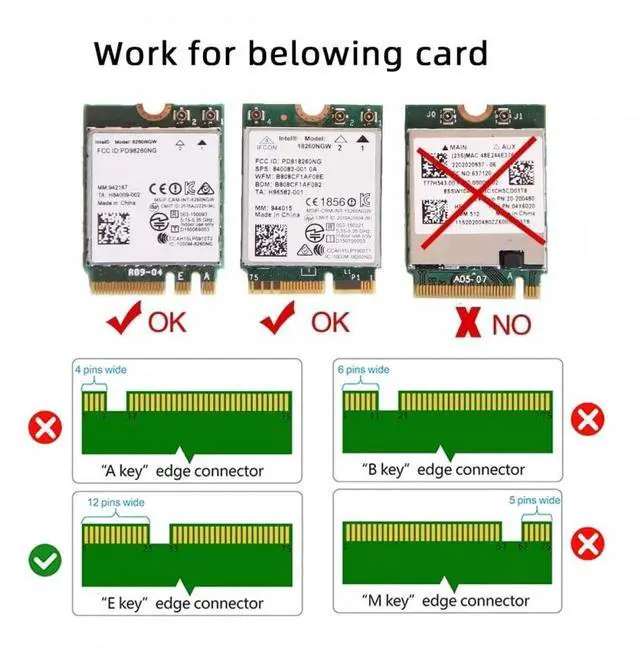

1. This product only supports A+E key and E key M.2 NGFF PCIE protocol wireless network card type wireless module.

2. Some M.2 NGFF wireless network cards do not support AMD motherboards. OS compatibility: DOS/Windows/Linux/Mac OS (Based on your WiFi module Compatibility).

3. The riser card only changes the interface form of the wireless module and does not change any performance of the module.It is only a signal converter and does not need a driver. But you may need to install a driver for your M.2 WiFi module.Pre-installed 12cm regular-profile bracket.

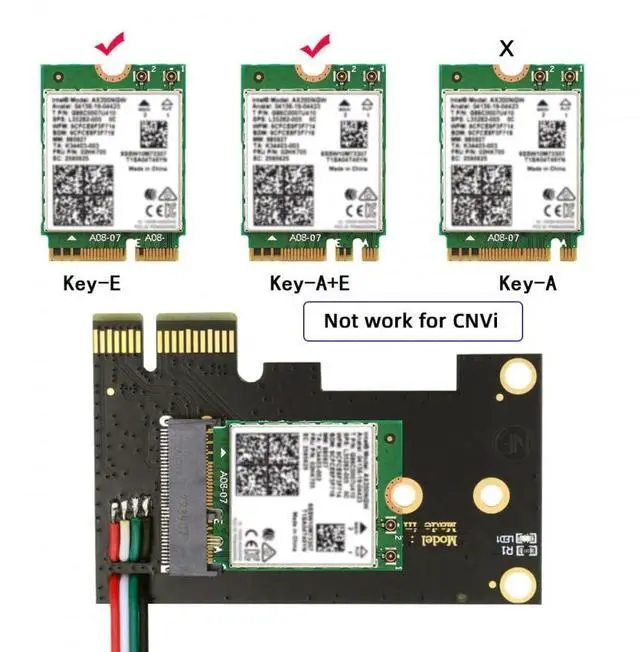

4.This adapter does not support any A Key and E Key CNVIwireless network cards. To be noted: can not work with M.2 CNVio2/CNVio interface WiFi module, such as intel AX211NGW, AX201NGW, AC 9560NGW, AC 9462NGW, AC 9461NGW, etc. Not support Mini PCIe WiFi module.

Additional Features

• This adapter does not support any A Key and E Key CNVIwireless network cards. To be noted: can not work with M.2 CNVio2/CNVio interface WiFi module, such as intel AX211NGW, AX201NGW, AC 9560NGW, AC 9462NGW, AC 9461NGW, etc. Not support Mini PCIe WiFi module.
