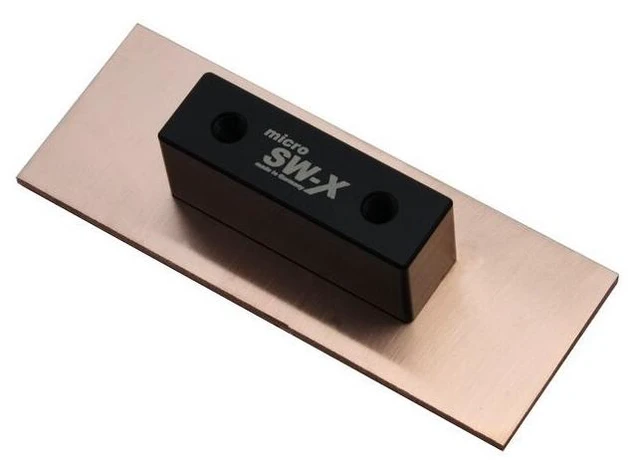

Watercool HEATKILLER® microSW-X 40 DIY (17050)

A universal water block for the voltage regulator modules (VRM) on graphics cards, with a copper cooling plate you cut to fit and two M5 ports. The Watercool HEATKILLER® microSW-X 40 DIY mounts through holes you make in the plate yourself, with the screws and nuts in the box.

Properties

• For: Graphics card voltage regulators
• Size: Cooling plate 80 x 30 mm, uncut
• Material: Electrolytic copper, POM (black)
• Threads: 2x M5
• Weight: 60 g
• Pressure tested: 5 bar

How the DIY block works

With this block you can water-cool the voltage regulator modules on suitable graphics cards if no matched water block is available for the card. Other applications are also possible. Before installation of the block, the cooling plate must be cut to the required dimensions, and suitable mounting holes must be cut into it. Watercool names the HEATKILLER GPU-X³ Core series as compatible.

The two ports are M5 threads, so each one takes an M5 fitting. Its sibling in the range is the HEATKILLER microSW-X 60 DIY.

What you need to mount it

A thermal interface between the regulators and the plate is recommended, and it is not included: pick a compound or pad. The screws and nuts for mounting are included.

In the box

• 1x HEATKILLER® microSW-X 40 DIY
• 1x Mounting materials
