Watercool MO-RA IV 200 - White Radiator, 200mm, G1/4, 75mm, Copper (26201)

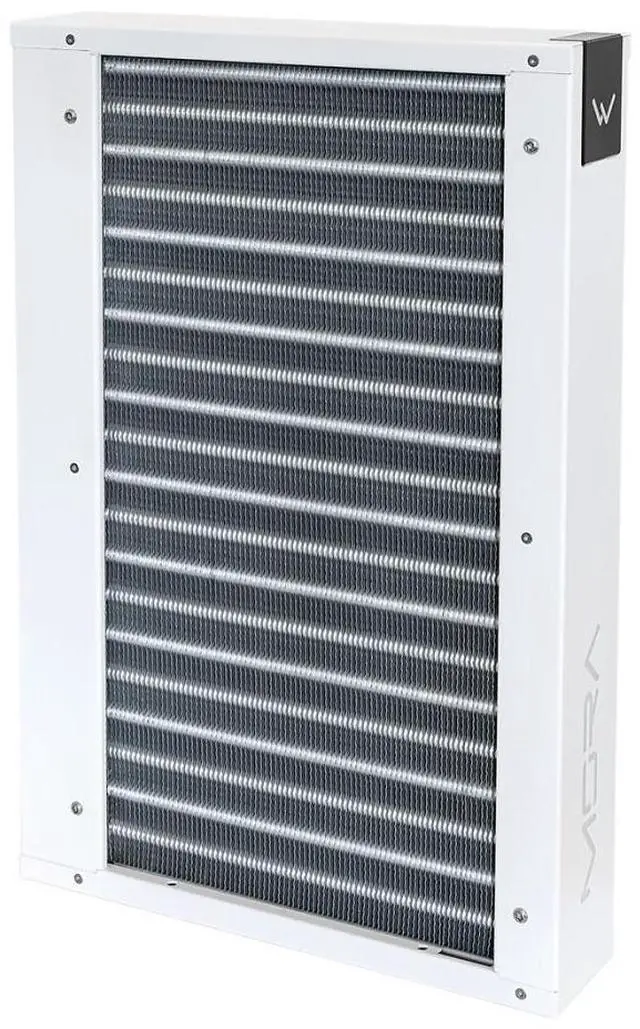

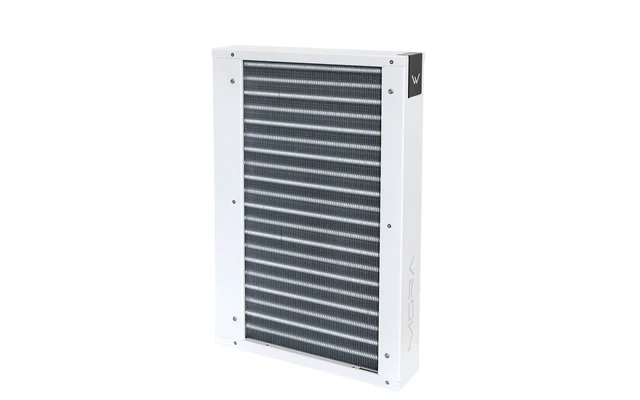

An external radiator for a 200 mm fan, with copper tubes, aluminum fins and a white powder-coated steel housing, two G1/4 ports and about 0.81 liters of capacity. The Watercool MO-RA IV 200 - White is the small form factor model of the MO-RA IV range, a stylish solution for smaller systems. Its fan frame with a fan splitter is part of the scope of delivery.

Properties

• Fans: 200 mm (fan frame included)
• Size: 300 x 452 x 75 mm (L x W x H)
• Ports: 2x G1/4
• Material: Copper tubes, aluminum fins, steel housing
• Capacity: Approx. 0.81 l
• Weight: Approx. 6 kg

Mass with class

Watercool calls the MO-RA IV the ultimate solution for cooling-intensive systems such as overclocked gaming computers, workstations or servers that are in use around the clock. In its words, this monster radiator, with its modular design and versatile expansion options, sets new standards in terms of cooling performance and workmanship quality. The MO-RA IV 200 brings that design to small systems in a compact housing.

Optimized fins and 5 bar stable

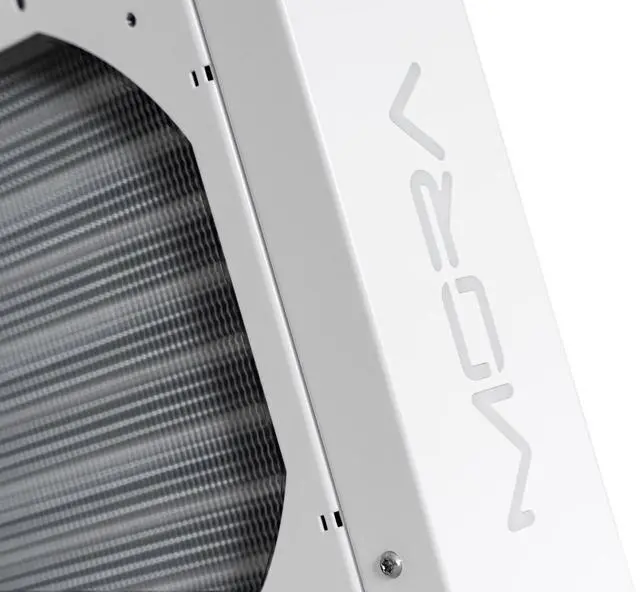

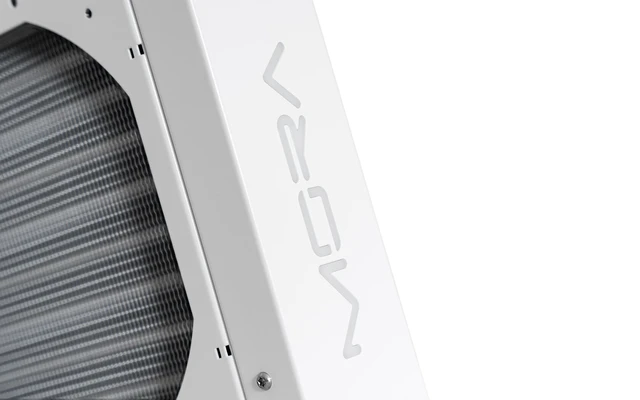

For improved performance, Watercool adapted the fin geometry to the current generation of fans. Across the entire speed range, the corrugated fins ensure optimized airflow, and they add more mechanical stability. Since there is no substitute for surface area, this radiator puts 1.7 square meters of aluminum to work.

Inside, a raised pre-chamber ensures better pressure distribution. Water runs through 4 parallel rows of pipes, a total of 80 pipes with a total pipe length of 21 m. The connection terminal is made of solid brass and is now firmly soldered to the pipe geometry. That gives increased mechanical load capacity at the terminal and pressure stability of up to 5 bar, and all MO-RA IV radiators are pressure tested before delivery.

Modular and expandable

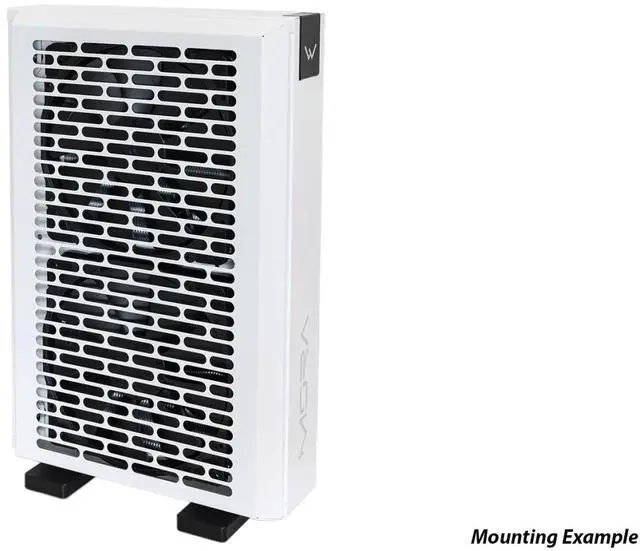

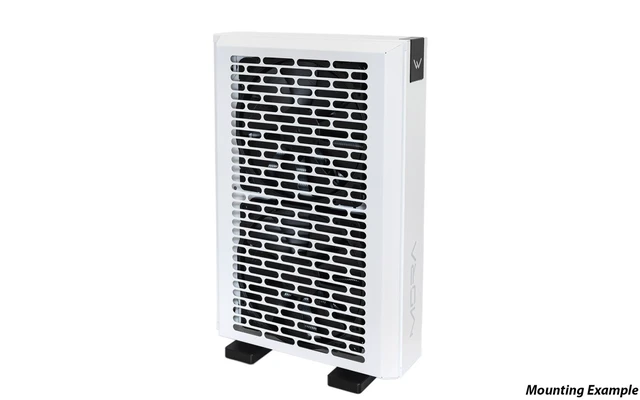

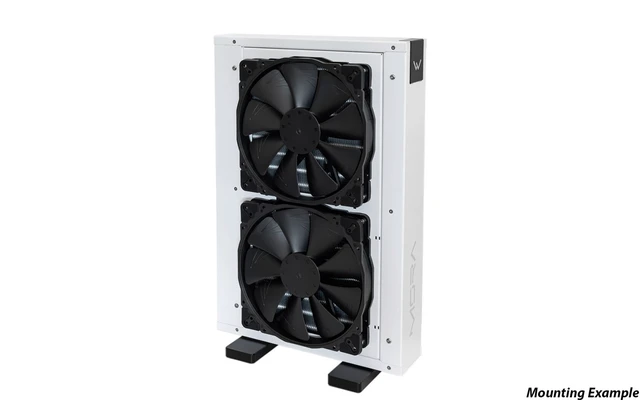

Thanks to its modular design, the MO-RA IV can be expanded and adapted extensively. If you have no room for the optionally available STAND, it can be easily mounted on a wall using the WALL MOUNT. A flow-optimized MO-RA TANK with one or more pumps can also be installed in just a few steps. Depending on requirements, you can put together an external cooling station of the highest class, with the highest quality workmanship of course. The add-ons are collected under MO-RA IV accessories.

Technical data: MO-RA IV 200

• Internal material: Copper tubes, aluminum fins
• Housing material: Powder-coated sheet steel
• External dimensions (L x W x H): 300 x 452 x 75 mm
• Weight: Approx. 6 kg
• Pressure tested: 5 bar
• Surface: White powder coated
• Connection: 2x thread G1/4 inch
• Capacity: Approx. 0.81 liters

Notes

• Screws used on the radiator may not penetrate deeper than 8 mm into the heat exchanger, since longer screws might damage the pipes.
• Production can leave contamination in the radiator, so Watercool recommends rinsing it with clear water before first use.
• Watercool recommends demineralized or deionized (distilled) water with a suitable corrosion inhibitor as coolant, or Heatkiller Fluid as a ready-mixed coolant.

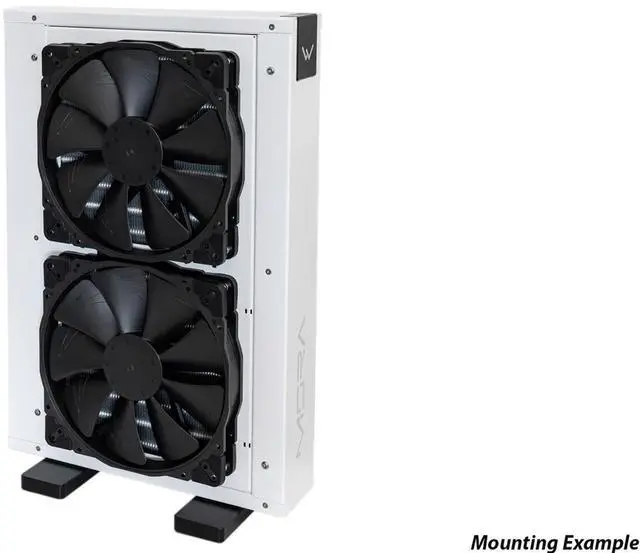

• The Noctua NF-A20 is mounted with short M4x10 mm screws.

In the box

• 1x MO-RA IV 200
• Mounting screws for fan mounting

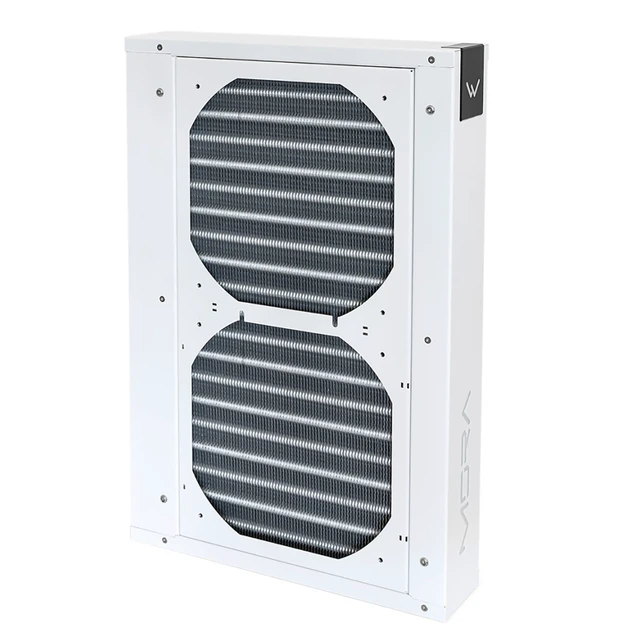

• Fan frame 200 including fan splitter
