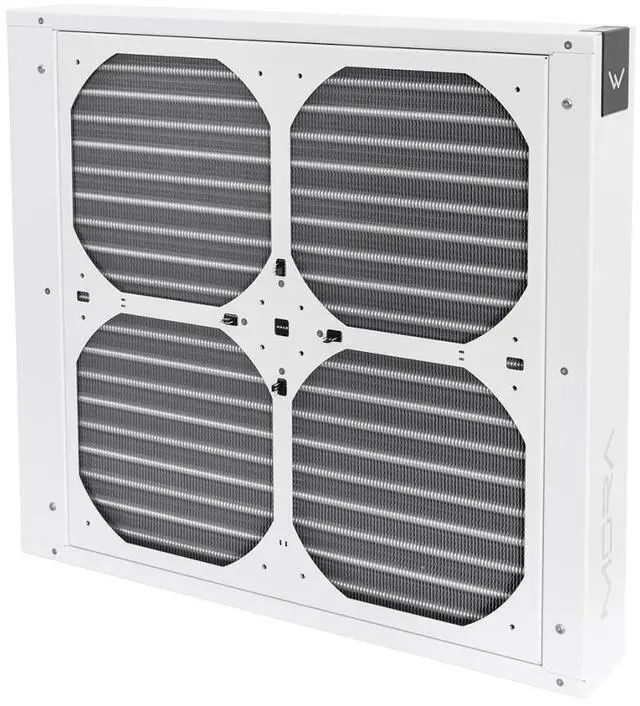

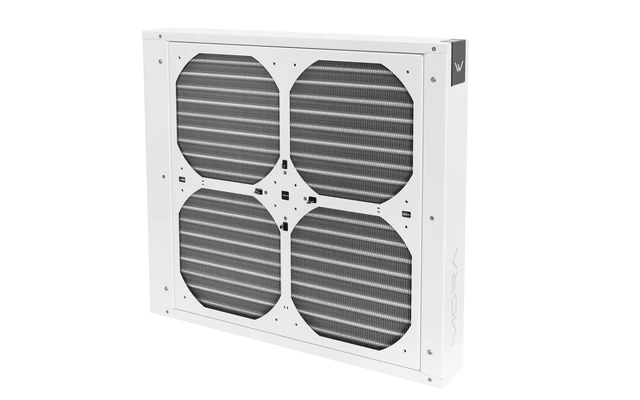

Watercool MO-RA IV 400 Fan Frame for 200mm Fans - White, Steel (26421)

An additional fan frame for the MO-RA IV 400 radiator that holds four 200 mm fans (200 x 200 x 30 mm) on the back. With it the radiator can be equipped with fans on both sides. The Watercool MO-RA IV 400 Fan Frame for 200mm Fans - White (26421) is white powder-coated sheet steel with an integrated fan splitter.

Properties

• For: MO-RA IV 400
• Fans: 4x 200 x 200 x 30 mm
• Size: 421 x 416 x 10 mm
• Material: Powder-coated sheet steel, white
• Weight: Approx. 0.55 kg

Quick-mount system

Watercool newly designed these frames, and like the fan grill they use its specially developed quick-mount system. The fan frame is therefore very easy to install, and it comes off again without tools for maintenance. Locking it permanently is optional, with M4x10 screws and a 3 mm Allen key.

Cabling taken into account

Watercool has also thought about the wiring: the fans on the back plug into the splitter built into the frame. This saves you the hassle of the complex cabling you would otherwise have with 200mm fans.

Options

If you run 140 mm fans instead, the radiator takes the MO-RA IV 400 Fan Frame for 140mm Fans (black).

Technical data

• Material: Powder-coated sheet steel
• External dimensions (L x W x H): 421 x 416 x 10 mm
• Weight: Approx. 0.55 kg
• Surface: White
• Fan compatibility: 4x 200 x 200 x 30 mm
• Compatible: MO-RA IV 400

Notes

• Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
• A Noctua NF-A20 mounts with short M4x10 mm screws, 4 per fan.

In the box

The scope of delivery is the frame alone.

• 1x MO-RA IV Fan Frame
