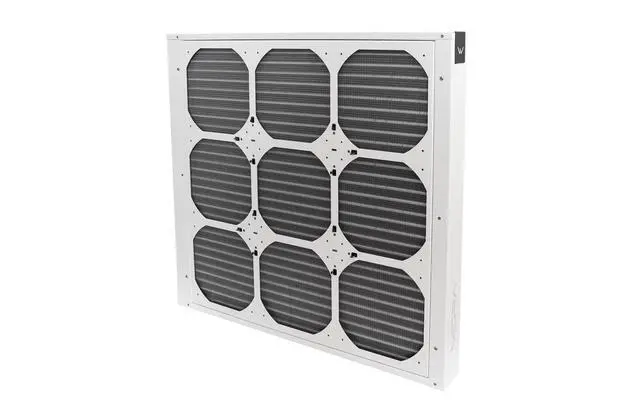

Watercool MO-RA IV 600 Fan Frame for 200mm Fans - White, Steel (26621)

An additional fan frame for the MO-RA IV 600 radiator that holds nine 200 mm fans (200 x 200 x 30 mm) on the back. With it the radiator can be equipped with fans on both sides. The Watercool MO-RA IV 600 Fan Frame for 200mm Fans - White (26621) is white powder-coated sheet steel with an integrated fan splitter.

Properties

• For: MO-RA IV 600
• Fans: 9x 200 x 200 x 30 mm
• Size: 631 x 615 x 10 mm
• Material: Powder-coated sheet steel, white
• Weight: Approx. 1.13 kg

Quick-mount system

Watercool newly designed these frames, and like the fan grill they use its specially developed quick-mount system. The fan frame is therefore very easy to install, and it can be mounted and unmounted without tools for maintenance. On the MO-RA IV 600 the frames also have a Quick Lock feature, and locking the frame permanently is possible as an option, though not necessary.

Cabling taken into account

Watercool has also taken the wiring into account, so the fans at the back plug into that splitter. This saves you the hassle of complex cabling with 200mm fans.

Options

The fan grill for the front of the same radiator is the MO-RA IV 600 Fan Grill (26610) in black, or the white one (26611).

Technical data

• Material: Powder-coated sheet steel
• External dimensions (L x W x H): 631 x 615 x 10 mm
• Weight: Approx. 1.13 kg
• Surface: White
• Fan compatibility: 9x 200 x 200 x 30 mm
• Compatible: MO-RA IV 600

Notes

• Screws may not reach deeper than 8 mm into the radiator; longer screws might damage the pipes.
• A Noctua NF-A20 mounts with short M4x10 mm screws.

In the box

The scope of delivery is the frame alone.

• 1x MO-RA IV Fan Frame
