Watercool MO-RA IV Tank 275 D5 (26051)

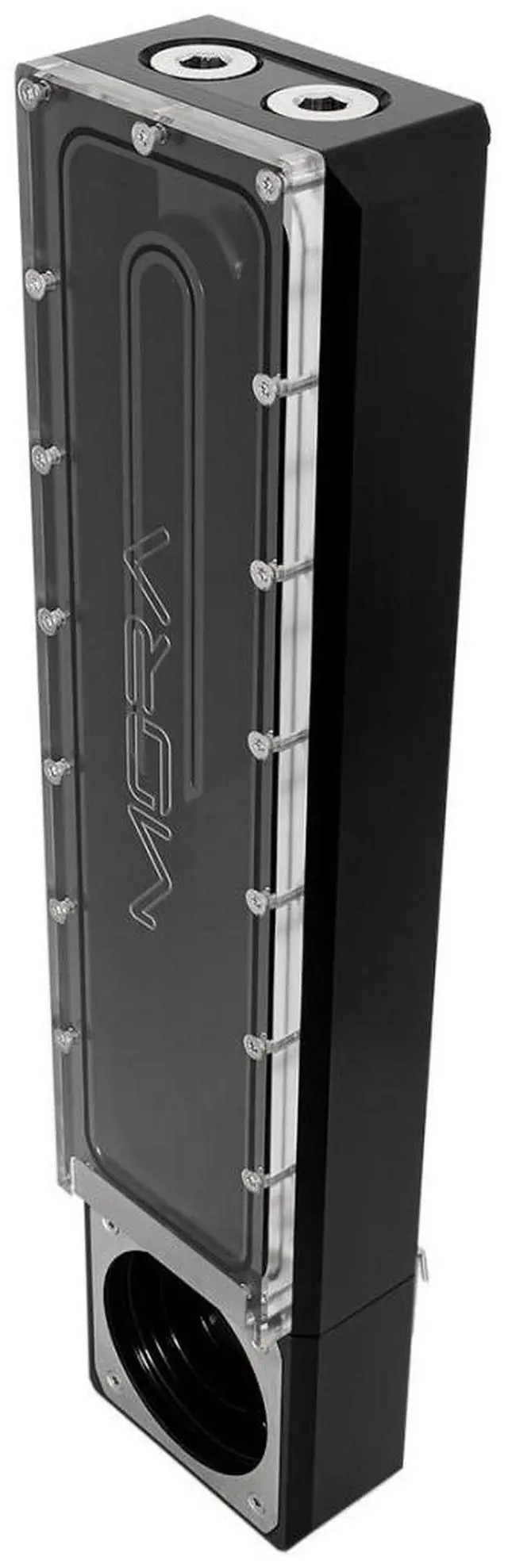

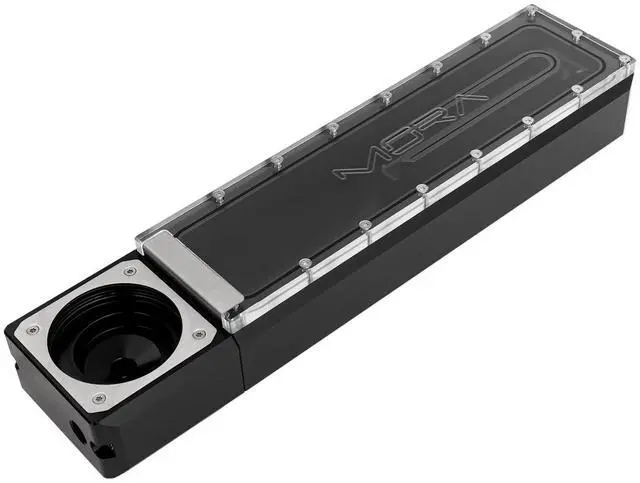

A pump reservoir for a D5 pump that plugs straight onto the MO-RA IV 600 radiator, 0.33 liters. The Watercool MO-RA IV Tank 275 D5 (26051) has a solid acetal body and a polished Plexiglas GS front. The D5 pump itself is not part of the scope of delivery.

Properties

• Pump: D5, not included
• Capacity: approx. 0.33 liters
• Ports: 2x G 3/8 top, G1/4 adapter rear, G1/4 bottom
• Size: 350 x 84 x 49 mm
• For: MO-RA IV 600; MO-RA IV 200 and 400 with one pump

Acetal, Plexiglas GS and brushed stainless steel

Watercool invites you to experience the highest quality and a stylish design with this tank. It is made from solid acetal and equipped with a highly polished Plexiglas GS front. In Watercool's words it offers not only functionality but also a stylish upgrade for your MO-RA IV system. The brushed stainless steel panel conceals an aRGB module, which indirectly illuminates the tank and reflects the finely engraved MO-RA logo.

Optimized flow and easy installation

The tank is flow-optimized, which ensures increased flow and easy venting. It has a direct connection to the radiator via a special connector, and with the integrated D5 pump mount Watercool says it can guarantee maximum flow values. Installation is child's play, as Watercool puts it: simply plug it on and hang it in. Pump vibrations are effectively eliminated, thanks to the tank's decoupling from the radiator housing.

Expandable pump modules

For even more performance on the MO-RA IV 600, the tank can be expanded with an additional pump module, the MO-RA IV Tank D5 Expansion, so the use of two D5 pumps is easily possible. A MO-RA IV 200 or 400 also takes this tank, but with only one pump and no extension.

What you need to mount it

Add a D5 pump: loosen the stainless steel bracket, guide the pump through it and screw both back together evenly and crosswise.

Technical data

• Lid material: Acrylic
• Material body: Acetal
• External dimensions (L x W x H): 350 x 84 x 49 mm
• Weight: approx. 1.35 kg
• Top filling openings: 2x thread G 3/8 inch
• Rear connection: 1x MO-RA IV Tank adapter to G1/4 inch
• Bottom connection: 1x thread G1/4 inch
• Capacity: approx. 0.33 liters
• Compatible: MO-RA IV 200/400 (only one pump / no extension possible)
• Compatible: MO-RA IV 600

Notes

• Remove the case top and screw in the brass adapter first. Check that the O-ring of the D5 lower part is seated correctly.
• Watercool recommends demineralized or deionized (distilled) water with a suitable corrosion inhibitor, or Heatkiller Fluid as a ready-mixed coolant.

In the box

• 1x MO-RA IV Tank 275 D5
• 1x MO-RA IV tank connection adapter G1/4"
• 1x mounting material
