Watercool MO-RA IV Heatkiller Tube Adapter - Black (26060)

An adapter that holds a HEATKILLER® Tube reservoir on a radiator of the MO-RA IV series, made of black powder-coated sheet steel. The Watercool MO-RA IV Heatkiller Tube Adapter - Black (26060) clips on with Quick-Mount, and the Basic Mounting Kit (item number 30236) is also required.

Properties

• For: HEATKILLER Tube reservoir on a MO-RA IV radiator
• Mounting: Quick-Mount, 4 pins
• Size: 240 x 75 x 19 mm (L x W x H)
• Material: Black powder-coated sheet steel

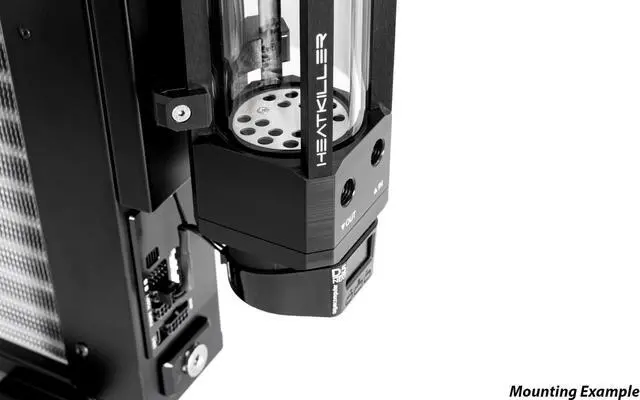

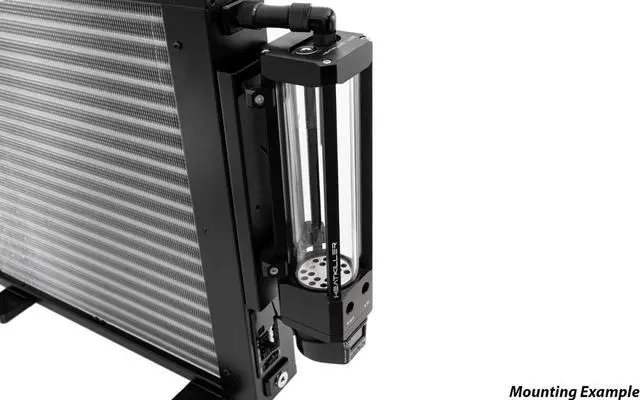

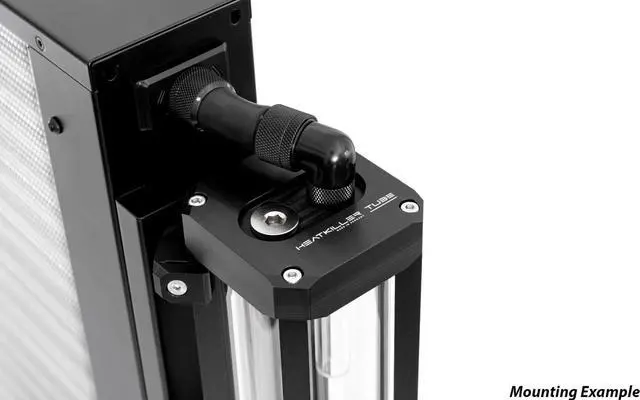

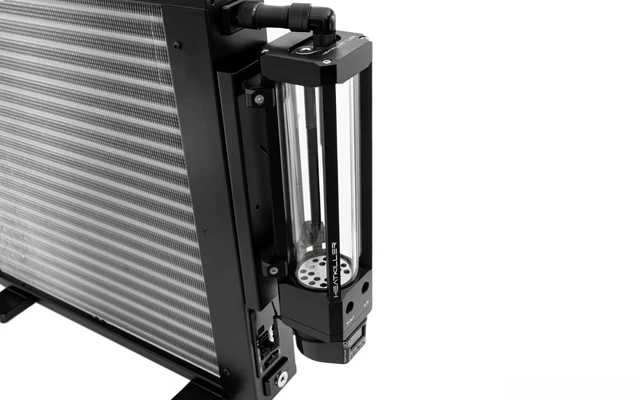

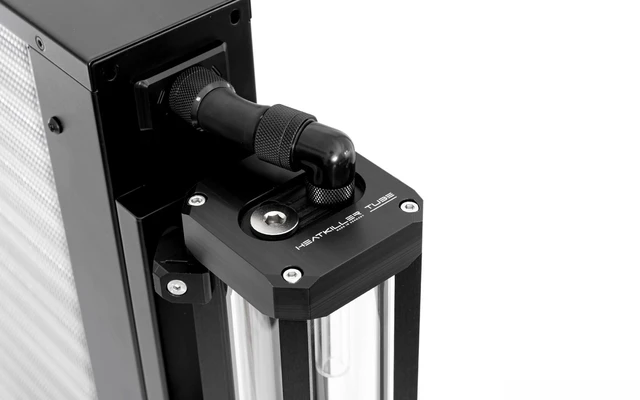

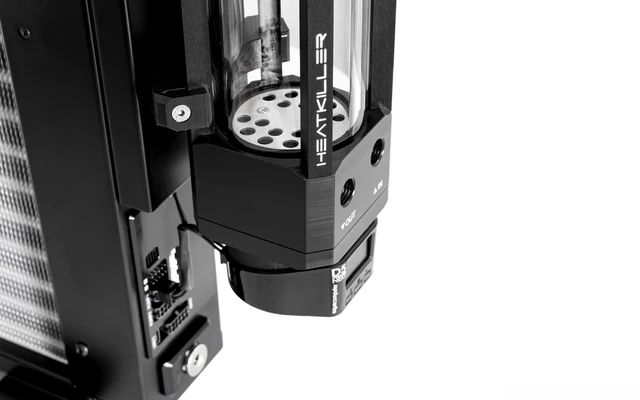

A Tube expansion tank right on the MO-RA

With this part the reservoir sits on the radiator itself instead of somewhere in the case. It is similar to the MO-RA IV Fan Grill or Fan Frame: the adapter can be easily installed and pulled off again via the same Quick-Mount system.

Mounting

First the 4 pins are screwed to the back of the radiator housing with the MO-RA tool. The adapter then goes on together with the tube already mounted to it, and an audible click confirms that it has locked. To take it off, you simply pull it away.

What you need to mount it

To mount the HEATKILLER TUBE reservoir on the adapter you also need the HEATKILLER Tube Basic Mounting Kit (30236). The reservoirs themselves, such as the HEATKILLER Tube 100 D5The same adapter also comes in white, and further parts for the radiator are under MO-RA IV Accessories.

Technical specifications

• Material: Powder-coated steel, black
• Dimensions (L x W x H): 240 x 75 x 19 mm

Notes

• Screws used on the MO-RA may not reach deeper than 8 mm into the heat exchanger; longer screws might damage the pipes.

In the box

The scope of delivery is the adapter and its mounting material.

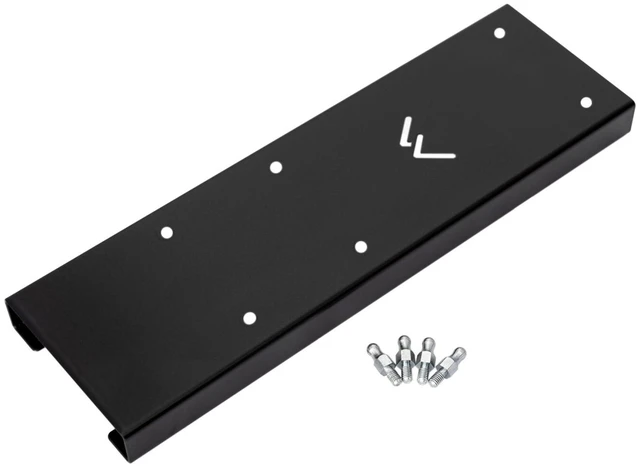

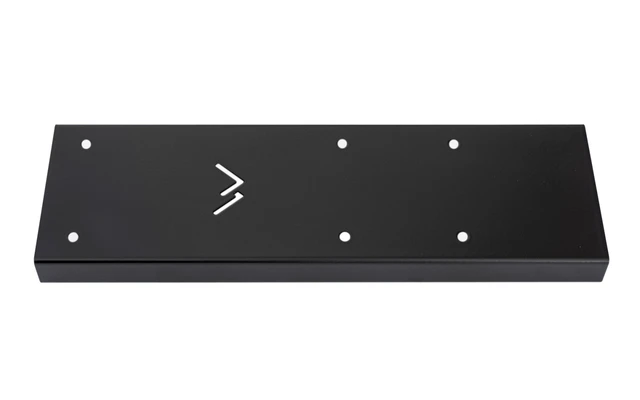

• 1 x MO-RA IV HEATKILLER TUBE adapter
• Mounting material
