Watercool Passive Cooler for VGA RAM (8 pieces), Aluminum (68001)

Passive heatsinks for the RAM modules of current graphics cards, 8 in the set. The Watercool Passive Cooler for VGA RAM (8 pieces) (68001) is black anodized aluminum, 16 x 13 x 5 mm per cooler. It is meant only for VGA RAM chips, not for the GPU or the voltage regulators.

Properties

• For: VGA RAM chips
• Pieces: 8
• Size: 16 x 13 x 5 mm each
• Material: Aluminum, black anodized

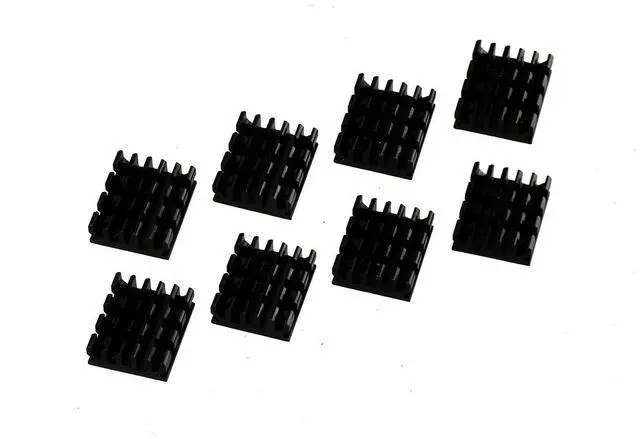

Small finned coolers for graphics card memory

The coolers are only 5 mm high and have a fin shape which enlarges the surface that gives off heat. They are made of aluminum with a black anodized finish. Watercool calls them ideal for use with its HEATKILLER® GPU-X³ Core series.

Mounting

Mounting is easy: thermal pads in industry quality, adhesive on both sides, are included in the delivery, so each cooler sticks straight onto a chip. Please note that all remnants of adhesive, thermal interfaces or the like will have to be removed from the RAM chips prior to use. If this is not observed, the adhesive strength and/or the duration of adhesion may be impaired, and a cooler can drop off the chip during operation.

This set includes 8 coolers. The same heatsink also comes as a 12-piece set

Notes

• The coolers are provided only for use on VGA RAM chips. Using them on other devices, such as the GPU or the voltage transformers (voltage converters), can damage the hardware beyond repair and is basically at your own risk.

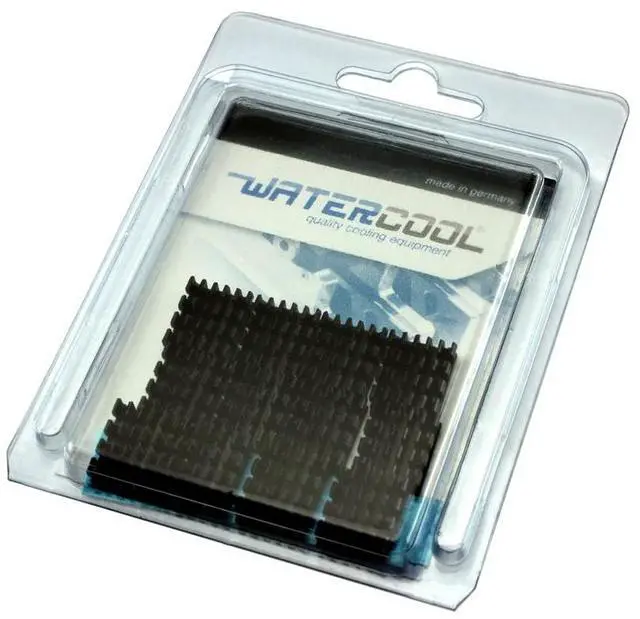

In the box

• 8x Watercool Passive Cooler for VGA RAM
• Thermal pads, adhesive on both sides
