Watercool HEATKILLER RAD 240-S Stainless Steel (24109)

A 240 mm radiator for two 120 mm fans, 30 mm thick. The Watercool HEATKILLER RAD 240-S Stainless Steel is a slim mesh radiator with a brass pre-chamber and brass cooling channels, copper fins, brushed stainless steel side panels and two G1/4 ports.

Properties

• Fans: 2x 120 mm, M3 screws
• Size: 120 mm wide, 30 mm thick
• Thickness: 30 mm (S series)
• Ports: 2x G1/4
• Material: Brass pre-chamber and channels, copper fins
• Weight: 0.73 kg

The HEATKILLER RAD series

Watercool expanded its product portfolio with the HEATKILLER RAD series of mesh radiators. They come in two strengths: the Small (S) RADs at a thickness of 30 mm and the Large (L) RADs at 48 mm, so this 240-S is the slim one. Watercool also points to an optimized performance, compact dimensions and high-quality workmanship. The same size comes in black, and when your case has room for a thicker core there is the HEATKILLER RAD 240-L Black.

Finishing and quality control in Germany

Watercool says it succeeded in creating a high-performance mesh radiator with a unique look in cooperation with a well-known manufacturer from Asia. Those cooling cores are manufactured strictly in accordance with Watercool's specifications. The radiator housing is produced directly on Watercool's premises in Waren, which means the assembly and quality control are ultimately performed in Germany.

High cooling performance over the entire speed range

The goal of the development was to produce competitive radiators with a wide performance range. Accordingly, Watercool says the HEATKILLER RAD provides a very good cooling performance with slow rotating fans, and that it scales very well with increasing speed. For maximum cooling performance it can of course also be used in push/pull mode, with fans on both sides.

The best raw materials in use

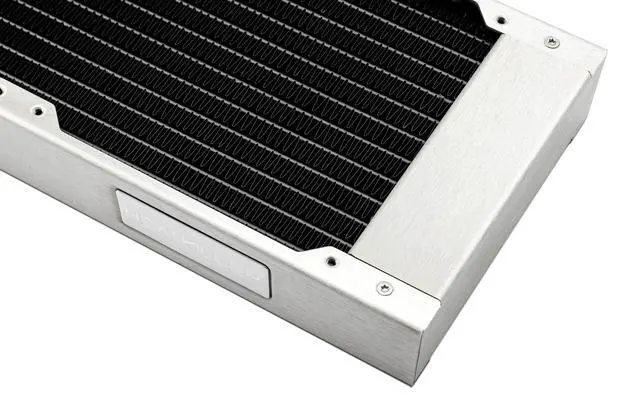

Watercool uses only high quality raw materials as the basis for the HEATKILLER RAD. The pre-chamber and the cooling channels are made of brass, while the cooling fins are made of copper. The side panels are laser-cut from 1 mm thick steel plates or stainless steel, and subsequently brushed or powder-coated in black or white, depending on the finish. On this model they are brushed stainless steel. The front sides are made of brushed stainless steel too and contribute significantly to the exclusive look.

Easy integration into the cooling circuit

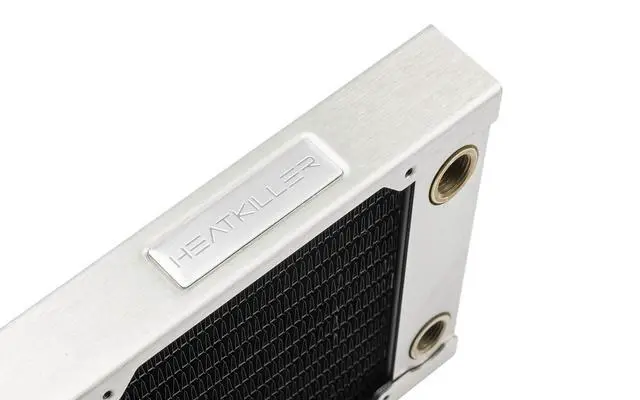

Hooking it into the cooling circuit is done through two standard G1/4 inch threads. The required connections are not included in the scope of delivery, so pick two fittings for your tube. The small width of only 120 mm ensures you have a maximum of flexibility when you plan where it goes, and it takes two 120 mm fans.

Technical data

• Width x thickness: 120 x 30 mm
• Weight: 0.73 kg
• Color: Brushed Stainless Steel
• Connectors: 2 x G1/4" thread
• Fan compatibility: 120 mm fans
• Radiator mounting: M3

Notes

• Fan screws may not reach deeper than 5 mm into the radiator; longer screws might damage the pipes. Watercool's mounting material lists M3x30 and M3x5 screws, 4 per fan.
• The side panels can be removed for maintenance.
• Watercool recommends demineralized or deionized (distilled) water with a suitable corrosion inhibitor as coolant.

In the box

• 1x HEATKILLER RAD 240-S STAINLESS STEEL
