Watercool Conversion Kit HEATKILLER® IV for INTEL LGA 20XX processors, Stainless Steel (18031)

A socket conversion kit that moves any HEATKILLER® IV CPU water block, BASIC or PRO, to Intel LGA-2011, LGA-2011-3 and LGA-2066. The Watercool Conversion Kit HEATKILLER® IV for INTEL LGA 20XX processors (18031) holds two stainless steel holding plates and the assembly material.

Properties

• For: HEATKILLER IV PRO and HEATKILLER IV BASIC CPU blocks
• Sockets: INTEL LGA-2011, LGA-2011-3, LGA-2066
• Pieces: 2 holding plates, mounting material, instructions
• Material: Stainless steel

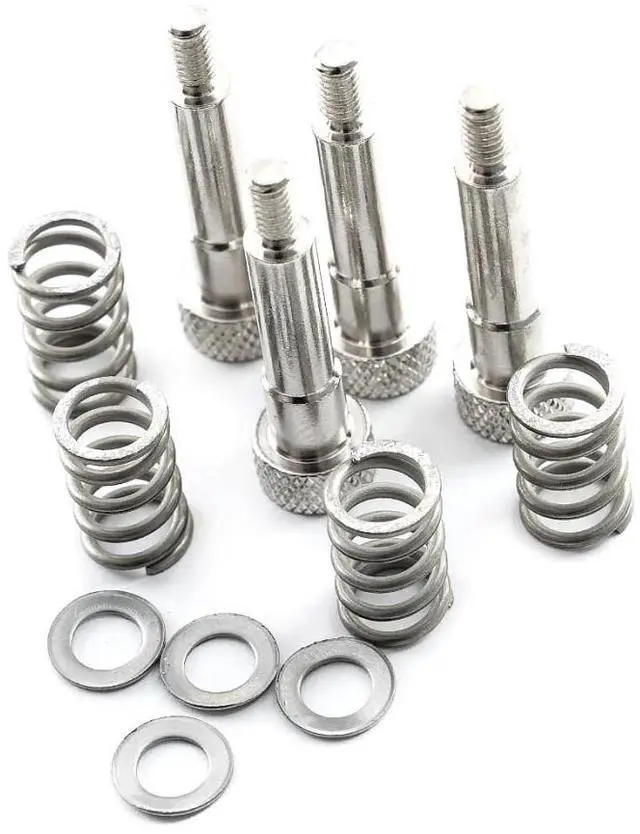

The bolts the big Intel sockets need

A HEATKILLER IV fits the smaller Intel sockets out of the box, while 2011, 2011-3 and 2066 take additional bolts. This kit supplies them, with all fasteners necessary included in the scope of delivery. With it a block can be converted in one go, and the plates are made of stainless steel.

Socket compatibility

The conversion covers the three sockets listed below.

• INTEL LGA-2011
• INTEL LGA-2011-3
• INTEL LGA-2066

What you need to mount it

You need a HEATKILLER IV block to convert.

Notes

• On 2011, 2011-3 and 2066 no plastic washer goes between stud and mainboard; the metal washer between spring and mounting bracket stays.
• Tighten the studs and knurled nuts evenly and crosswise, so the contact pressure follows the CPU maker's specifications.

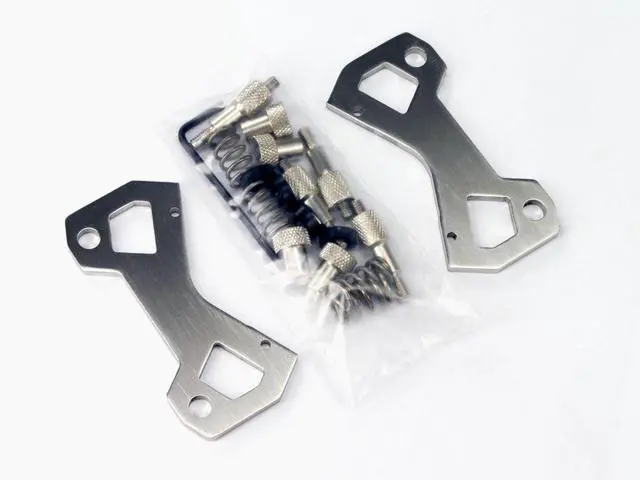

In the box

• 2x Holding plate made of stainless steel
• 1x assembly material
• 1x assembly instructions
