Watercool HEATKILLER Tube 200 DDC MP Reservoir, G1/4, 200mm, Borosilicate Glass, Clear (30218)

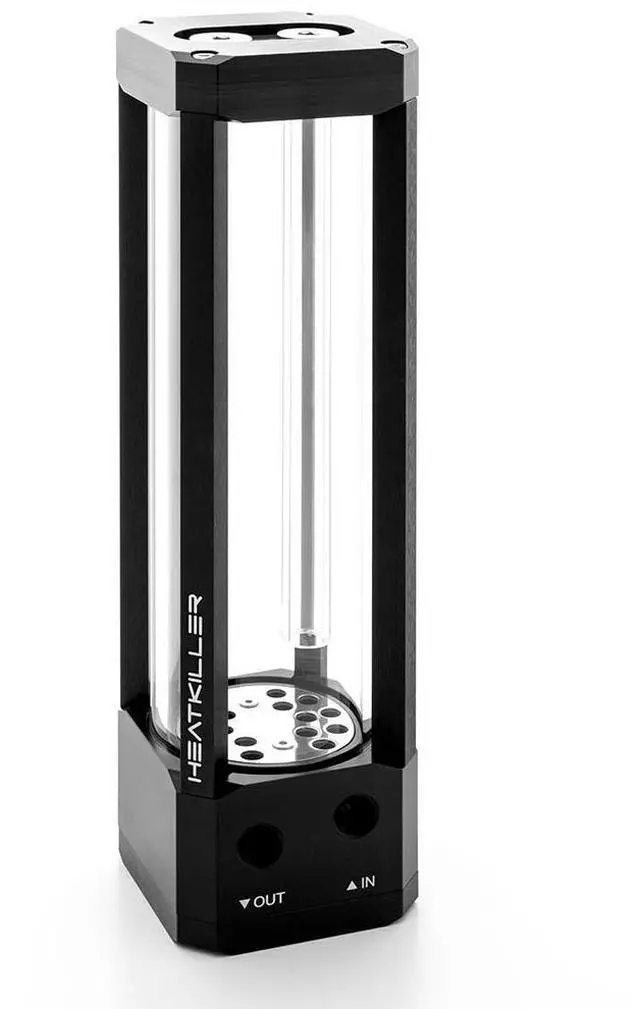

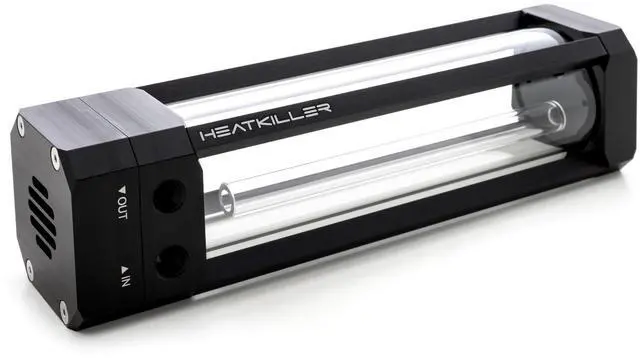

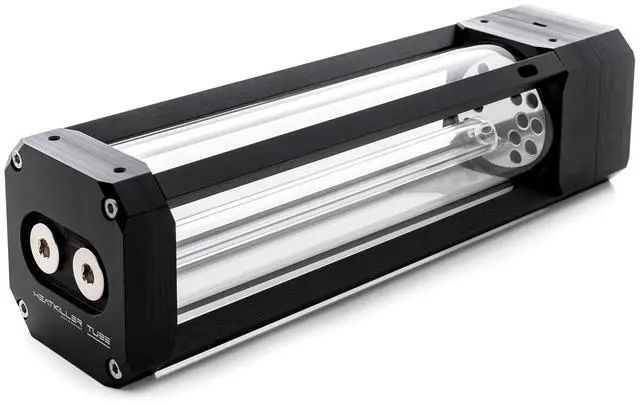

A tube reservoir with a direct mount for a DDC pump (original Laing, Lowara or Xylem DDC, sold separately). It has a 200 mm borosilicate glass tube, about 500 ml of filling volume and a Multiport top (MP). The Watercool HEATKILLER Tube 200 DDC MP has a POM top, a flow-optimized POM pump bottom and black anodized aluminum struts.

Properties

• Pump: DDC (original Laing / Lowara / Xylem), not included
• Length and capacity: 200 mm tube, approx. 500 ml
• Ports: 2x G1/4

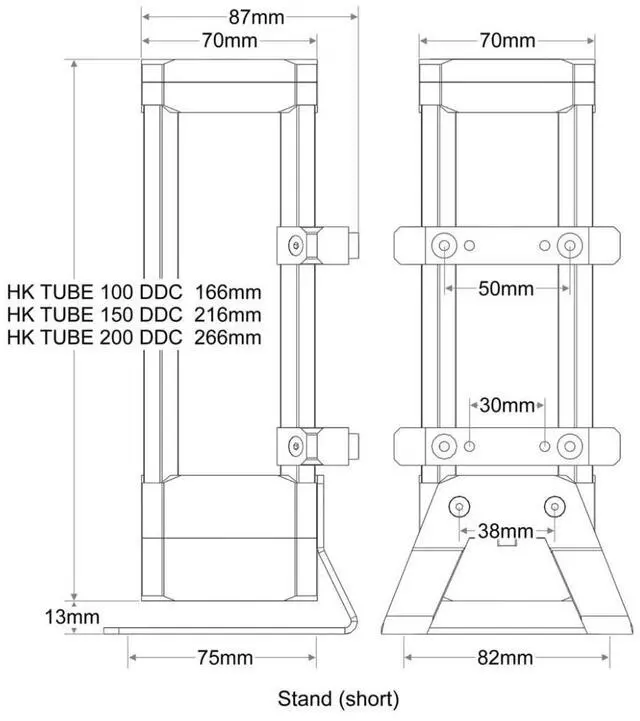

• Size: 70 x 70 x 266 mm including pump
• Tube: Borosilicate glass, 65 mm diameter

A modular series of glass tube reservoirs

The HEATKILLER® Tube series is Watercool's modular collection of high-quality expansion tanks, each built around a glass tube made of borosilicate. Every part can be exchanged separately, so this DDC bottom can later be changed to one that takes a D5 pump. Watercool says it has many outstanding features, which are listed below.

Borosilicate glass tube

Watercool calls borosilicate the best material currently available for the construction of an expansion tank, and Watercool chose to rely on it for every Tube. The glass offers high chemical and thermal resistance, very low thermal expansion and a scratch-resistant surface. In Watercool's words, those are ideal conditions to create a high-quality tank.

What the loop needs

A DDC pump is not in the box: pick one from our DDC pumps. The reservoir has no fittings either, so add two fittings for your tube size.

Technical data

• Upper part material (cover): POM
• Strut material: Aluminum, black anodized
• Tube material: Borosilicate glass
• Lower part material (bottom): POM
• Inlay material: Stainless steel
• Dimensions (L x W x H): 70 x 70 x 266 mm (including pump)
• Length of the tube: 200 mm
• Diameter of the tube: 65 mm
• Capacity: Approx. 500 ml
• Weight: Approx. 960 g
• Seals: NBR, VMQ
• Connection thread: 2x G1/4 inch (DIN ISO 228-1)
• Compatible with: Original Laing / Lowara / Xylem DDC

Notes

• Check every seal for leaks before the first start-up. If the reservoir leaks, check the O-rings for correct position and damage; with a squeezed or damaged O-ring the reservoir must not be used.
• Drain the reservoir and take it out of the loop completely before any alteration. On the DDC version the pump must come off first to reach the screws of the bottom.
• The glass tube is sealed with O-rings of two strengths (4 mm and 5 mm) to compensate for length tolerance. When you replace them, use the same strength you found in the reservoir; the O-ring spare set holds both.

In the box

• 1x HEATKILLER® Tube 200 DDC MP
• 1x manual
