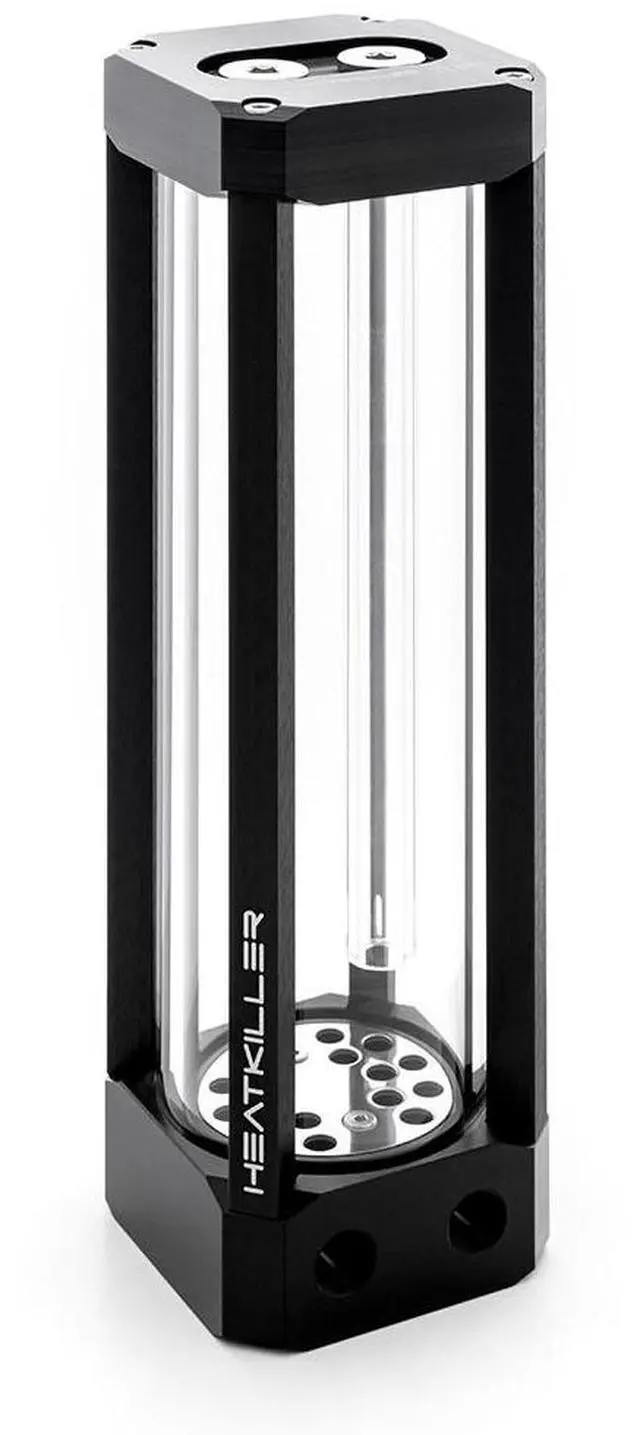

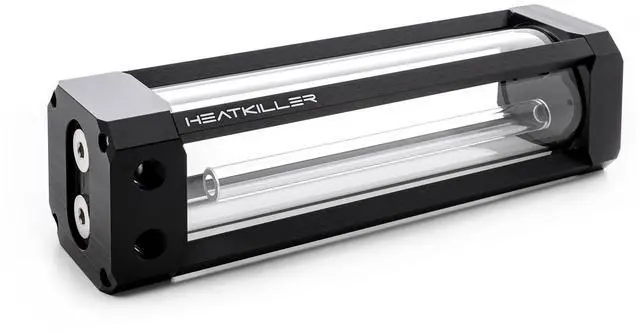

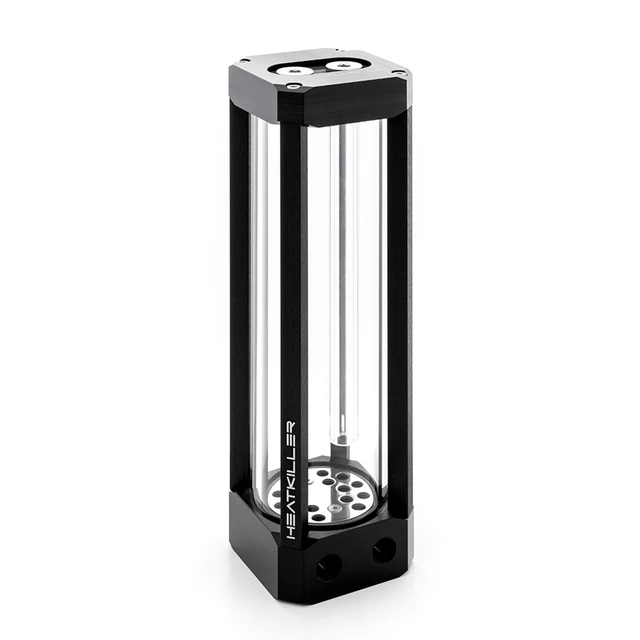

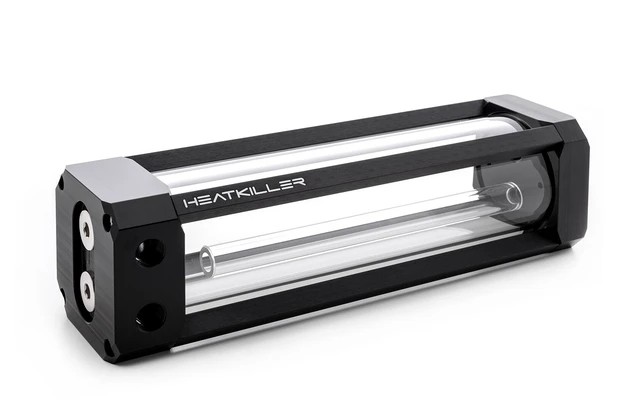

Watercool HEATKILLER Tube 200 MP - Clear (30212)

A standalone tube reservoir with a 200 mm borosilicate glass tube that holds about 500 ml, for a separate pump. The Watercool HEATKILLER Tube 200 MP has a Multiport top (MP), a POM bottom with no pump mount and black anodized aluminum struts.

Properties

• Pump: None, standalone bottom
• Length and capacity: 200 mm tube, approx. 500 ml
• Ports: 4x G1/4
• Size: 70 x 70 x 246 mm
• Tube: Borosilicate glass, 65 mm diameter

A modular series of glass tube reservoirs

Watercool builds the HEATKILLER® Tube series as a modular collection of high-quality expansion tanks, and each one has a glass tube made of borosilicate. Every part of a Tube can be exchanged on its own, the bottom included. Its many outstanding features are listed below.

Borosilicate glass tube

For Watercool, borosilicate is the best material currently available for the construction of an expansion tank, and it chose to rely on it. The glass offers high chemical and thermal resistance, low thermal expansion and a scratch-resistant quality. Watercool sees ideal conditions there to create a high-quality tank.

Standalone version

This is the Tube with the standalone bottom: it holds no pump, and the pump sits elsewhere in the loop. You can also purchase it in flow-optimized versions for the popular D5 and DDC pumps from Xylem (formerly Laing). Those have a solid acetal cover that you place directly on the pump, so the pump sucks the water straight from the expansion tank. Watercool says that design ensures higher flow rates and less noise.

Watercool has manufactured the Tube in different sizes and filling volumes, so you are flexible with the volume. Watercool says that gives you the opportunity to have it perfectly presented visually for all applications. The sizes 100, 150 and 200 mm cover everything from mini-ITX to huge big towers. The HEATKILLER Tube 200 DDC MP is the same size with a bottom that takes a DDC pump directly.

What the loop needs

The reservoir has no pump, so the loop needs one of our pumps on its own. Fittings are not included either, so add two fittings to suit your tube size. We carry more of this length in our 200mm tube reservoirs.

Technical data

• Upper part material (cover): POM
• Strut material: Aluminum, black anodized
• Tube material: Borosilicate glass
• Lower part material (bottom): POM
• Inlay material: Stainless steel

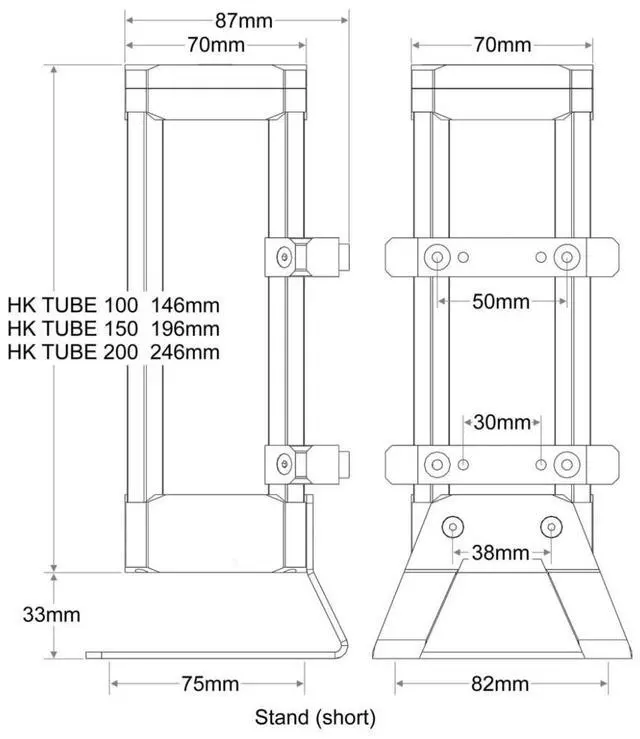

• Dimensions (L x W x H): 70 x 70 x 246 mm
• Length of the tube: 200 mm
• Diameter of the tube: 65 mm
• Capacity: Approx. 500 ml
• Weight: Approx. 950 g
• Seals: NBR, VMQ
• Connection thread: 4x G1/4 inch (DIN ISO 228-1)

Notes

• Check every seal before the first start-up. If the reservoir leaks, look at the O-rings for correct position and damage; a squeezed or damaged O-ring means the reservoir must not be used.
• Drain the reservoir and take it out of the loop completely before any alteration. On this standalone version the four screws of the bottom are directly accessible.
• O-rings of two strengths (4 mm and 5 mm) seal the glass tube and compensate for its length tolerance. Use the same strength you found in the reservoir when you replace one; the O-ring spare set contains both.

In the box

• 1x HEATKILLER® Tube 200 MP
• 1x manual
