Watercool HEATKILLER Tube 100 D5 MP Reservoir, G1/4, 100mm, Borosilicate Glass, Clear (30213)

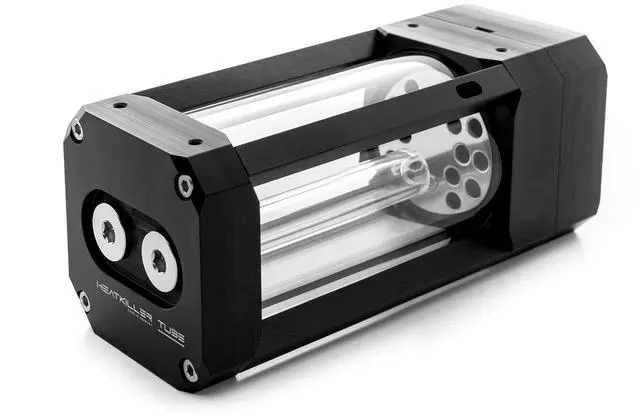

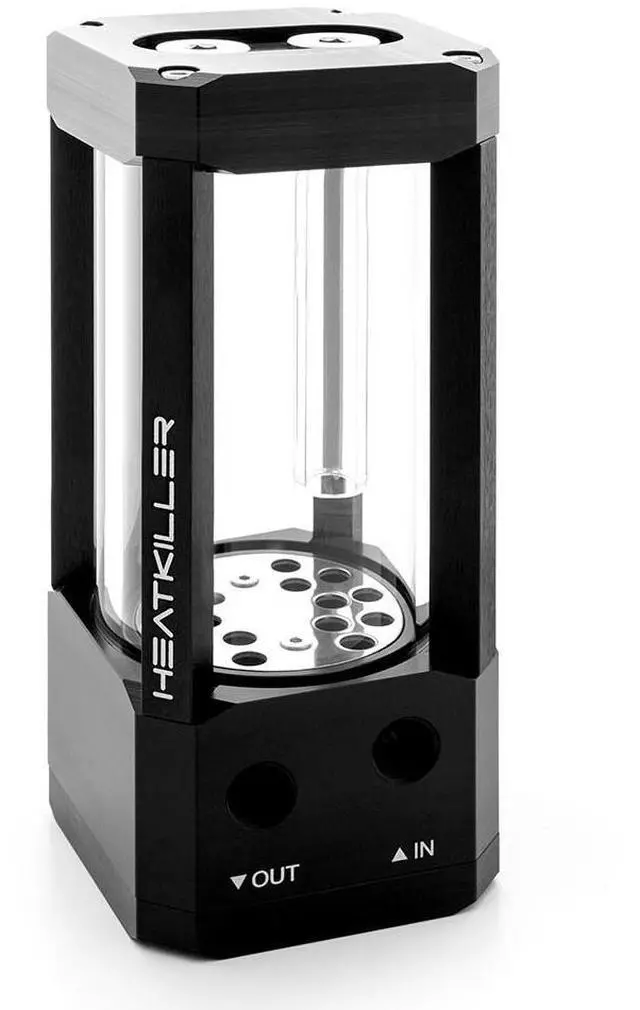

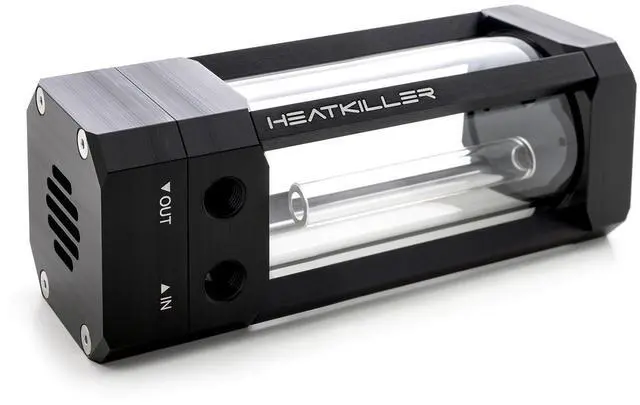

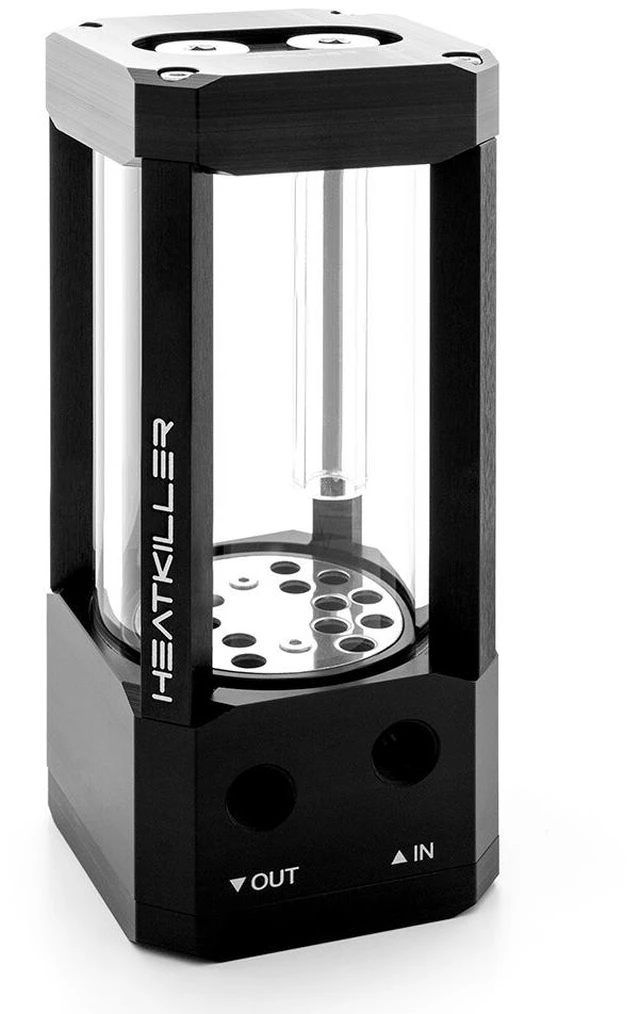

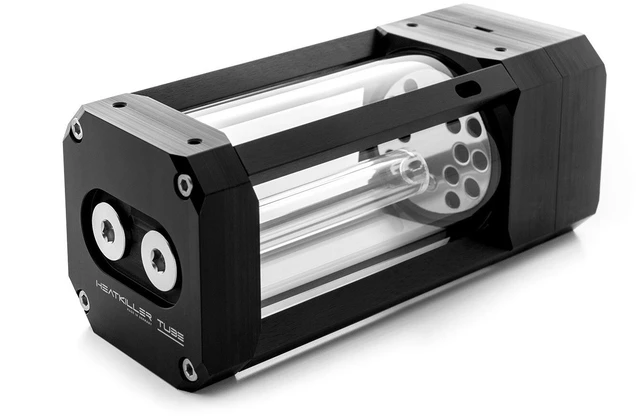

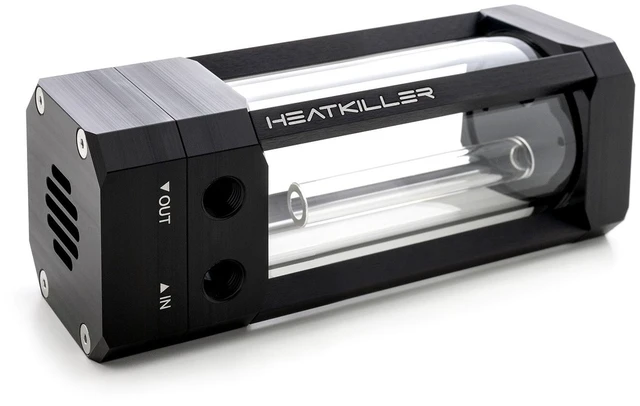

A tube reservoir with a direct mount for a D5 pump (Xylem, formerly Laing, or Lowara D5, sold separately), built around a 100 mm borosilicate glass tube that holds about 250 ml. The Watercool HEATKILLER Tube 100 D5 MP has a Multiport top (MP), a flow-optimized POM pump bottom and black anodized aluminum struts.

Properties

• Pump: D5 (Xylem / Laing / Lowara), not included
• Length and capacity: 100 mm tube, approx. 250 ml
• Ports: 2x G1/4
• Size: 70 x 70 x 193 mm including pump
• Tube: Borosilicate glass, 65 mm diameter

A modular series of glass tube reservoirs

Watercool builds the HEATKILLER® Tube series as a modular collection of high-quality expansion tanks, and each one has a glass tube made of borosilicate. Every part of a Tube can be exchanged on its own, so this D5 bottom could later be swapped for one that takes a DDC pump. Its many outstanding features are listed below.

Borosilicate glass tube

For Watercool, borosilicate is the best material currently available for the construction of an expansion tank, and it chose to rely on it. The glass offers high chemical and thermal resistance, low thermal expansion and a scratch-resistant quality. Watercool sees ideal conditions there to create a high-quality tank.

What the loop needs

No pump is in the box: choose a D5 from our D5 pumps, such as the Watercool WCP D5-PWM Pump. Fittings are not included either, so add two fittings to suit your tube size. We carry more of this length in our 100mm D5 tube reservoirs.

Technical data

• Upper part material (cover): POM
• Strut material: Aluminum, black anodized
• Tube material: Borosilicate glass
• Lower part material (bottom): POM
• Inlay material: Stainless steel

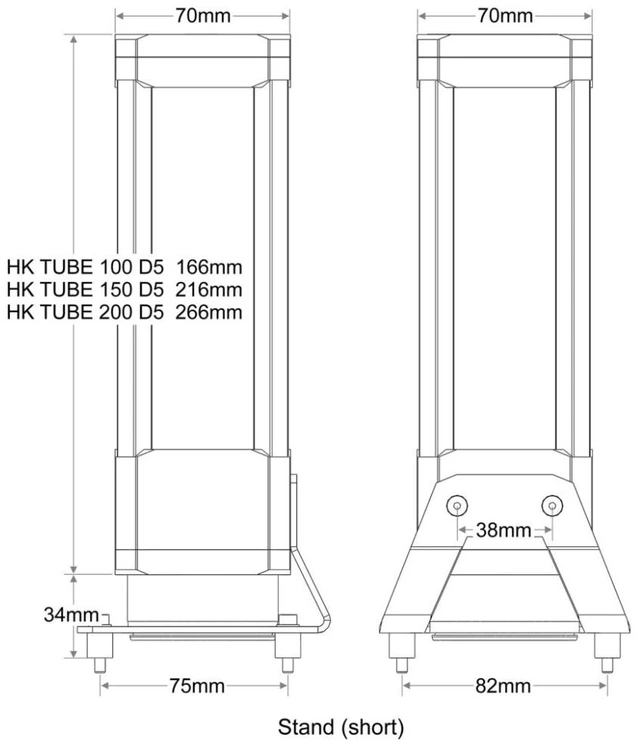

• Dimensions (L x W x H): 70 x 70 x 193 mm (including Xylem/Lowara D5 pump)
• Length of the tube: 100 mm
• Diameter of the tube: 65 mm
• Capacity: Approx. 250 ml
• Weight: Approx. 650 g
• Seals: NBR, VMQ
• Connection thread: 2x G1/4 inch (DIN ISO 228-1)

Notes

• Check every seal before the first start-up. If the reservoir leaks, look at the O-rings for correct position and damage; a squeezed or damaged O-ring means the reservoir must not be used.
• Drain the reservoir and take it out of the loop completely before any alteration. On the D5 version the pump has to come off first to reach the four screws of the bottom.
• O-rings of two strengths (4 mm and 5 mm) seal the glass tube and compensate for its length tolerance. Use the same strength you found in the reservoir when you replace one; the O-ring spare set contains both.

In the box

• 1x HEATKILLER® Tube 100 D5 MP
• 1x manual
