Watercool HEATKILLER RAD 420-S White (24127)

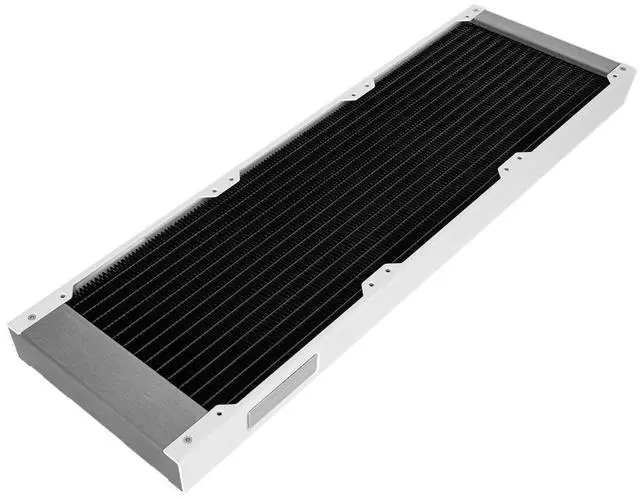

A slim 420 mm radiator for three 140 mm fans, only 30 mm thick, finished in white. The Watercool HEATKILLER RAD 420-S White is a mesh radiator with brass pre-chamber and cooling channels, copper fins, white side panels and two G1/4 ports.

Properties

• Fans: 3x 140 mm, up to 6 in push-pull, M3 screws
• Size: 460 x 140 x 30 mm
• Thickness: 30 mm (S series)
• Ports: 2x G1/4
• Material: Brass pre-chamber and channels, copper fins
• Weight: 1.10 kg

The HEATKILLER RAD series now in 280 and 420 mm

Watercool has now expanded its high-quality HEATKILLER RAD radiators beyond the 120 mm fan sizes to include 280 and 420 mm versions. Both rely on the popular slim format (S), with a height of 30 mm. In addition to the optimized performance, Watercool says the radiators are characterized by their compact dimensions and by the high-quality workmanship typical of Watercool. For two fans instead of three, there is the HEATKILLER RAD 280-S WHITE.

Finishing and quality control in Germany

Watercool says it has succeeded, in collaboration with a well-known manufacturer from Asia, in creating a powerful network (mesh) radiator with a unique look. Those cooling cores are made strictly according to Watercool's specifications. The radiator housing is produced directly on site in Waren, which means the finishing and quality control ultimately take place in Germany.

High cooling performance across the entire speed range

The aim of the development was to produce competitive radiators with a wide performance range. Accordingly, Watercool says the HEATKILLER RAD shows very good cooling performance even with slowly rotating fans, and that it scales excellently as the speed increases. For maximum cooling performance you can of course also run it in push/pull mode, with fans on both sides.

The best raw materials used

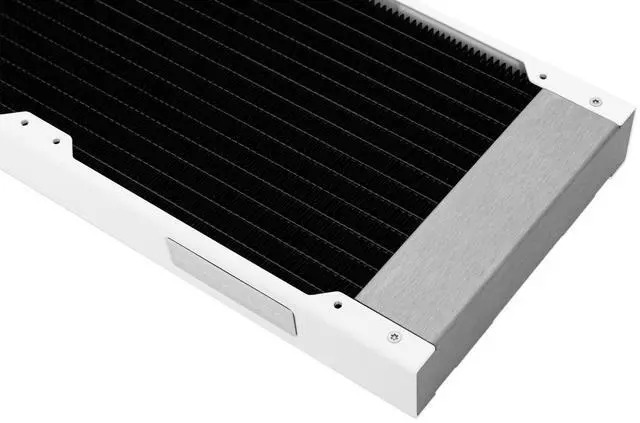

Only high quality raw materials form the basis of the HEATKILLER RAD. Brass is used for the pre-chamber and the cooling channels, and copper for the cooling fins. The side panels are laser-cut from 1 mm thick steel plates or stainless steel, and subsequently brushed or powder-coated in black or white depending on the finish; on this one they are white. Brushed stainless steel front sides significantly contribute to the exclusive look.

Easy integration into the cooling circuit

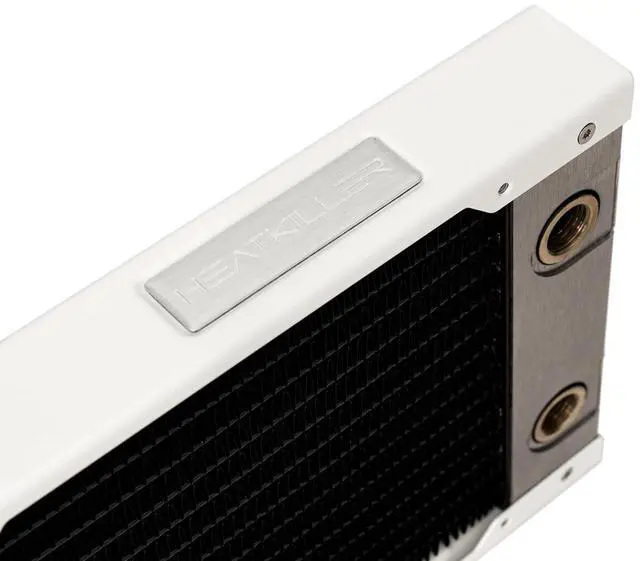

Integration into the circuit is done through two standard G1/4 inch threads. The connections required for this are not included in the scope of delivery, so plan on two fittings for your tube. Watercool says the manufactured thread passages ensure easy screwing in and high strength. A small width of just 140 mm ensures flexibility when you have to plan where it goes. It takes standard 140 mm fans, which means three on each side in push/pull.

Technical data: HEATKILLER RAD-S 420

• Dimensions: 460 x 140 x 30 mm
• Weight: 1.10 kg
• Color: White
• Connections: 2 x G1/4 thread
• Fan compatibility: 140 mm fans, up to 6 x 140 mm fan (push-pull)
• Radiator mounting: M3

Notes

• Fan screws may not reach deeper than 5 mm into the radiator, because longer screws might damage the pipes. The mounting material Watercool shows is M3x30 and M3x5 screws, 4 per fan.
• The side panels can be removed for maintenance.
• For coolant, Watercool recommends demineralized or deionized (distilled) water with a suitable corrosion inhibitor.

In the box

• 1x Watercool HEATKILLER RAD 420-S White
