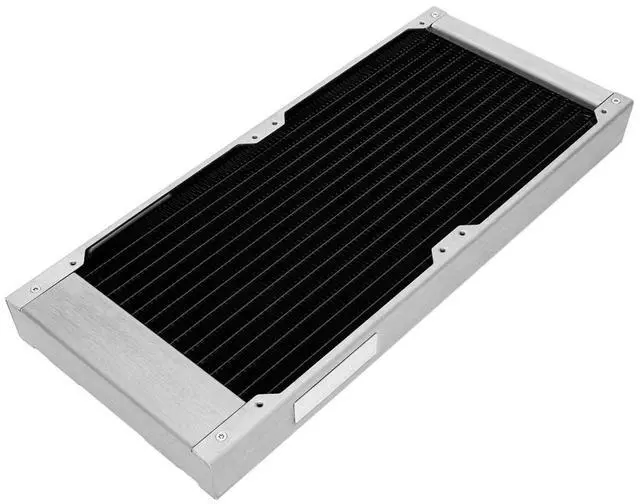

Watercool HEATKILLER RAD 280-S STAINLESS STEEL (24128)

A 280 mm radiator for two 140 mm fans, 30 mm thick. The Watercool HEATKILLER RAD 280-S STAINLESS STEEL is a slim mesh radiator with a brass pre-chamber and brass cooling channels, copper fins, brushed stainless steel side panels and two G1/4 ports.

Properties

• Fans: 2x 140 mm, up to 4 in push/pull, M3 screws
• Size: 320 x 140 x 30 mm
• Thickness: 30 mm (S series)
• Ports: 2x G1/4
• Material: Brass pre-chamber and channels, copper fins
• Weight: 0.87 kg

The HEATKILLER RAD in 280 and 420 mm

Watercool has now expanded its range of high-quality radiators in the HEATKILLER RAD series to include 280 and 420 mm versions. For these Watercool chose to rely on the highly popular slim format (S) with a height of 30 mm. In addition to the increased, optimized performance, Watercool says the radiators are characterized by their compact dimensions and the high-quality workmanship typical of the brand. The same radiator also comes in white.

Finishing and quality control in Germany

In collaboration with a well-known manufacturer from Asia, Watercool says it has succeeded in creating a powerful, high-performance mesh radiator with a unique look. Its cooling cores are manufactured strictly according to Watercool's specifications. The radiator housing is produced directly on site, on Watercool's premises in Waren, which means that the finishing, assembly and quality control ultimately take place in Germany.

High cooling performance across the entire speed range

The aim of the development was to produce competitive radiators with a wide performance range. Accordingly, Watercool says the HEATKILLER RAD shows a very good cooling performance even with slowly rotating fans, a performance which scales excellently as the speed increases. For maximum cooling performance it can of course also be used in push/pull mode, with two fans on each side.

The best raw materials used

Watercool uses only high quality raw materials as the basis for the HEATKILLER RAD. The pre-chamber and the cooling channels are made of brass, while the cooling fins are made of copper. The side panels are laser-cut from 1 mm thick steel plates or stainless steel, and subsequently brushed or powder-coated in black or white, depending on the finish. On this model they are brushed stainless steel. The front sides are made of brushed stainless steel too and contribute significantly to the exclusive look.

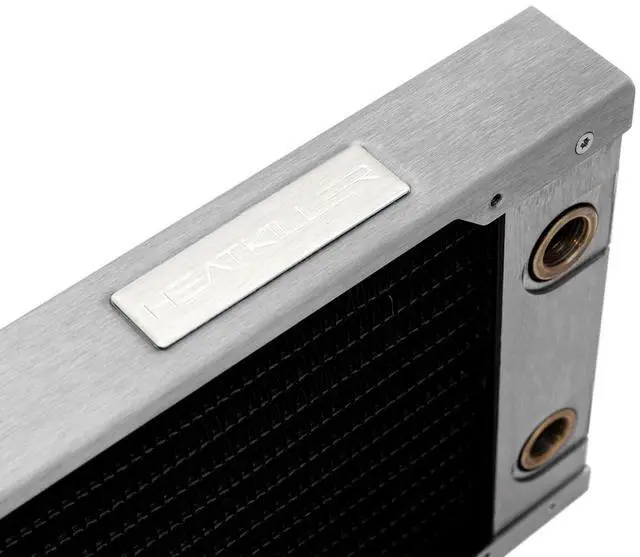

Easy integration into the cooling circuit

Integration into the circuit is done with two standard G1/4 inch threads, and the manufactured thread passages ensure easy screwing in and high strength. The connections required for this are not included in the scope of delivery, so you will have to pick two fittings for your tube. The small width of just 140 mm ensures maximum flexibility, and it takes 140 mm fans.

Technical data: HEATKILLER RAD-S 280

• Dimensions: 320 x 140 x 30 mm
• Weight: 0.87 kg
• Color: Brushed stainless steel
• Connections: 2 x G1/4" thread
• Fan compatibility: Up to 4 x 140 mm fans (push-pull)
• Radiator mounting: M3

Notes

• Fan screws may not reach deeper than 5 mm into the radiator; longer screws might damage the pipes. Watercool's mounting material lists M3x30 and M3x5 screws, 4 per fan.
• The side panels can be removed for maintenance.
• Watercool recommends demineralized or deionized (distilled) water with a suitable corrosion inhibitor as coolant.

In the box

• 1x Watercool HEATKILLER RAD 280-S STAINLESS STEEL
