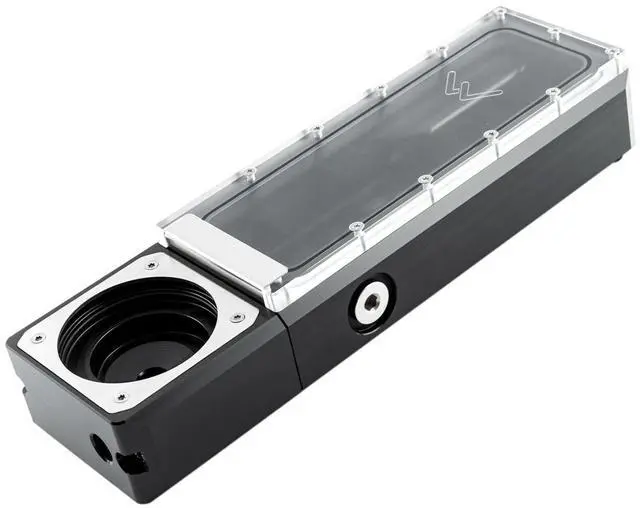

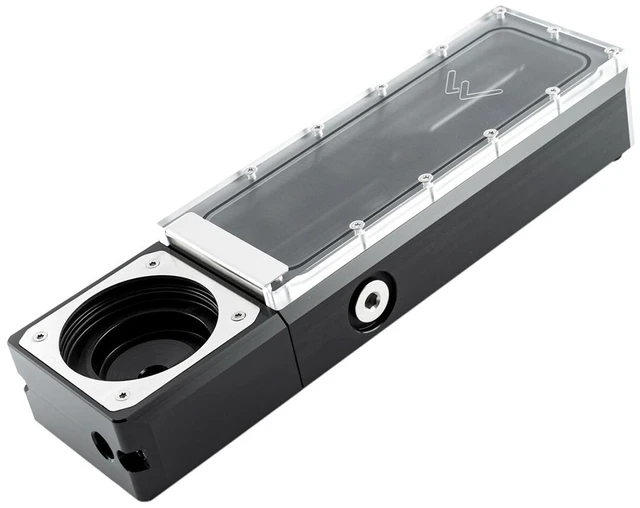

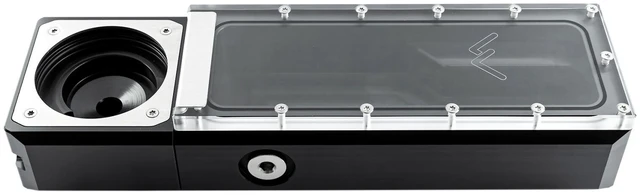

Watercool HEATKILLER Tank 200 D5 - Clear / Black Reservoir, G1/4, 250ml, Acrylic (30330)

A modular reservoir for one D5 pump, 0.25 liters, with five G1/4 ports. The Watercool HEATKILLER Tank 200 D5 takes the pump directly in its stainless steel bracket; the pump is not included.

Properties

• Pump: D5, not included
• Capacity: 0.25 liters
• Ports: 5x G1/4 (2 top, left, right, bottom)
• Size: 275 x 84 x 49 mm
• Material: Acetal body, acrylic lid

Acetal, acrylic and stainless steel

Watercool calls it the first modular, expandable expansion tank and asks you to experience the highest quality and a modular design. The body is crafted from solid acetal and finished with a transparent Plexiglas GS front. In Watercool's words, the tank combines uncompromising material quality with a clean, technical design. An optional aRGB module can be installed behind the brushed stainless steel panel; this provides stylish, indirect lighting and further enhances the visual appearance.

Flow-optimized and flexible installation

Thanks to its innovative, modular design, the tank can be equipped with additional pump modules in D5 format, the MO-RA IV Tank D5 Expansion, for maximum flow performance and redundancy. Whether you run a single-loop or a multi-pump configuration, Watercool says the HEATKILLER Tank grows with your requirements. The direct pump connection guarantees high flow rates, and the flow-optimized design ensures efficient ventilation.

The side connectors (inputs) allow a horizontal as well as a vertical installation. Installation in server racks is also easily possible. Two optionally available mounting frames, for 2 x 120mm or 2 x 140mm fan slots, ensure uncomplicated installation. One allows the tank to be easily mounted on a suitable radiator/fan slot.

What the loop needs

Add a D5 pump: loosen the stainless steel bracket, guide the pump through it and screw both parts back together evenly and in a cross pattern. For a radiator or fan slot, pick the HEATKILLER TANK Mounting Frame 120 or the Mounting Frame 140. Each port you use takes one of your fittings, and an unused one takes a plug.

Technical data

• Material lid: Acrylic
• Material body: Acetal
• External dimensions (L x W x H): 275 x 84 x 49 mm
• Weight: approx. 1.10 kg
• Top inlet (filling openings): 2x thread G1/4 inch
• Right inlet: 1x thread G1/4 inch
• Left inlet: 1x thread G1/4 inch
• Bottom outlet: 1x thread G1/4 inch
• Capacity: 0.25 liters

Notes

• On a radiator no screw may protrude more than 5 mm into it. Watercool uses M3x5 screws without a fan and M3x30 with a 25 mm standard fan.
• An expansion module is screwed to the tank with M5x65 screws, then the M12 to M5 adapter; the O-rings must sit correctly between all modules.
• Watercool recommends demineralized or deionized (distilled) water with a suitable corrosion inhibitor, or Heatkiller Fluid as a ready-mixed coolant.

In the box

• 1x Watercool HEATKILLER Tank 200 D5
• 1x Mounting material
