Waveshare SIM7600G-H-PCIE SIMCom Original 4G LTE Cat-4 Module Global Coverage with GNSS Support Mini-PCIe Connector LTE-TDD LTE-FDD HSPA+ GSM GPRS Edge

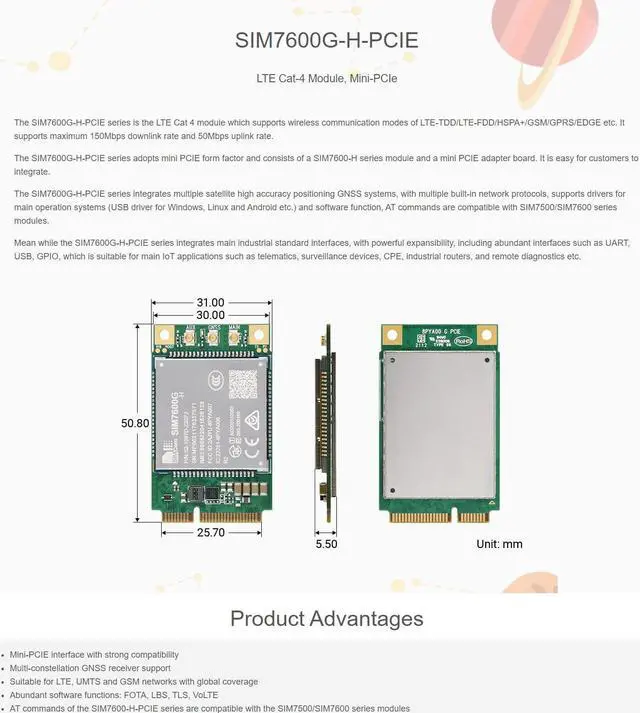

SIM7600G-H-PCIE LTE Cat-4 Module, Mini-PCIe The SIM7600G-H-PCIE series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

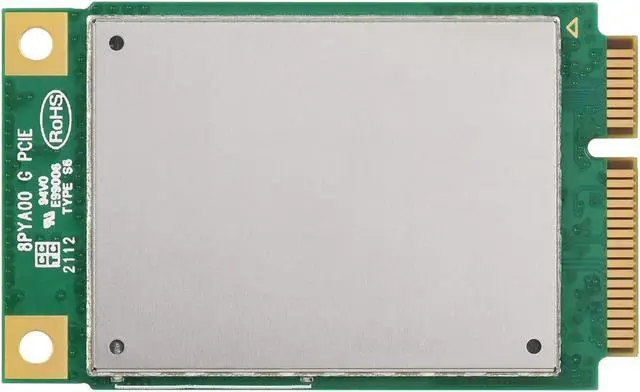

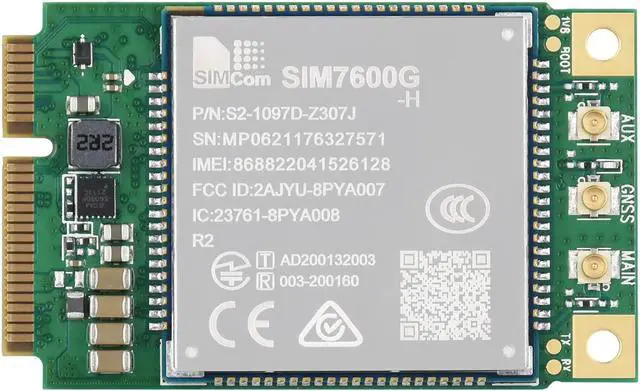

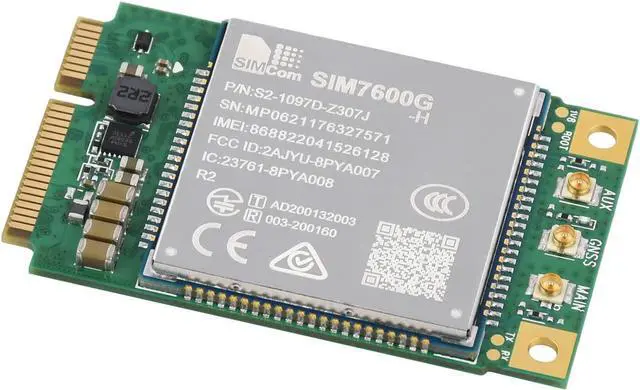

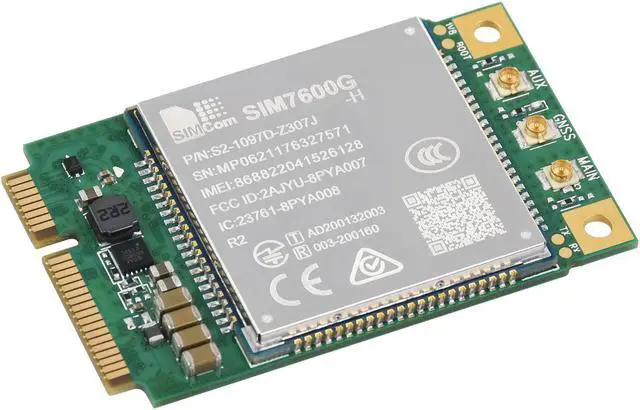

The SIM7600G-H-PCIE series adopts mini PCIE form factor and consists of a SIM7600-H series module and a mini PCIE adapter board. It is easy for customers to integrate.
The SIM7600G-H-PCIE series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.
Mean while the SIM7600G-H-PCIE series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Product Advantages Mini-PCIE interface with strong compatibility
Multi-constellation GNSS receiver support
Suitable for LTE, UMTS and GSM networks with global coverage
Abundant software functions: FOTA, LBS, TLS, VoLTE
AT commands of the SIM7600-H-PCIE series are compatible with the SIM7500/SIM7600 series modules

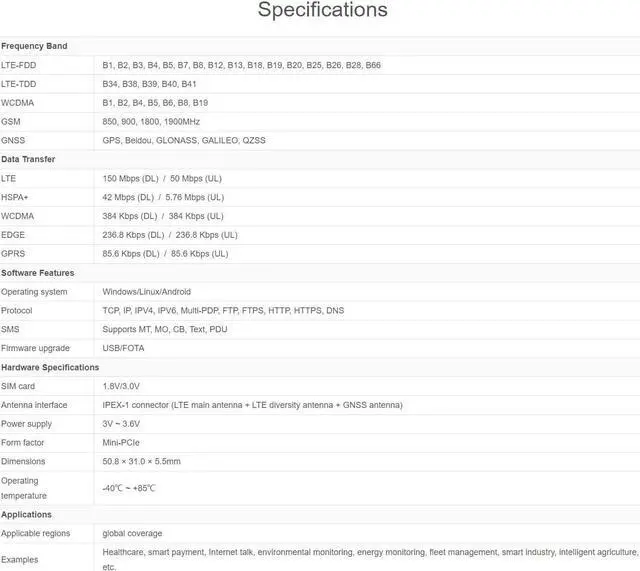

Specifications Hardware Specifications WIKI: waveshare.com/wiki/SIM7600G-H-PCIE?amazon
