waveshare Industrial 6-CH Relay Module for Raspberry Pi Zero/Zero W/Zero WH, RS485/CAN Half-Duplex Communication UART Control, Auto RX/TX Switch,MCP2515 + SN65HVD230 Solution SPI Control
- Industrial 6-Channel Relay Module for Raspberry Pi Zero, RS485/CAN bus, power supply isolation, photocoupler isolation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

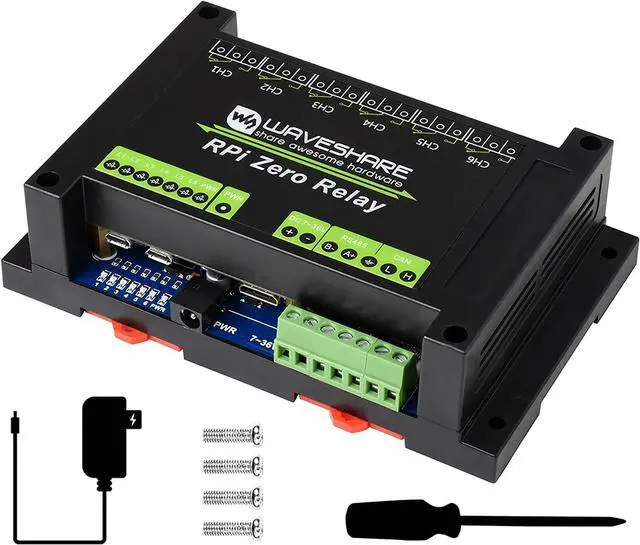

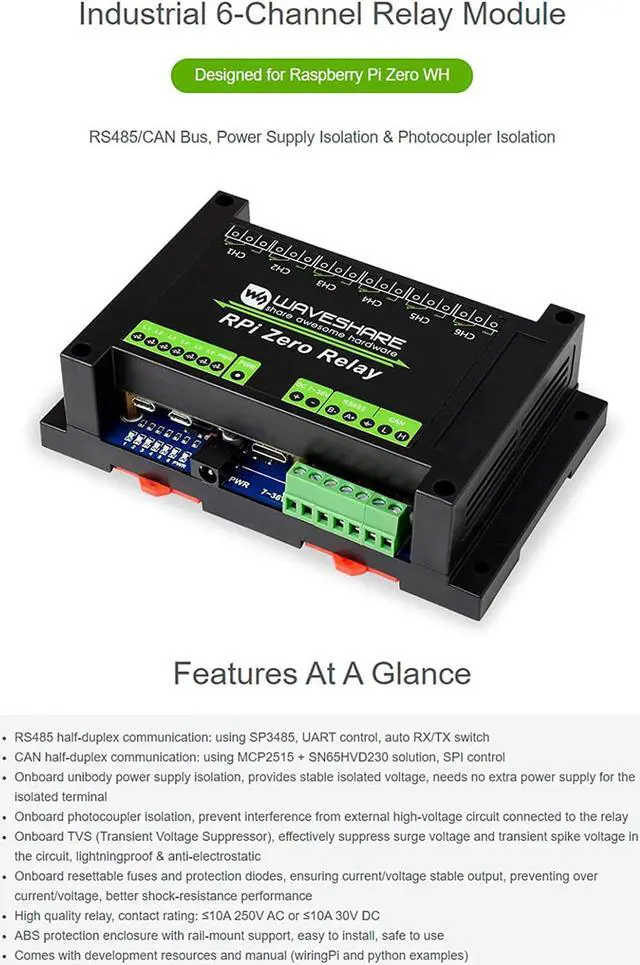

Industrial 6-Channel Relay Module for Raspberry Pi Zero, RS485/CAN bus, power supply isolation, photocoupler isolation.

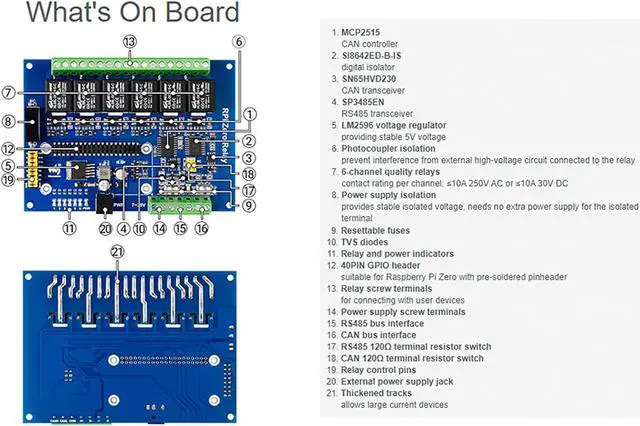

RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch. CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control.
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay.
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance.

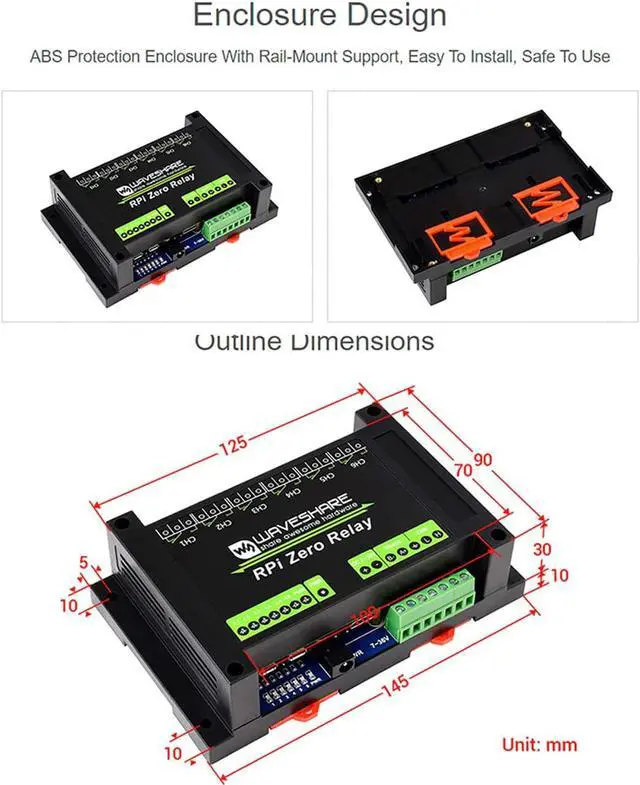

High quality relay, contact rating: 10A 250V AC or 10A 30V DC. ABS protection enclosure with rail-mount support, easy to install, safe to use.
RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch. CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control.
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay.
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance.
High quality relay, contact rating: 10A 250V AC or 10A 30V DC. ABS protection enclosure with rail-mount support, easy to install, safe to use.
