Main image of Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC, with Standard CM4 Socket, with Raspberry Pi 40PIN GPIO Interface, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack

Alt view image 2 of 7 - Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC, with Standard CM4 Socket, with Raspberry Pi 40PIN GPIO Interface, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack

Alt view image 3 of 7 - Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC, with Standard CM4 Socket, with Raspberry Pi 40PIN GPIO Interface, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack

Alt view image 4 of 7 - Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC, with Standard CM4 Socket, with Raspberry Pi 40PIN GPIO Interface, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack

Alt view image 5 of 7 - Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC, with Standard CM4 Socket, with Raspberry Pi 40PIN GPIO Interface, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack

Alt view image 6 of 7 - Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC, with Standard CM4 Socket, with Raspberry Pi 40PIN GPIO Interface, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack

Alt view image 7 of 7 - Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC, with Standard CM4 Socket, with Raspberry Pi 40PIN GPIO Interface, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack

Shop All WaveShare Products | Visit Superior Quality Store

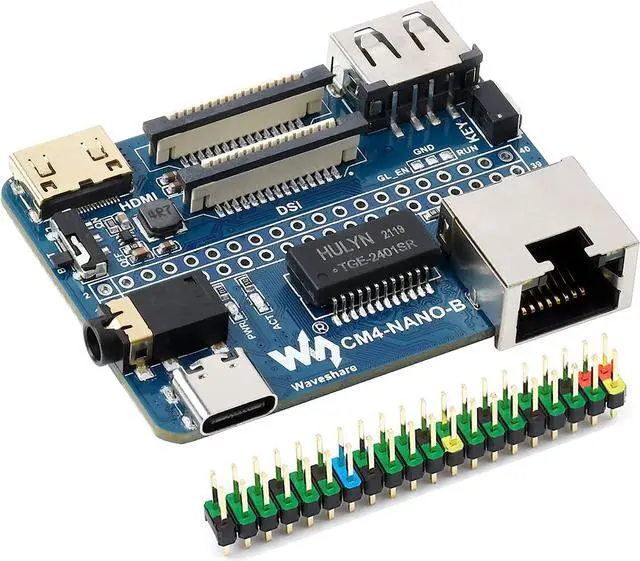

Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC, with Standard CM4 Socket, with Raspberry Pi 40PIN GPIO Interface, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack

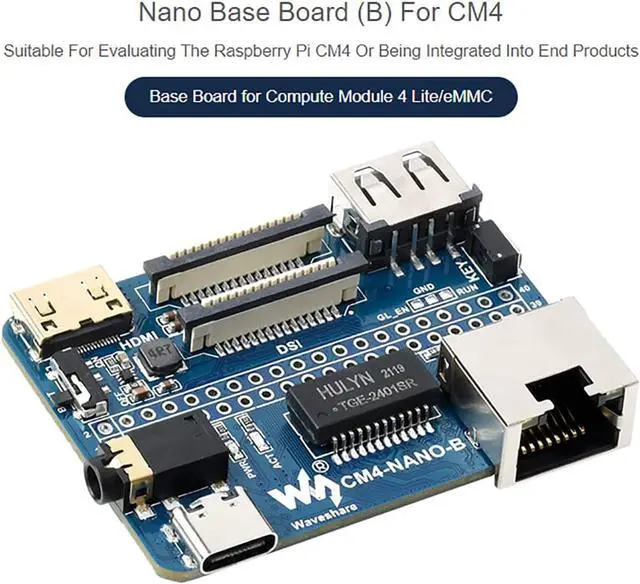

Base Board for Compute Module 4 Lite/eMMC,Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Base Board for Compute Module 4 Lite/eMMC,Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products

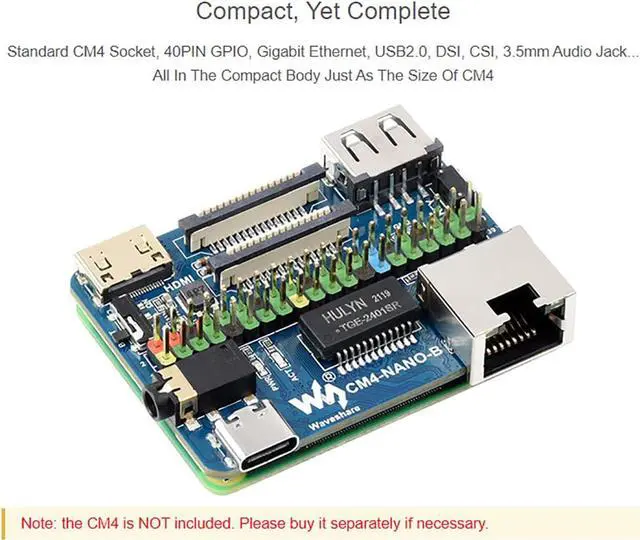

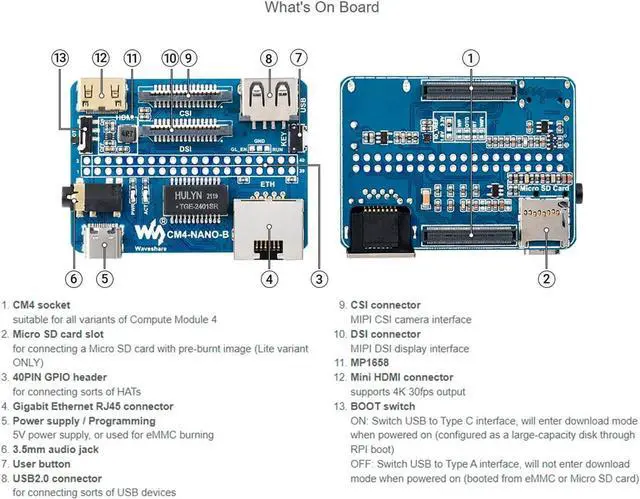

The size of CM4, the onboard standard CM4 connector, integrates a variety of interfaces. Meet the vast majority of user needs. Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm audio jack,etc.

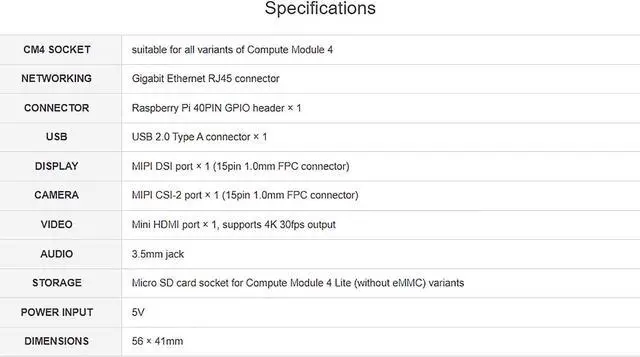

Networking:Gigabit Ethernet RJ45 connector. Connector:Raspberry Pi 40PIN GPIO header x 1. USB:USB 2.0 Type A connector x 1. Display:MIPI DSI port x 1 (15pin 1.0mm FPC connector). Camera:MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector). Video:Mini HDMI port x 1, supports 4K 30fps output. Audio:3.5mm jack.

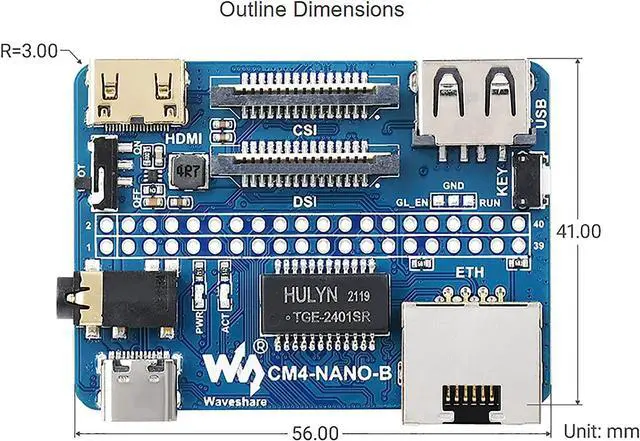

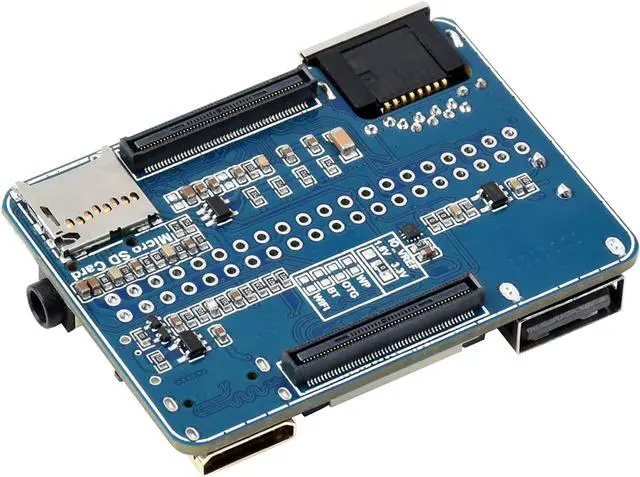

Storage:Micro SD card socket for Compute Module 4 Lite (without eMMC) variants. Power input:5V. Dimensions:56 x 41mm.
