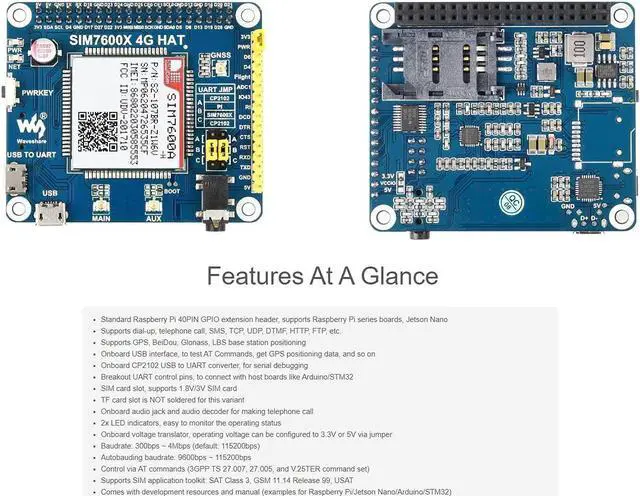

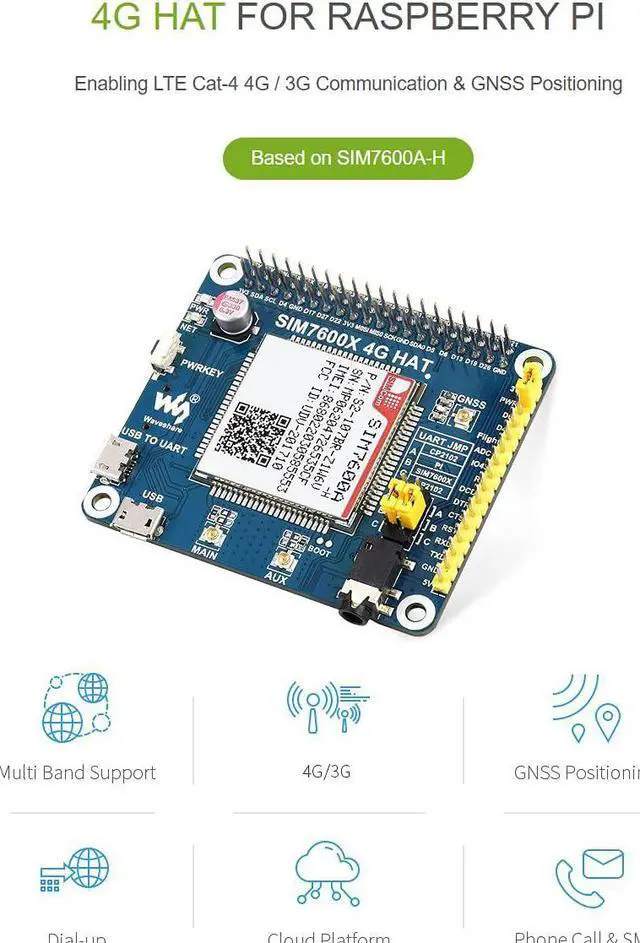

4G / 3G / GNSS HAT Module for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B/Jetson Nano, Based on SIM7600A-H , 4G Communication and GNSS Positioning Module Support LTE CAT4 up to 150Mbps
- Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B,Jetson Nano,Onboard USB interface, to test AT Commands, get GPS positioning data, and so on.Onboard CP2102 USB to UART converter, for serial debugging
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

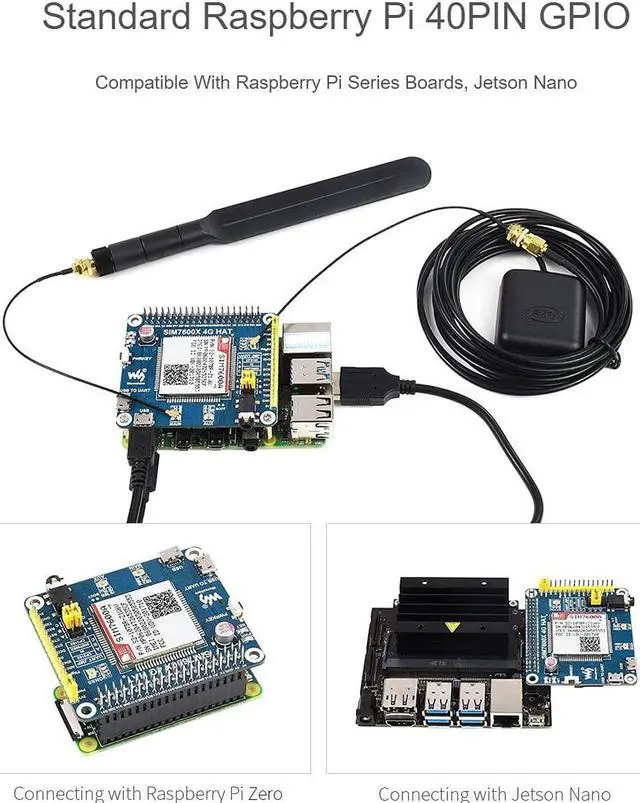

Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B,Jetson Nano,Onboard USB interface, to test AT Commands, get GPS positioning data, and so on.Onboard CP2102 USB to UART converter, for serial debugging

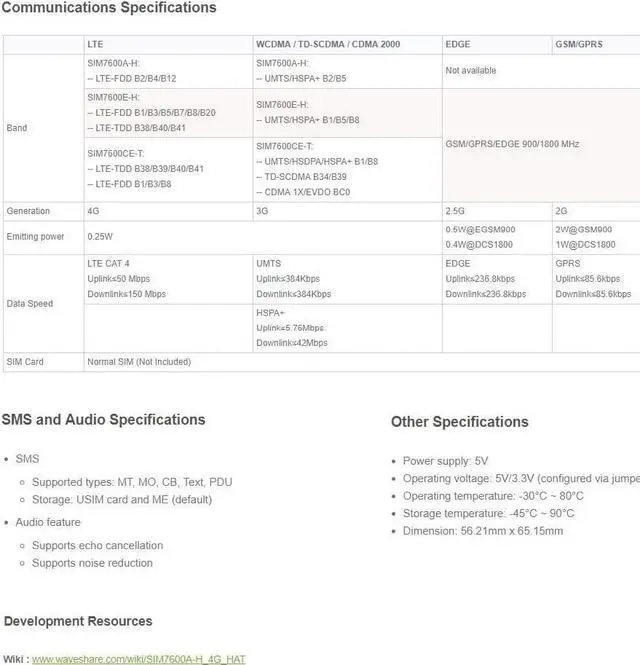

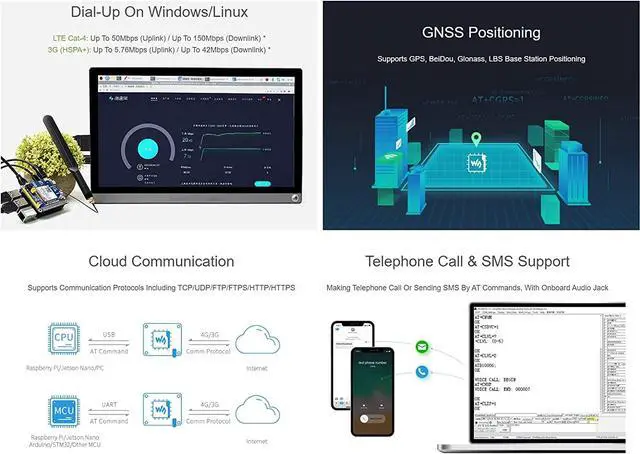

This item is mainly applicable in North America (US, CA, MX). Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.Supports GPS, BeiDou, Glonass, LBS base station positioning

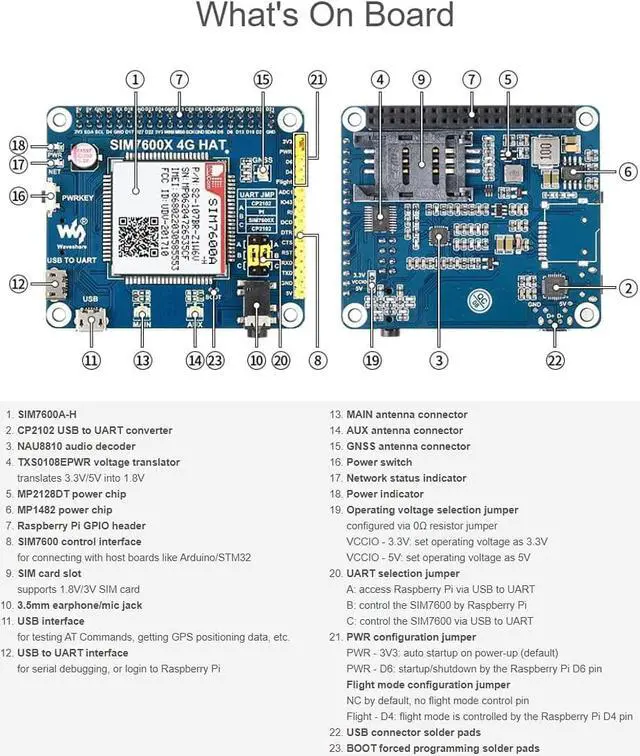

Breakout UART control pins, to connect with host boards like Arduino/STM32SIM card slot, supports 1.8V/3V SIM card
Onboard audio jack and audio decoder for making telephone callOnboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper2x LED indicators, easy to monitor the working status
Supports SIM application toolkit: SAT Class 3, USATComes with development resources and manual (examples for Raspberry Pi/Arduino/STM32).Please contact the seller via NE message if you have any problem.
This item is mainly applicable in North America (US, CA, MX). Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.Supports GPS, BeiDou, Glonass, LBS base station positioning
Breakout UART control pins, to connect with host boards like Arduino/STM32SIM card slot, supports 1.8V/3V SIM card
Onboard audio jack and audio decoder for making telephone callOnboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper2x LED indicators, easy to monitor the working status
Supports SIM application toolkit: SAT Class 3, USATComes with development resources and manual (examples for Raspberry Pi/Arduino/STM32).Please contact the seller via NE message if you have any problem.
