ESP32-C6 1.47inch Display Development Board with Pre-soldered Header | 172×320 Resolution 262K Color RGB LED, 32-bit RISC-V Processor,Supports Wi-Fi 6(802.11 b/g/n) and Bluetooth 5 (LE)

ESP32-C6 1.47inch Display Development Board with pre-soldered header , 172×320, 262K Color, 160MHz Running Frequency Single-Core Processor,

Supports WiFi 6 & Bluetooth,With Colorful RGB LED, ESP32 With Display

Features

ESP32-C6-LCD-1.47-M is a microcontroller development board with 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 support, integrates 4MB Flash. Onboard 1.47inch LCD

screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-C6 applications.

Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz

Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory

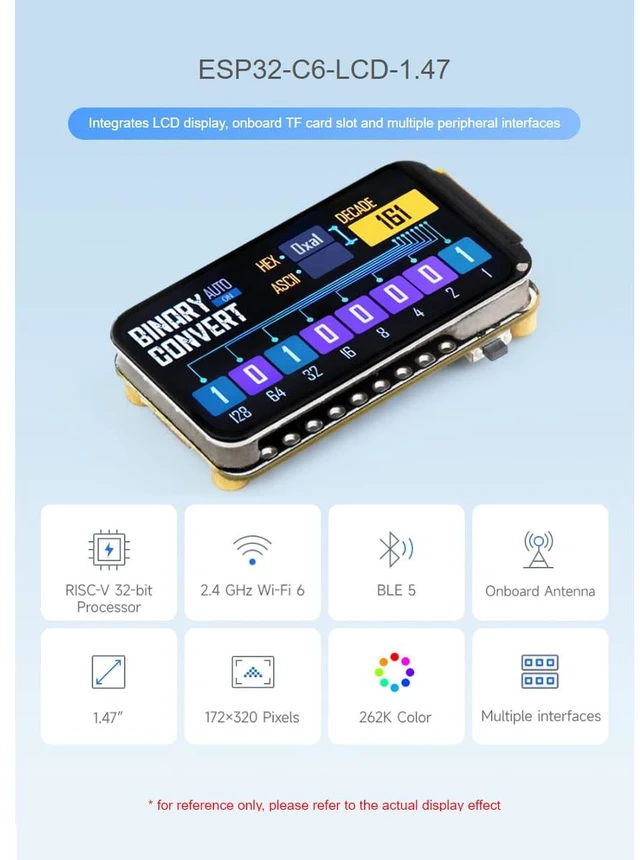

Onboard 1.47inch LCD display, 172×320 resolution, 262K color

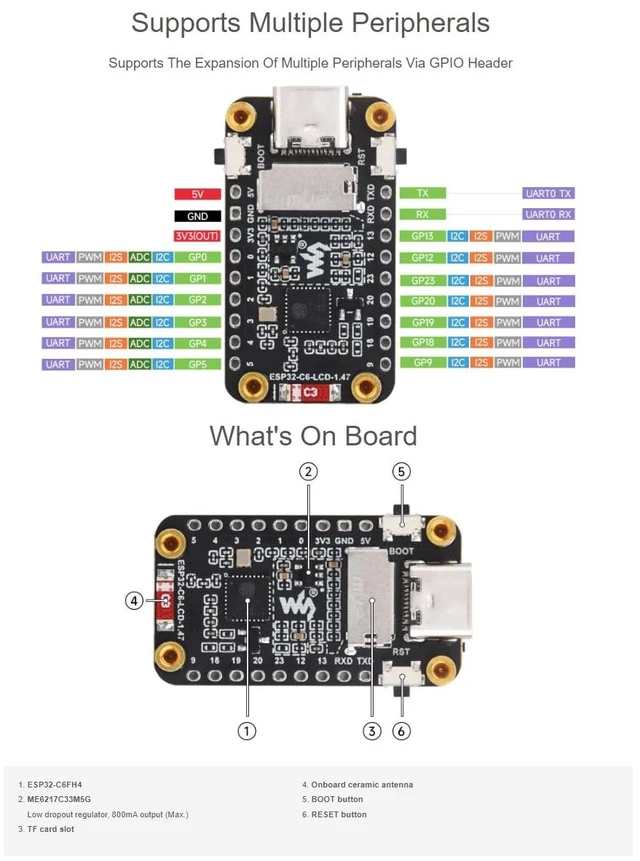

Adapting multiple IO interfaces, integrates full-speed USB port

Onboard TF card slot for external TF card storage of pictures or files

Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Built-in RGB LED with clear acrylic sandwich panel for cool lighting effect

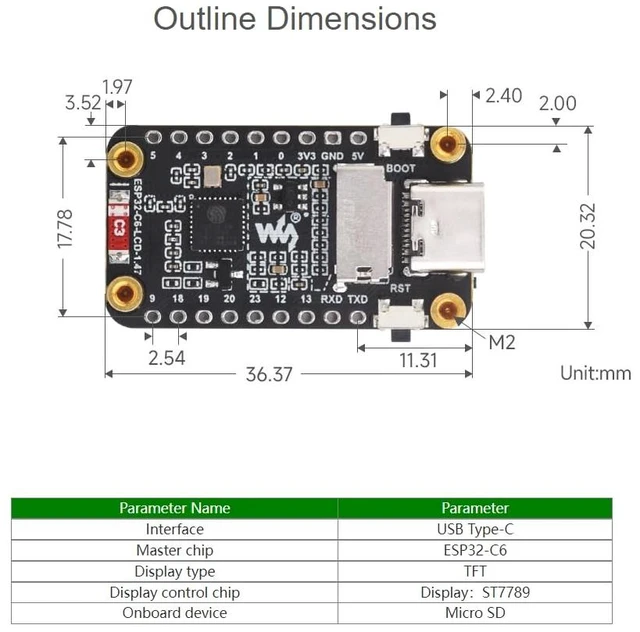

Parameter Name---Parameter

Interface---USB Type-C

Master chip---ESP32-C6

Display type---TFT

Display control chip---DisplayST7789

Onboard device---Micro SD

Package Content

ESP32-C6-LCD-1.47 with pre-soldered header x1

FAQ

If you redownloaded the module program after you had downloaded it before, sometimes the serial port cannot be connected or the burning failed?

You can long press BOOT button and press RESET at the same time, then release RESET, and then release BOOT button. At this time, the module will enter

download mode, which can solve most of the problems related to inability to download.
