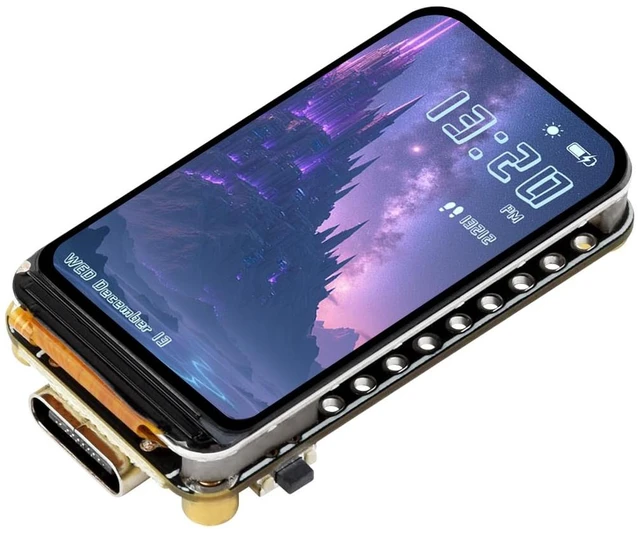

ESP32-S3 1.47inch LCD Display Development Board Type B,262K Color Display | 172×320 Resolution Screen,16MB Flash,8MB PSRAM,Supports 2.4GHz Wi-Fi and BLE 5, Run GUI programs LVGL

ESP32-S3 1.47inch LCD Display Development Board Type B, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-Core Processor, ESP32 With Display

Features

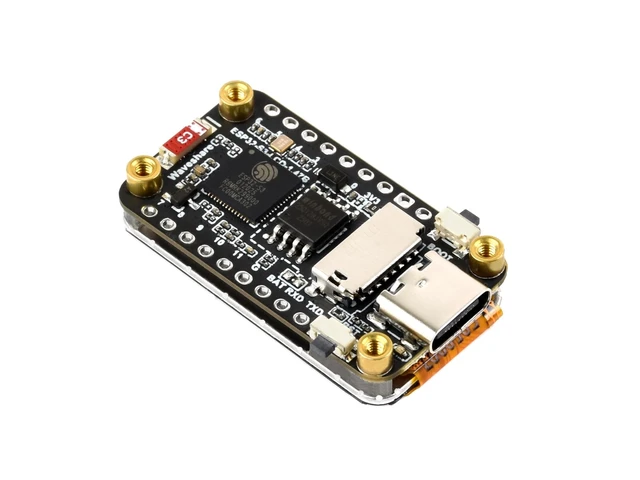

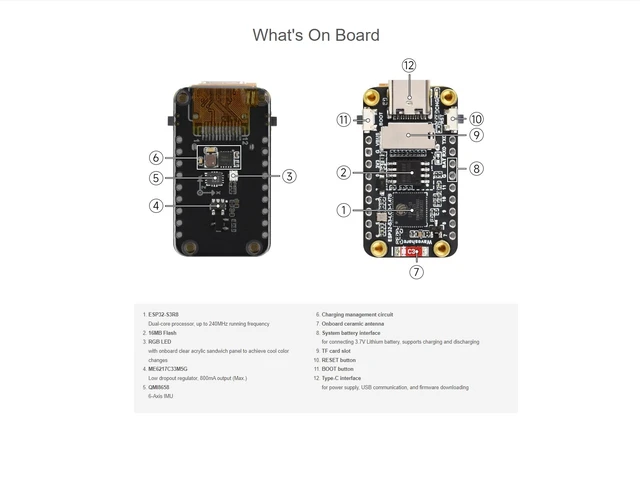

ESP32-S3-LCD-1.47B is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM.

Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid

development of ESP32-S3 HMI applications.

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

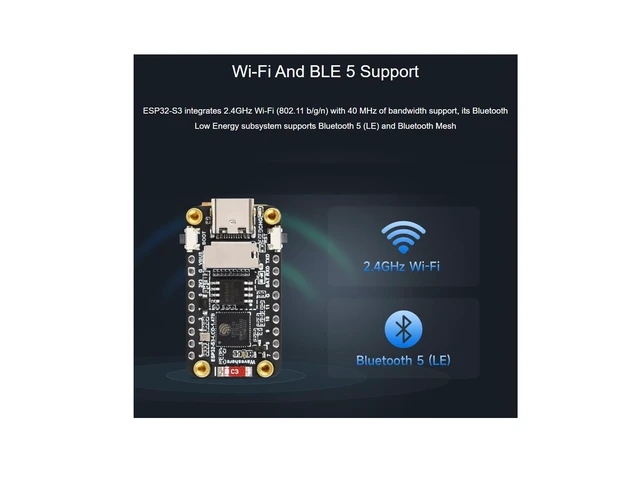

Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

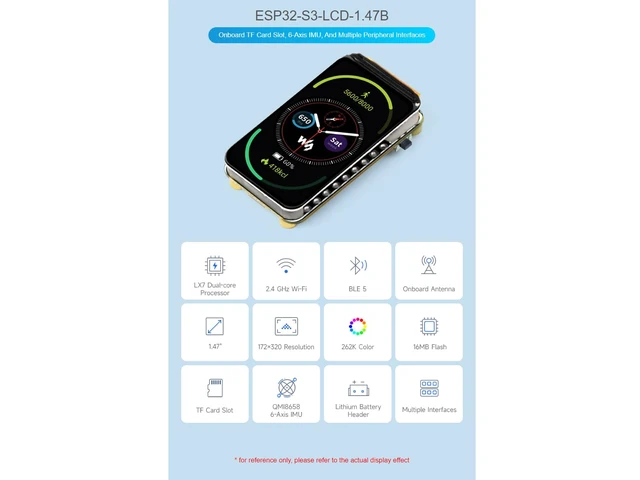

Onboard 1.47inch LCD display, 172×320 resolution, 262K color

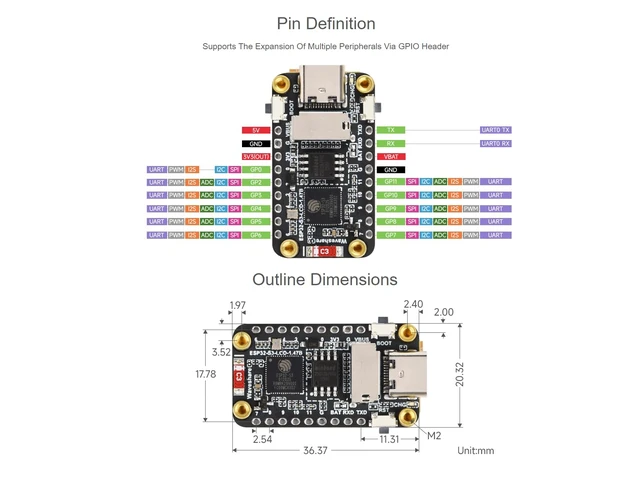

Adapting multiple IO interfaces, supports full-speed USB standard

Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc

Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects

Onboard TF card slot for external TF card storage of pictures or files

Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header)

Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Package Content

ESP32-S3-LCD-1.47B × 1

Black header × 2

Usage Instructions

ESP32-S3-LCD-1.47B currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you can

choose the right development tool according to your project needs and personal habits.
