ESP32-S3 7inch Touch Display Development Board Type B,7IPS LCD Screen | 1024×600 Resolution,65K Color,Supports Wi-Fi and Bluetooth BLE 5,Backlight Adjustable, Multiple Peripheral Interfaces

Features

This product is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard

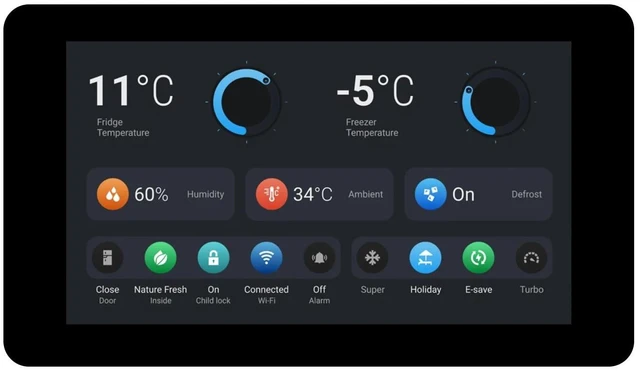

7inch LCD display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid

development of ESP32-S3 HMI applications.

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

Onboard 7inch LCD display, 1024 × 600 resolution, 65K color

Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)

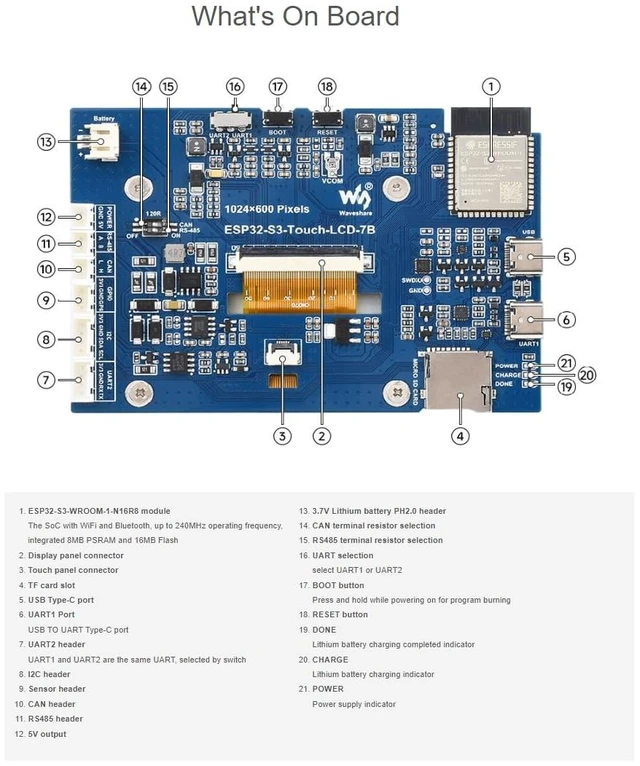

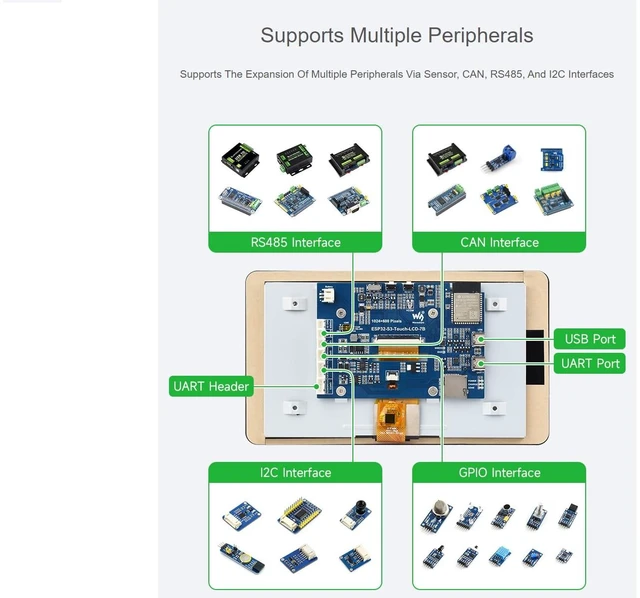

Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

LED indicators for easy monitoring of power status and battery charging status

Supports backlight adjustment and real-time battery voltage monitoring

Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Usage Instructions

Currently there are three development tools and frameworks, Arduino IDE, ESP-IDF and PlatformIO, providing flexible development options, you can choose

the right development tool according to your project needs and personal habits.

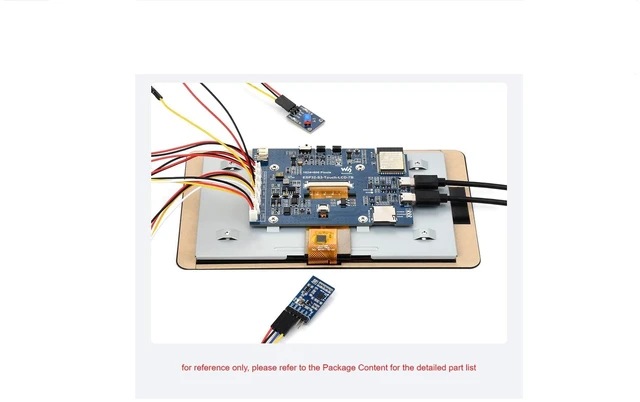

Package Content

ESP32-S3-Touch-LCD-7B × 1

HY2.0 2P to 2PIN male cable × 3

HY2.0 3P to 3PIN male cable × 1

HY2.0 4P to 4PIN male cable × 2

Screws pack × 1

Note

Development Resource is provided , please contact with us to get if needed.
