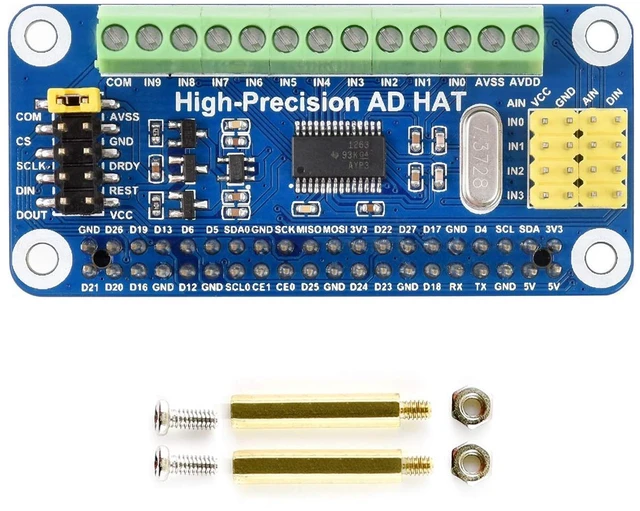

Waveshare High-Precision AD HAT, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH and Jetson Nano, ADS1263 10-ch 32-bit ADC

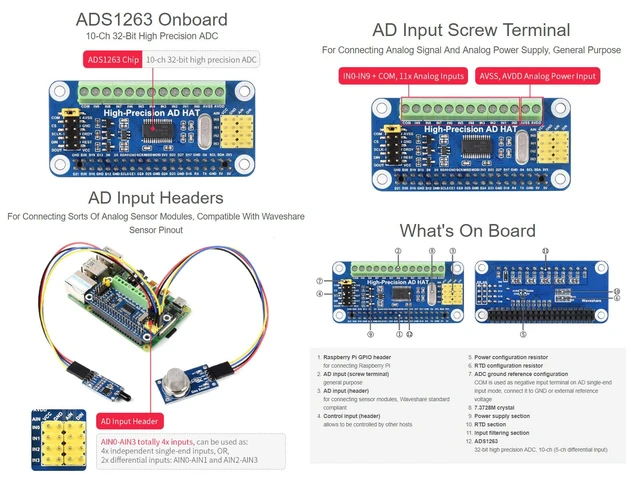

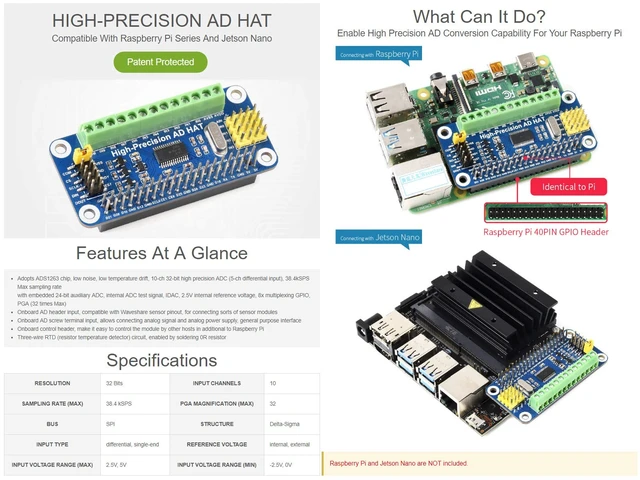

- Adopts ADS1263 chip, low noise, low temperature drift, 10-ch 32-bit high precision ADC (5-ch differential input), 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC, internal ADC test signal, IDAC, 2.5V internal reference voltage, 8x multiplexing GPIO, PGA (32 times Max)
- Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules
- Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface

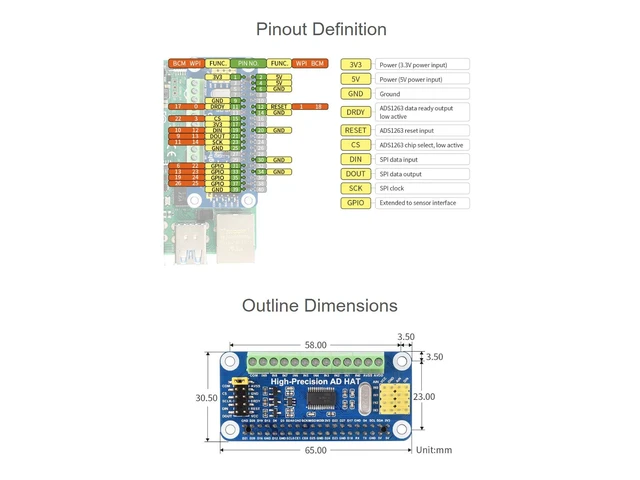

- Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi
- Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product information
| Brand | waveshare |
| Model Name | RB-Wav-250 |
| CPU Model | ARM 610 |
| Connectivity Technology | GPIO |
| Included Components | Onboard AD header input, onboard AD screw terminal input, onboard control header, 10-pin header |
| Operating System | Debian |
| Processor Brand | Waveshare |
| Wireless Compability | 802.11n |

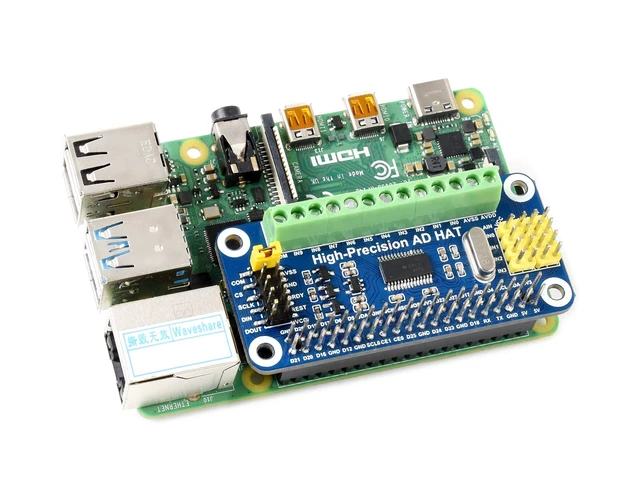

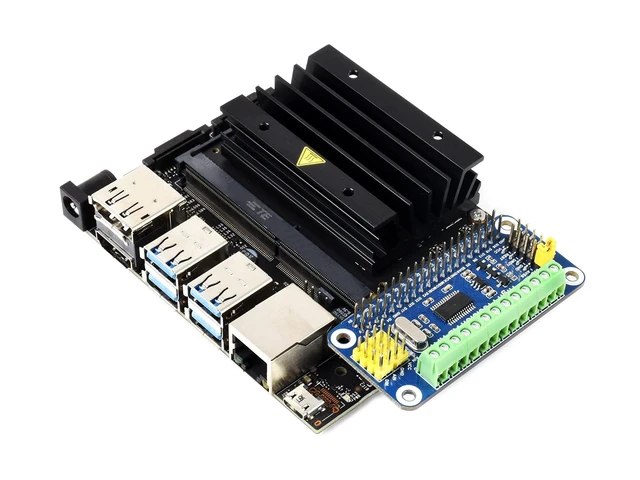

| Compatible Devices | Raspberry Pi Series, Jetson Nano |
| RAM Memory Technology | DDR |
| Built-In Media | Onboard AD header input, onboard AD screw terminal input, onboard control header, 10-pin header |
| Number of Packs | 1 |
| Number of Items | 1 |
| UPC | 735584590462 |
| Unit Count | 1 Count |
| Item Weight | 0.01 kg |
| Manufacturer | Waveshare |
| Model Number | High-Precision AD HAT |
| Mfr Part Number | High-Precision AD HAT |
