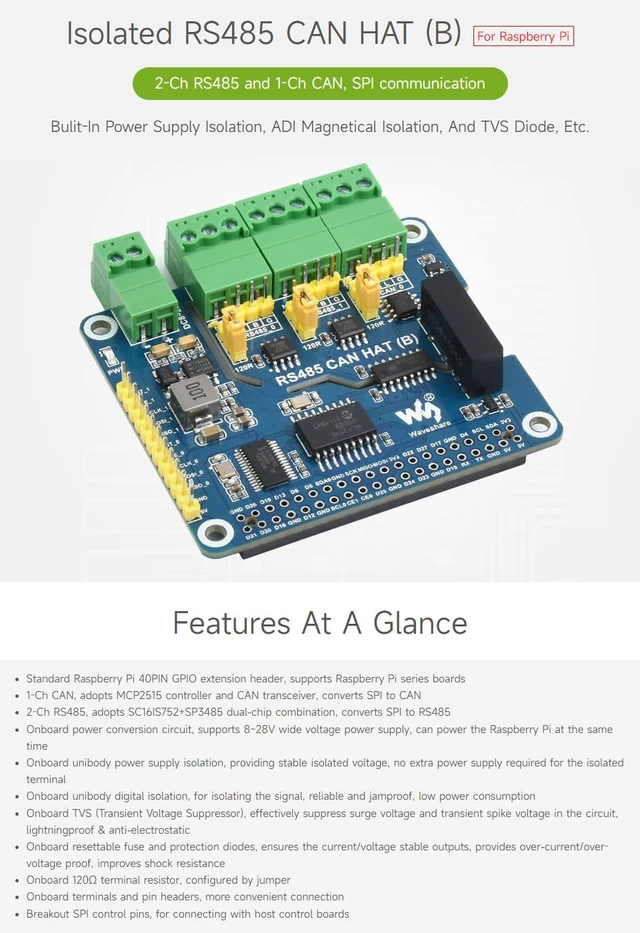

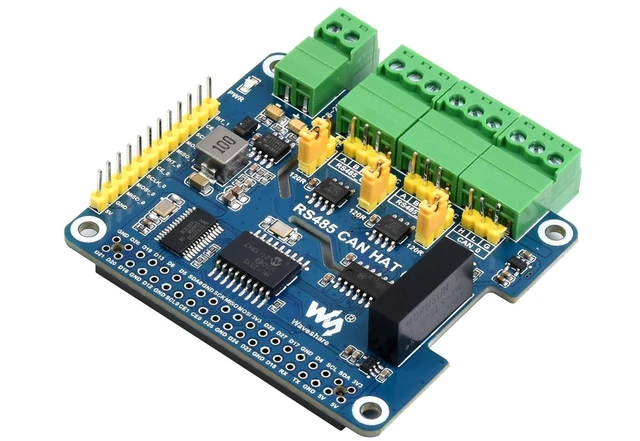

Waveshare Isolated RS485 CAN HAT B, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, Type 2-Ch RS485 and 1-Ch CAN Multi Protections

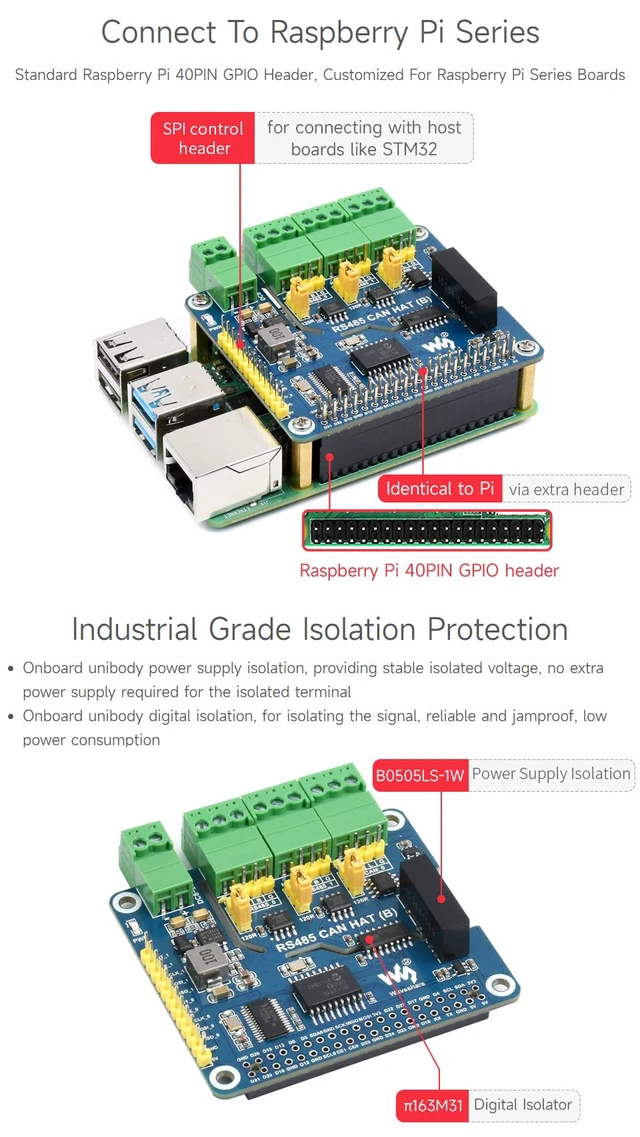

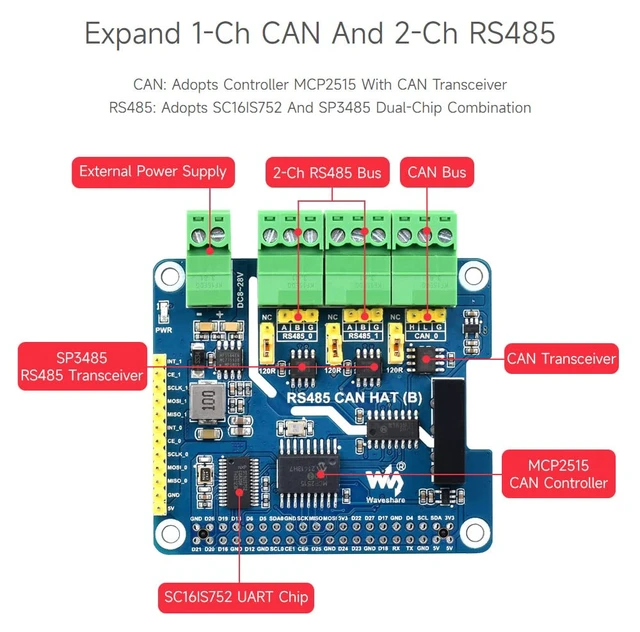

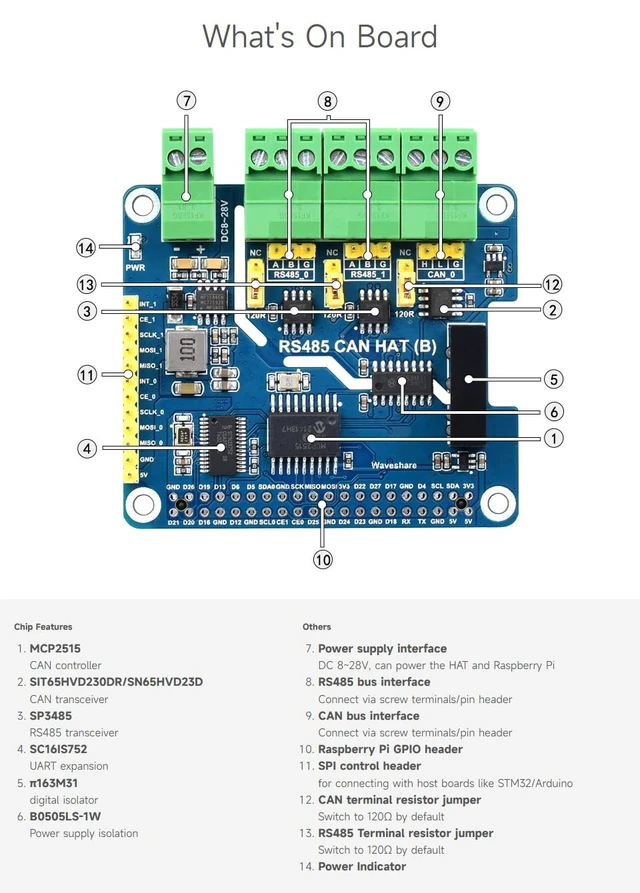

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. 1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converts SPI to CAN. 2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
- Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
- Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
- Onboard 120 terminal resistor, configured by jumper. Onboard terminals and pin headers, more convenient connection. Breakout SPI control pins, for connecting with host control boards
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

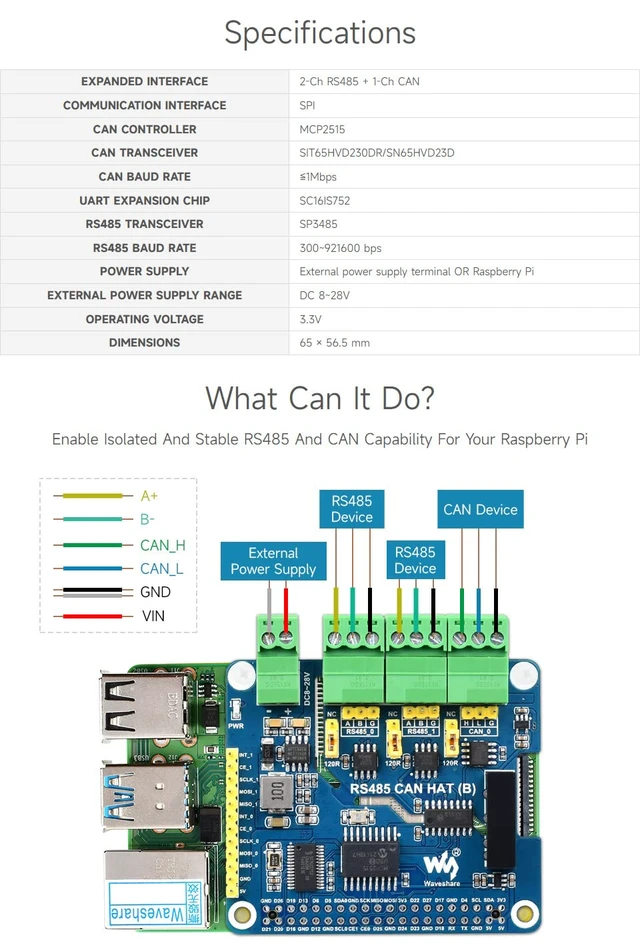

Product information
| Compatible Devices | Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH |
| Color | RS485 CAN HAT (B) |
| Item dimensions L x W x H | 2.56 x 1.18 x 1.18 inches |
| Brand | waveshare |
| Number of Ports | 3 |
| Input Voltage | 28 volts |
| Model Number | RS485 CAN HAT (B) |
| UPC | 717186097884 |
| Manufacturer | Waveshare |
| Mfr Part Number | RS485 CAN HAT (B) |
| Item Dimensions | 2.56 x 1.18 x 1.18 inches |
| Package Quantity | 1 |
| Number of Items | 1 |
