PoE Ethernet/USB HUB HAT Board with ABS Case Box for Raspberry Pi Zero 2W/2WH/Zero, PoE 802.3af-Compliant Ethernet Port and 3X USB 2.0 Ports Compatible with USB 2.0/1.1

Overview

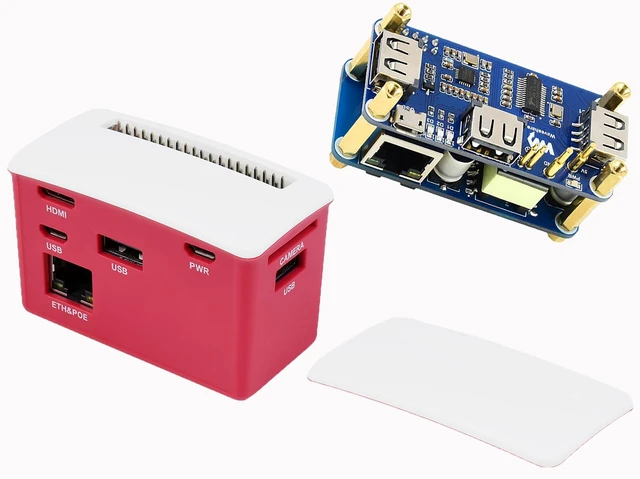

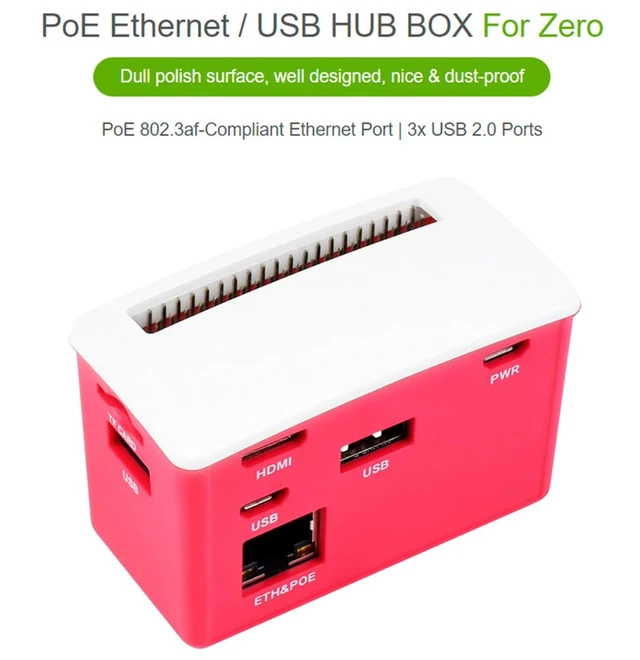

The PoE-ETH-USB-HUB-BOX is a HUB kit with Waveshare PoE/ETH/USB HUB HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports.

Features

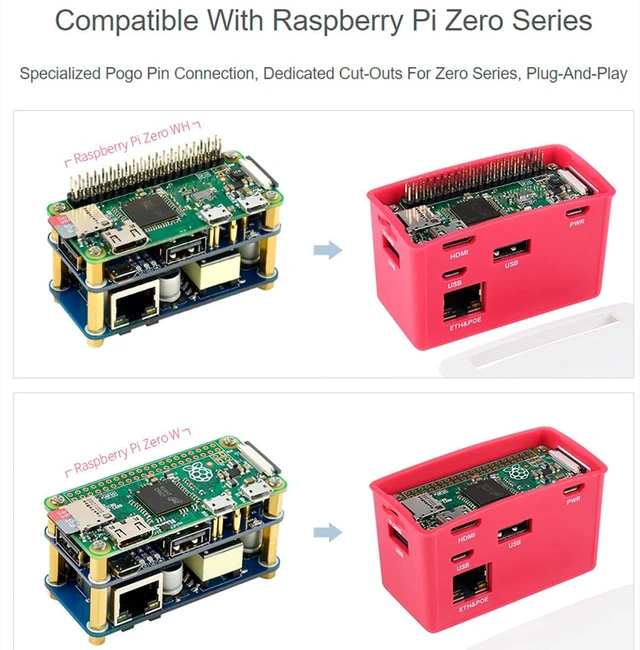

PoE Ethernet / USB HUB HAT with BOX, Compatible with Raspberry Pi Zero series: Designed for Raspberry Pi Zero, compatible with Zero series boards

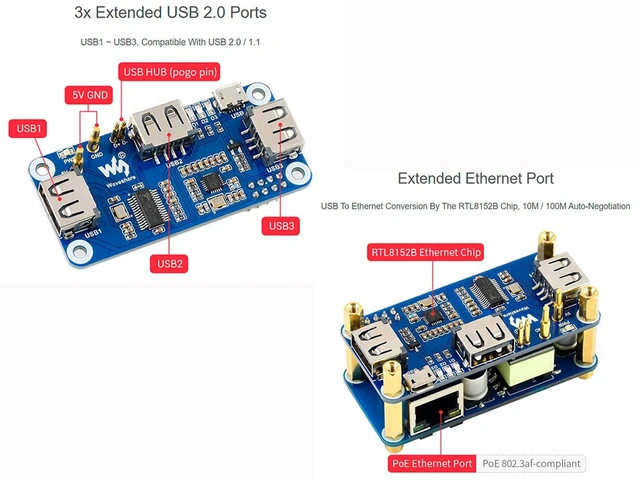

Extended Ethernet port:USB to Ethernet conversion by the RTL8152B chip, 10M / 100M auto-negotiation

PoE (Power over Ethernet) feature, 802.3af-compliant

Fully isolated SMPS (Switch Mode Power Supply)

3x extended USB ports, compatible with USB 2.0 / 1.1

Angle rounded design, smooth hand feeling, "simple snap" case lid

Quality ABS material, dull polish surface, anti-fingerprint

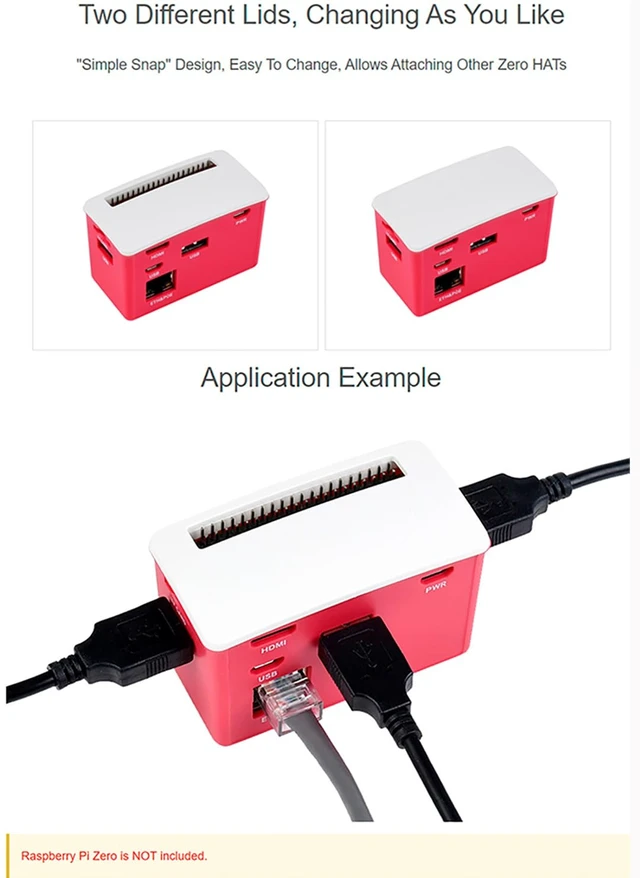

Comes with two different lids, changing as you like

Specifications

PoE power input:37V ~ 57V DC in

Power output:5V 2.5A DC out

Network standard: IEEE 802.3af-compliant PoE

User Manual/How-to-use: //bit.ly/3MpuA36

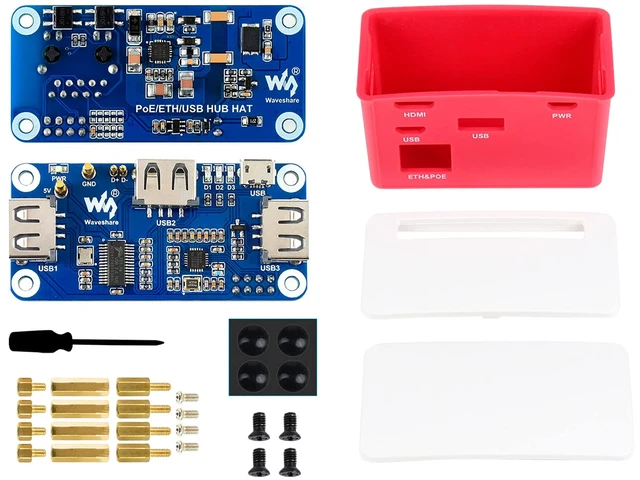

Package Content

PoE/ETH/USB HUB HAT kit x1

ABS case x1

Rubber feet 4PCS x1

Screws pack x1

FAQ:

Question:Why doesn't the Raspberry Pi recognize USB devices?

Answer:Please connect the USB HUT interface to the PC by USB cable to check if the HUB can be recognized. If the HUB can be recognized by PC but not the Pi, please check if you have connected the USB connector tightly. And if you have set the USB port of Pi zero for networking, it cannot be used with the USB HUB either.
