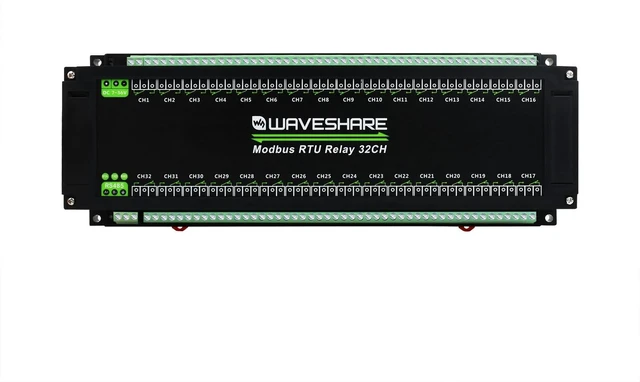

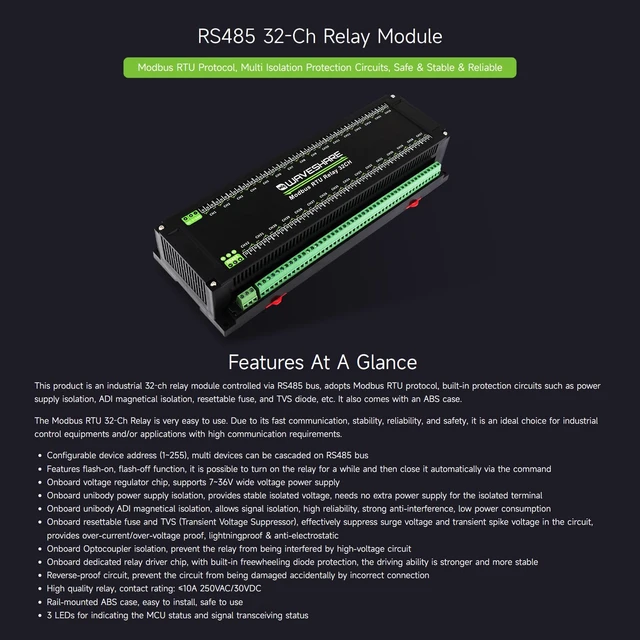

    Waveshare Modbus RTU 32-Ch Relay Module, RS485 Interface, with Multiple Isolation Protection Circuits, Industrial-Grade, Rail-Mount Case

    Be the first to review this product...

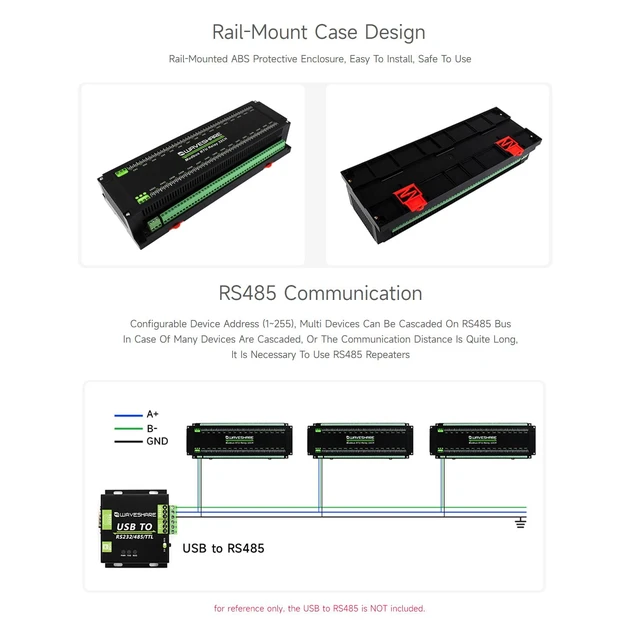

    • Configurable device address (1~255), multi devices can be cascaded on RS485 bus. Features flash-on, flash-off function, it is possible to turn on the relay for a while and then close it automatically via the command
    • Onboard voltage regulator chip, supports 7~36V wide voltage power supply. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

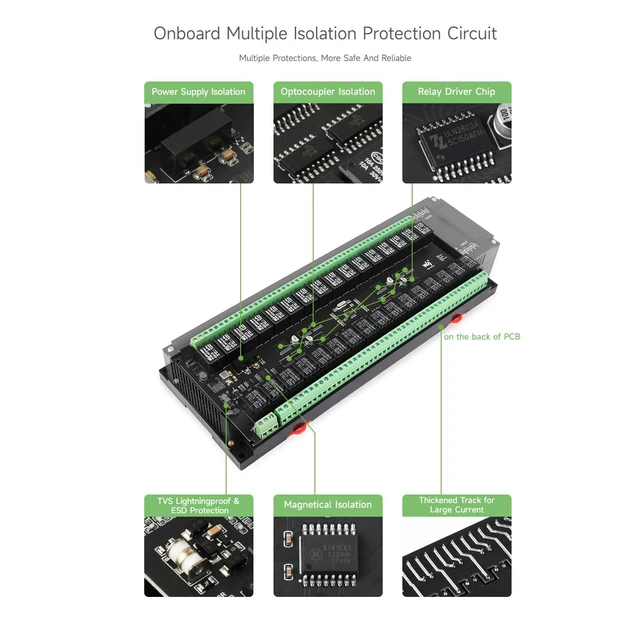

    • Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption. Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
    • Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit. Onboard dedicated relay driver chip, with built-in freewheeling diode protection, the driving ability is stronger and more stable

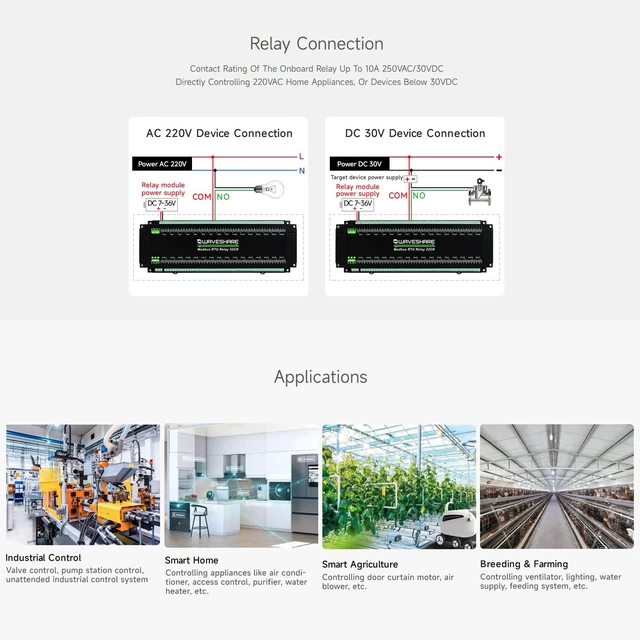

    • Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection. High quality relay, contact rating: 10A 250VAC/30VDC. Rail-mounted ABS case, easy to install, safe to use. 3 LEDs for indicating the MCU status and signal transceiving status
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

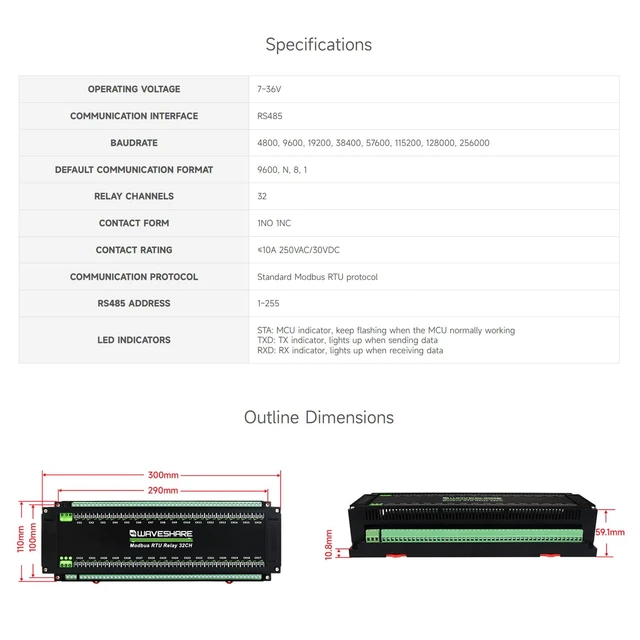

    Product information

    Connector TypeClamp
    Current Rating10 A
    Mounting TypeDIN Rail Mount
    Brandwaveshare
    Operation ModeAutomatic
    Wattage12.96 watts
    Coil Voltage36 volts
    Contact Current Rating10 A
    Maximum Switching Voltage36 volts
    Minimum Switching Voltage7 volts
    Brand Namewaveshare
    Number of Items1
    Item Weight0.75 kg
    ManufacturerWaveshare
    Part NumberModbus RTU Relay 32CH
