What should I do if you could not get internet from the wifi signal of the wavlink device after I connect it to the modem?
Please make sure you should select the correct wan type----PPPOE or DHCP or Static ip.
If you are not sure, please connect the modem to your pc via Ethernet cable and check if you could get internet. Normally, if you could get internet.Please choose dhcp as the wan type. If you could not get internet, please choose PPPOE as the wan type. If you still meet some problem, please be free to contact our support team: postsales @ wavlink . com
2.The device gets hot, is it as expected?
It is as expected when it is working, if it does not affect the usage, please do not worry about that.
3.The internet speed is not as expected or I often lost connection with the wavlink device, what should I do?
(1)Please try to connect the 5g signal of the wavlink device, normally it could provide better performance.
(2)Try to change the wireless channel of the wavlink device. For 5g, please try to choose 36 or 40 or 44, for 2.4g, please try to choose 1 or 6 or 11. (To avoid crowded channel)
(3)Try to reset the device by pressing the reset button for configure the device again.
WAVLINK AX3000 Dual Band Wi-Fi 6 Gigabit Router-Full Performance, Full Signal!
QUANTUM D4X is an AX3000 Wi-Fi 6 router with the dual-band concurrency rate up to 2976Mbps ( 2.4GH z: 574Mbps, 5GHz: 2402Mbps). With the OFDMA+MU-MIMO technology, up to 256 devices can access the Internet at the same time, the transmission efficiency is significantly improved, and the delay is greatly reduced. Using Beamforming technology, the router detects where your device is and focuses a stronger signal in that direction, resulting in a better connection.
Dual-band Speeds
Up to 2976Mbps WiFi for faster browsing, streaming, gaming and downloading at the same time.
LAN Ports for More Performance
Connect up to four networking devices for fast Ethernet performance with speed up to 1000Mbps. Its ideal for desktop computers, laptops, smart TVs and more.
SuperSpeed USB 3.0
Built-in one SuperSpeed USB 3.0 (10X faster than USB 2.0 ) Type-A port easy to share media and storage across your local network.

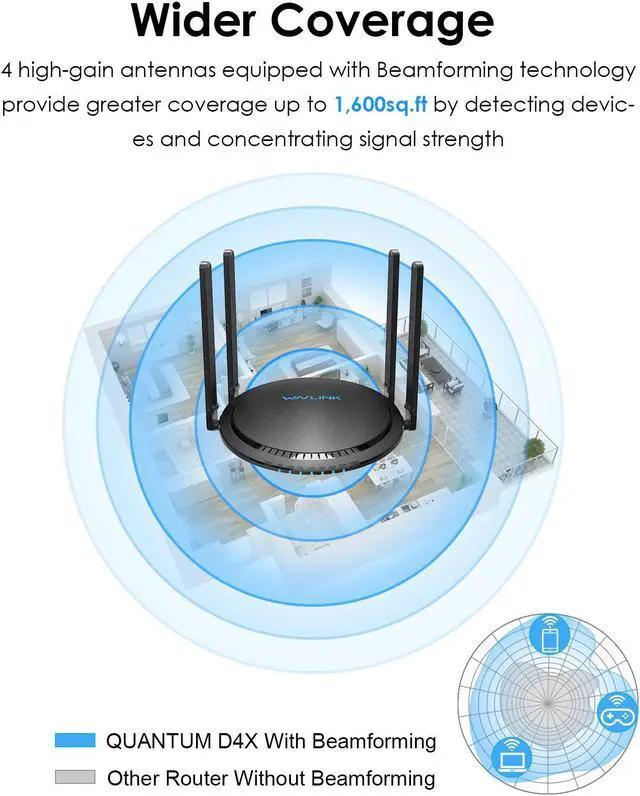

Eliminate Wi-Fi Dead Zone
4 external 5dBi antennas equipped with Beamforming technology provide whole-home coverage for small and medium households.
Enhanced WPA3 WiFi Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cyber security in personal networks.
Speedy & Steady Wi-Fi Performance
Compared to the previous Wi-Fi 4 & Wi-Fi 5, Wi-Fi 6 provides greater capacity to handle more devices on your network.
Specification
Model: WL-WN531MX3 (QUANTUM D4X)
Ports: 1 x WAN(10/100/1000Mbps), 4 x LAN(10/100/1000Mbps), 1 x DC in, 1 x Reset Button, 1 x USB 3.0 Port, 1 x Switch
Frequency Band/Speed: 2.4GH z (574Mbps) +5GHz (2402Mbps)
Antennas: 4 x 5dBi Omni Directional Antennas
Status LED: Blue
Encryption: Open, WPA2-PSK, WPA2/WPA3-PSK MIX
Foldable Product Size: 218*195*41mm/ 8.6 * 7.7 * 1.6 in
Ethernet Cable Length: 100cm/ 39.4 in
Features:
- Supports 160MHz bandwidth and 1024-QAM for much faster wireless connections.
- Supports MU-MIMO & OFDMA techniques to simultaneously communicate with multiple devices in a very effective way.
- Supports TWT (Target Wakeup Time) technology to save power consumption.
- Provides a total networking speed of about 2976Mbps with 2402Mbps@5GHz and 574Mbps@ 2.4GH z.
- Features four 5dBi patented antennas that are powerful, omni-directional, foldable and fitting in smaller box.
- Provides 1 x Gigabit WAN + 4 x Gigabit LAN (1000Mbps) for high-speed wired Internet.
- Supports 1 x USB 3.0 port for Samba.
- TouchLink Patent: Share WiFi with your guests in no time by simply touching on the top of this WAVLINK router.
- Protects network security with up to WPA2/WPA3-PSK MIX.
- Supports IPV4 / IPV6.
- Sets up in minutes with the WavRouter APP or Web UI, easily manage WiFi settings and monitor data usage.
Warm Tips:
1). This router supports router mode ONLY. Does not support AP/Extender/Mesh mode.
2). The actual coverage may vary based on the environment.
3). The 5G frequency band supports 160MHz ultra-high bandwidth, while the 2.4G band does not.
Package Includes
1 x WiFi 6 AX3000 Router
1 x Power Adapter
1 x Ethernet Cable
1 x Manual
