WAVLINK AX1800 WiFi 6 Outdoor Range Extender High Power WiFi Repeater Weatherproof Access Point with Passive/Active POE, Dual Band, 4x8dBi Detachable Antenna,128 Devices, for Farm Yard Park
Limited time offer, ends 10/31 By Wavlink Technology
- With a total dual-band maximum wifi speed of 1775Mbps, simultaneous 1201Mbps on 5GHz plus 574Mbps on 2.4GHz
- Built with a durable IP-67 rated weatherproof enclosure and fiberglass tube high-gain antennas, this device is designed to withstand harsh outdoor conditions. With 15kV ESD protection and 6kV lightning protection features.
- Power Over Ethernet allows for transmission of both power and data over a single Ethernet cable. Supports both 802.3 AF/AT active PoE and passive PoE. You can use the provided 54V/0.3A passive PoE or a 802.3af/at active PoE (DC 48V) from other brands. Note: The provided PoE is not waterproof, use CAT5E or above cable that less than 100m/328ft long.
- The upgraded 4x 8dBi omni-directional detachable fiberglass antennas and two built-in high power amplifiers provide up to 200-300m (radius) WiFi coverage and up to 128 connections. Equipped with gigabit ethernet port that supports 1000/100/10Mbps network.
- Supports AP, Router, Repeater, Mesh, AP+Repeater modes
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super-Speed WiFi6 Anytime & Anywhere

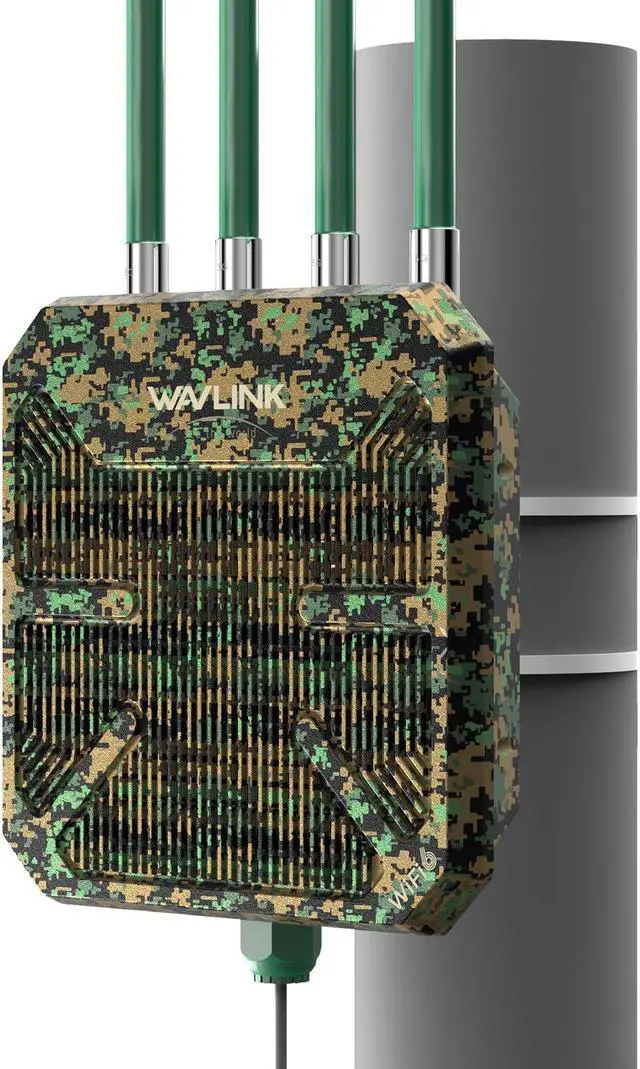

WN573HX1 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 1800Mbps ( 2.4GH z 574Mbps+5GHz 1201Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.
How to install antennas and Ethernet cable?
Pass the RJ45 cable through the waterproof connector cover.
Screw the waterproof seal into the waterproof connector bracket.
Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
Put the waterproof sealing ring on the waterproof connector bracket.
Connect the RJ45 cable to WAN/LAN port.
Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
How to install the product on a column?
Stick two silicone pads on the bracket and post respectively.
Thread the cable ties through the fixing point of the bracket.
Fix the product to the post with cable ties.
Fiberglass Tube High Gain Antennas
4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.
IP67 Waterproof Enclosure
Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

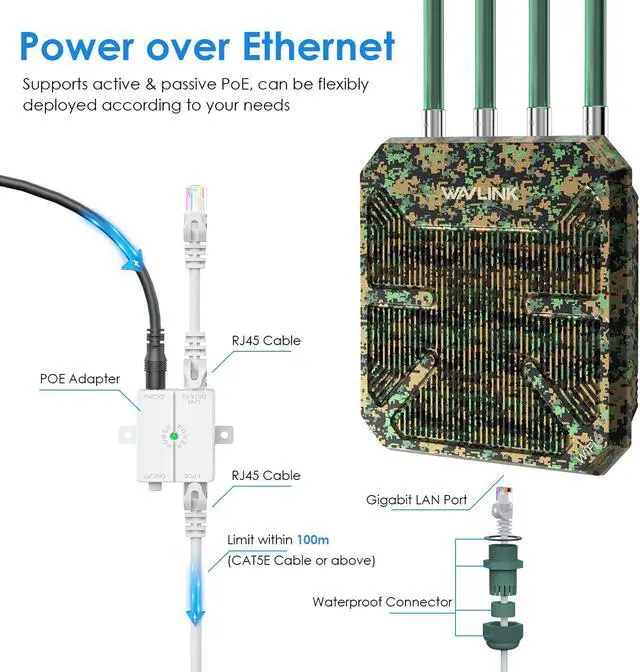

PoE Power Supply
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.
574Mbps on 2.4G & 1201Mbps on 5G
Dual band AX1800 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.
High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA(low-noise amplifier) minimizes additional noises and increases the wireless signal.
Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.
Specification
- Model: WL-WN573HX1
- Product Size (without antennas): 24x24x7cm/ 9.4 x 9.4 x 2.8 in
- PoE Converter Size: 4.4 x 3.7 x 2.2 cm/ 1.7 x 1.5 x 0.9 in
- Length: Antennas - 40cm/ 15.7 in; Ethernet Cable - 100cm/ 39.4 in; Power Adapter Cable - 130cm/ 51.2 in
- Product Weight (without antennas): 1109g/ 39.1 oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GH z (574Mbps) +5GHz (1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
- Supports 802.3 AT/AF active PoE and passive PoE to supply power.
- Fiberlass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
- 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
- Supports dual band( 2.4G 573Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.
- Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
- Complies with IEEE 802.11 ax/ac/a/n/g/b standards.

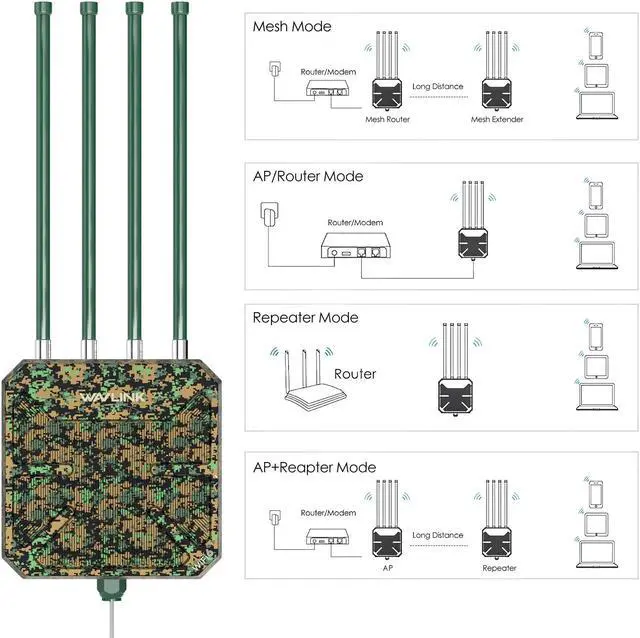

- Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
- Encryption type: WPA2-PSK, WPA3/WPA2-MIX.
Warm Tips
The PoE converter is not waterproof, please install it indoors.
Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
Please install the product 2-3 meters above the ground for better performance.
Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.

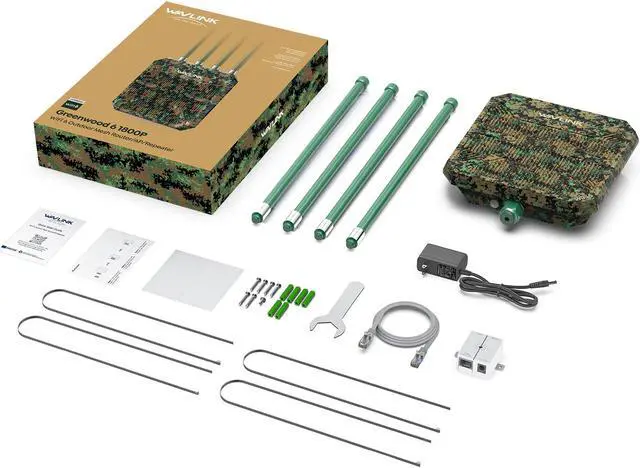

In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE (Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
WN573HX1 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 1800Mbps ( 2.4GH z 574Mbps+5GHz 1201Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.
How to install antennas and Ethernet cable?
Pass the RJ45 cable through the waterproof connector cover.
Screw the waterproof seal into the waterproof connector bracket.
Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
Put the waterproof sealing ring on the waterproof connector bracket.
Connect the RJ45 cable to WAN/LAN port.
Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
How to install the product on a column?
Stick two silicone pads on the bracket and post respectively.
Thread the cable ties through the fixing point of the bracket.
Fix the product to the post with cable ties.
Fiberglass Tube High Gain Antennas
4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.
IP67 Waterproof Enclosure
Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.
PoE Power Supply
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.
574Mbps on 2.4G & 1201Mbps on 5G
Dual band AX1800 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.
High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA(low-noise amplifier) minimizes additional noises and increases the wireless signal.
Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.
Specification
- Model: WL-WN573HX1
- Product Size (without antennas): 24x24x7cm/ 9.4 x 9.4 x 2.8 in
- PoE Converter Size: 4.4 x 3.7 x 2.2 cm/ 1.7 x 1.5 x 0.9 in
- Length: Antennas - 40cm/ 15.7 in; Ethernet Cable - 100cm/ 39.4 in; Power Adapter Cable - 130cm/ 51.2 in
- Product Weight (without antennas): 1109g/ 39.1 oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GH z (574Mbps) +5GHz (1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
- Supports 802.3 AT/AF active PoE and passive PoE to supply power.
- Fiberlass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
- 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
- Supports dual band( 2.4G 573Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.
- Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
- Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
- Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
- Encryption type: WPA2-PSK, WPA3/WPA2-MIX.
Warm Tips
The PoE converter is not waterproof, please install it indoors.
Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
Please install the product 2-3 meters above the ground for better performance.
Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE (Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
