WAVLINK outdoor router, the ultimate alfresco network solution!
Wi-Fi 7 dual-band technology for blistering combined speeds up to 5100Mbps (688Mbps on 2.4GHz + 4323Mbps on 5GHz). Enjoy seamless browsing, zero-lag gaming, and buffer-free 4K streaming with effortless roaming across outdoor spaces.
Built to conquer extreme environments, its IP67-rated waterproof/dustproof enclosure shrugs off monsoons and debris, while 15KV ESD + 4KV lightning protection shields internal electronics from violent storms.
Power it flexibly via Active PoE (ideal for plug-and-play deployments in schools/hospitals) or Passive PoE (cost-effective long-range power for farms/orchards).

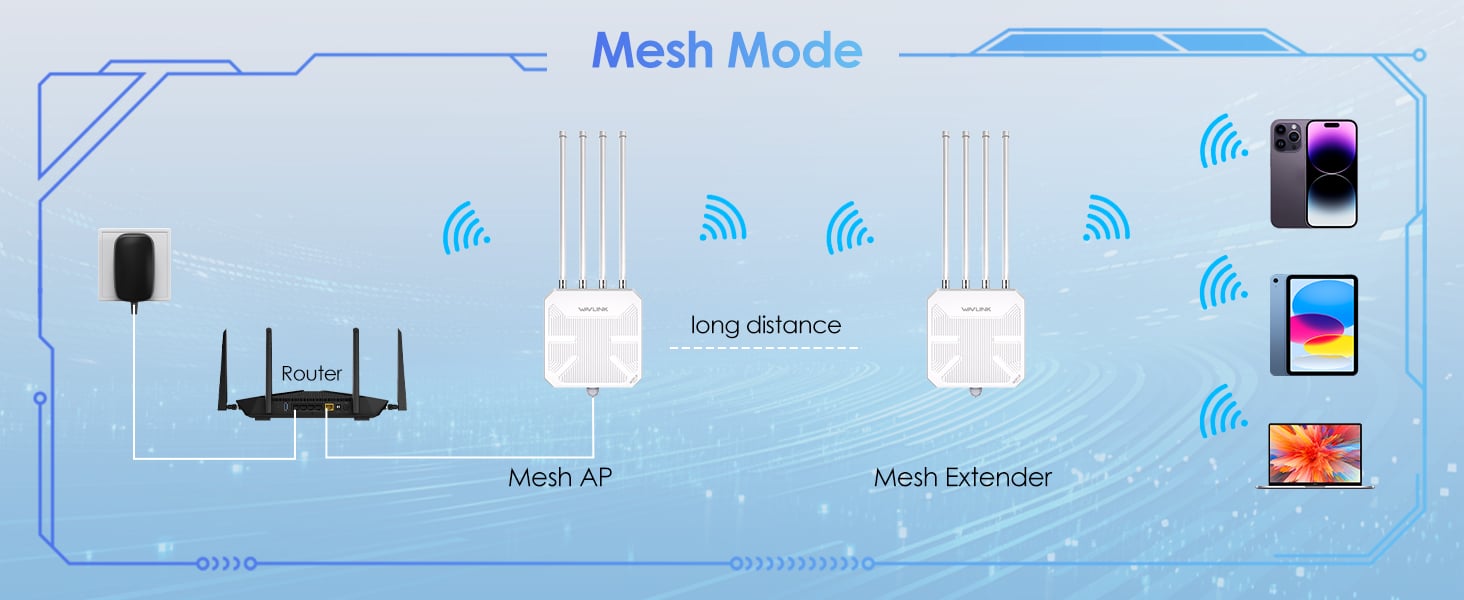

Four rugged 8dBi fiberglass antennas deliver 360° long-range coverage, while a dedicated 5dBi antenna eliminates near-ground dead zones. Create a unified mesh network instantly with one-touch WAVLINK Everything Mesh pairing, and choose from 5 versatile modes-Router, AP, Repeater, Mesh Router, or Mesh Extender-to adapt to any scenario without signal drops.
1.The PoE converter is not waterproof; please install it indoors.
2. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m/328 ft.
3.Please install the product 2-3 meters above the ground for better performance.
4. Under the mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required), and WN573HBE2.
WAVLINK outdoor router, the ultimate alfresco network solution!
Wi-Fi 7 dual-band technology for blistering combined speeds up to 5100Mbps (688Mbps on 2.4GH z + 4323Mbps on 5GHz). Enjoy seamless browsing, zero-lag gaming, and buffer-free 4K streaming with effortless roaming across outdoor spaces. Built to conquer extreme environments, its IP67-rated waterproof/dustproof enclosure shrugs off monsoons and debris, while 15KV ESD + 4KV lightning protection shields internal electronics from violent storms. Power it flexibly via Active PoE (ideal for plug-and-play deployments in schools/hospitals) or Passive PoE (cost-effective long-range power for farms/orchards). Four rugged 8dBi fiberglass antennas deliver 360° long-range coverage, while a dedicated 5dBi antenna eliminates near-ground dead zones.
Create a unified mesh network instantly with one-touch WAVLINK Everything Mesh pairing, and choose from 5 versatile modesRouter, AP, Repeater, Mesh Router, or Mesh Extenderto adapt to any scenario without signal drops.
How do I install antennas and the Ethernet cable?
Pass the Ethernet cable through the hex cap.
Pass the Ethernet cable through the sealing plug.
Pass the Ethernet cable through the hex stud.
Pass the Ethernet cable through the sealing ring.
Connect the Ethernet cable to the WAN/LAN port, screw the hex stud, insert the sealing plug into the hex stud, and screw the hex cap counterclockwise to tighten the waterproof connector using the wrench.
Screw the omni antennas into the 2.4G and 5G antenna connectors and screw up the connectors.
Note: The PoE converter is not waterproof; please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m/328ft.
How do I install the device on the post?
Step 1: Stick two silicone pads on the bracket and post respectively.
Step 2: Thread the cable ties through the fixing point of the bracket.
Step 3: Fix the product to the post with cable ties.

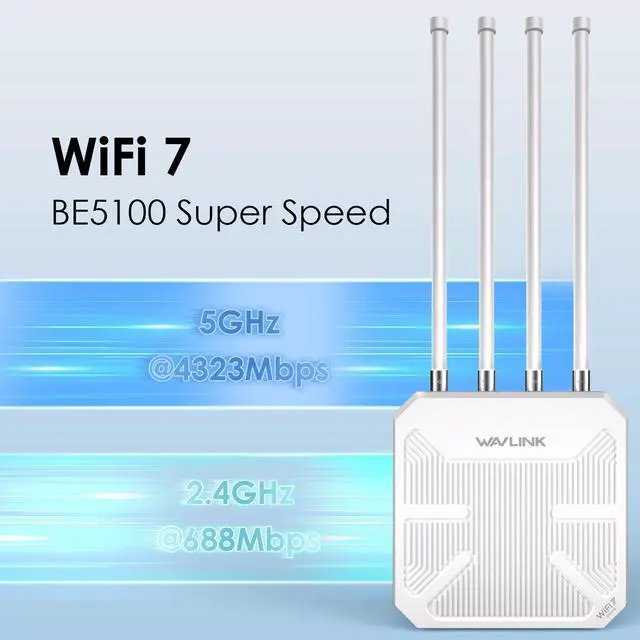

WiFi 7 Performance
Comes with next-generation WiFi 7 dual-band technology; this router supports super-speed wireless speed up to 5100Mbps, including 4323Mbps on 5GHz and 688Mbps on 2.4GH z.

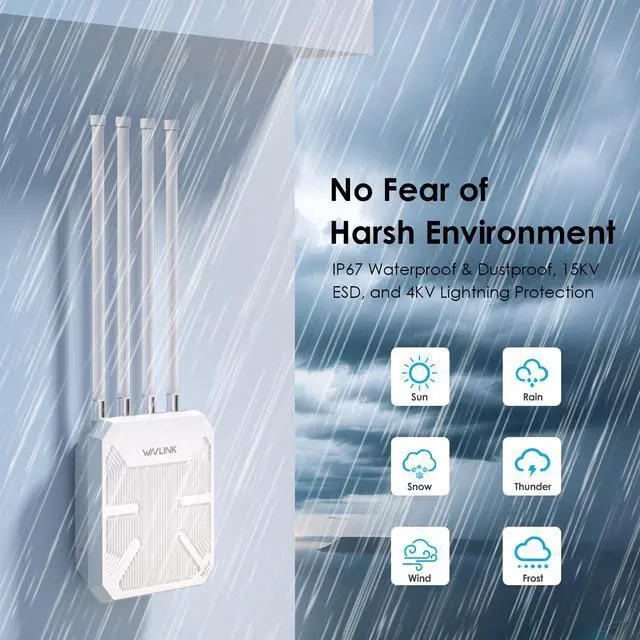

Weatherproof Design
IP67 waterproof and dustproof, 15KV ESD, and 4KV lightning protection are designed for extreme outdoor environments.
WPA3-SAE Encryption
WPA3-SAE can significantly reduce risks such as network eavesdropping, man-in-the-middle attacks, and data theft.

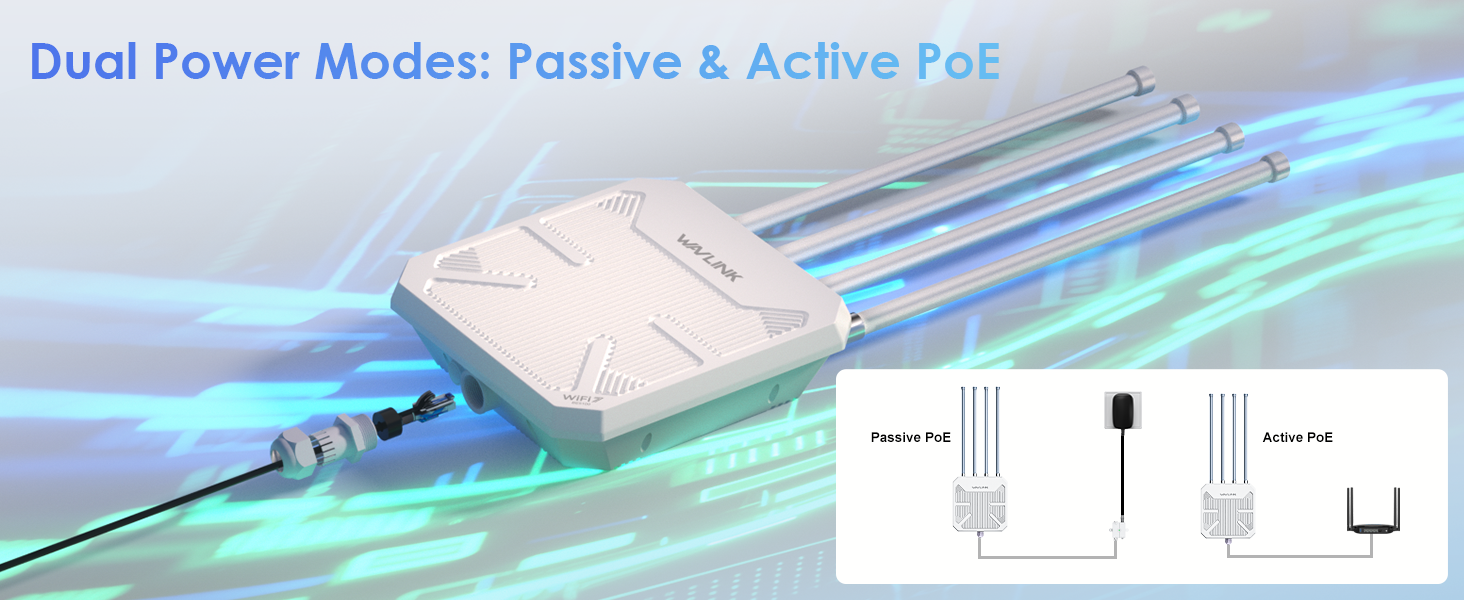

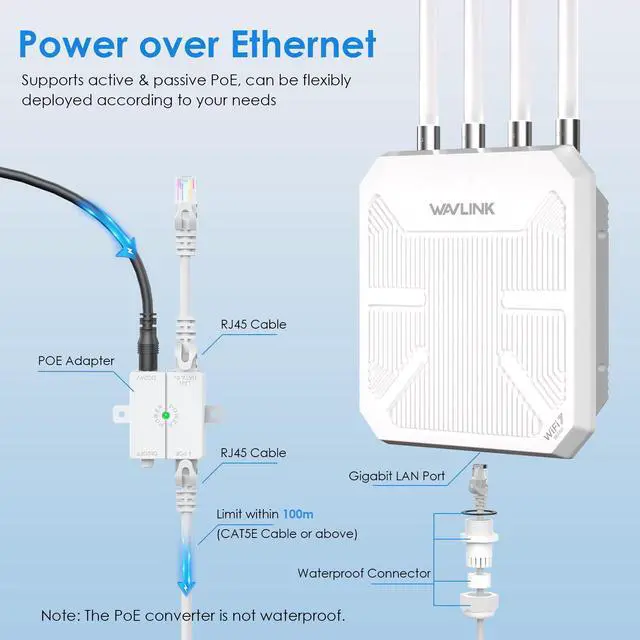

Active and Passive PoE
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

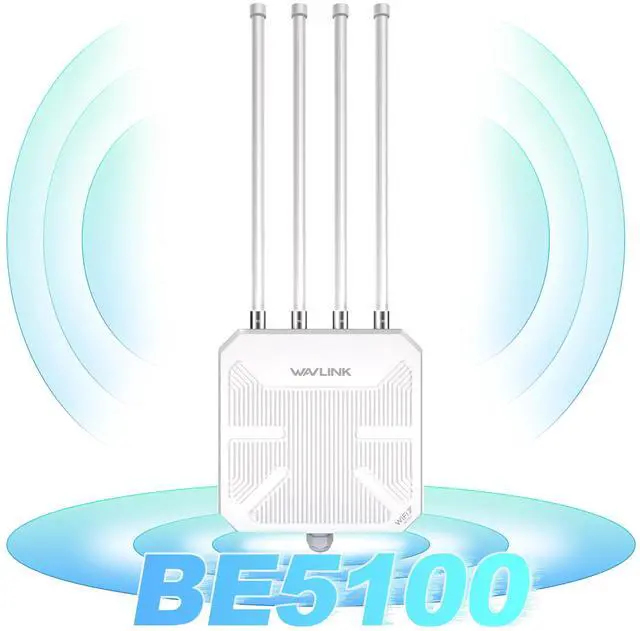

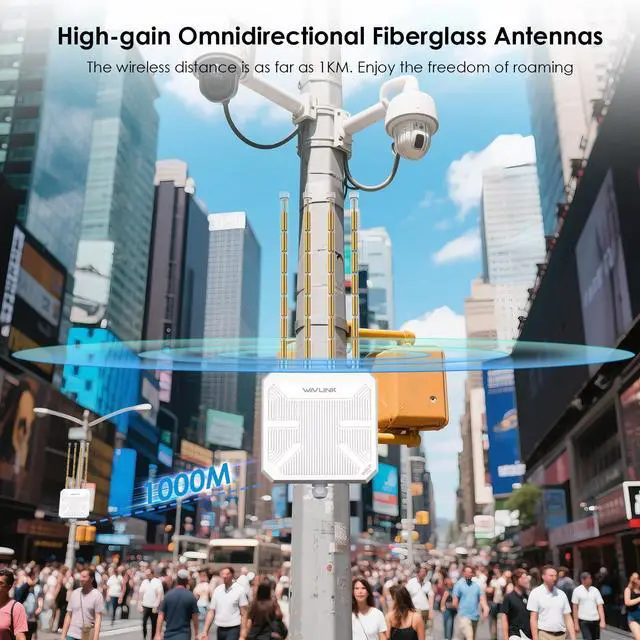

Fiberglass Tube High Gain Antennas
4 x 8 dBi omnidirectional antennas are covered by strong fiberglass tubes, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.
Feature
Frequency: dual-band 2.4GH z@688Mbps+5GHz@4323Mbps, speed up to 5100Mbps.
Ethernet port: 1x 2.5G WAN/LAN.
Antennas: 4x8dBi + 1x5dBi high-gain antennas.

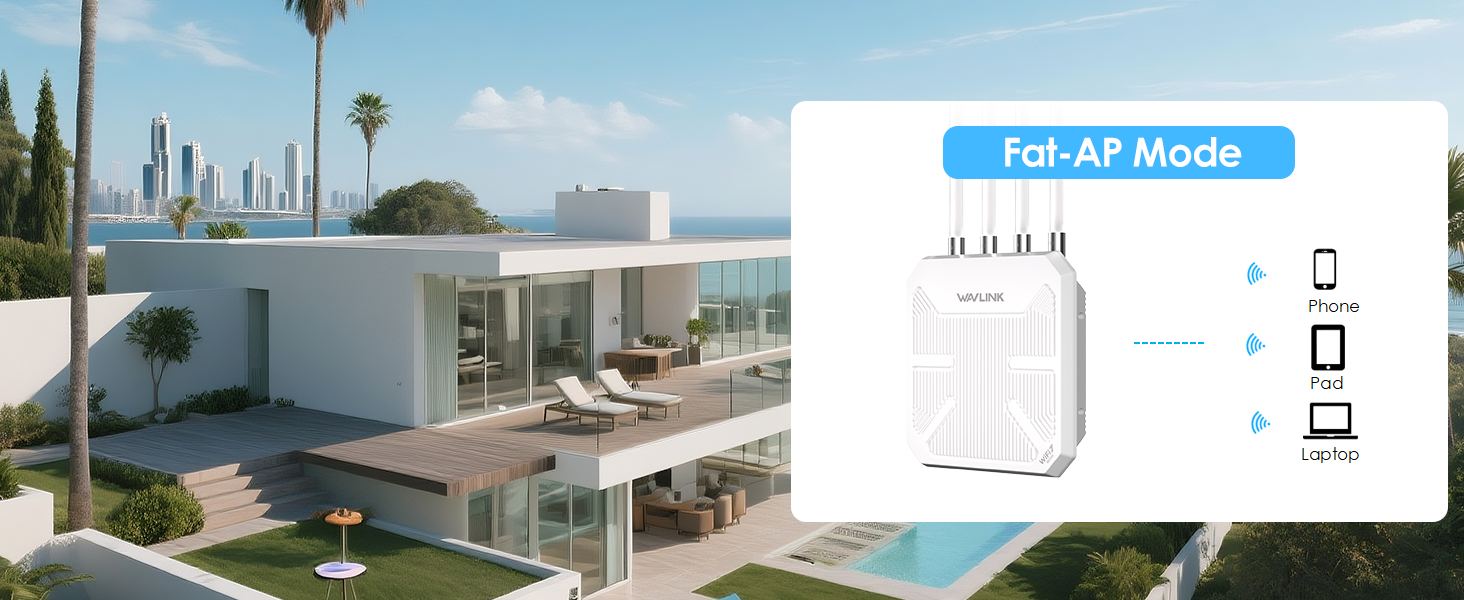

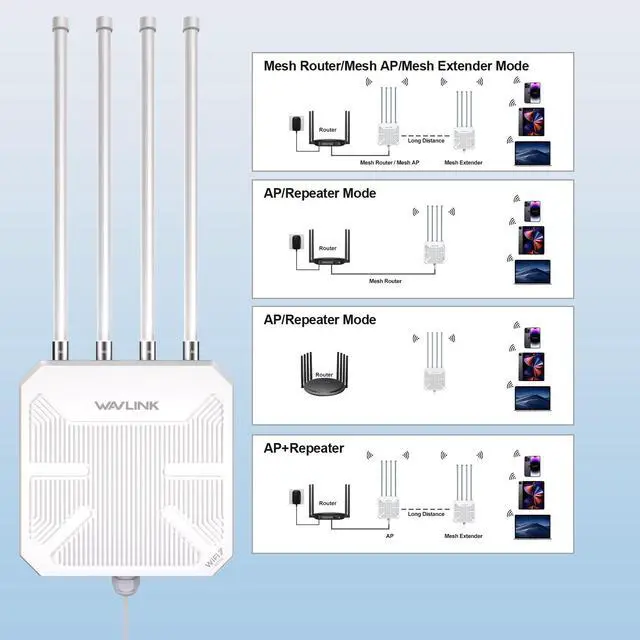

Operation modes: mesh AP, AP, repeater, mesh router, and mesh extender.
Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA PSK/WPA2PSK-MIX.
Power adapter: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE).
IP 67 waterproof, 15KV ESD, and 4KV lightning protection.
Complies with IEEE 802.11 be/ax/ac/a/n/g/b standards.
Supports 802.3 AT/AF PoE and Passive PoE to supply power.
Warm Tips
The PoE converter is not waterproof; please install it indoors.
Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m/328 ft.
Please install the product 23 meters above the ground for better performance.
Under the mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required), and WN573HBE2.
Packing List
-1 x BE5100 WiFi7 Outdoor AP
-1 x 54V Power Adapter
-1 x PoE Converter
-1 x Ethernet Cable
-1 x Main Body Holder
-4 x Omni Antennas
-2 x Stainless Steel Hose Clamps
-2 x Silicone Pads
-1 x Slotted Screwdriver
-1 x Wrench
-1 x Quick Start Guide
-Several Screws
