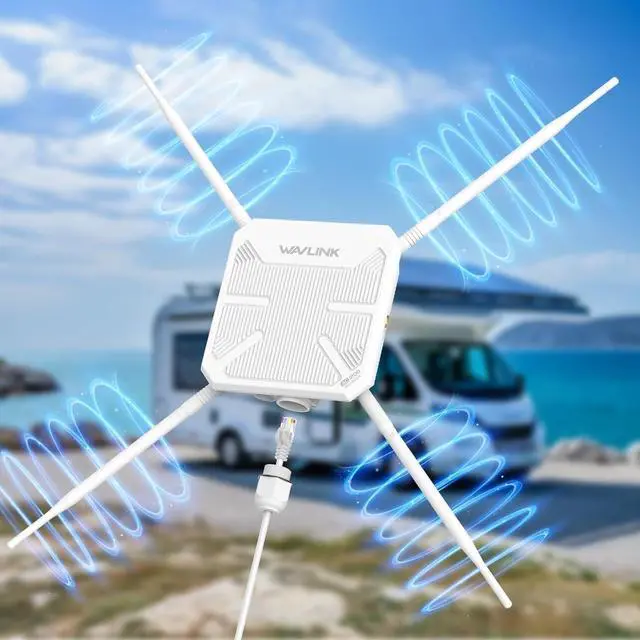

Experience High-Speed Wi-Fi 5 Anywhere with WAVLINK Professional Outdoor Access Point

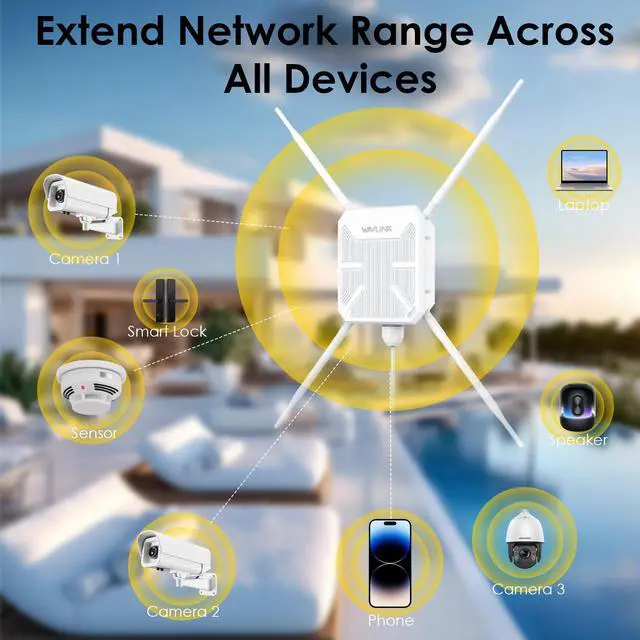

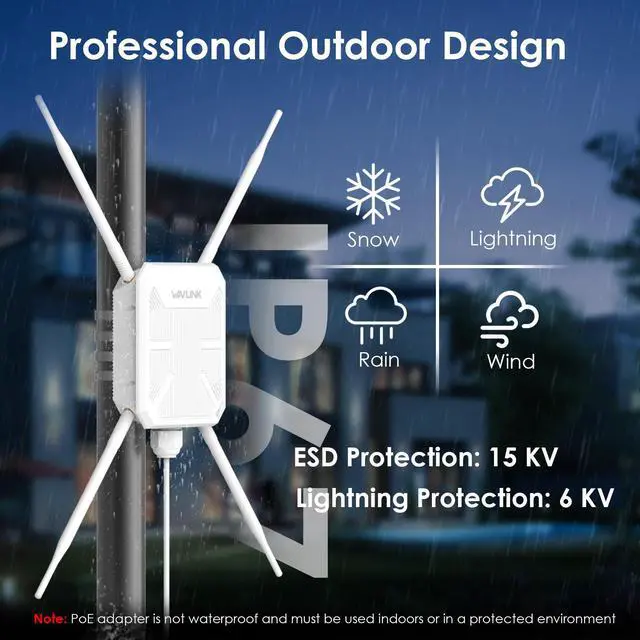

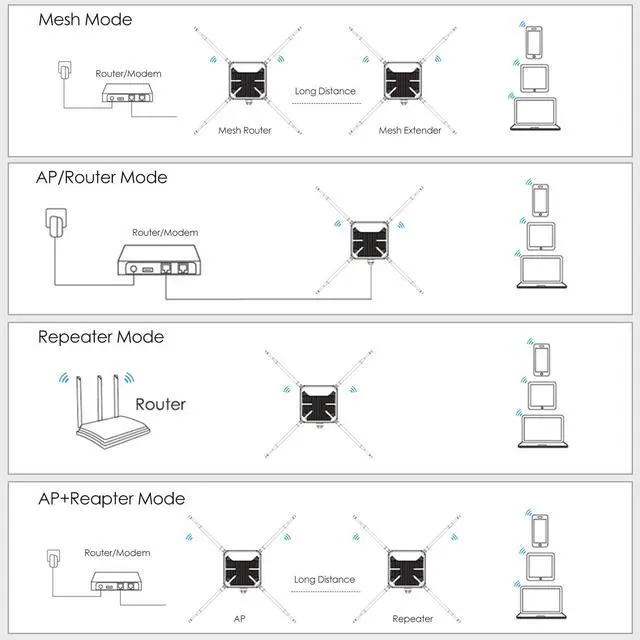

Experience the power of AC1200 Dual Band outdoor extender - Amplify and extend existing 2.4GHz and 5GHz wireless signals for wider coverage, reaching areas beyond router reach. Simplified by PoE, this high-power outdoor Wi-Fi solution offers flexible installation anywhere, anytime. Choose from various operating modes with professional outdoor design to withstand environmental changes, catering to diverse outdoor connectivity needs. Ideal for resolving warehouse dead spots and ensuring stable network connection for your fishing gear on-the-go.

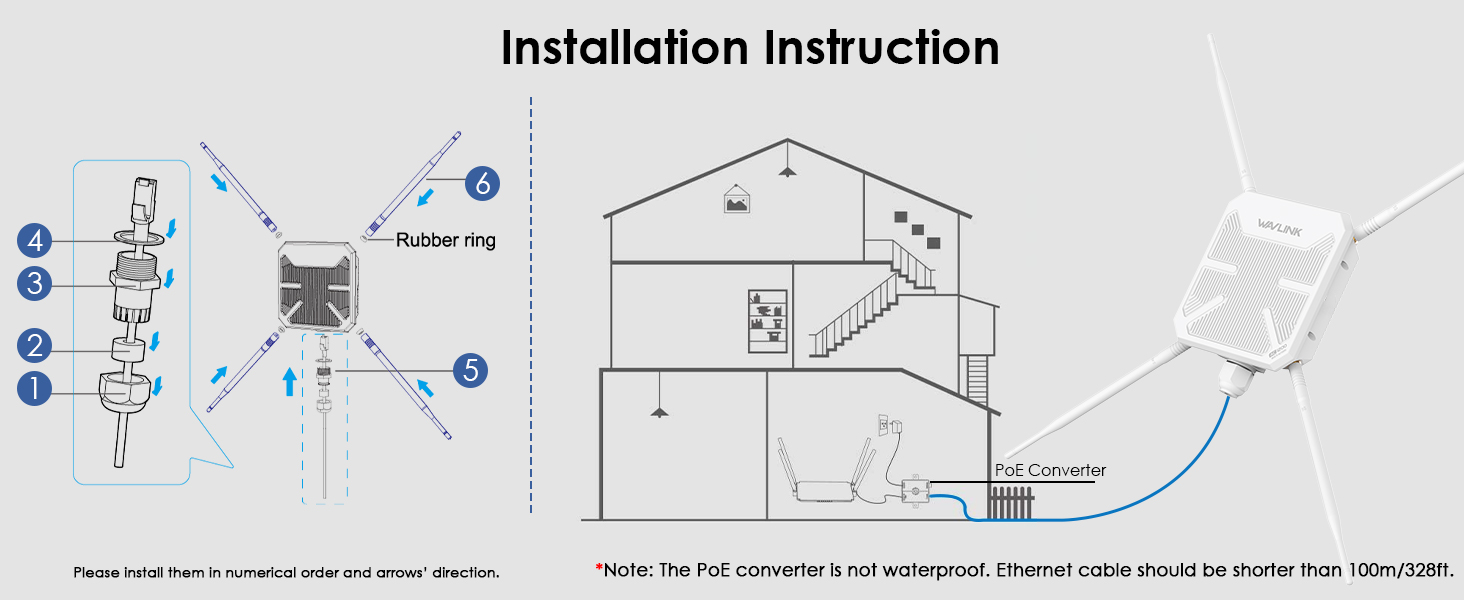

How to Install the Ethernet Cable?
Pass the RJ45 cable through the waterproof connector cover.
Screw the waterproof seal into the waterproof connector bracket.
Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
Put the waterproof sealing ring on the waterproof connector bracket.
Connect the RJ45 cable to WAN/LAN port.
Connect the 2.4G and 5G antennas to the corresponding connectors.
Warm Tips:
1.When setting up a mesh network, please note that the WL-WN588HA2 supports a maximum of 8 devices for networking (including the main router). It is only compatible with devices from the same brand "Wavlink" that support Everything Mesh; other devices are not supported.
2.The access point cannot act as a repeater for wireless signals with enforced captive portal.
3.For optimal performance, choose open and unobstructed locations, avoiding obstacles like walls, doors, aquariums, trees, and other barriers as much as possible.
4.All Wi-Fi extenders are designed to expand or enhance Wi-Fi coverage range, rather than directly increase speed.
5.PoE converter is not waterproof and should be used indoors or in a sheltered environment.
Specification:

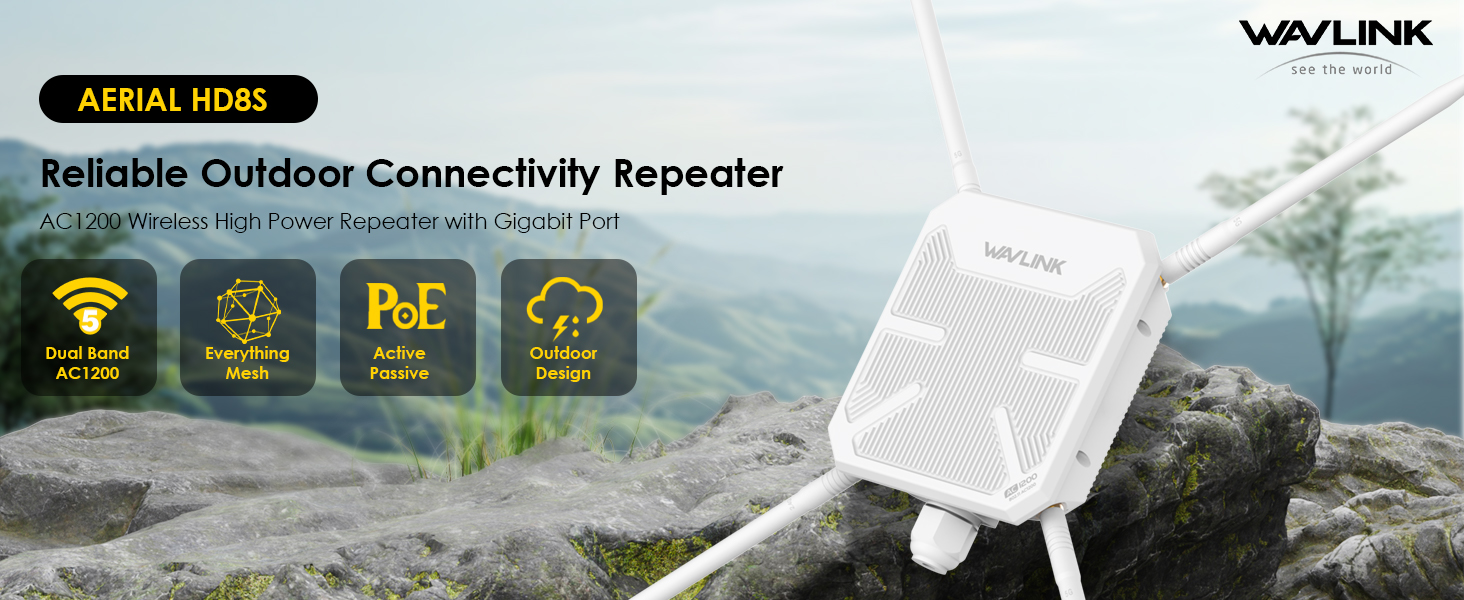

Model: WL-WN588HA2 (AERIAL HD8S)
Port: 1 x WAN/LAN Gigabit Port
Button: 1 x Pair/Reset Button
Product Size: 17.0x5.6x17.0cm/6.7x2.2x6.7in
PoE Converter Size: 3.7x2.2x4.3cm/1.5x0.9x1.7in
Ethernet Cable: 100cm/39.4in (CAT 5E)
Power Adapter Cable Length: 125cm/49.2in
Standard: IEEE 802.11ac/a/n/g/b
Frequency Band/Speed: 2.4GHz@300Mbps, 5GHz@867Mbps
Wireless Security: OPEN, WPA2-PSK, WPA/WPA2 MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise

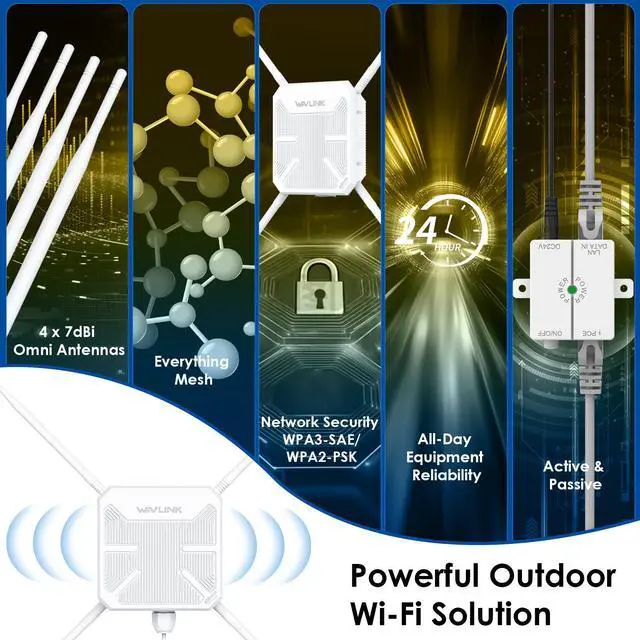

Antennas: 4 x 7dBi Omni Antennas (RP-SMA)
Status LED: Blue
PoE Converter Status LED: Green
PoE Converter Support: DC 54V/0.3A Power over Ethernet (Passive), DC 48V Power over Ethernet (Active)
In the Box:
1 x ACI200 Wi-Fi 5 Outdoor Access Point
4 x Plastic Cable Ties
1 x Main Body Holder
4 x 7dBi Antennas
1 x Wrench
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
1 x PWM M3x5x6MM Screw
6 x KA M3x20x5.2MM Screws
6 x 6.5x25MM Screw Plugs
1 x Quick Start Guide
