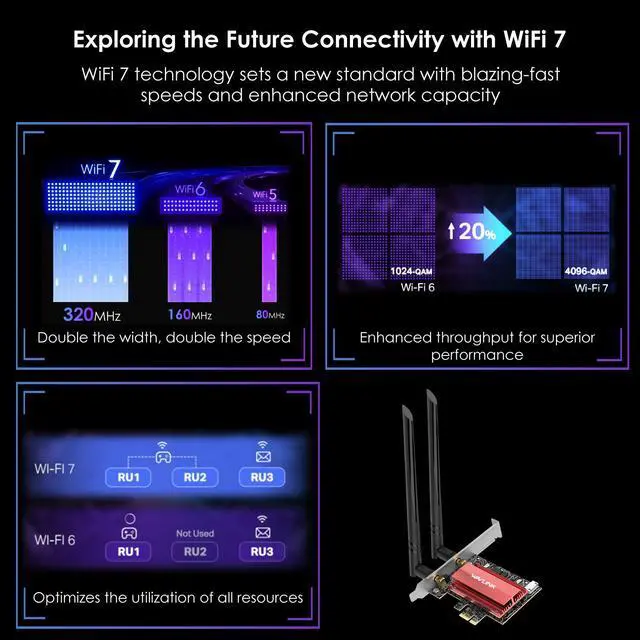

Empowered by Wi-Fi 7, this card unleashes the complete capabilities of the 6 GHz band, offering outstanding bandwidth and dedicated, congestion-free channels tailored for your desktop. With enhancements like 4096-QAM and 320MHz, this adapter achieves staggering wireless speeds, enabling seamless playback of multiple media streams at once.

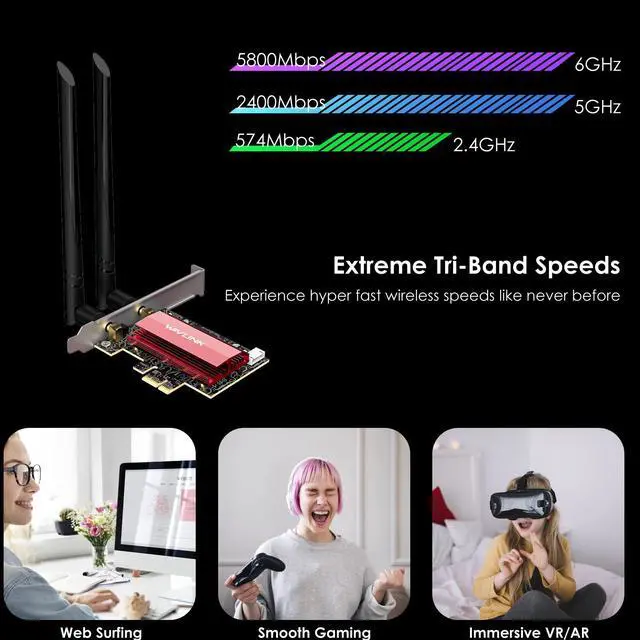

Tri-Band Speed: The Intel BE200 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 5800Mbps on 6GHz. Meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.
Bluetooth 5.4 & WPA3 Security
Compatiblity & Warranty: Compatible with Windows 10/11 for desktop PC, you can get the driver from our website. Works with PCIe X1/X4/X8/X16 slots(Not support for all devices whose motherboard has AMD chips).
+
+
Overview
Specs
Reviews (85)
Any questions? Our AI beta will help you find out quickly.
Try me now

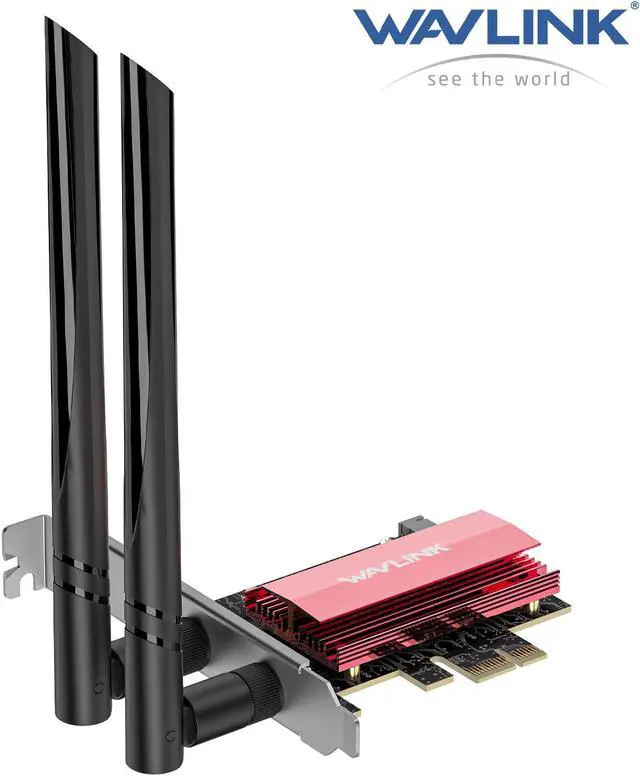

WAVLINK Wi-Fi 7 BE8800 PCIe Tri-band WiFi Adapter--Innovative Wireless Connectivity! WAVLINK Wi-Fi 7 Tri-Band PCI-E is a BE8800 wireless adapter for desktops that supports the latest Bluetooth 5.4. It has the MLO feature that effectively reduces signal interference and transmission delays, providing a faster and more reliable wireless networking experience. Compliant with 802.11 be specification, the wireless adapter supports 2.4G, 5G and 6G bands. With 4096-QAM and MU-MIMO technology, WN685BE3-B delivers wireless signal faster and more effective by cooperating with an MU-MIMO compatible router.
Latest Bluetooth 5.4 Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than BT 4.0. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.
Compatible OS Support Windows 10/11 64-bit *Please note that to utilize 6GHz band, the user must be on Windows 11 version.
WPA3 Security The latest WiFi security protocol, WPA3, brings new capabilities to improve cyber security. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.
Robust Connection with Dual High-Gain Antennas Two 5dBi high-performance antennas extend your existing WiFi reception capabilities by allowing you to stream throughout your home.
Advanced Heat Sink for Better Stability The networking card is equipped with an advanced heat sink that effectively dissipates the heat generated by the adapter. This feature not only enhances performance and stability but also contributes to extending the lifespan of the adapter.
Dual Brackets In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.
Important Note We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.

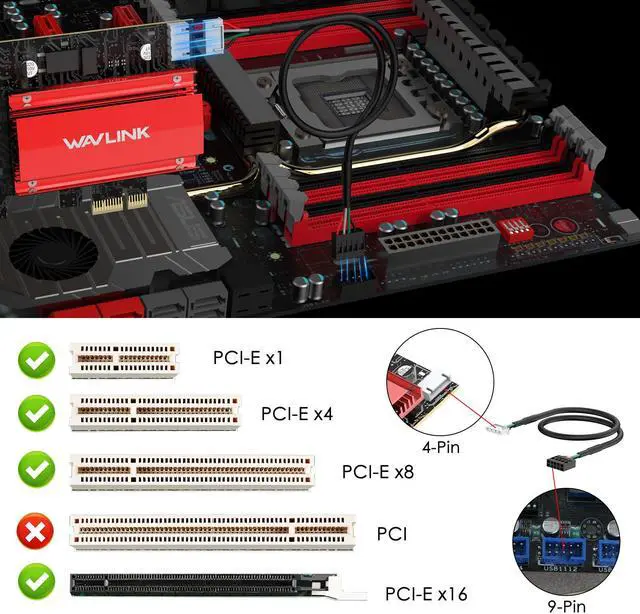

Steps to Install the Wi-Fi Card
1. Power off the PC, open the case, find one available PCIe slot.
2. Insert the PCIe into the corresponding slot. Works with PCIe x1, x4, x8, x16.
3. Plug the BT cable into the 9-pin USB connector on the motherboard and the 4-pin connector on the card.
4. Install the antennas, adjust the angle accordingly for better signal.
5. Download and install the driver from WAVLINK official website. Then, enjoy!
Specification Product Model: WN685BE3-B(chipset: Intel BE200) Transmission Rate: 2.4GH z: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps Protocol Standard: support IEEE 802.11 a/b/g/n/ac/ax/be Frequency Band: 2.4GH z, 5GHz, 6GHz Technical Support: MU-MIMO, OFDMA, BSS Coloring, 320MHz, 4096QAM, Target Wake Time (TWT), Multi Link Operation (MLO), Multi-RU, Enhanced Multi-Link Single Radio (eMLSR) Support System: Win 11/10 (64 bit) Bluetooth Version: Bluetooth 5.4 Interface: Compatible with PCI-E X1/X4/X8/X16 Wireless Security: WPA3/WPA2 encryption
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router (Increase the maximum wireless bandwidth limit).
3. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memorythe interference of many factors can affect the speed.
4. Please turn off the built-in Wi-Fi when using on a desktop pc. ( If there is a built-in Wi-Fi function on your desktop pc).
5. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
6. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
WAVLINK Wi-Fi 7 Tri-Band PCI-E is a BE8800 wireless adapter for desktops that supports the latest Bluetooth 5.4. It has the MLO feature that effectively reduces signal interference and transmission delays, providing a faster and more reliable wireless networking experience.
Compliant with 802.11 be specification,the wireless adapter supports 2.4G, 5G and 6G bands. With 4096-QAM and MU-MIMO technology, WN685BE3-B delivers wireless signal faster and more effective by cooperating with an MU-MIMO compatible router.
Compatible OS
Support Windows 10/11 64-bit
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.
Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
3. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC's internal memory...the interference of many factors can affect the speed.
4. Please turn off the built-in Wi-Fi when using on a desktop pc.(If there is a built-in Wi-Fi function on your desktop pc).
5. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
6. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
Dual Brackets
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.
Advanced Heat Sink for Better Stability
The networking card is equipped with an advanced heat sink that effectively dissipates the heat generated by the adapter. This feature not only enhances performance and stability but also contributes to extending the lifespan of the adapter.
Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.
