    WAVLINK WiFi 7 BE8800 PCIe WiFi Card 8774Mbps, Tri-Band 2.4G/5G/6GHz Bluetooth 5.4 Network Card Intel BE200 Wireless Adapter, 802.11be with MU-MIMO, WPA3, for Windows 10/11(64bit), Not Support AMD

    Limited time offer, ends 09/14 By Wavlink Technology

    (85)(1) Write a Review
    • Black
    • Black / Gold
    • Black / Red
    • 7 dBi
    • 2 x 5 dBi
    • WiFi 7
    • M.2 NGFF
    • 5400mbps|AX5400
    • 5400mbps|WiFi 7 + BT 5.4
    • 8774mbps|WiFi 7 + BT 5.4

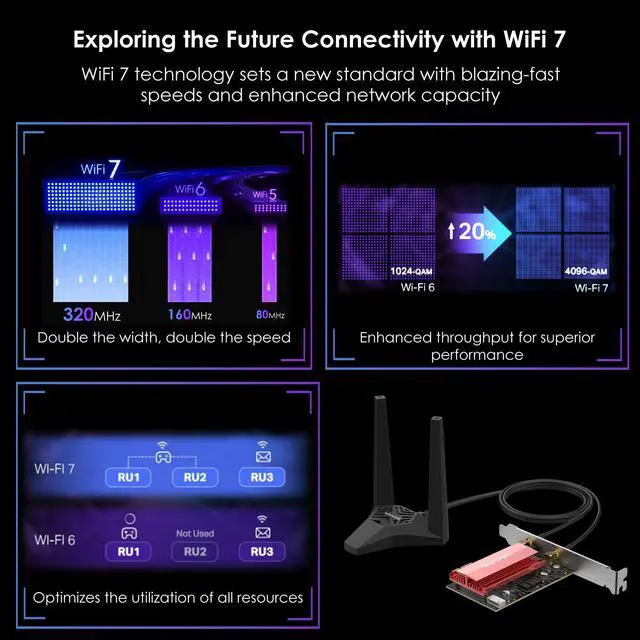

    • Empowered by Wi-Fi 7, this card unleashes the complete capabilities of the 6 GHz band, offering outstanding bandwidth and dedicated, congestion-free channels tailored for your desktop. With enhancements like 4096-QAM and 320MHz, this adapter achieves staggering wireless speeds.

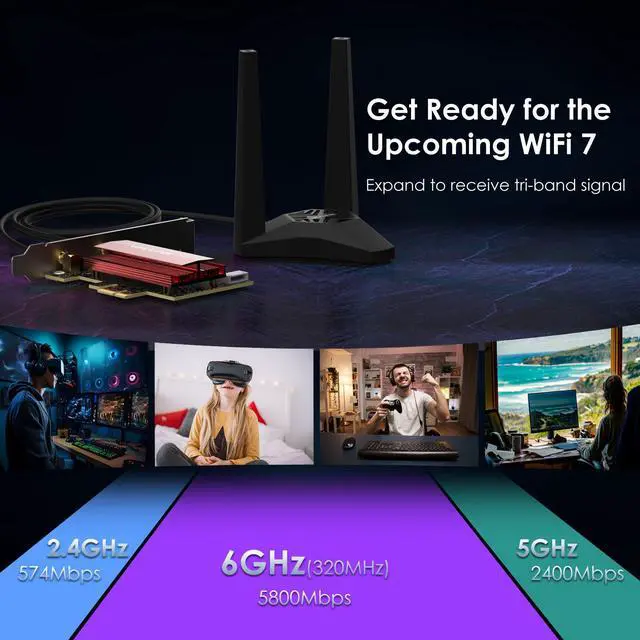

    • Unmatched Tri-Band Speed: The Intel BE200 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 5800Mbps on 6GHz. Meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.
    • Bluetooth 5.4 & WPA3 Security
    • Boost your Wi-Fi reception using two high-performance, multi-directional antennas with a magnetized base. This device is compatible with Windows 10/11 for desktop PCs, and you can download the driver from our website. It works with PCIe X1/X4/X8/X16 slots (Not compatible with AMD motherboards).
    +
    +
    Overview
    Specs
    Reviews (85)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    wifi 7 card

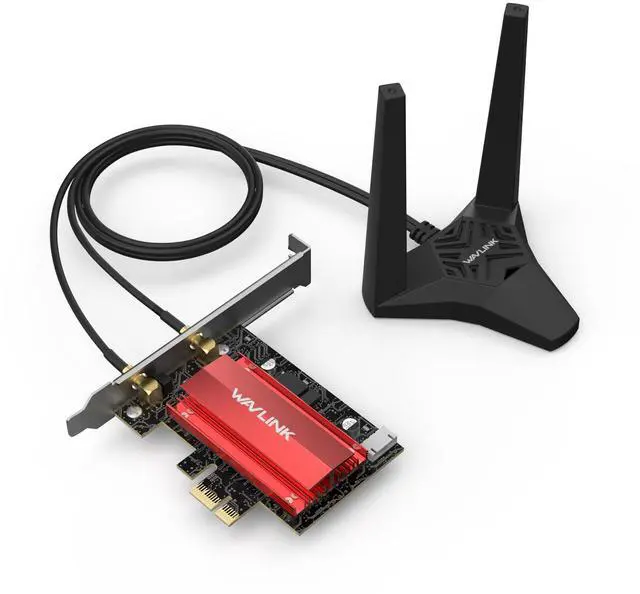

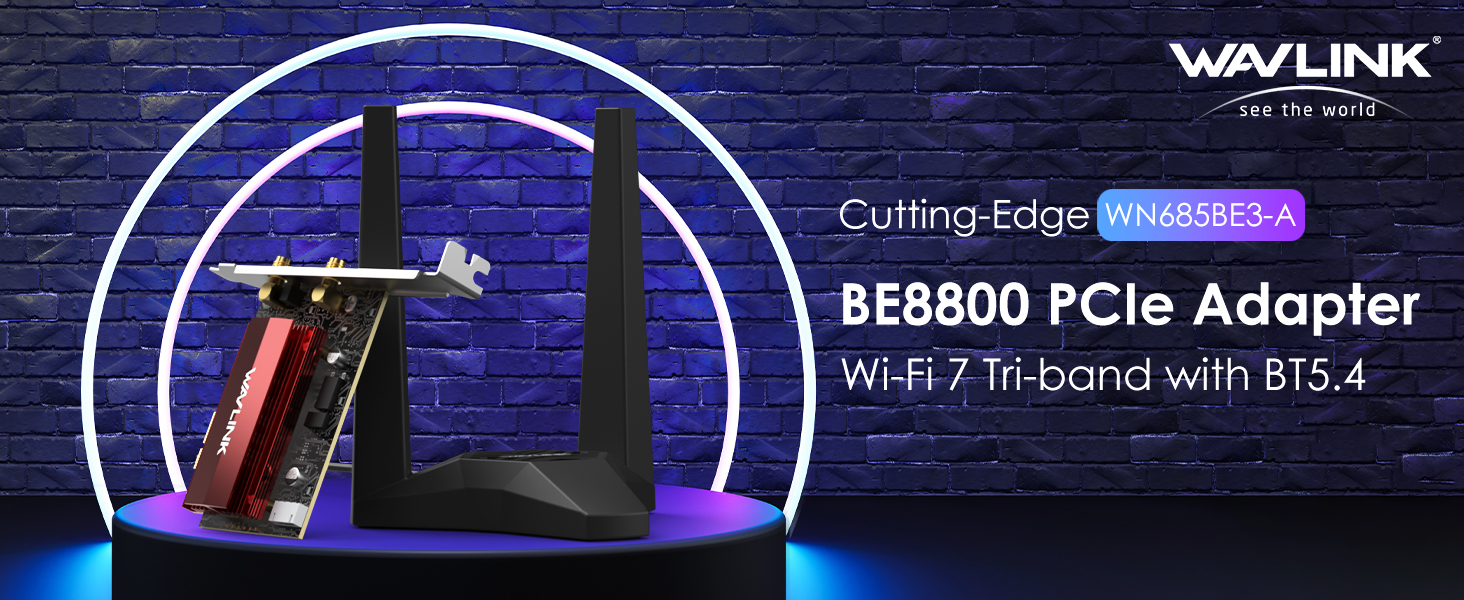

    WAVLINK Wi-Fi 7 BE8800 PCIe Tri-band WiFi Adapter--Innovative Wireless Connectivity!

    WAVLINK Wi-Fi 7 Tri-Band PCI-E is a BE8800 wireless adapter for desktops that supports the latest Bluetooth 5.4. It has the MLO feature that effectively reduces signal interference and transmission delays, providing a faster and more reliable wireless networking experience.

    Compliant with 802.11 be specification,the wireless adapter supports 2.4G, 5G and 6G bands. With 4096-QAM and MU-MIMO technology, WN685BE3-A delivers wireless signal faster and more effective by cooperating with an MU-MIMO compatible router.

    wifi card for pc
    wifi card for pc
    WiFi 7 Network Card
    wifi 7 adapter
    wifi 7 adapter
    wifi 7 adapter
    wifi 7 card
    wifi 7 card
    Warm Tips

    1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.

    2. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).

    3. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC's internal memory...the interference of many factors can affect the speed.

    4. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).

    5. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.

    6. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.

    wifi 7 card
    Powerful BE200 Chip

    The BE200 incorporates the latest IEEE Wi-Fi specification of 802.11BE, introducing the new band extension for Wi-Fi: UHB (Ultra High Band).



    wifi 7 card
    Compatible OS

    Support Windows 10/11 64-bit
    *Please note that to utilize 6GHz band, the user must be on Windows 11 version.



    wifi 7 card
    Important Note

    We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.



    wifi 7 card

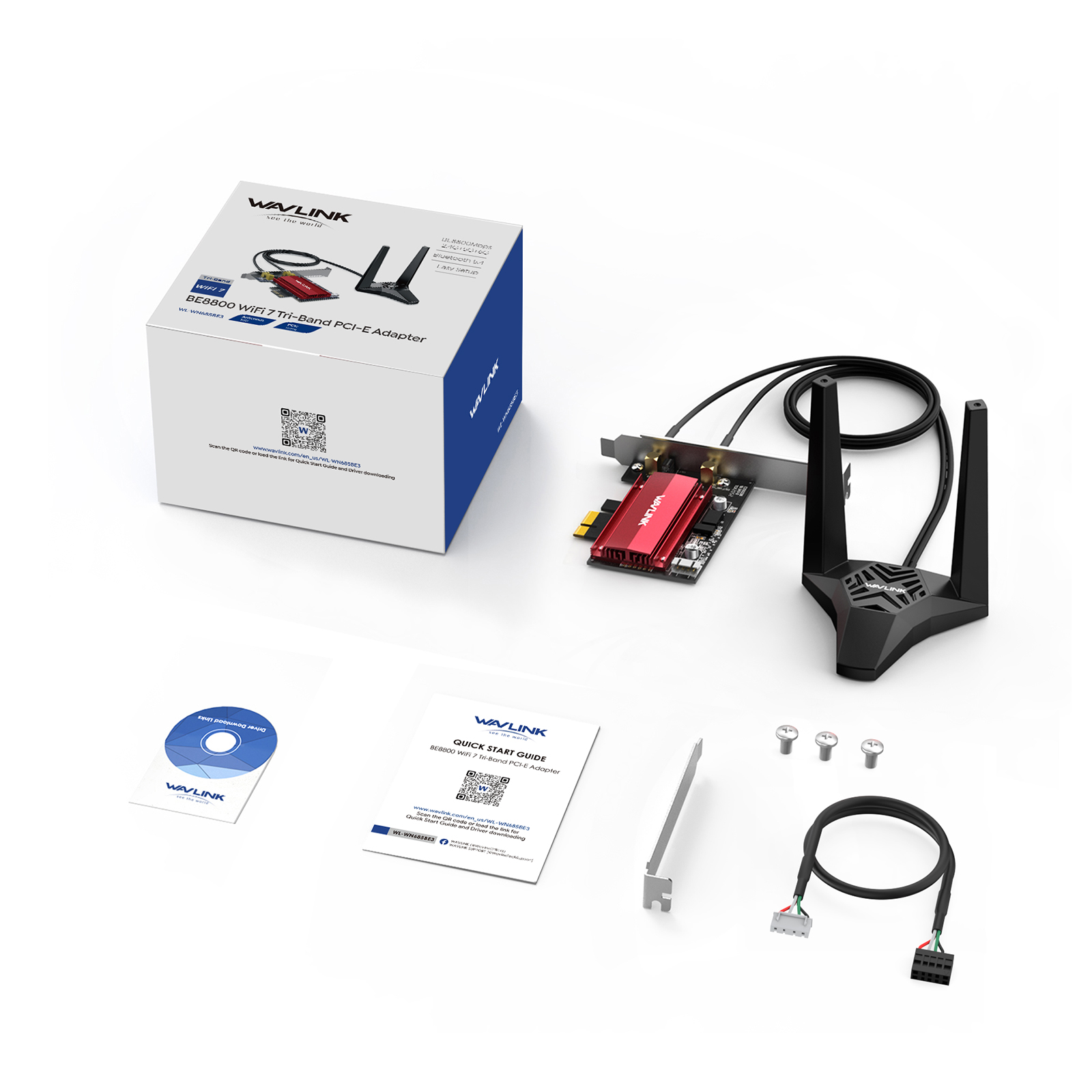

    Package Contents

    -1x WiFi 7 BE8800 PCIe Adapter

    -1x Bluetooth Cable

    -1x External Antenna Dock

    -1x Low Profile Bracket

    -3x Screws

    -1x Drivers Download Card

    -1x User Manual



    WAVLINK Wi-Fi 7 BE8800 PCIe Tri-band WiFi Adapter--Innovative Wireless Connectivity!
    WAVLINK Wi-Fi 7 Tri-Band PCI-E is a BE8800 wireless adapter for desktops that supports the latest Bluetooth 5.4. It has the MLO feature that effectively reduces signal interference and transmission delays, providing a faster and more reliable wireless networking experience. Compliant with 802.11 be specification, the wireless adapter supports 2.4G, 5G and 6G bands. With 4096-QAM and MU-MIMO technology, WN685BE3-A delivers wireless signal faster and more effective by cooperating with an MU-MIMO compatible router.

    Latest Bluetooth 5.4
    Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than BT 4.0. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.

    Powerful BE200 Chip
    The BE200 incorporates the latest IEEE Wi-Fi specification of 802.11BE, introducing the new band extension for
    Wi-Fi: UHB (Ultra High Band).

    Compatible OS
    Support Windows 10/11 64-bit
    *Please note that to utilize 6GHz band, the user must be on Windows 11 version.

    Adjustable Antennas for Peak Performance
    Easily find the optimal location for the strongest Wi-Fi signal with adjustable, high-performance antennas with magnetic base.

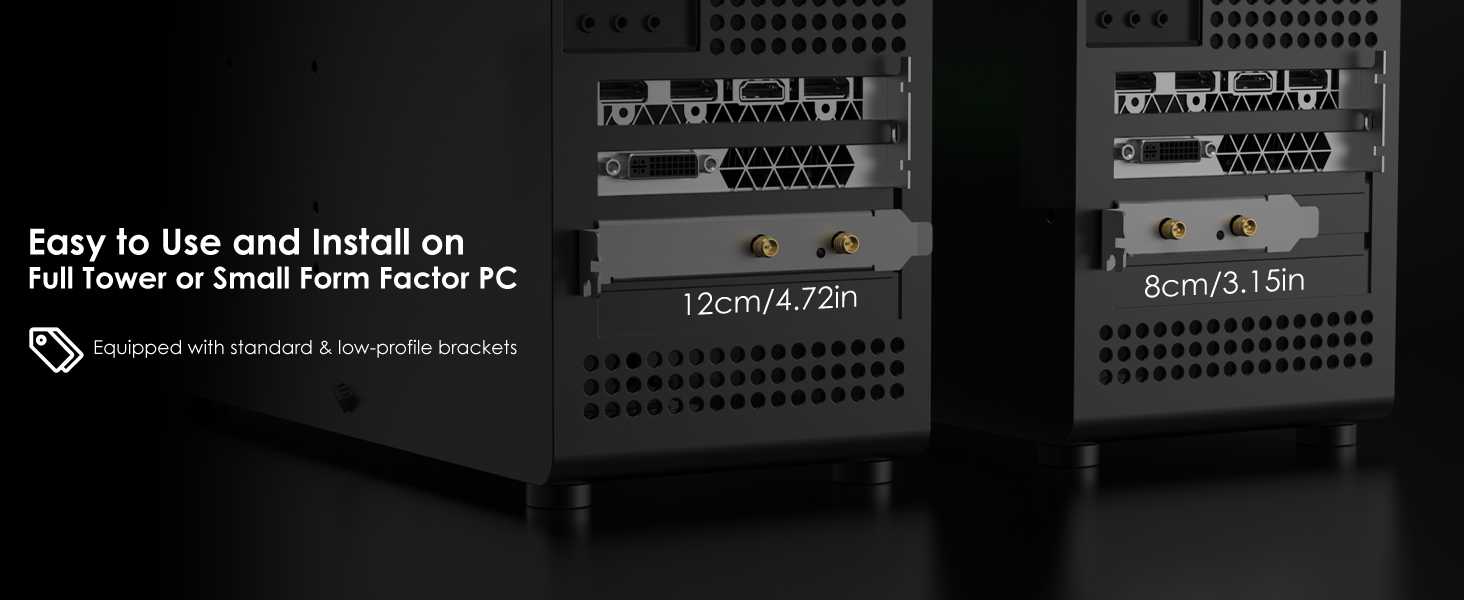

    Dual Brackets
    In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

    Important Note
    We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.

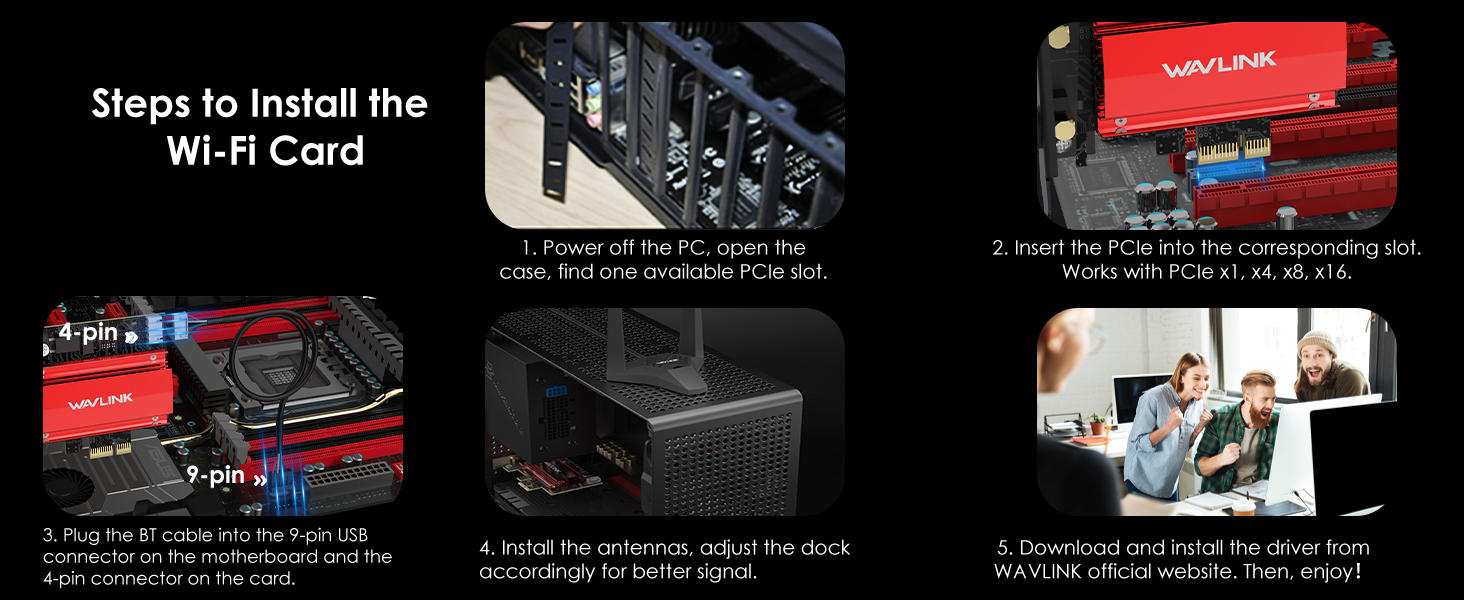

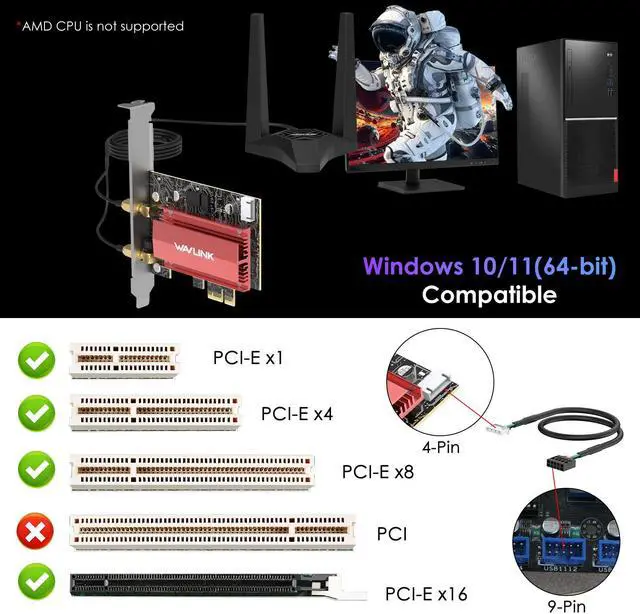

    Steps to Install the Wi-Fi Card

    1. Power off the PC, open the case, find one available PCIe slot.

    2. Insert the PCIe into the corresponding slot. Works with PCIe x1, x4, x8, x16.

    3. Plug the BT cable into the 9-pin USB connector on the motherboard and the 4-pin connector on the card.

    4. Install the antennas, adjust the dock accordingly for better signal.

    5. Download and install the driver from WAVLINK official website. Then, enjoy!

    Specification
    Product Model: WN685BE3-A(chipset: Intel BE200)
    Transmission Rate: 2.4GH
    z: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
    Protocol Standard: support IEEE 802.11 a/b/g/n/ac/ax/be
    Frequency Band: 2.4GH z, 5GHz, 6GHz
    Technical Support: MU-MIMO, OFDMA, BSS Coloring, 320MHz, 4096QAM, Target Wake Time (TWT), Multi Link Operation (MLO), Multi-RU, Enhanced Multi-Link Single Radio (eMLSR)
    Support System: Win 11/10 (64 bit)
    Bluetooth Version: Bluetooth 5.4
    Interface: Compatible with PCI-E X1/X4/X8/X16
    Wireless Security: WPA3/WPA2 encryption

    Package Contents
    -1x WiFi 7 BE8800 PCIe Adapter
    -1x Bluetooth Cable
    -1x External Antenna Dock
    -1x Low Profile Bracket
    -3x Screws
    -1x Drivers Download Card
    -1x User Manual

    Warm Tips

    1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.

    2. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router (Increase the maximum wireless bandwidth limit).

    3. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memorythe interference of many factors can affect the speed.

    4. Please turn off the built-in Wi-Fi when using on a desktop pc. ( If there is a built-in Wi-Fi function on your desktop pc).

    5. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.

    6. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
