Wavlink AX3000 Wi-Fi 6 Dual BandPCIe Adapter for desktop transforms your PC with record breaking wireless speeds, up to 2400 Mbps (5 GHz) + 574 Mbps (2.4 GHz). With 1024-QAM, OFDMA and MU-MIMO supported, wireless signals and speeds thrive even in dense networks with multiple devices connected. Combined with WPA3 security and Bluetooth 5.2, the Wi-Fi 6 network card equips your PC with all the latest, future-proof technology.
Compatible with Windows 10/11 for desktop PC, you can get the driver from our website. Works with PCIe X1/X4/X8/X16 slots( Not for PCI slot).
Breaks the gigabit barrier with speed up to 2400 Mbps (5 GHz) + 574 Mbps (2.4 GHz). The actual speed varies depending on the router specification and the environment in which it is used.
Based on AX200 chipset, this WiFi 6 network card supports the latest 802.11ax technology, such us OFDMA, 1024QAM, Target Wake Time, delivering from 80MHz to 160MHz higher peak data rates up to 2.4Gbps, and up to 4X capacity improvement in dense or congested environments comparing to 802.11ac. With this PCIE Wi-Fi Card, you can enjoy 8K movies, large file transfer, and smart home devices without dropping connections.
Bluetooth 5.2 provides 4x range over Bluetooth 4.2, doubles the transmit speed for faster transmissions thereby reducing the overall power. Ideal for Bluetooth TWS(True Wireless Stereo) Earbuds, Headset, Keyboard, Mouse and others for more conveniences and demands with this WiFi 6E module. Backwards compatible with BT5.1, 5.0, 4.2, 4.0, 3.0, 2.1.
Ofdma and MU-MIMO technology ensure full Wi-Fi speeds to your computer even in a congested network with multiple devices. Enjoy more responsive gaming and seamless video conferencing even when multiple compatible devices are connected and transmitting data at the same time.
Create a customized Wifi network with enhanced security using WPA3 security technology. With the latest Wi-Fi security standard, the wireless adapter can protect your computer and data from external attacks
WN675X2 utilizes its dual 5dBi high-gain external antennas for optimal signal reception and transmission, just say goodbye to weak WiFi signal
Built-in Intel module, fully compatible with Intel processors and drivers, compatible with 99% of the other processor brands on the market.
Equipped with high quality heat sink, it effectively dissipates the heat generated inside the network card, reduce overheating.
This adapter supports the latest Microsoft Windows 10/11 64bit OS, as well as Linux.
Support interface PCI-E/X1/X4/X8/X16, 9-pin usb for Bluebooth
Note: PCI-E 1X slot has the best compatibility. Need to cut off the power before installation.

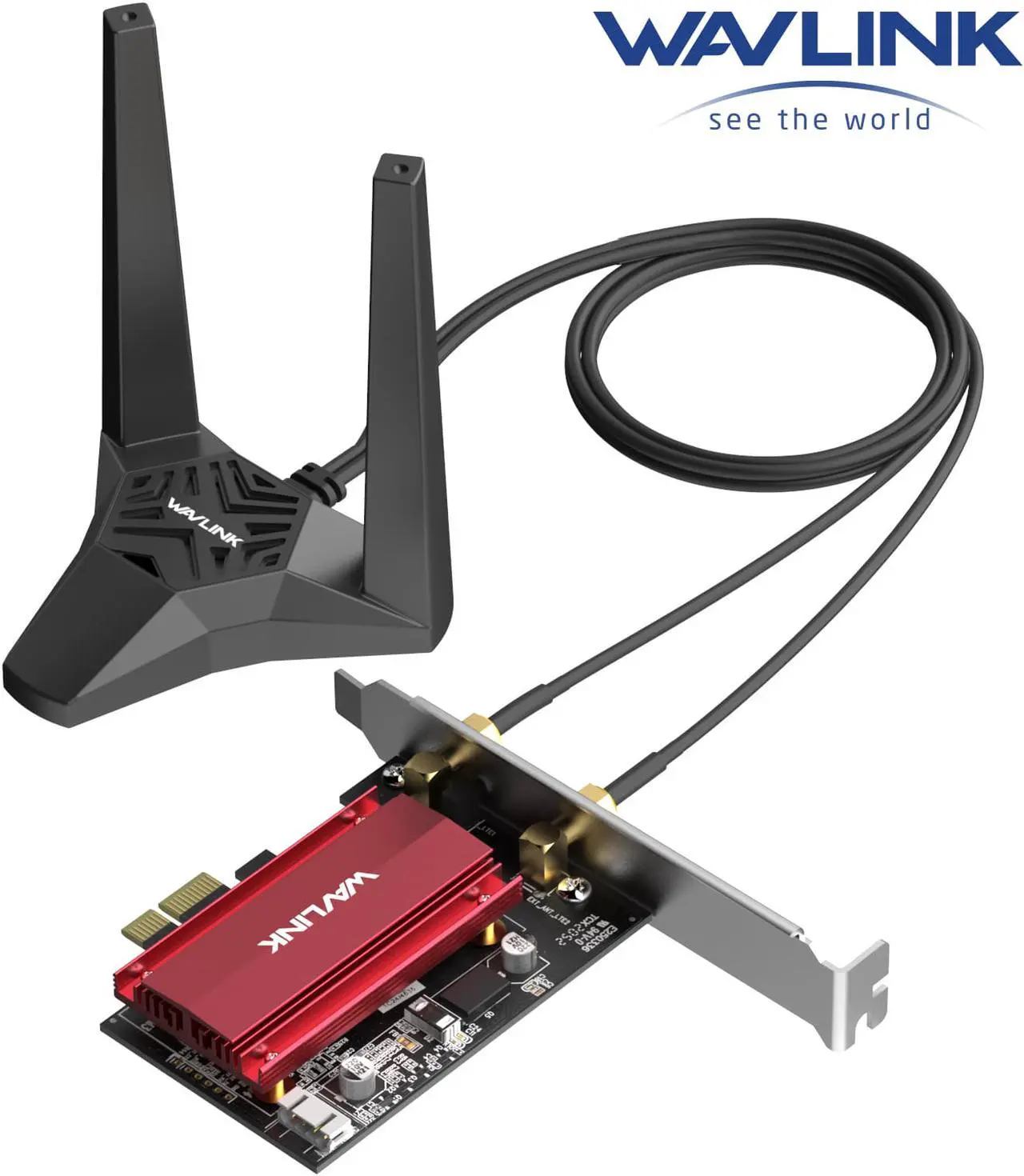

Two external 5dBi antennas with a magnetized base extend your existing Wi-Fi reception capabilities. With a 3.6ft RF cable, you can place the magnetized antenna base anywhere on your desktop to find the optimal location for signal reception. Easily install with low profile bracket.
Specification:
Product Model: WN675X2(chipset: Intel AX200)
Transmission Rate: 2.4GHz: 574Mbps 5GHz: 2400Mbps
Protocol Standard: support IEEE 802.11AX/AC,IEEE 802.11a/b/g/n
WiFi Frequency: 2.412GHz-2.4835GHz 5.150GHz-5.825GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring,1024QAM,Target Wake Time(TWT)
Support System: Win 10 64 bit
Bluetooth Version: Bluetooth 5.2
Encryption Mechanism: WPA / WPA2/WPA3, WPA-PSK/ WPA2-PSK
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and better network performance of our PCIE wifi adapter.
3.This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router (Increase the maximum wireless bandwidth limit).
4. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC's internal memory.. the interference of many factors can affect the speed.
5. Please turn off the built-in Wi-Fi when using on a desktop pc.(If there is a built-in Wi-Fi function on your desktop pc).
Remove the plastic film on gold-plated fingers before connecting to the PCI-E solt or the device could not be detected
Note:
1.Only for Windows 11/10 (64-bit) operating system.
2. After you install the driver, if it doesn't show any wireless device, please restart your computer and it will work well.
1 x Wireless-AX200 Adapter
1 x Bluetooth 4 Pin Cable
1 x Antena base
1 x Baffle
1 x Drivers Download card
1 x User Manual.
