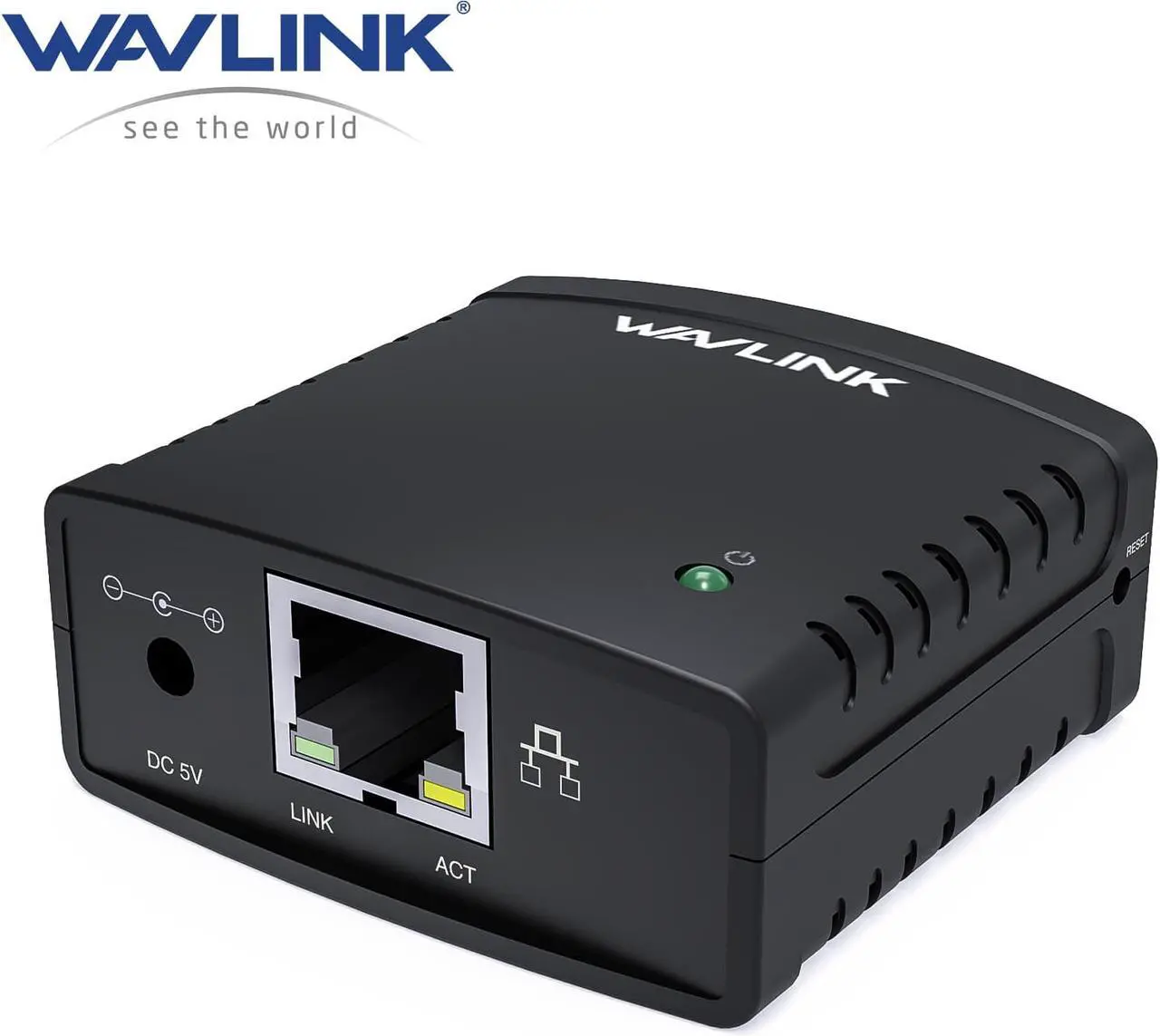

Wavlink new palm-sized Networking USB 2.0 Server enables any USB printer into wired network printer so printer can be accessed by all computer users on the network. It complies with USB 2.0 specifications (backward compatible with USB 1.1 spec.), and provides users with an auto-sensing Ethernet port that works with either 10Base-T or 100Base-T networks.
1.Connect the power adapter.
2.Connect the printer with the USB-A cable(Not Included).
3.Connect to network with the Ethernet cable(Included).
4.Install the printer driver & follow the manual to configure the printer and network settings, then you can print from any computer on the network.

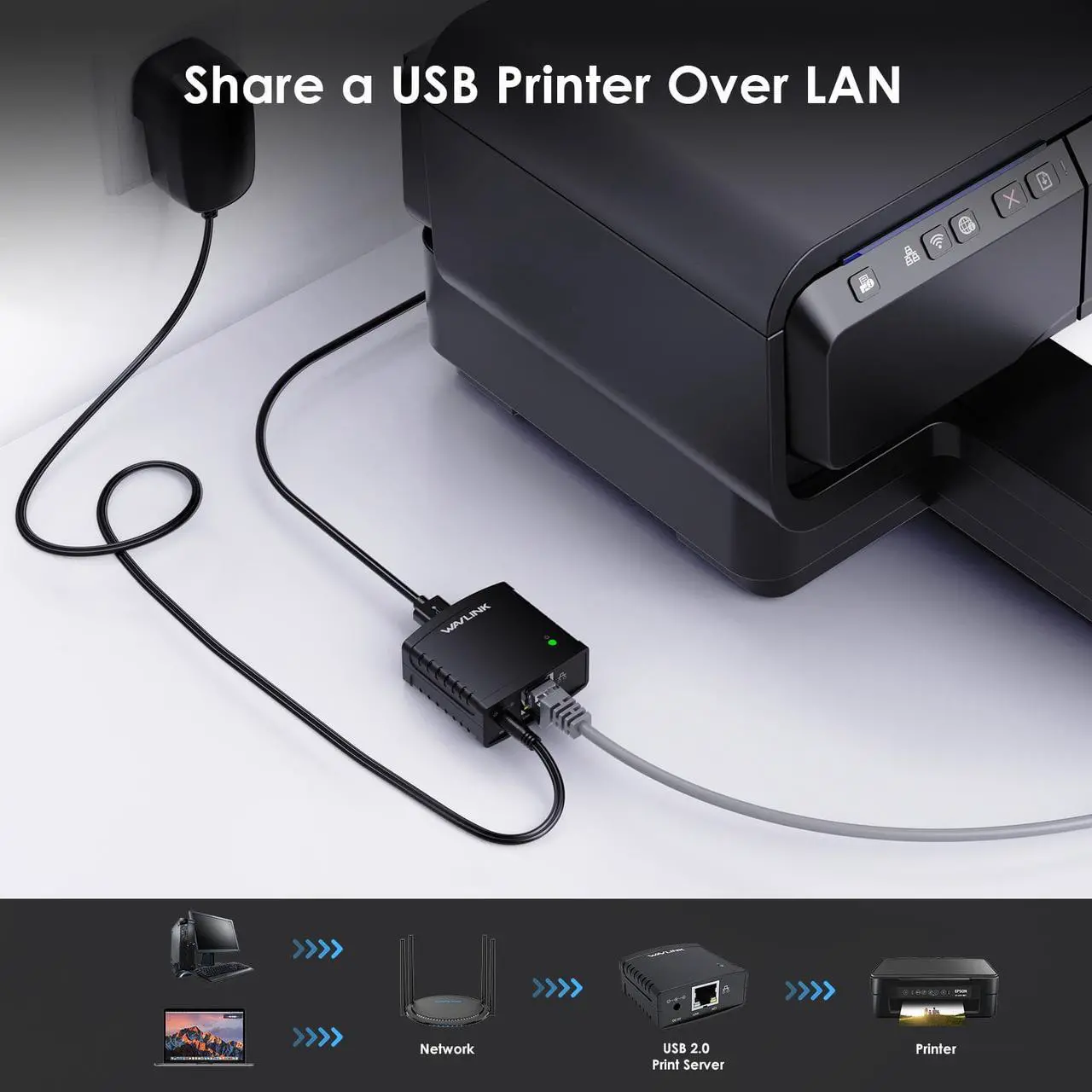

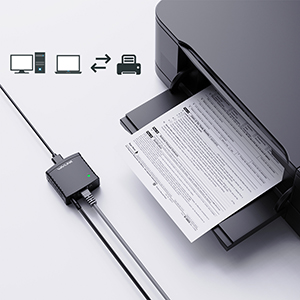

Connect a USB-only printer to the LAN and share it among all computers on the network.

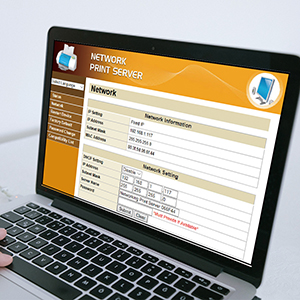

Easy Configuration: Easy configuration with intuitive web based GUI(Graphics User Interface)
Appliances Not Recommended: Do not support connecting peripherals such as hard disk, usb flash drive, card reader, phone, tablet etc.

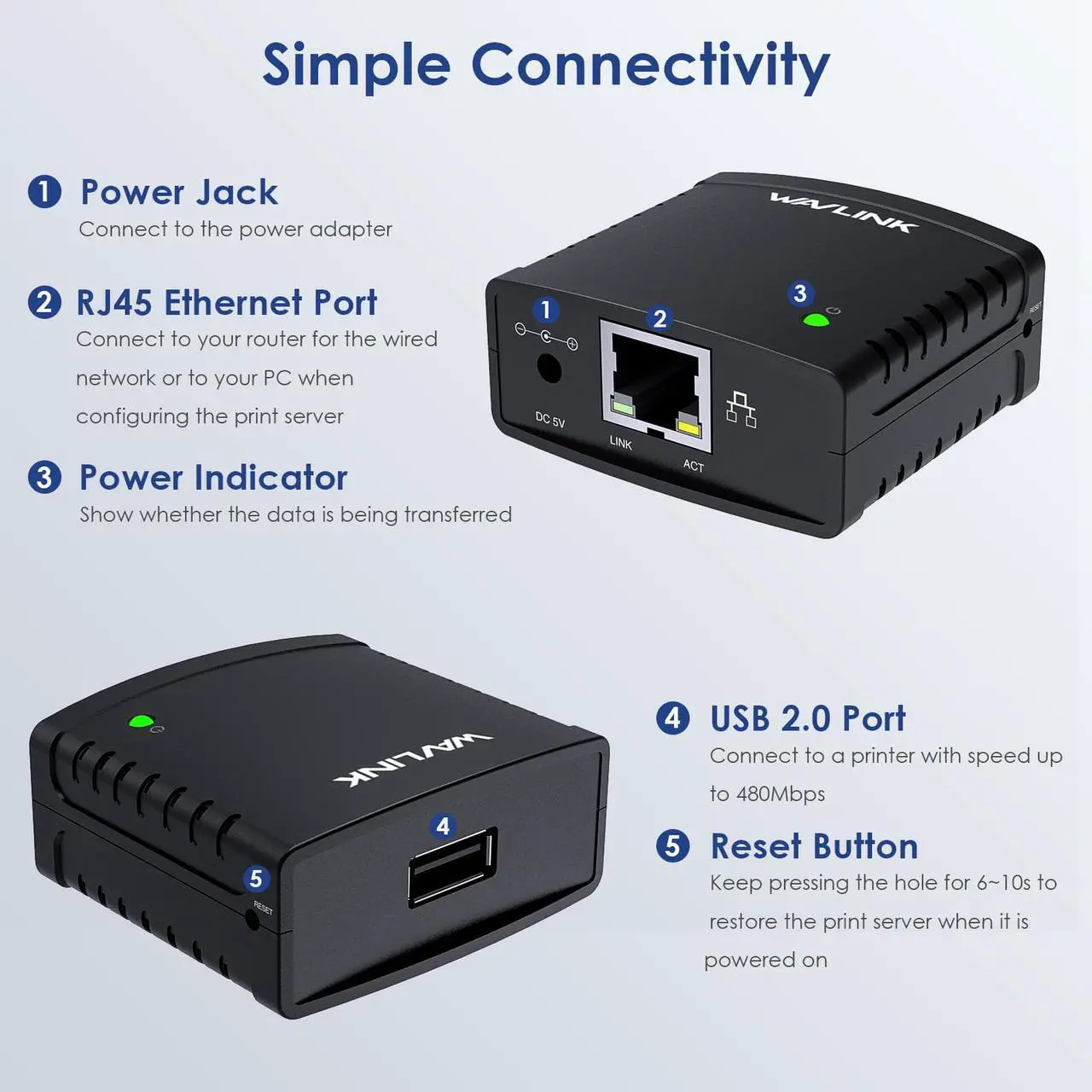

- 10Base-T/100Base-T auto-sensing.
- Easily connect your USB printer to a network.
- Allows multiple computers to share one USB printer on the network.
- Print from any computer on your network.
- The built-in web management feature provides more convenience by allowing the user to configure, monitor and even reset the print server via a web browser.
- Works with any home or office Ethernet network.
- Supports protocol: LPR

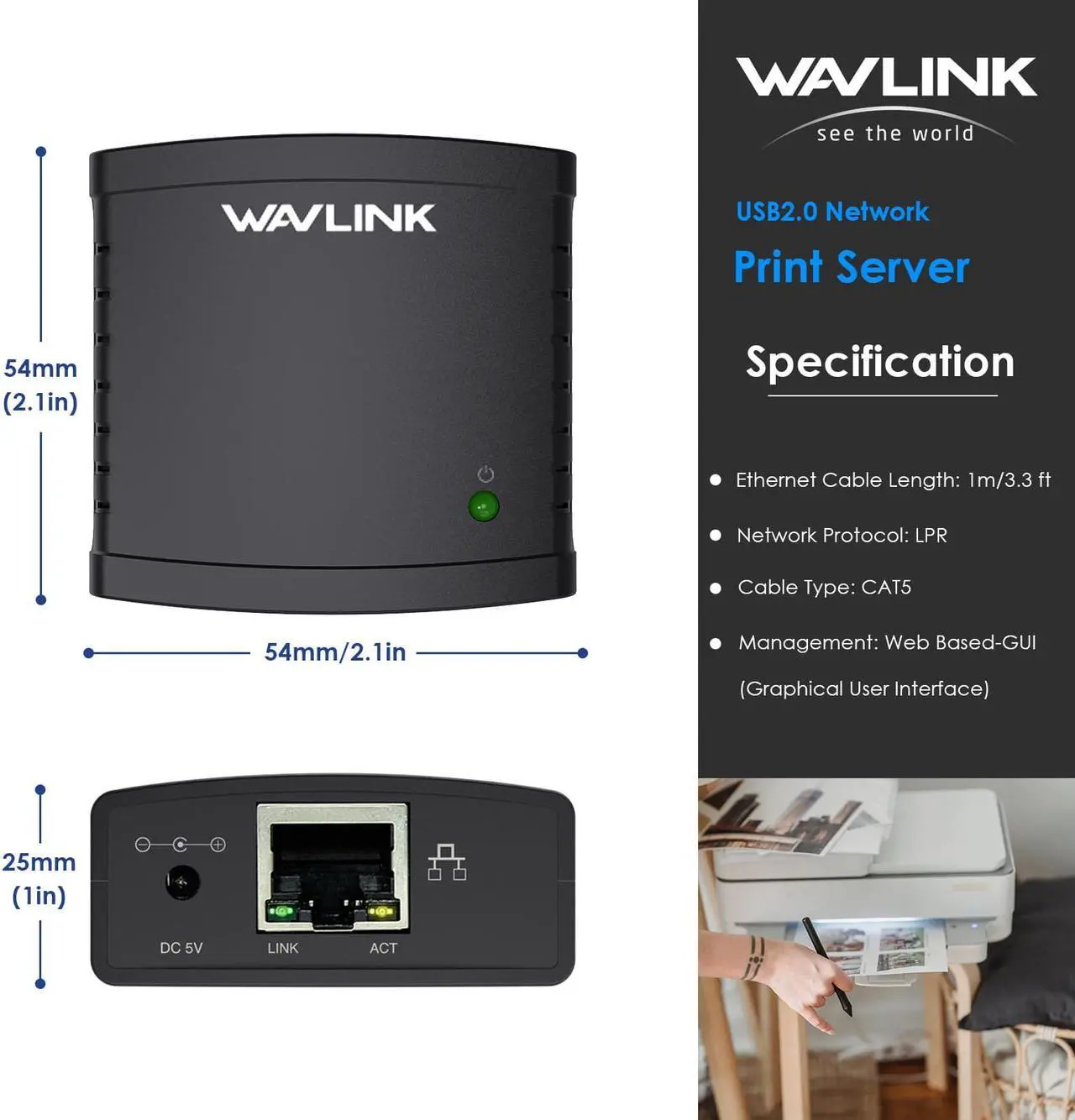

Specification:
Model: WL-NU72P11
Color: Black
Material Type: ABS
Item Weight: 37g/ 1.3oz
Network Cable Length: 100cm/3.3ft/39.4in
Power Adapter Cable Length: 120cm/3.9ft/47in
Product Dimensions: 54*54*25mm / 2.1*2.1*1inches
System Requirement: Windows 2003/2008/2012/XP/7/8/8.1/10/11, Mac 10.7 or later.
1.This Print Server is NOT PLUG and PLAY, it requires networking and computer system settings to get better printing experience.
2.Read (Printer Compatibility List) in (Product Document) before purchase
3.Make sure your computers and the print server are in the same local network (subnet, LAN).

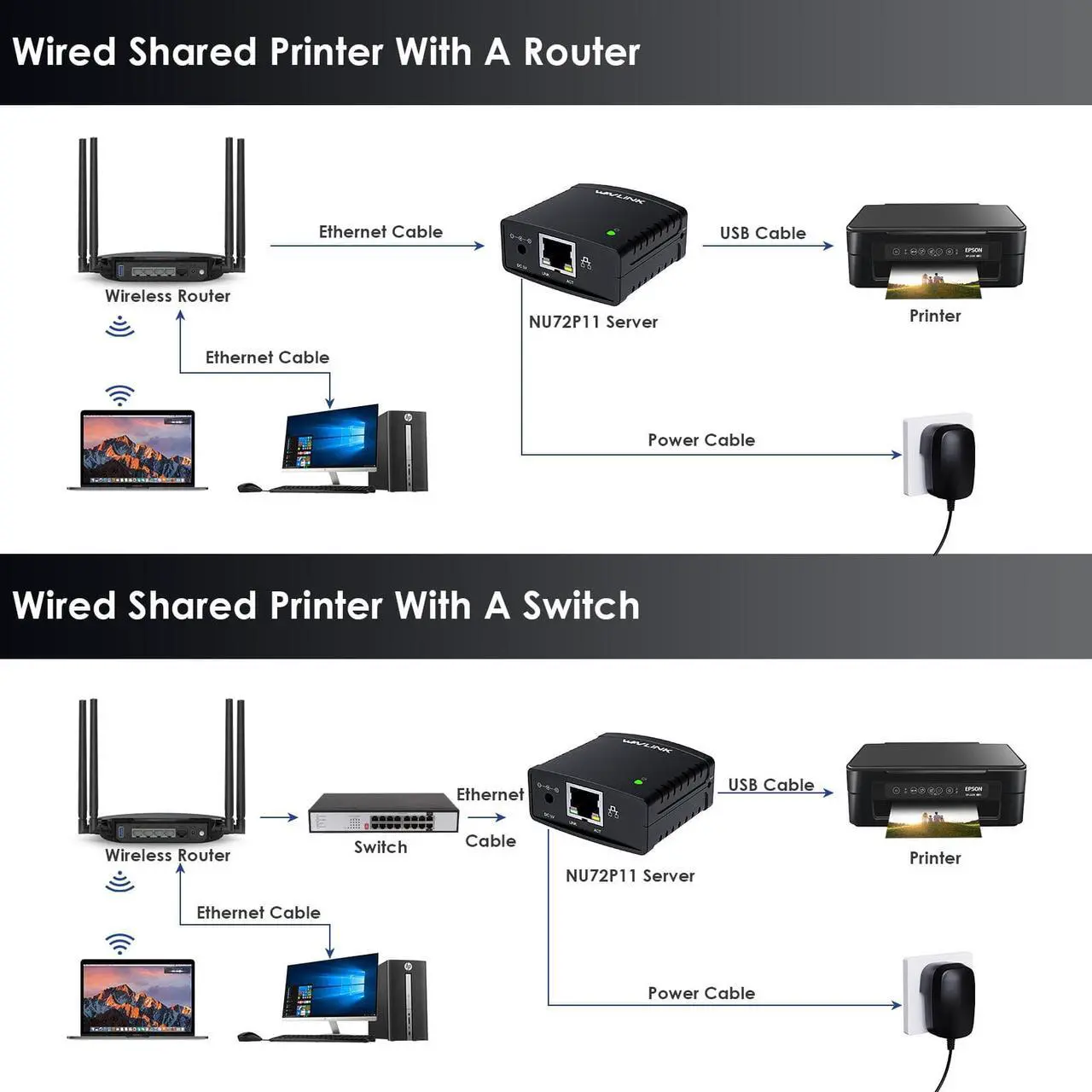

4.This product can only be connected to a router or switch via a network cable. Do not support broadcasting wifi. However, you should connect the device to the wireless router and share the printer via wifi of the router.

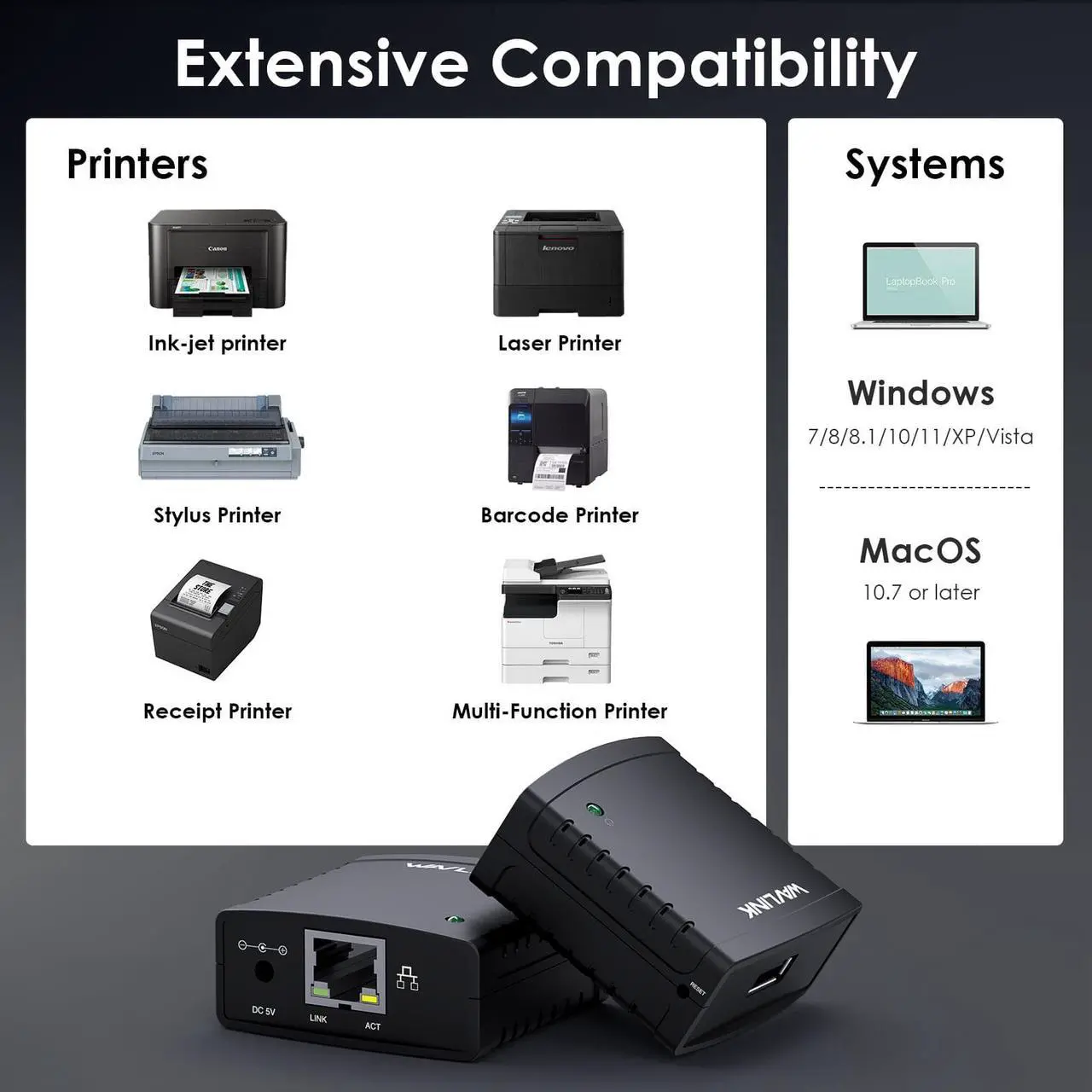

Extensive Compatibility
This print server is USB2.0 compliant, it works with Windows 2003/2008/2012/XP/Vista/7/8/8.1/10/11, Mac 10.7 or later. Compatible with almost all the USB printers such as ink-jet printer, laser printer, needle printer, multi-function printer, etc..
Package List
1x Networking USB LPR Print Server
1x RJ45 Ethernet Cable
1x Power Adapter
1x Instruction Manua
