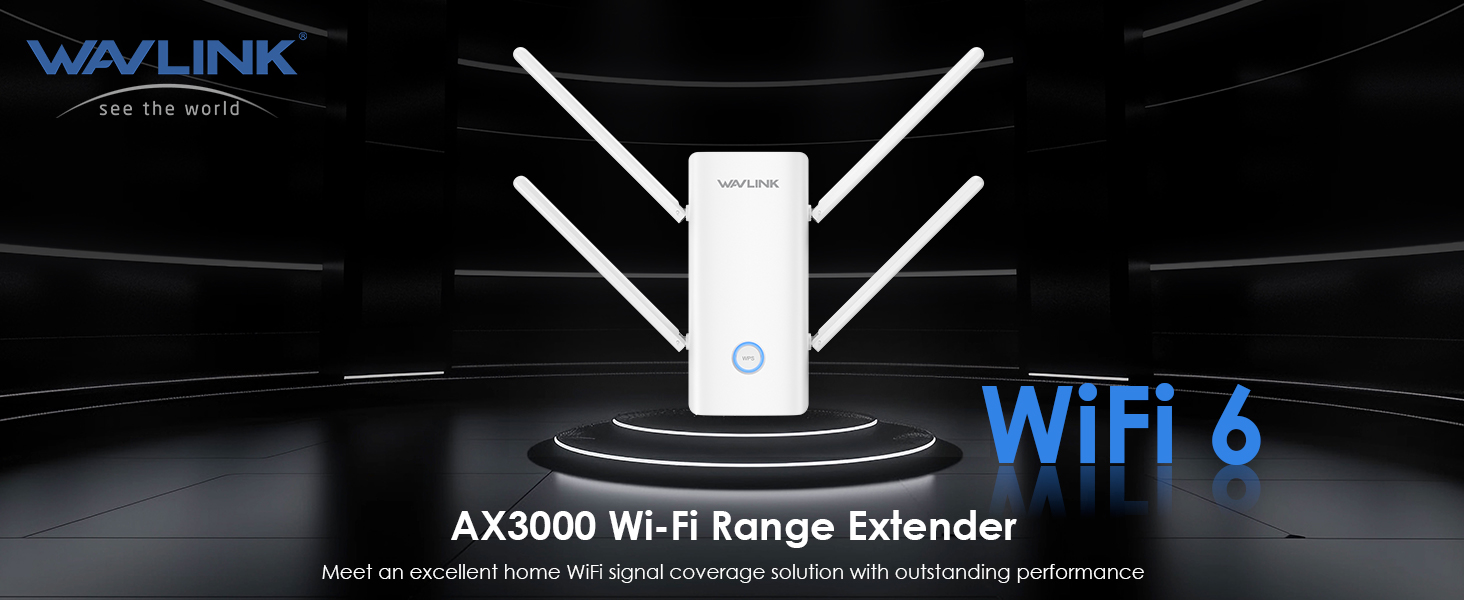

Upgrade Your Home Network to Real WiFi6 with the Cutting-Edge WAVLINK AX3000 Wi-Fi 6 Repeater/AP/Router

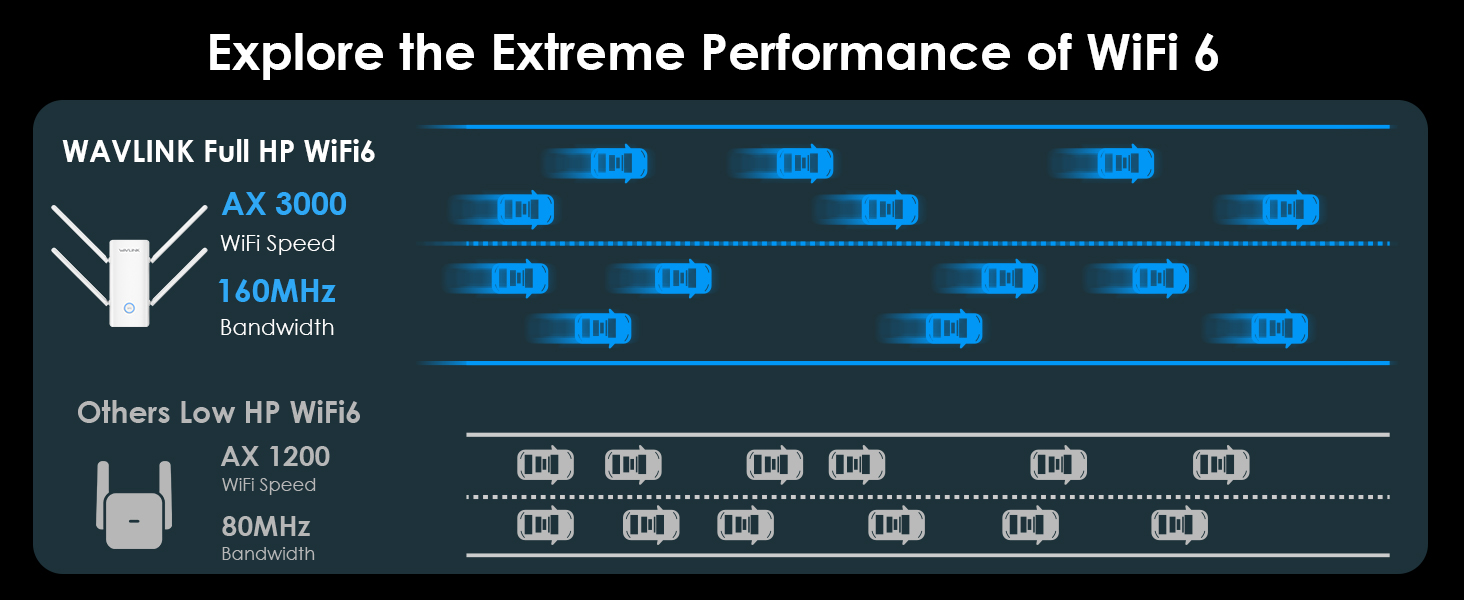

Elevate to the WAVLINK AX3000 WiFi 6 Repeater/AP/Router for lightning-fast speeds of up to 3000Mbps! Unlike ordinary WiFi 6 devices, the WN583HX3 offers 160MHz bandwidth for unparalleled networking speed. Whether you're working from home, streaming your favorite content, or engaging in intense gaming sessions, this innovative WiFi6 booster provides exceptional coverage and stability, making dead zones a thing of the past. Experience the next level of network reliability with WN583HX3your gateway to a faster, more efficient online experience.

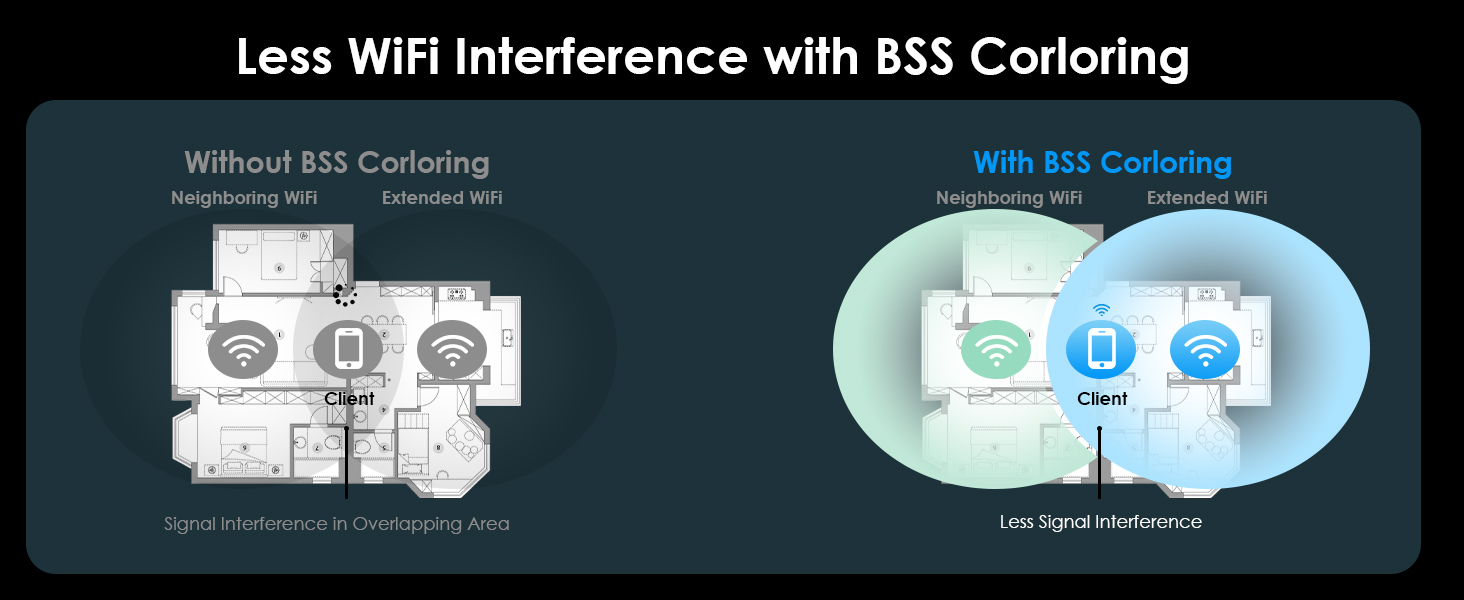

BSS Coloring
With BSS Coloring technology, the WiFi extender effectively minimizes interference from neighboring networks, ensuring a stable connection even in crowded network environments.

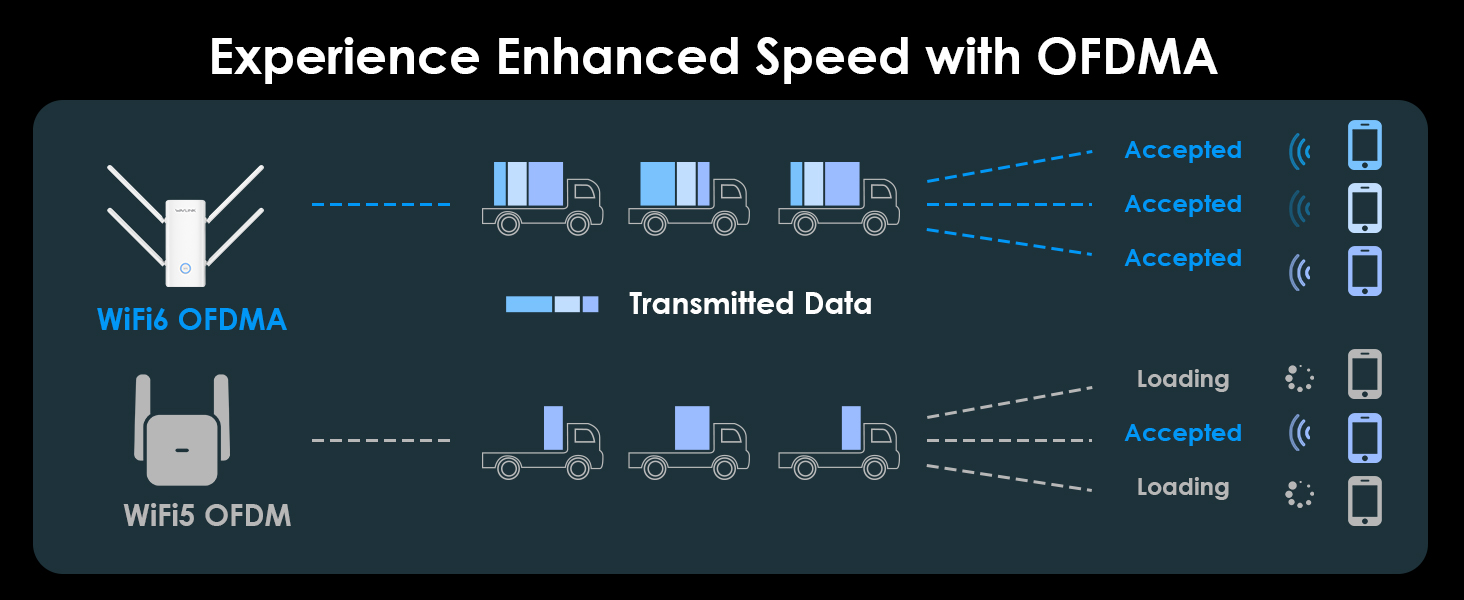

WiFi 6 OFDMA
OFDMA technology helps improve WiFi efficiency by allowing multiple devices to communicate with the router simultaneously, enhancing overall network performance for smoother connectivity.
Easily Accessible Web Interface
Configure your AX3000 WiFi6 repeater via web interfaces on the phone or computer, which offers user-friendly management options and convenient monitoring capabilities, enhancing control and customization of network settings for optimized performance.
LED Indicator Description
Solid Purple: The device is being activated.
Fast Blinking Red: The device is not connected to the higher-level router.
Slow Blinking Red: The device doesn't have access to the Internet.
Fast Blinking Blue: Pairing with the WPS of a higher-level router.
Slow Blinking Blue: The phone is pairing with WPS./Press the pair button for Mesh pairing.
Solid Blue: The Internet is connected and stable./AP Mode.
WPS/Mesh Pair button:
AP Mode: Press and hold WPS for 2 seconds to connect to downstream devices.
Repeater Mode: Press and hold the WPS button for 2 seconds to connect to the downstream devices and for 8 seconds to connect to the upstream router.
Mesh Extender/Mesh Router Mode: Press and hold the Mesh Pair button for 2 seconds to pair.
Reset Button:
Press and hold the button for 6 seconds to reset to product's factory settings.
Default Parameters
SSID: WAVLINK-AX XXXX
Default IP: 192.168.10.1
Login: //waplogin.link
Official website: www.wavlink.com
Technical support: [email protected]
Features
- Dual band 2.4G 573Mbps +5G 2402Mbps with the aggregated speeds up to 2975Mbps.
- The BSS coloring technology enables a better spatial reuse.
- The WiFi 6 MU-MIMO and OFDMA techniques have greatly improved the device efficiency and performance.
- One Gigabit Ethernet port provides your devices with high-speed network experience.

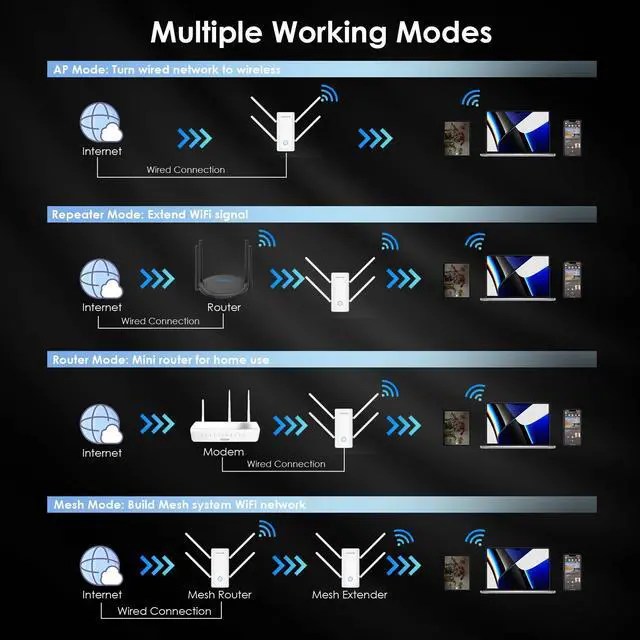

- With various modes, you can either use it as a regular Repeater/AP/Router or pair it with a Mesh device.
- High grade WLAN security with WPA3/WPA2-PSK MIX, WPA2-PSK, WPA2/WPA1-PSK MIX.
- Compact wall plug design for easy placement.

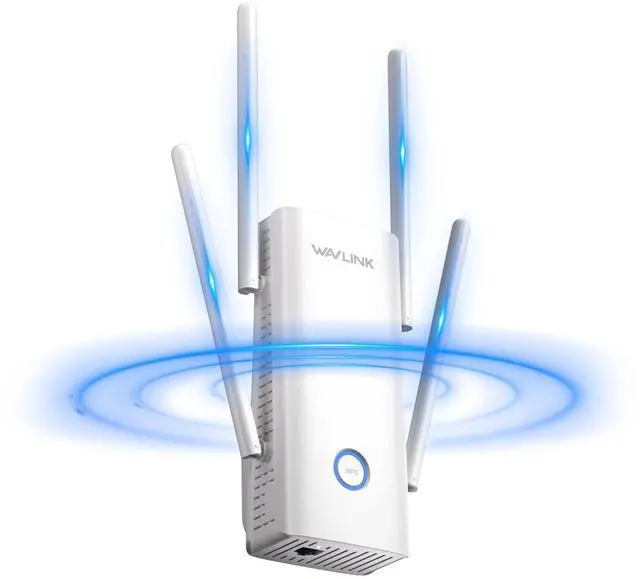

- Antenna: 4 x 5dBi high-performance external antennas+1 x 5dBi internal antenna
Specification
- Model: WL-WN583HX3
- Ports: 1 x WAN/LAN(10/100/1000Mbps)
- Buttons: 1 x Power On/Off; 1 x Reset; 1 x WPS
- Status LED: 1 x WPS(Purple/Red/Blue); 1 x WAN/LAN(Blue)
- Wireless Standard: IEEE 802.11a/b/g/n/ac/ax
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Antenna: 4 x 5dBi Omni Directional Antennas(Length: 15.4cm/6.1in)+1 x 5dBi internal antenna
- Wireless Security: WPA3/WPA2-PSK MIX, WPA2-PSK, WPA2/WPA1-PSK MIX
- Unit Size(without antennas): 16.0x7.5x4.2cm/6.3x3.0x1.7in ( L x W x H )
- Ethernet Cable Length: 100cm/39.4in
- Weight: 298g/10.5oz
- Everything Mesh Supported Models(Does not support networking with other brands of mesh devices):
WN533AX6/LUX DX15, WN531AX3/LUX DX7, WN586X3/MIGHTY EXI, WN586X3-B/MIGHTY EXI Pro, WN587X3/MIGHTY EX2, WN583AX3/AERIAL D6X, WN573HX3/AERIAL HD9/Greenwood 6 3000P, WN536AX6-A/MIGHTY LX2, WN530BE1-A/Skyline Stream 4, WN530BE2-A/Skyline Stream 5, WNF100X3NR-B/QuantumWave 5G Base, WN573HX1-B/AERIAL HD6/Greenwood 6 1800P, WN592AX6-A/Giant Stream6, WN536AX6-A/MIGHTY LX2, WN588HE6D-A/AERIAL 4G6, WN588HE4D-A/AERIAL HD9D, WN572HE4-A/WING 12ML, WN588HX3-B/AERIAL HD9S/Greenwood 6 3000S, WN588HA2-A/AERIAL HD8S, WN573HP3-A/AERIAL HD10/Greenwood 6 3000D, WN573HP3T-A/AERIAL HD10T, WN572HP3-B/WING 12HP/Greenwood 5 1200G, WN583BE1/AERIAL D3E, WN5372BE1/WN5372BE2/WN5372BE3/HALO Nexus X1/HALO Nexus X2/HALO Nexus X3, WN551X1-A/WN551X2-A/WN551X3-A/HALO Pulse/HALO Pulse X2/HALO Pulse X3, WN551X1-B/WN551X2-B/WN551X3-B/CUBE AIR X1/CUBE AIR X2/CUBE AIR X3, WN553X1-A/WN553X2-A/WN553X3-A/CUBE PRO, WN553X1-B/WN553X2-B/WN553X3-B/HALO AIR X1/HALO AIR X2/HALO AIR X3
In the Box
- 1 x Wi-Fi 6 Repeater/AP/Router
- 1 x RJ-45 Ethernet Cable
- 1 x Quick Start Guide
