Combining Wi-Fi 6 technology with support for SA/NSA dual-mode 5G networking, this router offers an advanced networking experience. With speeds of up to 573Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band, and compatibility with 802.11 ax/ac/a/n/g/b standards, it provides excellent speeds and superior omnidirectional wireless range. Upgrades your network to the next-gen Wi-Fi for various applications.

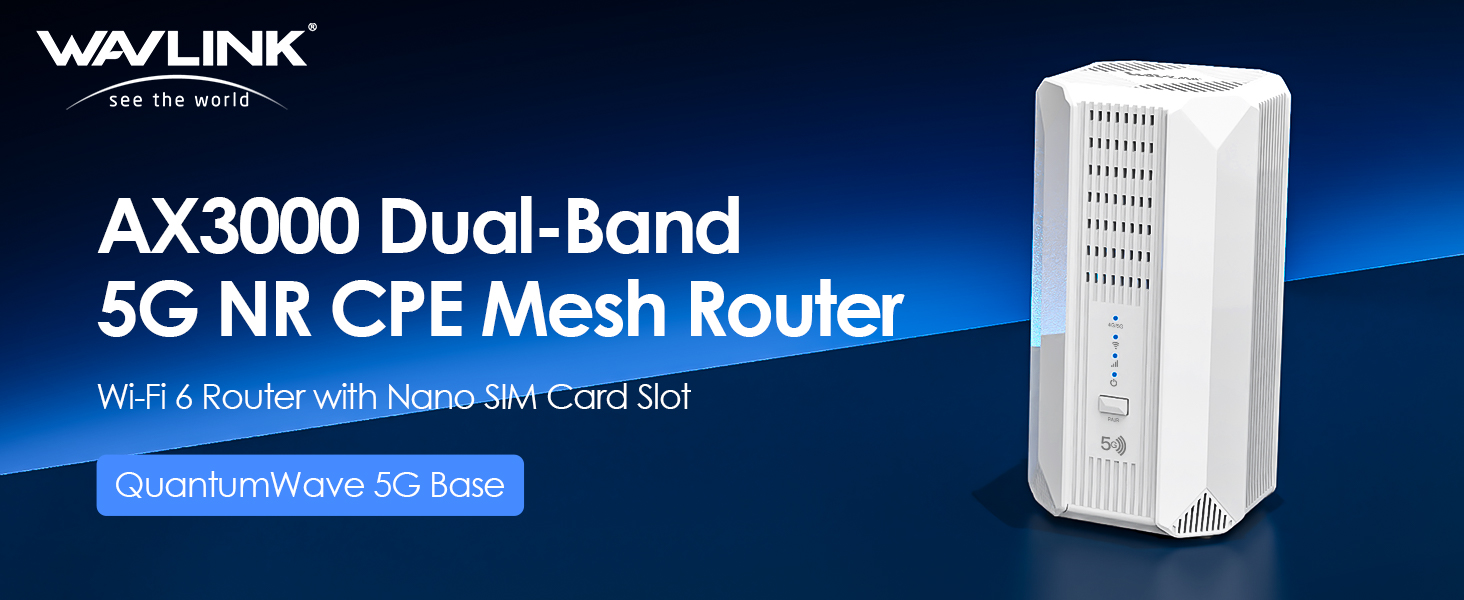

WAVLINK AX3000 Dual-Band 5G NR Mesh Router(QuantumWave 5G Base)
Combining Wi-Fi 6 technology with support for SA/NSA dual-mode 5G networking, this router offers an advanced networking experience. With speeds of up to 573Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band, and compatibility with 802.11 ax/ac/a/n/g/b standards, it provides excellent speeds and superior omnidirectional wireless range. Upgrades your network to the next-gen Wi-Fi for various applications.
Flexible Mode Options:

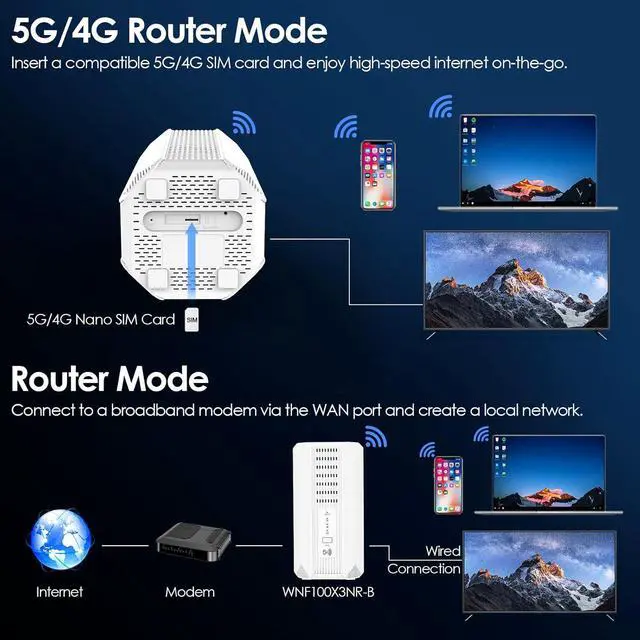

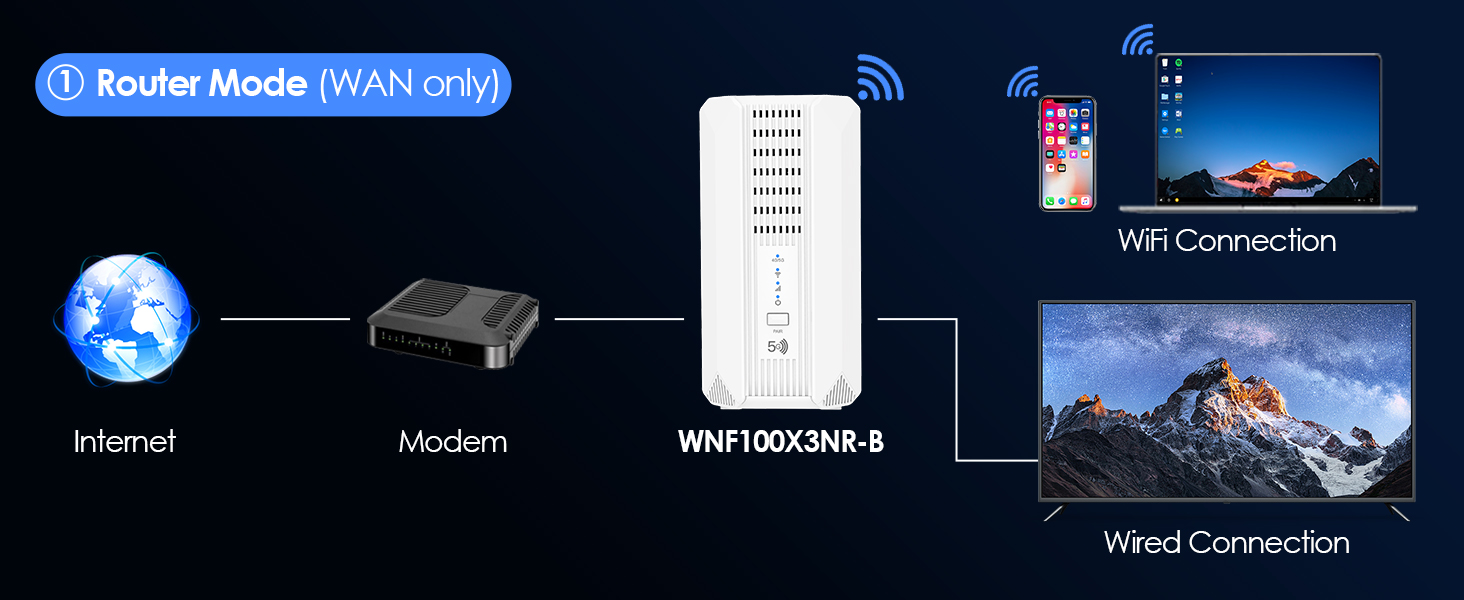

1) Router Mode (WAN Only): Connect to your existing broadband modem via Ethernet for high-speed wired/wireless networking.

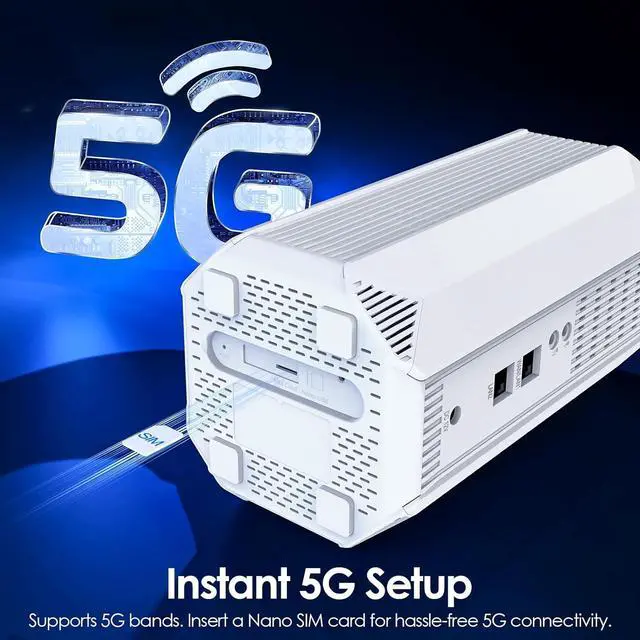

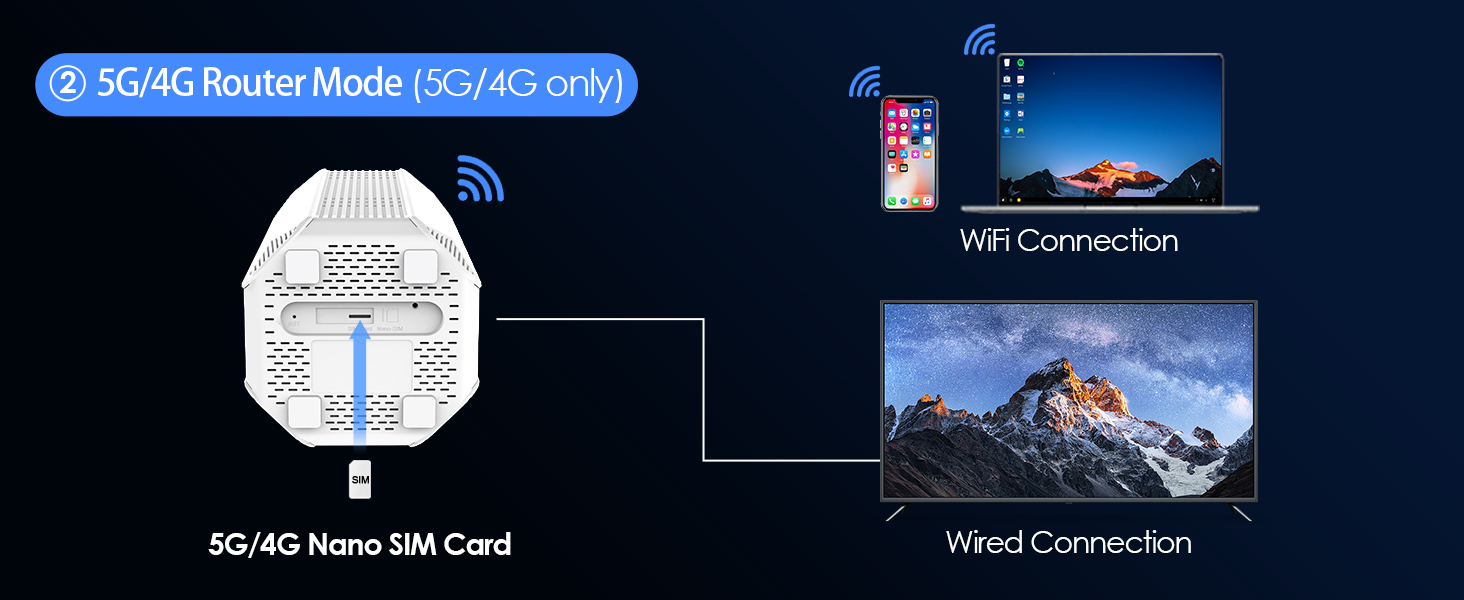

2) 5G/4G Router Mode (5G/4G Only): Use a Nano SIM card for standalone 5G NR or 4G LTE connectivity, ideal for mobile setups, RVs, or remote locations.

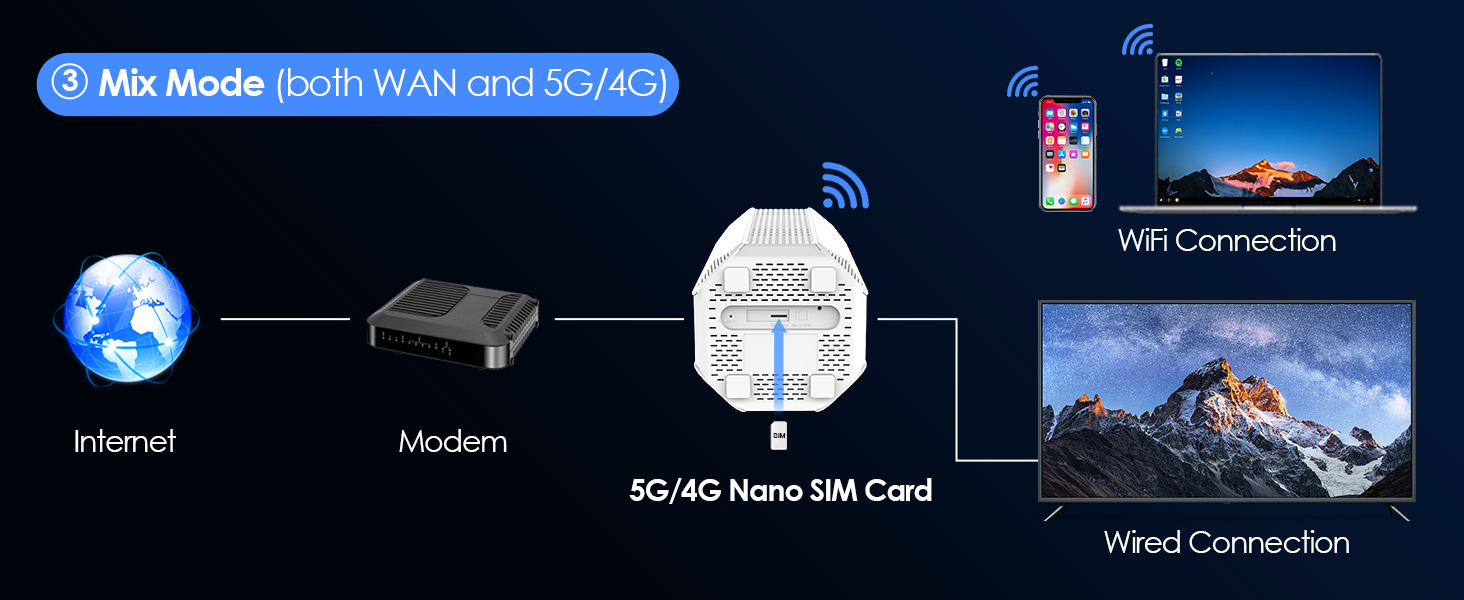

3) Mix Mode (5G/4G + WAN): Dual connectivity with automatic failover: prioritize WAN for stable broadband or switch to 5G/4G as a backup, ensuring uninterrupted internet.
Basic Info
Default IP: //192.168.40.1
Login: //wavlogin.link
2.4G/5G SSID: WAVLINK-Mesh_XXXX
Specification
1.Model: WL-WNF100X3NR-B

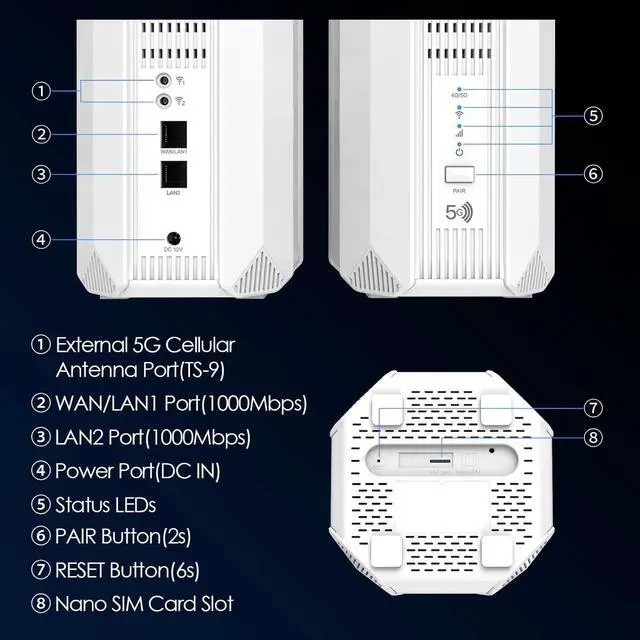

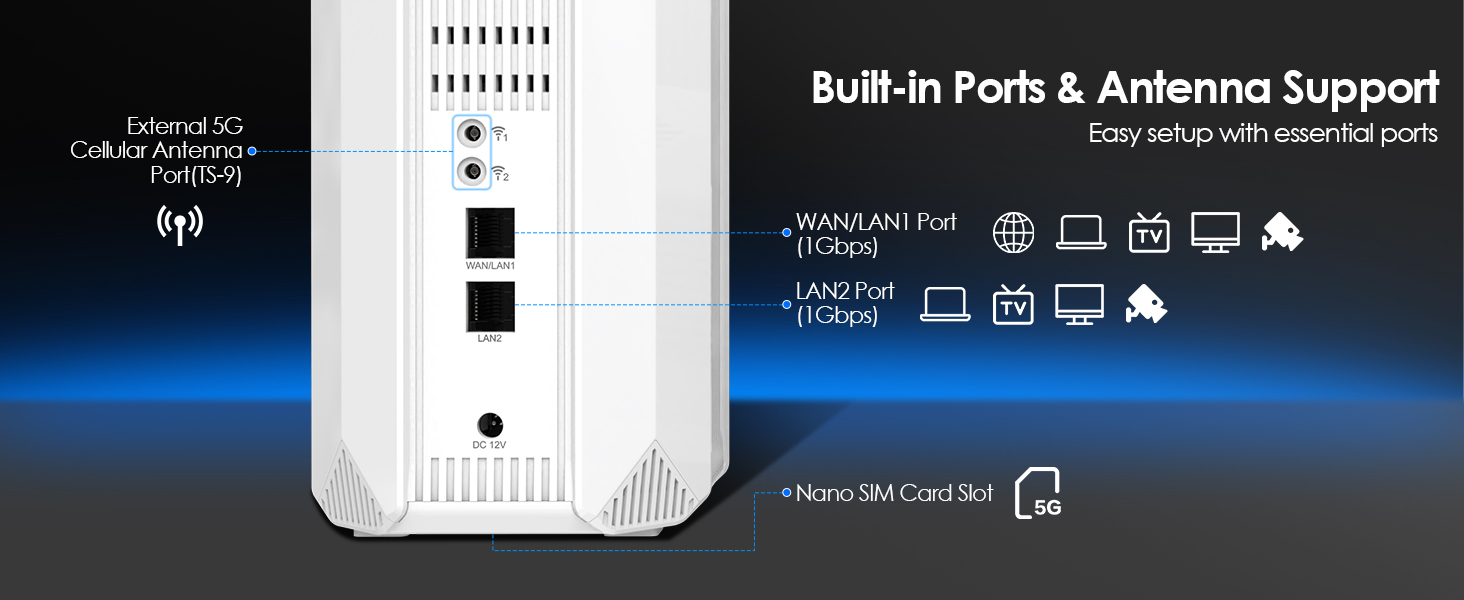

2.Ports: 2 x External 5G Cellular Antenna Port(TS-9), 1 x WAN/LAN1 Port(1000Mbps), 1 x LAN2 Port(1000Mbps), 1 x Nano SIM Card Slot, 1 x Power Port(DC IN)
3.Buttons: 1 x PAIR Button(2s), 1 x RESET Button(6s)
4.Status LED: 1 x 4G/5G LED, 1 x Wi-Fi LED, 1 x SSI(Signal Strength Indicator) LED, 1 x Power LED
5.Power Adapter: DC 12V/2A 24W
6.Antenna: 9x Internal Omni Directional Antennas
7.Wireless Standards: IEEE 802.11b/g/n/a/ac/ax
8.Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
9.Wireless Security: WPA3/WPA2-MIX,WPA2-PSK,WPA PSK/WPA2 PSK-MIX,WPA/WPA2-Enterprise
10.Unit Size: 10.5x10.5x20cm/4.1x4.1x7.9in(L x W x H)
Features
- Supports SA/NSA dual-mode networking and large global 5G frequency bands, compatible with 4G LTE, and supports 3GPP R16 to achieve a smoother, more stable Internet connection.

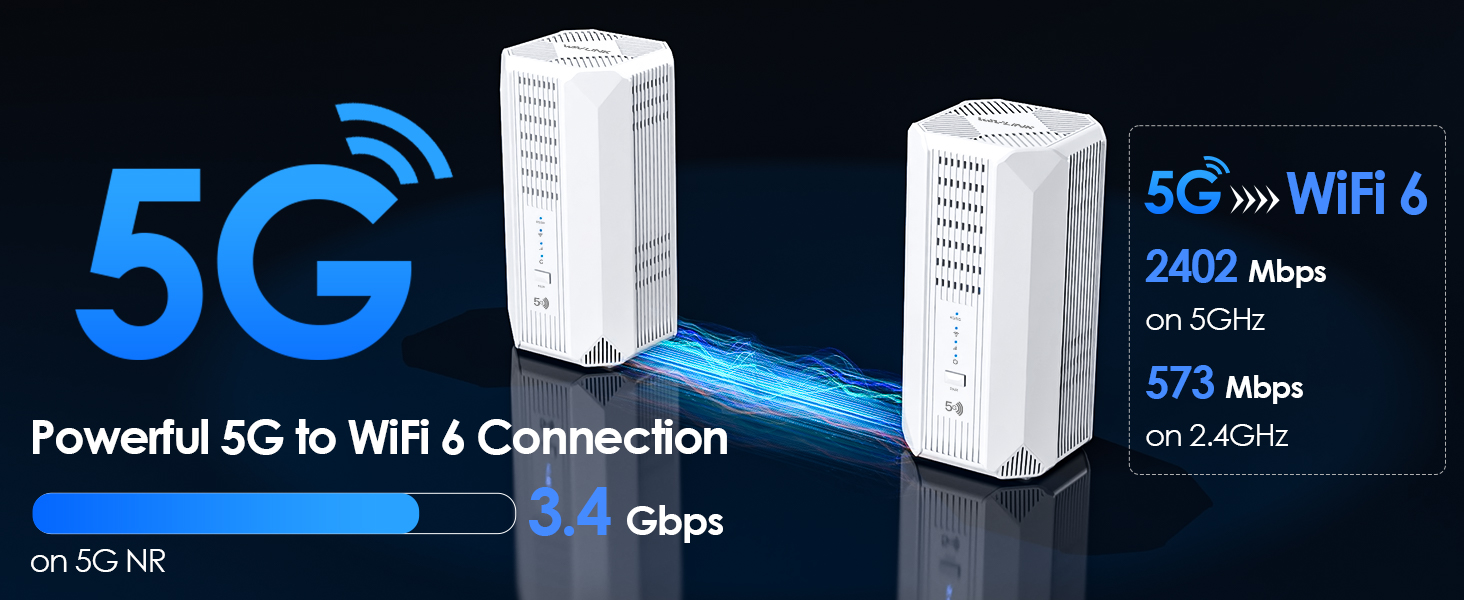

- Supports 5G NR connections at the speed up to 3.4Gbps.
- Supports Wi-Fi 6 technology, super fast dual-band Wi-Fi with speeds up to 2402 Mbps on the 5 GHz band and 573 Mbps on the 2.4 GHz band.
- Supports automatic detection of 5G/WAN Internet connections.
- 9x Internal antennas provide an omni-directional and stable signal and superior wireless performance.
- Supports PPTP, L2tp, OpenVPN, and WireGuard and encrypts all network traffic within the connected network to secure the network when connecting to a public Wi-Fi. Maximum VPN speed: 150 Mbps (OpenVPN); 300 Mbps (WireGuard).
- 1x1G Ethernet for Internet, 1x1G Ethernet for computers, game consoles, streaming players and other wired devices.
In the Box
1 x AX3000 Dual-Band 5G NR Mesh Router
1 x Power Adapter
1 x Ethernet Cable
1 x Quick Start Guide
