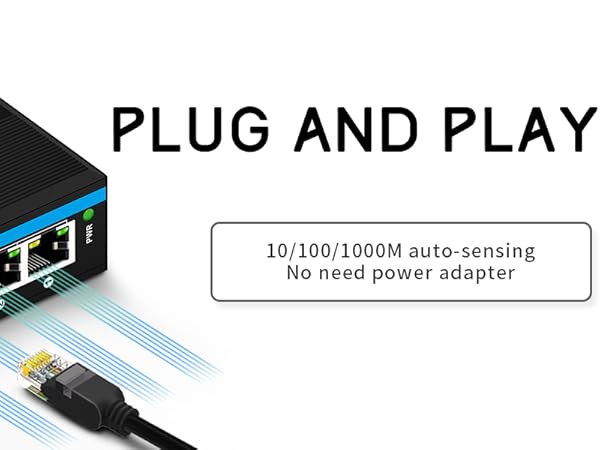

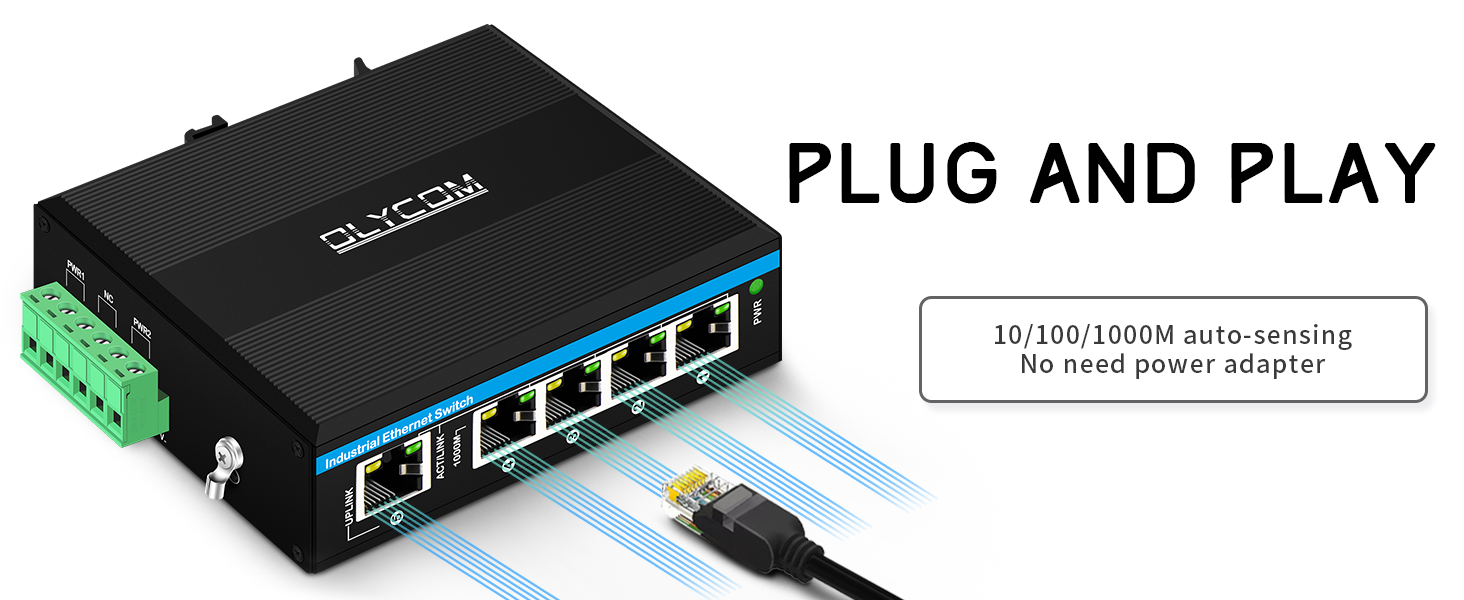

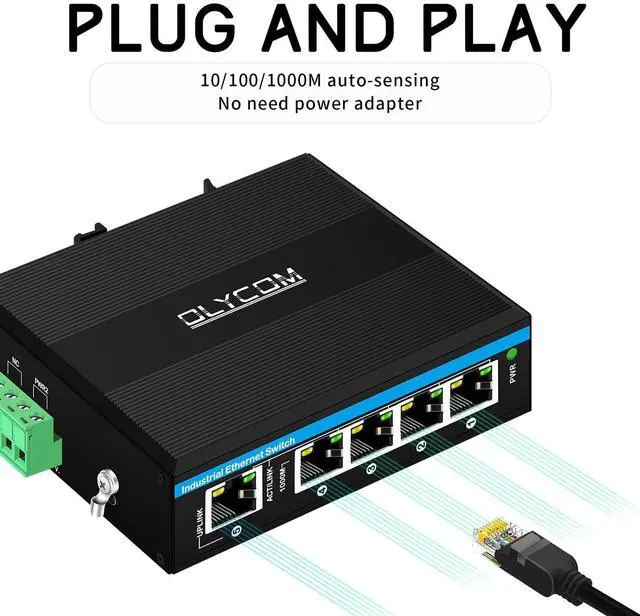

Does this Industrial Poe Extender need a power adapter?
No, it doesn't.

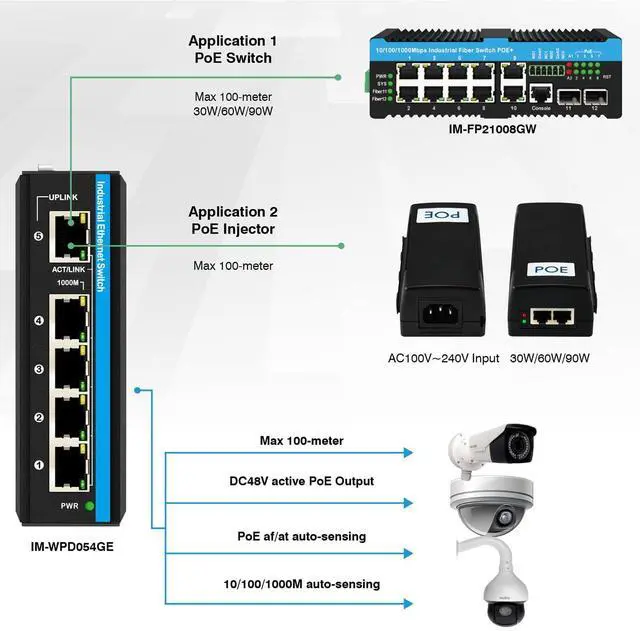

How does this 5port Poe extender work?
The Poe switch/injector connects with the Port 5 and provide the power and data. The Port 1-4 split the power and data to other Poe devices.
How long the distance does the Poe extender extend?
1pc Industrial Poe extender can extend 100m (330ft), and can cascade 3pcs. So the total distance can be 400m (1312ft) at most.
How many power does it need? and provide?

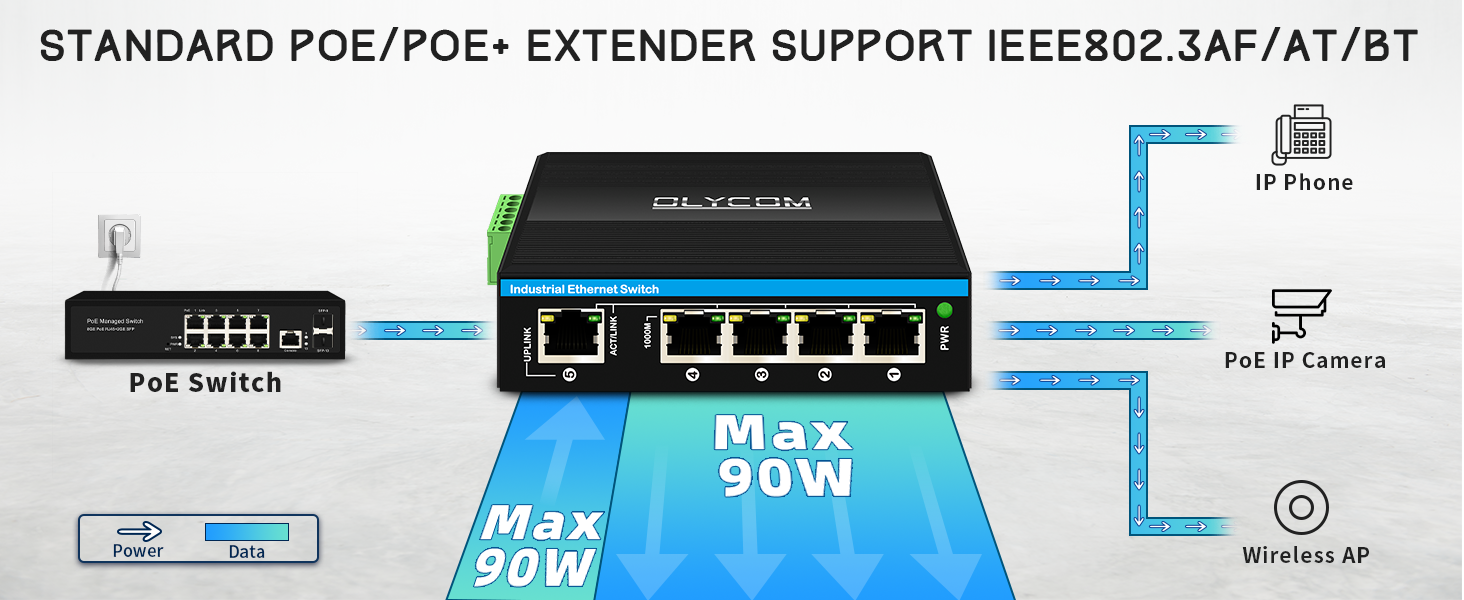

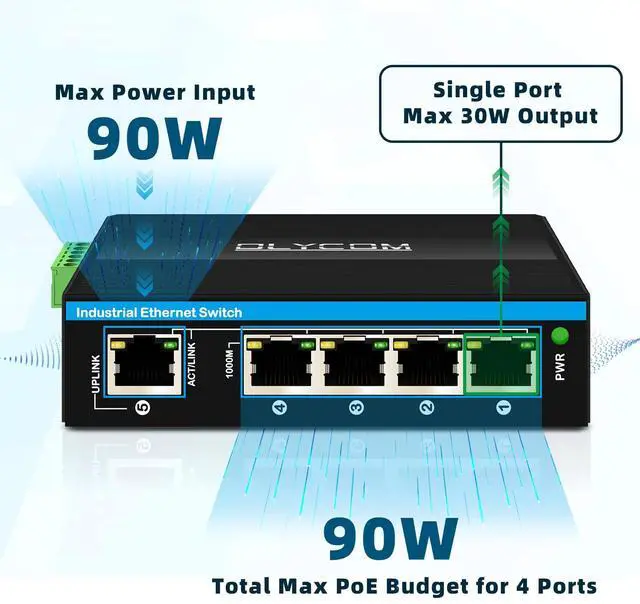

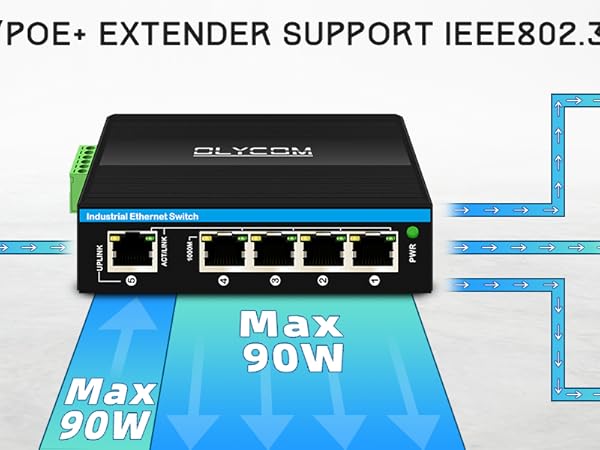

The 5port Poe extender requires for 48VDC 90W input, and can provide 48VDC 90W output for 4pcs downlink Poe ports. The Max power of one downlink port is 30W Max. If the input power is 30W/60W, the Max output power is 30W/60W.
| Rate | 10/100/1000M Full Gigabit Ethernet |
|---|---|
| PoE Input | 1* Poe network port |
| Power Input | 90W Max |
| PoE Output | 4* network port Poe |
| Power Output | Total 90W Max ( 30W max for single port) |
| Transmission Distance | 100m (330ft), support 3 level cascading and can reach 400m (1312ft) |

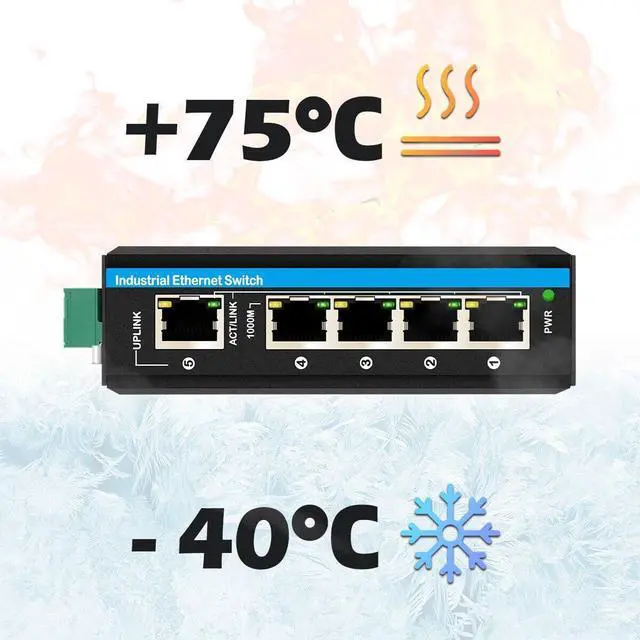

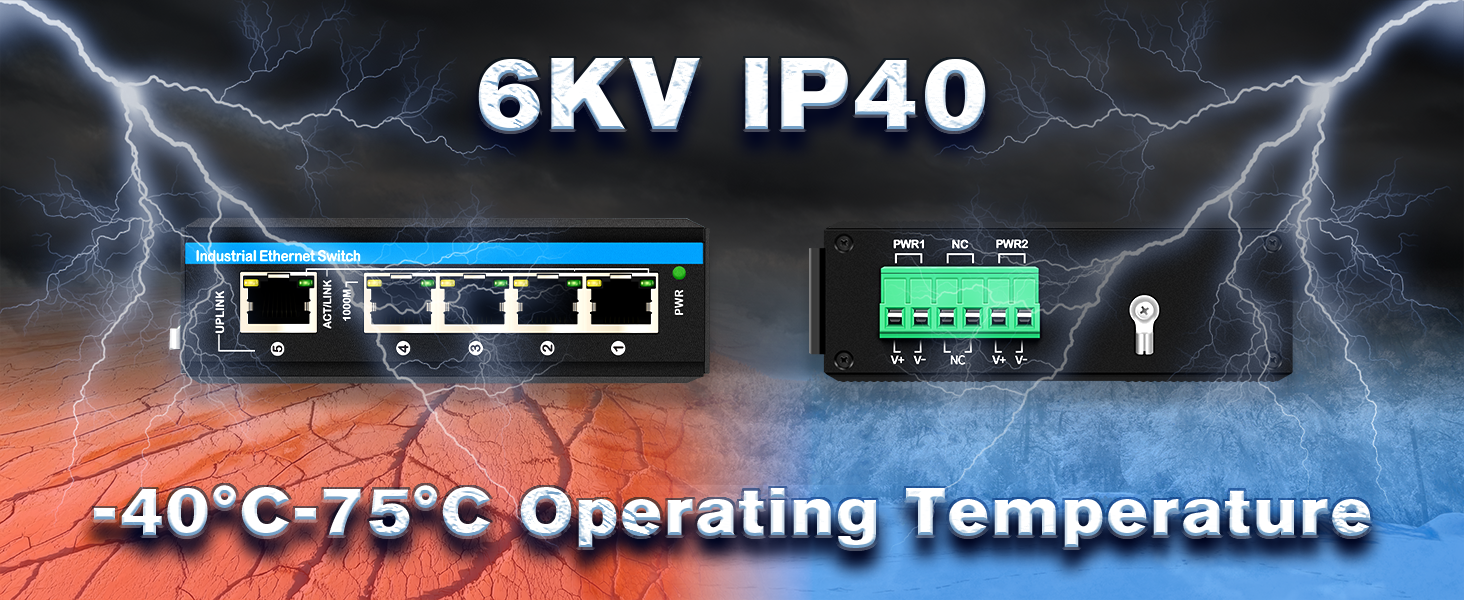

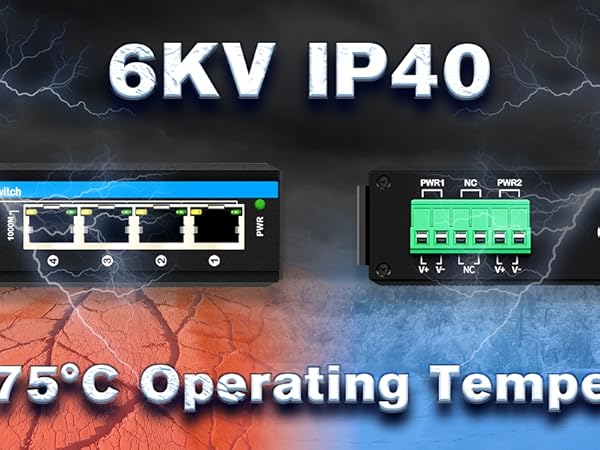

| Working Temperature | -40~75?(-40~167°F) |
| Shell | IP40 protection grade, metal shell Transmission |
