Sipeed NanoKVM-PCIe IP-KVM Remote Control Operations Maintenance Server, DDR3 RISC-V Linux Development Board, 1TOPS NPU 1GHz SG2002 RISC-V CPU, HDMI USB 100M Network Port (NanoKVM-PCIe ETH)
- [Remote Control OM Server] Sipeed Lichee NanoKVM-PCIe IP-KVM Remote Control Operations and Maintenance Server is an IP-KVM product based on LicheeRV Nano RISC-V Linux Single Board Computer, which inherits the extreme size and powerful functions of LicheeRV Nano. It supports MJPEG, H264(WIP) video encoding, 1080P 60fps resolution, 90~230ms video latency, onboard 100M/10M Ethernet port, Size: 66x57x18mm.
- [Meet the Different Needs Of Users] Sipeed NanoKVM-PCIe remote control server is based on NanoKVM Cube IP-KVM with optional WiFi, PoE function (optional), PCIe slot, which can be accessed from the motherboard PCIe slot, and more stable wired connection (ETH) to meet the needs of more professional. In order to meet the different needs of users, NanoKVM-PCIe provides two optional modules, WiFi and PoE, which can be freely selected.
- [Support 100M/10M Hundred Gigabit Ethernet] Sipeed Lichee NanoKVM-PCIe IP-KVM RISC-V Linux Development Board comes standard with a 100M Ethernet port for network transmission of video, control signals, etc. In addition, the Full version also comes with an ATX power control port (USB-C form factor) for remote control and host switching status, and an OLED display underneath the Full version's casing for displaying local IP and KVM-related status.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
-Tips-

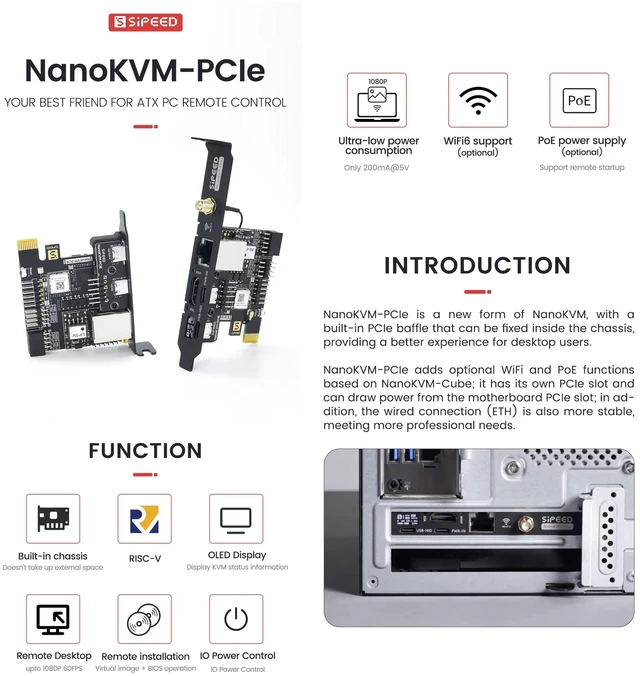

NanoKVM-PCIe is the new form factor of NanoKVM-Cube IP-KVM Maintenance Server, it comes with PCIe board, which can be fixed inside the chassis to provide a better experience for desktop users. HDMI to CSI board is used to convert HDMI signal.
NanoKVM-PCIe is based on NanoKVM-Cube IP-KVM Maintenance Server with optional WiFi, PoE function (optional), PCIe slot, which can be accessed from the motherboard PCIe slot, and wired connection (ETH) is more stable, which is in line with the needs of more professional.

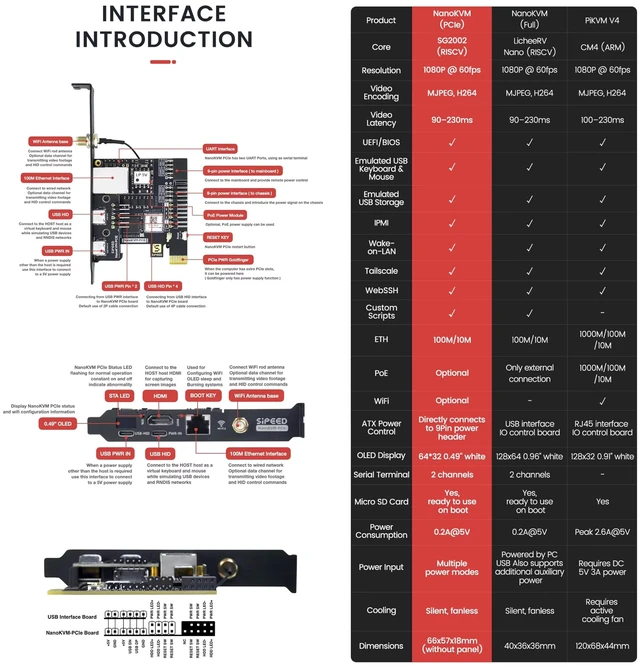

-Specification-
NanoKVM (PCIe) Version:
Computing UnitSG2002(RISCV)
Resolution1080P @ 60fps
Video Encoding90-230ms
Support
UEFI/BIOS
Emulated USB Keyboard/Mouse
Emulated USB Storage
IPMI
Wake-on-LAN
Tailscale
WebSSH
Custom Scripts
ETH100M/10M
ATX Power ControlUSB interface IO control board
OLED Display128x64 0.96" white
Serial Terminal2 channels
Micro SD CardIncluded, ready to use
Expansion AccessoriesWiFi or PoE
Power Consumption0.2A@5V
Power InputPowered by PC USB/POE/PCIe
Supports auxiliary power
CoolingSilent, fanless
Dimensions66x57x18mm

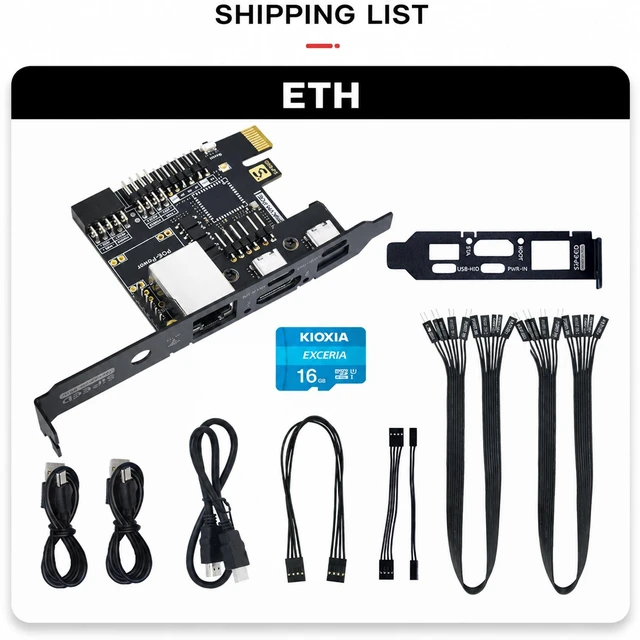

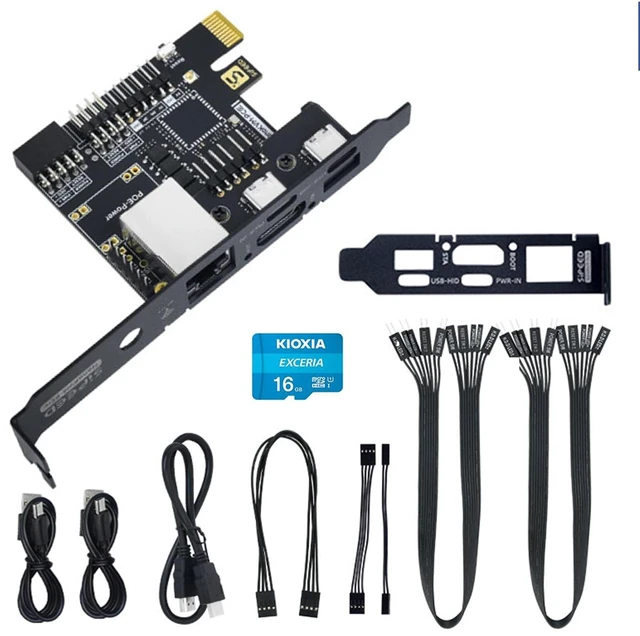

-Package Content-
Shown as picture Combo x1
-Technical Support-
User Guidewiki.sipeed.com/hardware/en/kvm/NanoKVM/user_guide.html
Getting Startwiki.sipeed.com/hardware/en/kvm/NanoKVM/quick_start.html
OS System: "wiki.sipeed.com/hardware/en/kvm/NanoKVM/system/introduction.html"
