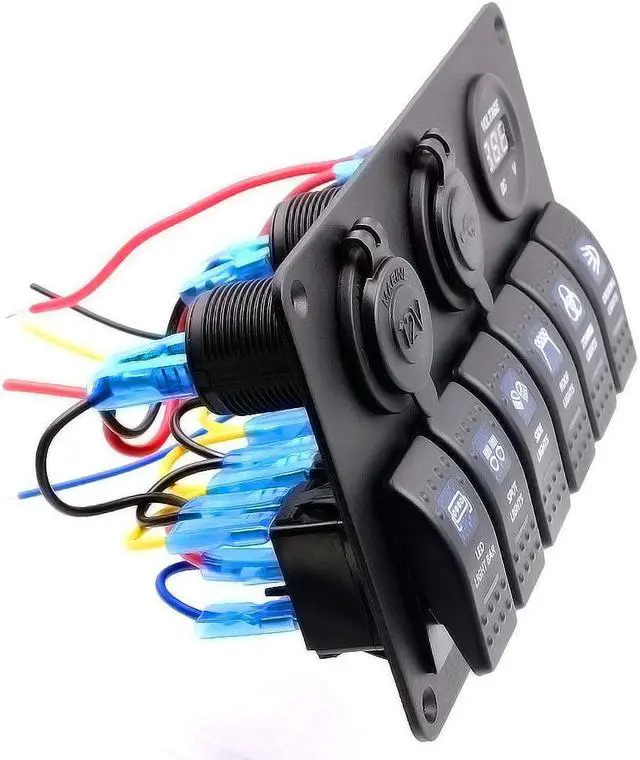

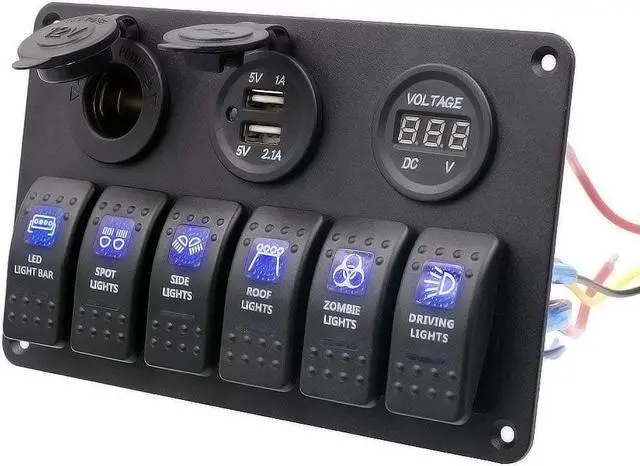

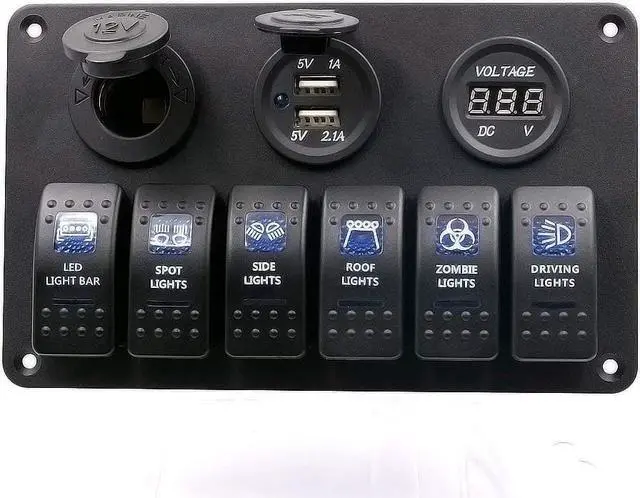

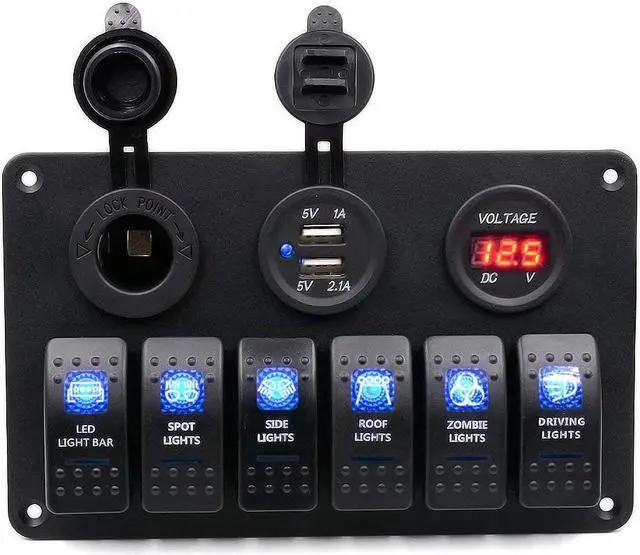

Highlights: 6 Blue LED illuminated Rocker Switch with Rubber Seals for outdoor and marine task, Short circuit / Overheat protection. 12V Cigarette Socket & 3.1A Dual USB Power Charger fullfill all kinds of charging needs. Suitable for 12V/24V Systems, Panel is pre-wired, Includes 4x Stainless Steel Screw. IP67 Waterproof, Rhos and CE Certify, Totally Environment Friendly.
Product Dimensions: 18cm x 11cm x 7.5 cm ( 7.08 in x 4.33 in x 2.95 in), Portiforium
Dimension: 15cm x 8.5 cm ( 5.9 in x 3.35 in).
Specification:
Material: ABS, Aluminium
Plate Weight: 457G
Voltage: 12V-24V
Max Output Power: 240W
Overload protection: 12V 20A DC; 24V 10A DC
Operating Temperature: -25 degree to 80 degree
Electrical Life: 10000 make and break cycles at full load

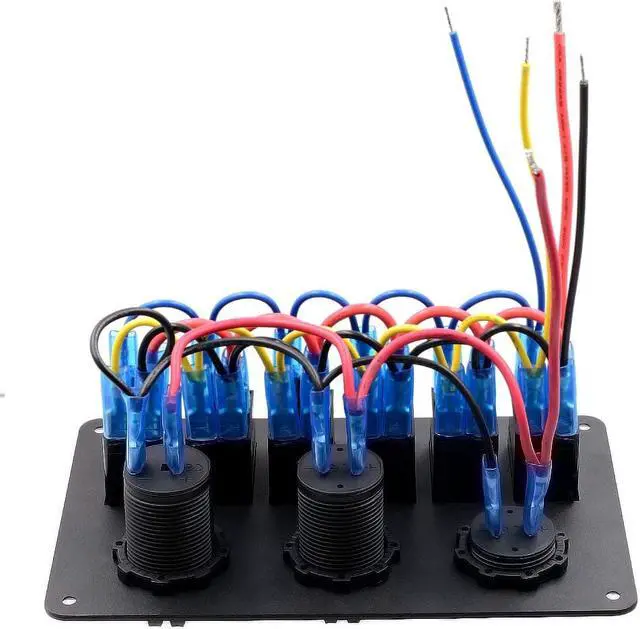

Wiring Connection: The
Blue wire: connect the cathode of the storage battery.
The Yellow wire: connect the anode of the storage battery. Sheet Copper£ºconnect the load generator.
The Red wire: connect the cathode of the storage battery.
The Black wire: connect the anode of the storage battery.
What is included: 1 x Digital Voltmeter+12V Cigarette Socket +Double USB Power Charger Adapter Waterproof Flush Mount 6 Gang Rocker Switch Panel 4 x Stainless Steel Screw
