Ethernet Splitter 1 to 2 with USB-C Power - Expand Your Network Connections
This powered Ethernet splitter solves the common problem of limited network ports by converting one Ethernet connection into two fully functional ports, powered by the included USB-C adapter for reliable performance without bandwidth sharing limitations.
Technical Specifications:
- Input Interface: 1 x RJ45 (10/100/1000Mbps)
- Output Interfaces: 2 x RJ45 (10/100/1000Mbps)
- Power Supply: USB-C powered adapter (included)
- Cable Compatibility: Cat5, Cat5e, Cat6, Cat6a, Cat7, Cat8
- Recommended Cable: Cat6 for optimal performance
- Connector Type: Gold-plated RJ45 connectors
- Housing Material: Aluminum alloy casing
Compatible Devices:
This powered network adapter works with a wide range of networking equipment and devices:
- Internet Service Equipment: Starlink terminals, ADSL modems, cable modems
- Network Infrastructure: Routers, network switches, wireless bridges, media converters
- Entertainment Systems: Smart TVs, streaming boxes, set-top boxes, gaming consoles
- Computing Devices: Desktop computers, laptops, NAS devices, network printers

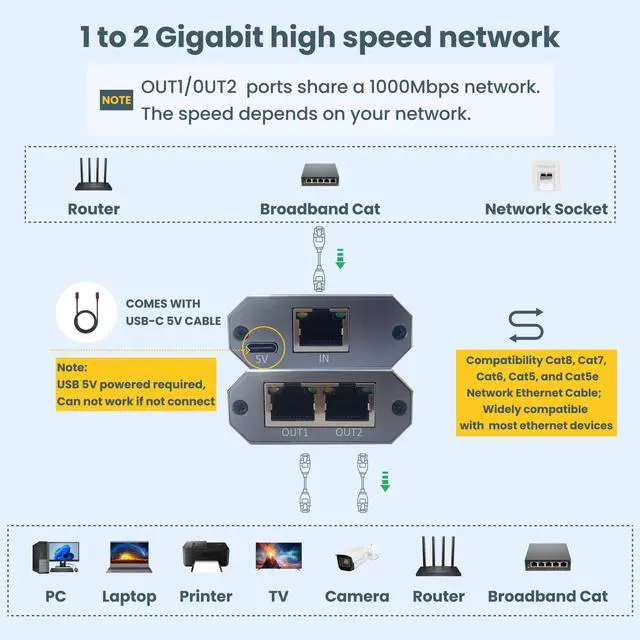

Setup Instructions:
- Connect the included USB-C power adapter to the splitter's power port
- Plug the power adapter into any USB power source (wall adapter, computer USB port, etc.)
- Connect one end of your Ethernet cable to your network source (router, modem, etc.)
- Connect the other end to the splitter's input port
- Connect your two devices to the splitter's two output ports
- Both devices will now have independent network connections
Important Note: For best performance, use Cat6 or higher quality Ethernet cables. While this device works with Cat5/Cat5e cables, maximum Gigabit speeds require Cat6 or better cabling throughout your network setup.
Product information
| Compatible Devices | ADSL, hubs, switch, TV, set-top box, router, wireless device, computer, etc, Cat 5/6/7/8 Cable |
| Specific Uses For Product | This ethernet cable splitter allows a network connection to be split into two outputs, but with a maximum throughput of 1000 Mbps per cable set (1 and 2), plus there is no crosstalk between the signaling of the two cable sets. |
| Connector Type | USB Type A |
| Color | silver gray |
| Item dimensions L x W x H | 2 x 0.5 x 2 inches |
| Product Dimensions | 2 x 0.5 x 2 inches |
| Item Weight | 2 ounces |
| Item model number | 1GB Ethernet Splitter 1 to 2 |
| Date First Available | September 17, 2024 |
| Manufacturer | WinRaybot |
