Winsis KY-500ATX 400 W ATX12V Power Supply
- ATX12V
- 115 / 230 V 50/60 Hz
- +3.3V@30A,+5V@40A,+12V@18A, [email protected],[email protected],+5VSB@3A
Specs
Reviews (20)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Winsis KY-500ATX
| Brand | Winsis |
|---|---|
| Model | KY-500ATX |
| Type | ATX12V |
|---|---|
| Maximum Power | 400 W |
| Fans | 1 x 120mm Fan |
| PFC | No |

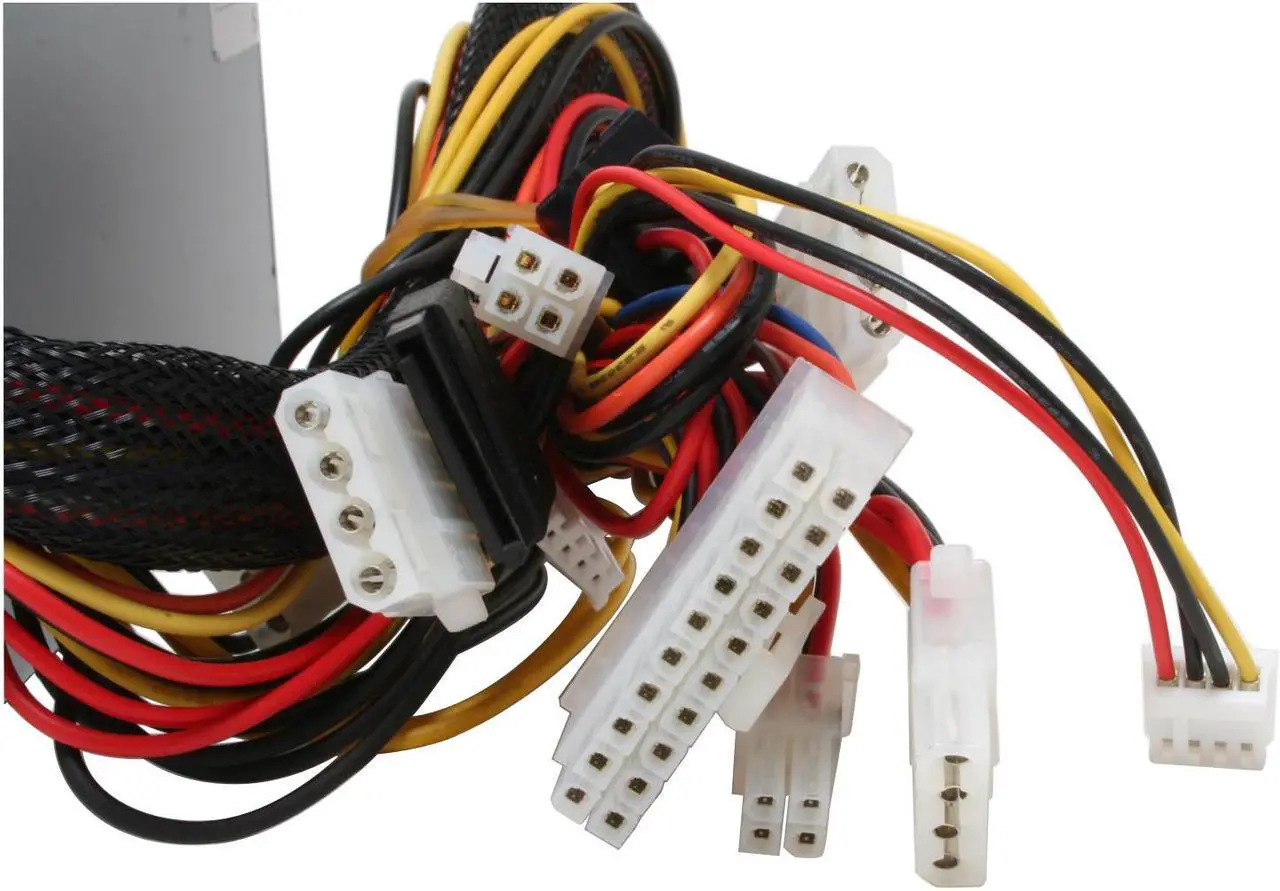

| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | No |
| SLI | No |
| CrossFire | No |
| Modular | No |
| Hold-up Time | 17ms min. |
| Efficiency | 85% at full load |
| Over Voltage Protection | Yes |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A @ 115V, 5A @ 230V |

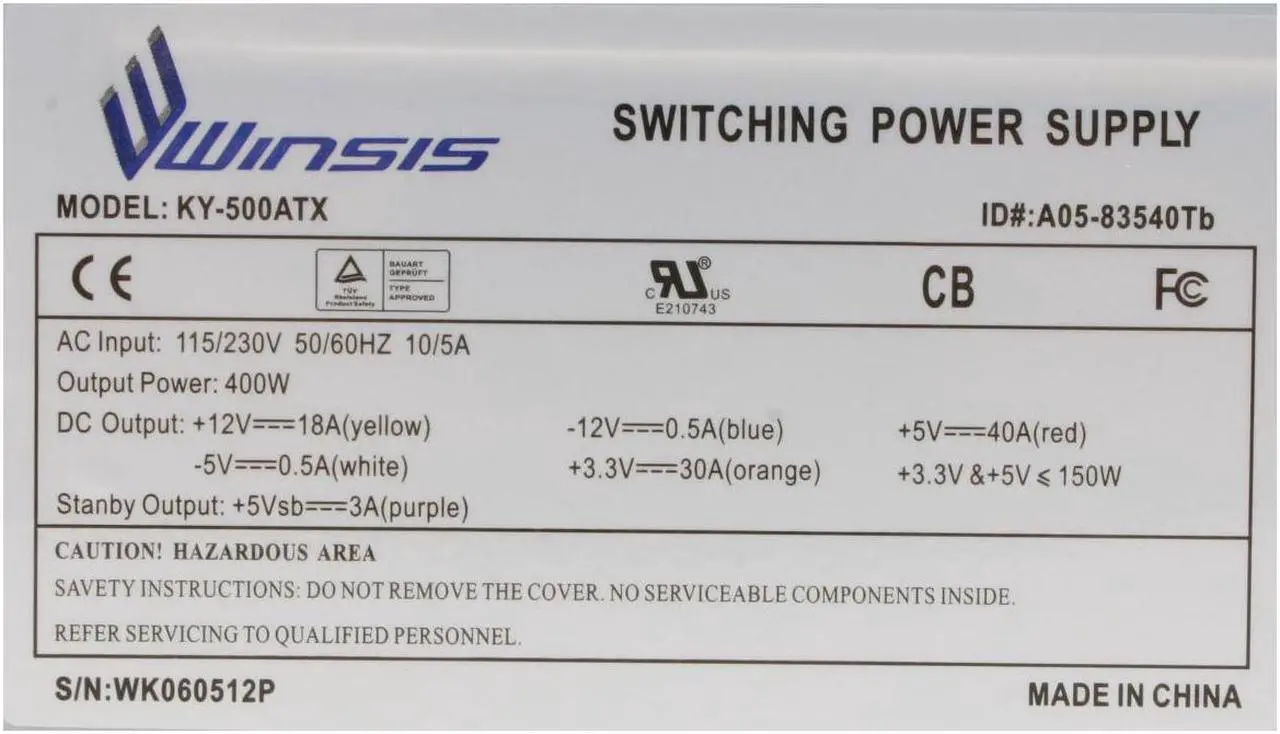

| Output | +3.3V@30A,+5V@40A,+12V@18A, [email protected],[email protected],+5VSB@3A |
| Approvals | UL, CB, FCC, TUV |
| Features | High efficiency Low noise and ripple Short-circuit protection on all outputs 100% burn-in under high ambient temperature |
|---|
| First Listed on Newegg | September 22, 2006 |
|---|
