2U Rackmount 1000-CH Video Streaming Media Server, 4000 Concurrent Streams Gateway, 40-CH 1080p Transcoding, RTSP RTMP WebRTC Bridge, 4x LAN, 4000Mbps for Enterprise & Campus Media Distribution
- -1000-Channel Video Ingest & 4000 Concurrent Clients: Supports processing up to 1,000 IP video input channels and streaming to up to 4,000 concurrent client endpoints, backed by a total aggregate throughput of up to 4,000 Mbps (actual throughput depends on protocols and bitrates).
- -Hardware Video Transcoding: Features onboard video hardware processing capable of real-time transcoding for up to 40 channels of 1080p high-definition video streams (H.264 / H.265).
- -Quad Gigabit Ethernet & Multi-Protocol Gateway: Equipped with 4 x RJ45 network ports for optimized traffic routing across multiple VLANs. Supports comprehensive protocol conversion, including RTSP, RTMP, HTTP, WebRTC, ONVIF, and GB28181.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description

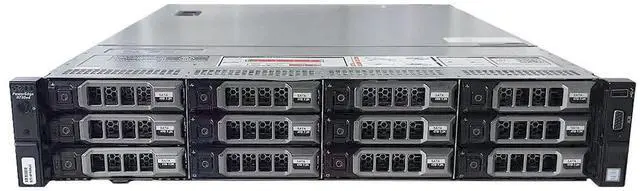

Enterprise-Grade 1000-Channel 2U Streaming Media Server & Gateway

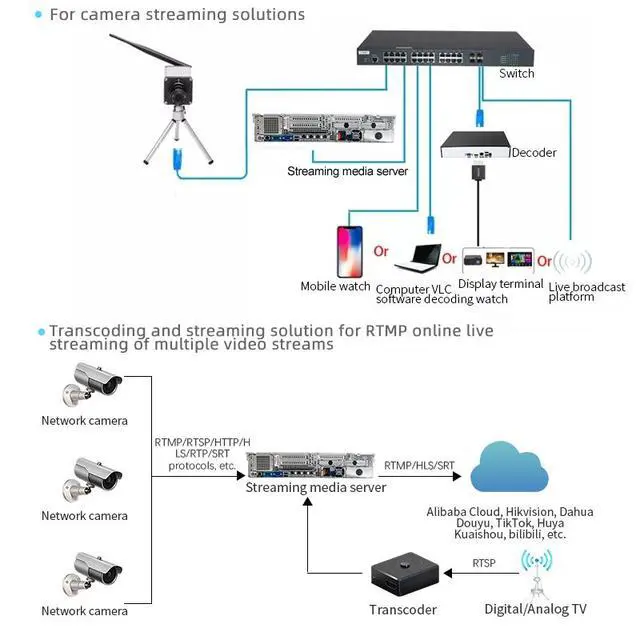

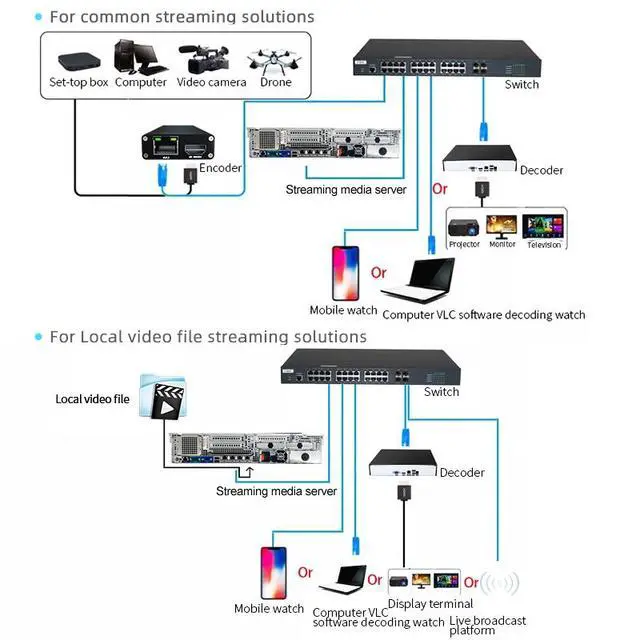

Engineered for large-scale video monitoring, broadcast hubs, and multi-stream distribution, the XSWTVS-4000M1000CH/F is a robust 2U rackmount streaming media server. It acts as a versatile protocol gateway, bridging diverse video protocols across local networks and cloud architectures with high stability and throughput.
Hardware Architecture & Processing Power
This hardware foundation ensures smooth multitasking when handling high-density video inputs, stream forwarding, and network distribution. For format compatibility, the server supports hardware video transcoding (H.265/H.264) for up to 48 streams, allowing operators to normalize incoming feeds for lower-bandwidth delivery or client playback.
Stream Capacity & Multi-Protocol Routing
The system is built to ingest up to 1,000 video channels and deliver feeds to up to 4,000 concurrent client endpoints, managing a maximum total throughput of 4000Mbit. It offers comprehensive protocol conversion:
Hardware Video Re-encoding & Storage
For video stream normalization and bandwidth reduction, the server supports hardware re-encoding (H.264/H.265) for up to 40 channels at 1080p resolution. Audio formats supported include AAC, G.711, MP3, and AC3 for input, with standard AAC output. The 2U chassis accommodates up to 11x 16TB hard drives for high-capacity continuous video recording and playback.
Key Specifications:
- Model: XSWTVS-4000M1000CH/F
- Max Video Input Channels: 1000
- Max Concurrent Endpoints: 4000
- Re-encoding Capacity: Max 40 Channels 1080p (H.264 / H.265)
- Max Aggregate Throughput: 4000Mbit
- Network Interfaces: 4 Ports
- Storage Support: Up to 11x 16TB Drives
- Audio Encoding: Input (AAC/G.711/MP3/AC3), Output (AAC)
| Model | XSWTVS-4000M1000CH/F |
| Max Video Channels | 1000 Channels Input |
| Max Concurrent Viewers | 4,000 Concurrent Viewing Endpoints |
| Max Total Bandwidth | Up to 4000 Mbps (Varies by protocol & codec) |
| Hardware Transcoding | Up to 40-Channel 1080P Real-Time Transcoding |
| Network Device Discovery | ONVIF Protocol Supported |
| Network Input Protocols | HTTP / RTSP / RTMP / RTP / UDP-TS / GB28181 / WEBRTC |
| Network Output Protocols | HTTP-FLV / RTSP / RTMP / RTMPS / UDP-TS / HLS / WS-FLV / WS-RAW / ONVIF / GB28181 / WEBRTC |
| Video Codecs (In/Out) | H.264 / H.265 |
| Audio Codecs (In/Out) | Input: AAC / G.711 / MP3 / AC3 | Output: AAC |
| Storage & Recording | Supports up to 11x 16TB HDDs (Internal installation pre-configured) |

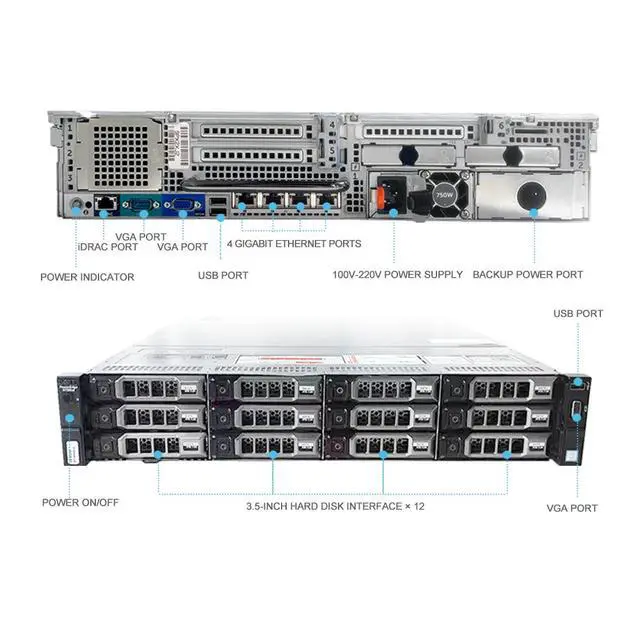

| Ethernet Interfaces | 4x Gigabit RJ45 Ethernet Ports |
| Management & UI Language | Web Management, Remote Parameter Config & Playback (English / Chinese) |
| Power Supply & Temp | AC 100-240V | Operating Temp: 0°C ~ 70°C |
| Dimensions & Weight | 2U Rackmount: 700 x 90 x 450 mm | Weight: 17.25 kg |
