32-Channel IP Video Stream Protocol Converter, H.265/H.264 Streaming Transcoder, Supports SRT/RTMP/RTSP/ONVIF/GB28181/WebRTC

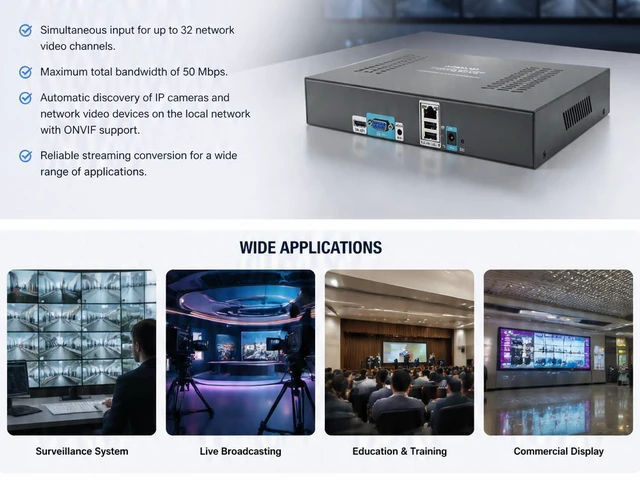

- -32-Channel IP Stream Ingestion: Supports simultaneous input for up to 32 network video channels with a maximum total bandwidth of 50 Mbps.
- -Automated Device Discovery: Built-in ONVIF support for automatic detection and discovery of IP cameras and network video devices on the local network.
- -Cross-Protocol Streaming & Conversion:
- Input Protocols: HTTP, RTSP, RTMP, RTP, UDP-TS.
- Output Protocols: HTTP-FLV, RTSP, RTMP, UDP-TS, HLS, WS-FLV, WS-RAW, WebRTC, ONVIF, and GB28181 Client.
- -Audio & Video Processing:
- Video Formats: Supports H.264 and H.265 video input/output decoding and encoding.
- Audio Formats: Accepts AAC, G.711, MP3, MP2, and OPUS audio inputs, re-encoding them into standardized AAC output.
- -Local Recording: Support
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
XSWTVR-50M32CH 32-Channel IP Streaming Converter

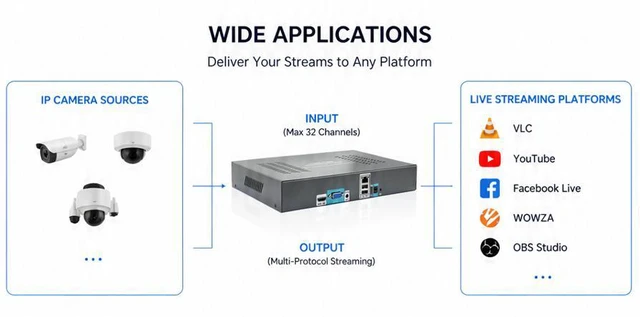

The Xstrive XSWTVR-50M32CH is a high-performance audio video converter designed for professional network video streaming and management. Supporting up to 32 IP channels, this unit seamlessly handles multiple video and audio streams with input and output encoding in H.264 and H.265, ensuring efficient bandwidth utilization and high-quality transmission. Compatible with a wide range of network protocols, including ONVIF, HTTP, RTSP, RTMP, and more, it provides exceptional flexibility for integration with diverse surveillance or broadcasting systems.
Features
- Supports 32-channel IP video input and output
- Wide protocol compatibility: HTTP, RTSP, RTMP, UDP-TS, HLS, WebRTC, ONVIF, and more
- Input audio formats: AAC, G.711, MP3, MP2, OPUS
- Local recording
- Remote upgrade and management capabilities
This converter is ideal for IT professionals and organizations seeking robust, scalable, and reliable IP streaming solutions in the computer hardware industry.
Technical Specifications
| Feature / Specification | Technical Parameter |
| Network video input protocol | HTTP/RTSP/RTMP/RTP/UDP-TS |
| Network video output protocol | HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/ONVIF/GB28181 client |
| Input video encoding format | H.264/H.265 |
| Input audio encoding format | AAC/G.711/MP3/Mp2/OPUS |
| Output video encoding format | H.264/H.265 |
| Output audio encoding format | AAC |
| Maximum number of network video channels | 32 |
| Maximum total code rate | 50Mbit(specifically, it will vary due to different protocols and encoding formats) |
| Video recording | Supports a maximum of 1×16T hard disk |
| Remote upgrade | Support |
| Remote management | Support remote modification of device parameters and remote playback of device recordings |
| Dimension | 270x216x45mm |
| Weight | 1051g |
| Power Supply | DC-12V |
| Working temperature | 0~70 |
